Fanatec Formula V2 encoder knob

Annotation 2020-08-20 103040.jpg Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z Screenshot bottom.jpg Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z Screenshot top.jpg Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z Annotation 2020-08-20 103606.jpg Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z Annotation 2020-08-20 103740.jpg Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z Annotation 2020-08-20 103654.jpg Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z
V2 MPS Knob.stl Download STL file Fanatec Formula V2 encoder knob • 3D printing model, Matt260z
Make
?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 2 likes
  • 15 downloads

3D model description

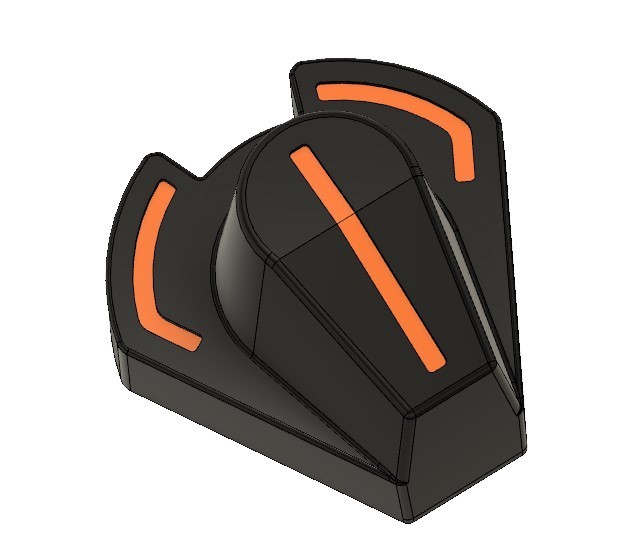

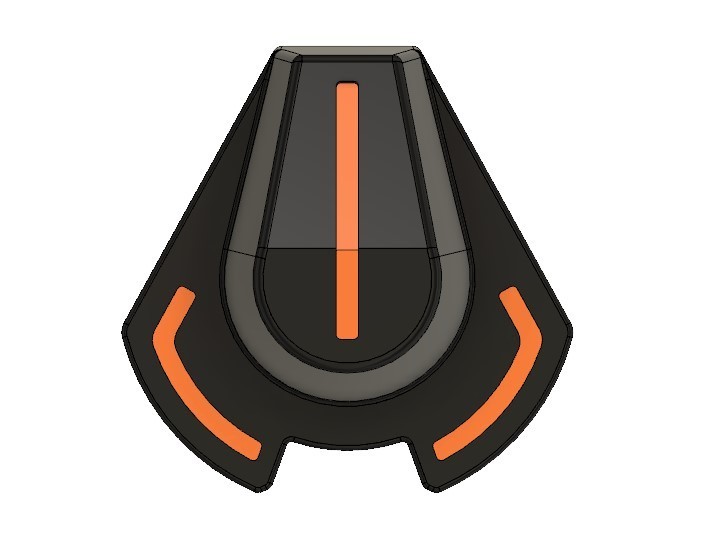

Replacement knob to fit Fanatec formula V2 encoders.

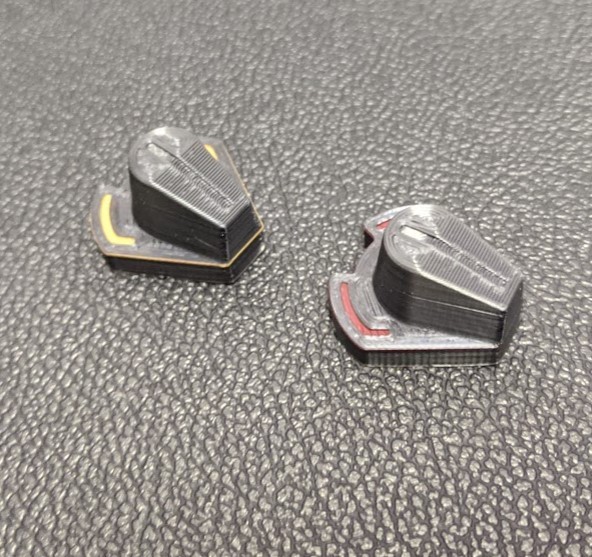

Use a filament change mid print to customise the colour of the base inlay.

Known common fault with the V2 is that the encoder knob cracks. Mine were replaced under warranty however there was a long lead time so i modelled my own replacement until the new one arrived.

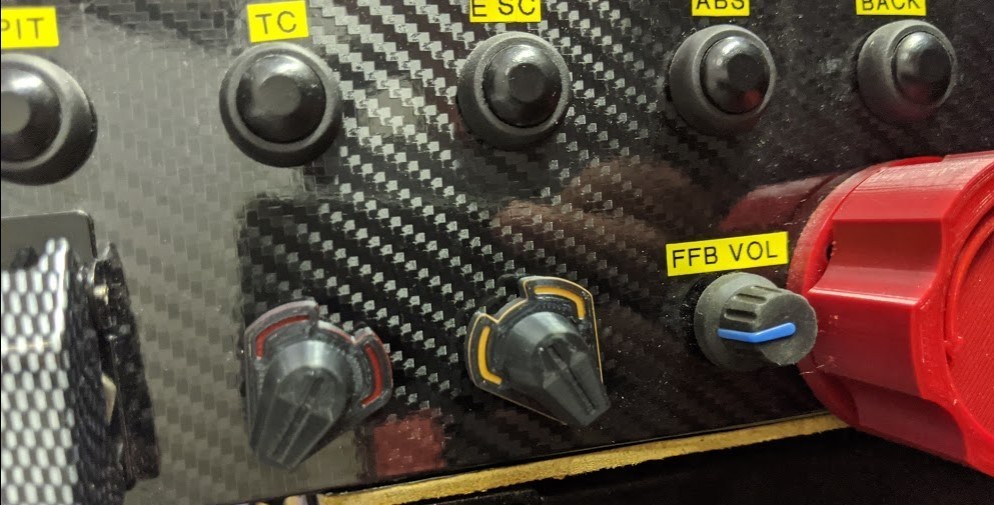

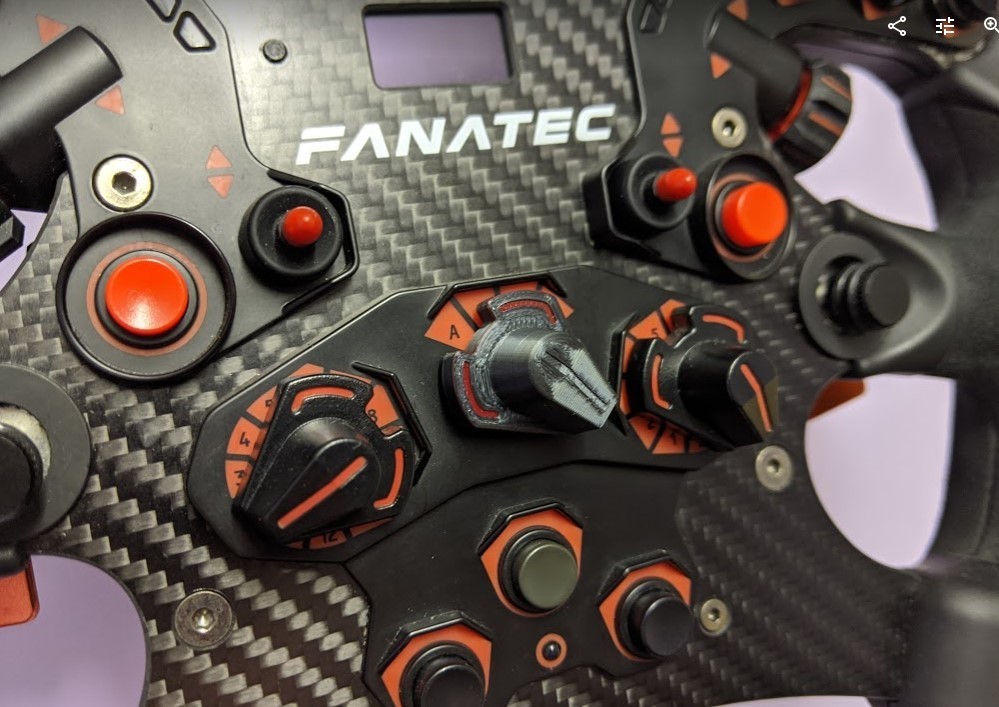

Tested on a Formula V2 but will fit the limited edition wheels or any other 6mm D shaft type encoder - I've used them on my button box too.

3D printing settings

Tested using eSun PLA+
0.4 Nozzle
0.12 Layer Height
3 wall thickness

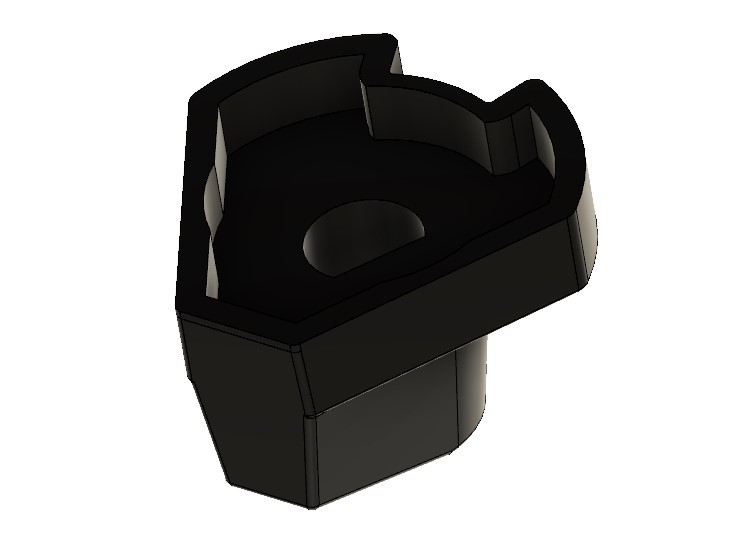

Use supports but put blocker in the middle to stop D shape end being supported for a clean result.
Use a filament change for customized coloured inlays.

  • 3D file format: STL
  • 3D model size: X 22.1 × Y 22.3 × Z 15 mm
  • Publication date: 2020/08/20 at 11:43
