Ethernet Port Protector Plug - Reserve / Protect an Ethernet Port

Download free 3D printing files Ethernet Port Protector Plug - Reserve / Protect an Ethernet Port, Muzz64Download free 3D printing files Ethernet Port Protector Plug - Reserve / Protect an Ethernet Port, Muzz64Download free 3D printing files Ethernet Port Protector Plug - Reserve / Protect an Ethernet Port, Muzz64Download free 3D printing files Ethernet Port Protector Plug - Reserve / Protect an Ethernet Port, Muzz64
Download free 3D printing files Ethernet Port Protector Plug - Reserve / Protect an Ethernet Port, Muzz64

Did you 3D print this model?

3D model description

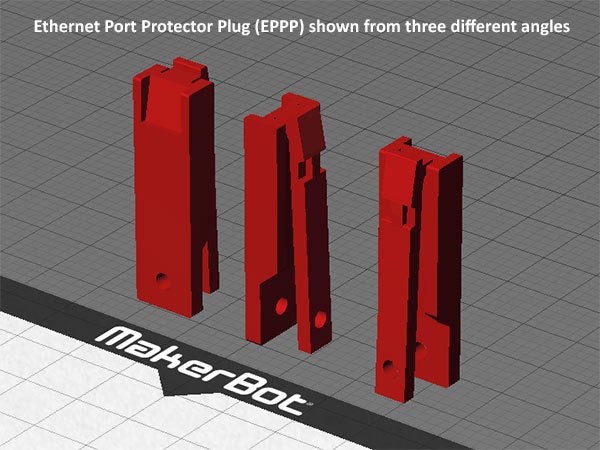

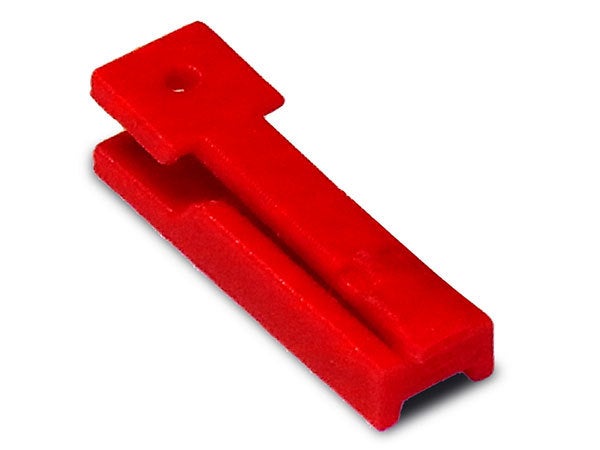

IT professionals will appreciate this print. The Ethernet Port Protector Plug (EPPP) lets you reserve/label/protect a port as well as find it easily amongst the 'spaghetti' of other network cables.

Protect or reserve an Ethernet (RJ45) socket with this plug. Printed on a Replicator 2 it snaps securely into position like any Ethernet plug. When printed in a bright colour it stands out from the 'spaghetti' so is easy to find, has sufficient length to make it easy to insert/remove but is short enough that it won't stop a server cabinet door from closing.

The EPPP also has holes that allow a tag to be attached with cable ties or a rubber band so information / notes can be made for quick and easy reference.

If you like this take time to check out my other designs!

3D printing settings

On a Replicator 2 (PLA) print at standard resolution (0.20mm) with 4 shells and 50% infill with Raft on. The EPPP prints upright so the build plate contact patch is small. For this reason, if adhesion issues are a problem, printing 2-up can help, as this helps each layer cool before the next layer is added, as can reducing the print speed to 60 mm/s and giving the build plate a quick with Isopropyl alcohol.

Usually this shouldn't be necessary if the build plate is well levelled and the machine is working well.

  • 3D model format: STL

Tags

Creator

License

CC BY NC ND
