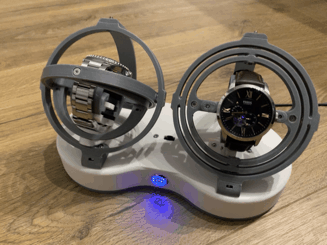

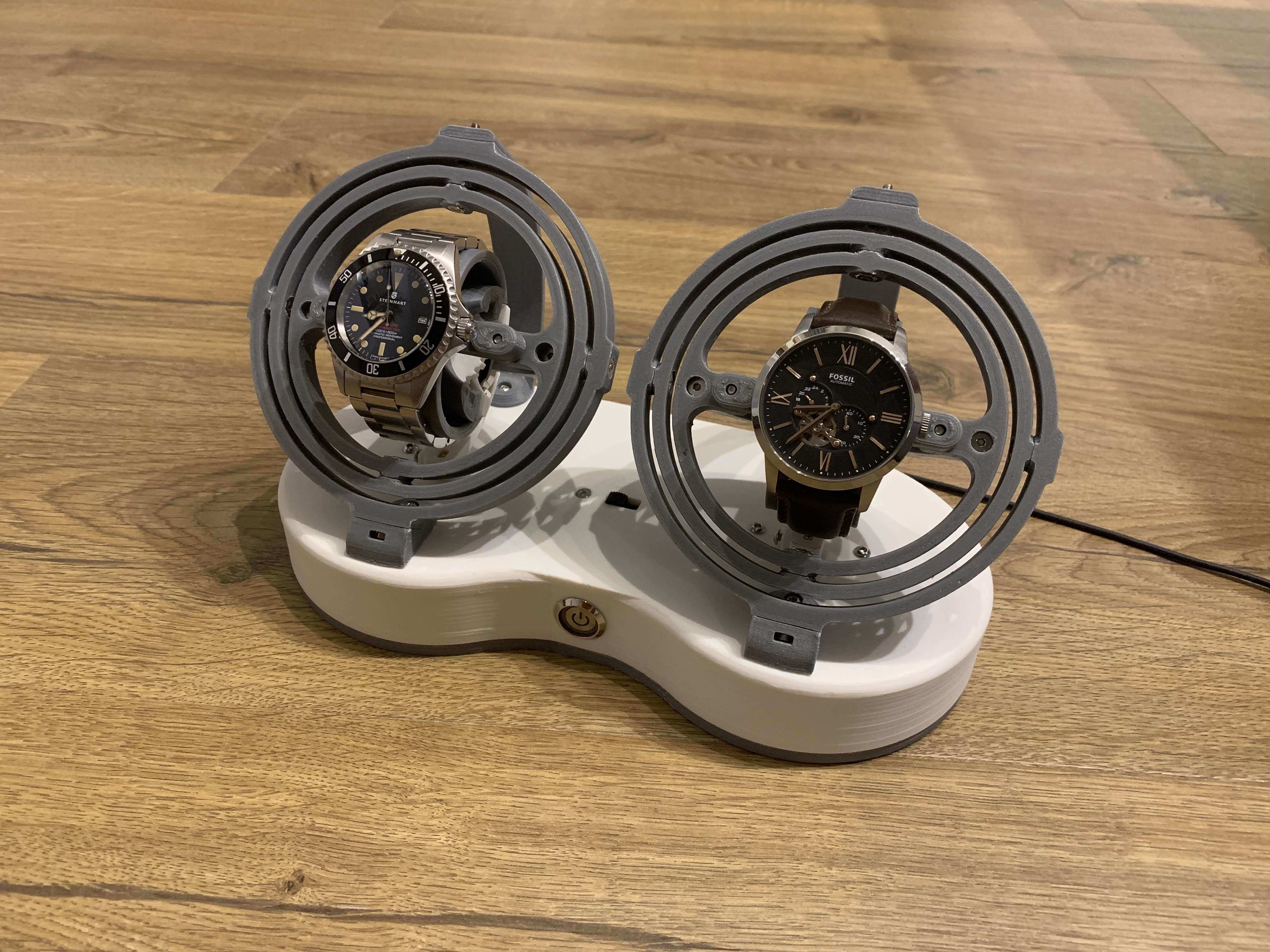

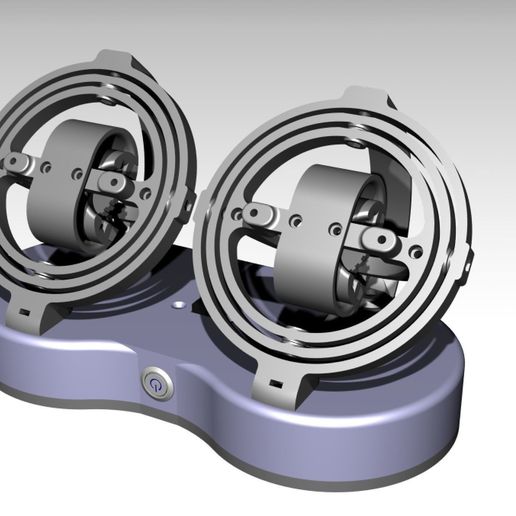

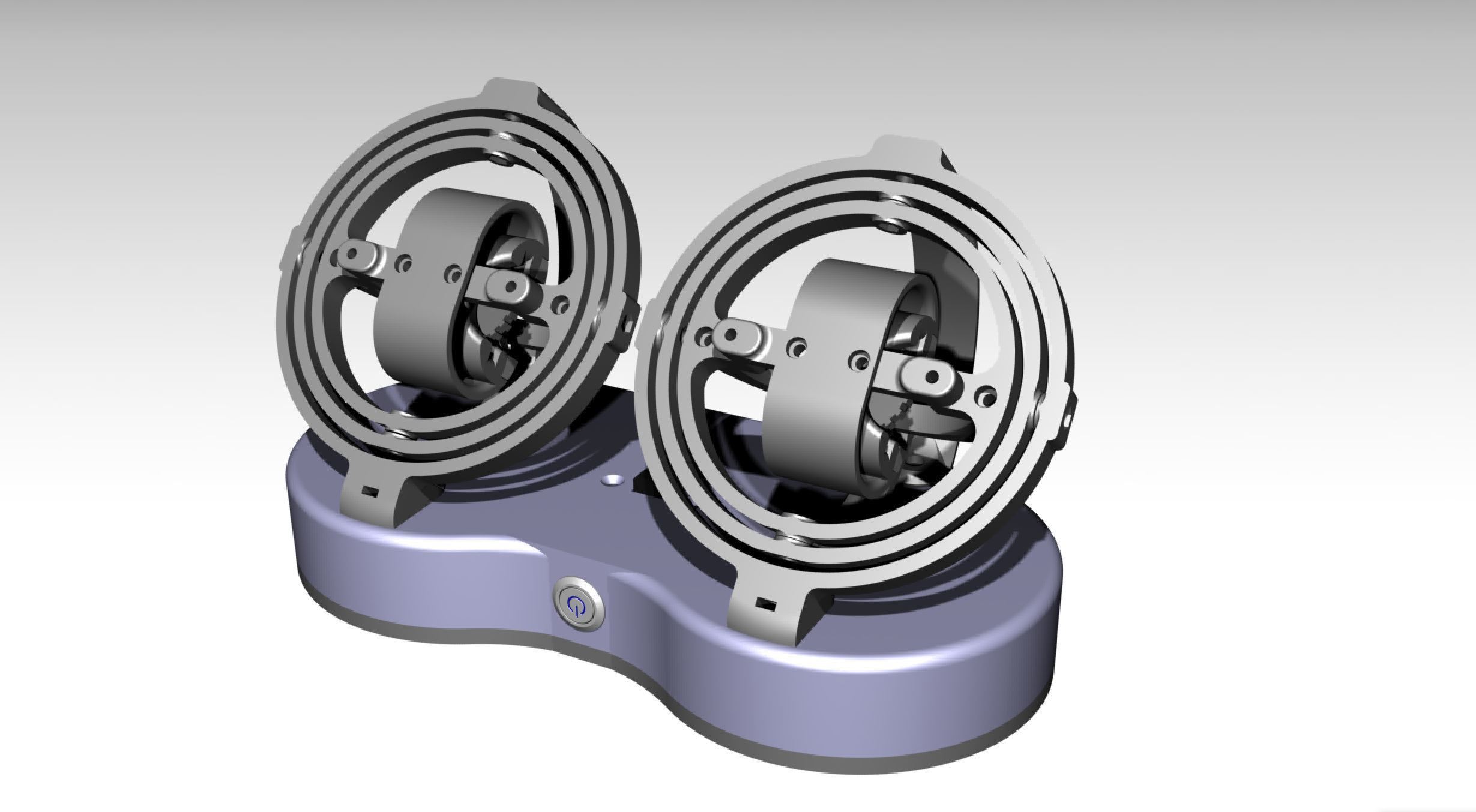

Winder for Automatic watches (Mechanical)

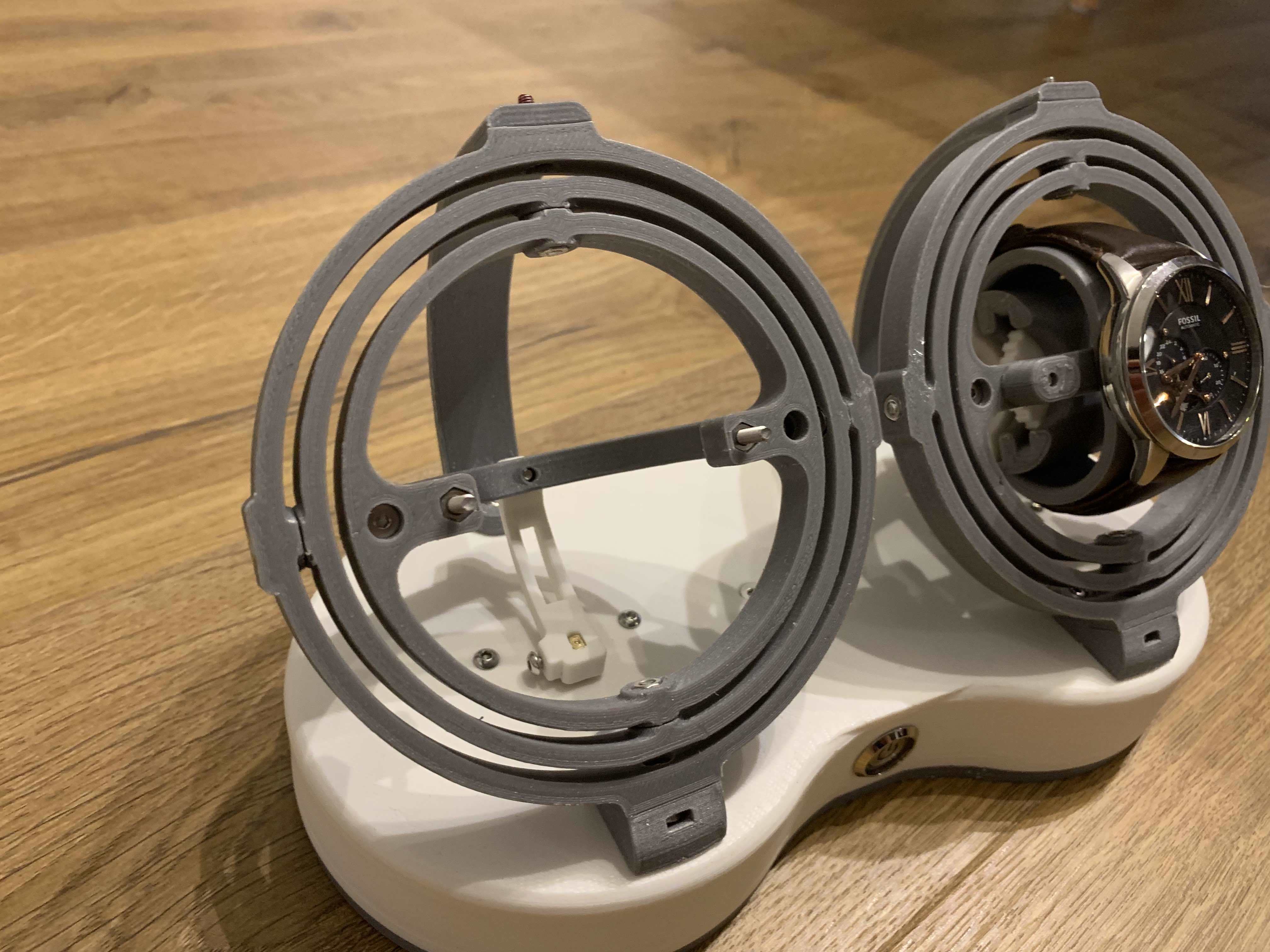

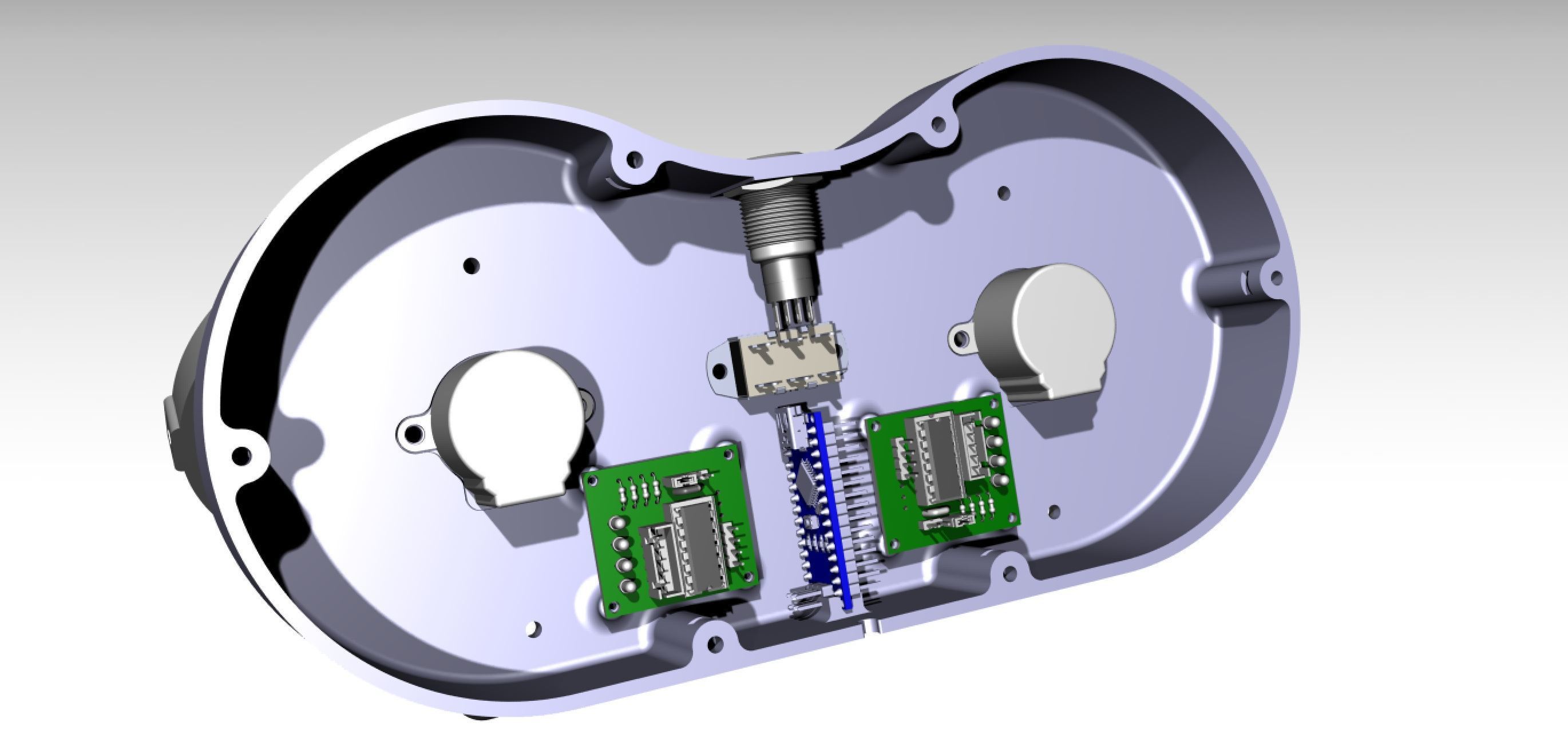

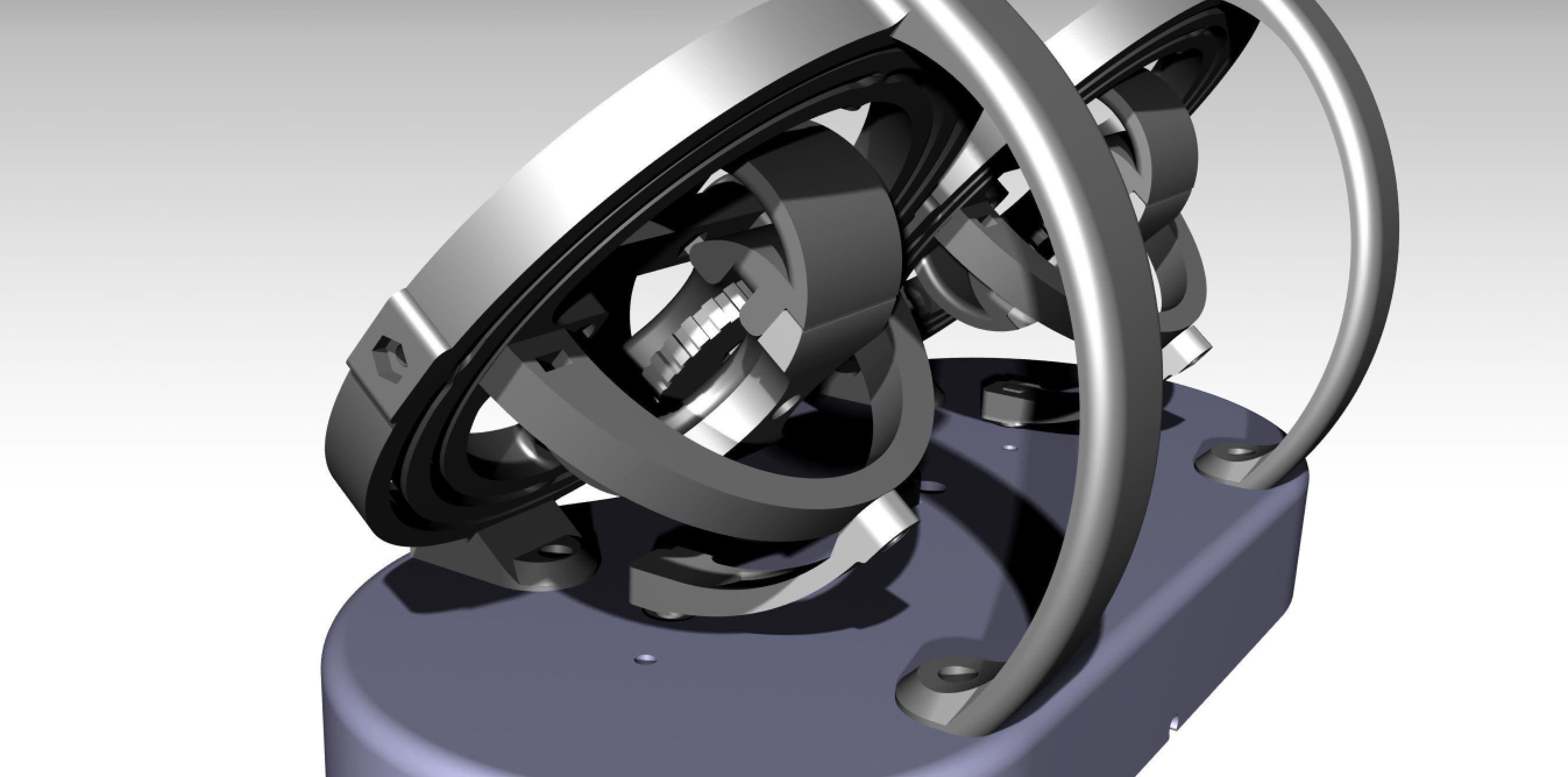

Compose 3D printed parts The arduino program is provided as well as the wiring plan

Plan:

Screws M3 BHC of different lengths ex: M3X12mm M3x8mm

https://fr.aliexpress.com/item/New-120cs-Set-M3-Button-Head-Socket-Cap-Screw-Assortment-Kit-4-6-8-12-16/32708635247.html?spm=a2g0s.9042311.0.0.0.mdmZ7p

1 x Arduino Nano:

https://www.amazon.fr/gp/product/B0722YYBSS/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

2 x Motor-28BYJ-48 stepper motor:

https://fr.aliexpress.com/item/2015-Sale-New-5Pcs-Lot-5V-Stepper-Motor-28BYJ-48-With-Drive-Test-Module-Board-ULN2003/32355519963.html?spm=a2g0s.9042311.0.0.0.mdmZ7p

1 x Switch 5V + LED

https://fr.aliexpress.com/item/16mm-red-blue-yellow-green-white-Light-Hot-Car-Auto-Metal-LED-Power-Push-Button-Switch/32819847979.html?spm=a2g0w.search0204.8.65.418e1a45CKFWBb&priceBeautifyAB=0

1 x DPDT switch 3P

https://www.amazon.fr/Position-DPDT-Panel-Interrupteur-glissi%C3%A8re/dp/B01EZZLKUY/ref=sr_1_8?__mk_fr_FR=%C3%85M%C3%85%C5%C5%BD%C3%95%C3%91&keywords=DPDT&qid=1556216544&s=industrial&sr=1-8-catcorr

2 x 100KoHm resistance

5V power supply (USB or other phone charger)

EN:

Automatic watch winder (Mechanical)

Composing 3D printed parts The Arduino program is provided as well as the wiring plan

Provide :

Screws M3 of different length M3X12mm M3x8mm

https://fr.aliexpress.com/item/New-120cs-Set-M3-Button-Head-Socket-Cap-Screw-Assortment-Kit-4-6-8-12-16/32708635247.html?spm=a2g0s.9042311.0.0.0.mdmZ7p

1 x Arduino Nano:

https://www.amazon.fr/gp/product/B0722YYBSS/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

2 x Stepper Motor-28BYJ-48:

https://fr.aliexpress.com/item/2015-Sale-New-5Pcs-Lot-5V-Stepper-Motor-28BYJ-48-With-Drive-Test-Module-Board-ULN2003/32355519963.html?spm=a2g0s.9042311.0.0.0.mdmZ7p

1 x Switch 5V + Led:

https://fr.aliexpress.com/item/16mm-red-blue-yellow-green-white-Light-Hot-Car-Auto-Metal-LED-Power-Push-Button-Switch/32819847979.html?spm=a2g0w.search0204.8.65.418e1a45CKFWBb&priceBeautifyAB=0

1 x DPDT 3P Switch

https://www.amazon.fr/Position-DPDT-Panel-Interrupteur-glissi%C3%A8re/dp/B01EZZLKUY/ref=sr_1_8?__mk_fr_FR=%C3%85M%C3%85%C5%C5%BD%C3%95%C3%91&keywords=DPDT&qid=1556216544&s=industrial&sr=1-8-catcorr

2 x 100KoHm resistance

1 x 5v Power Supply

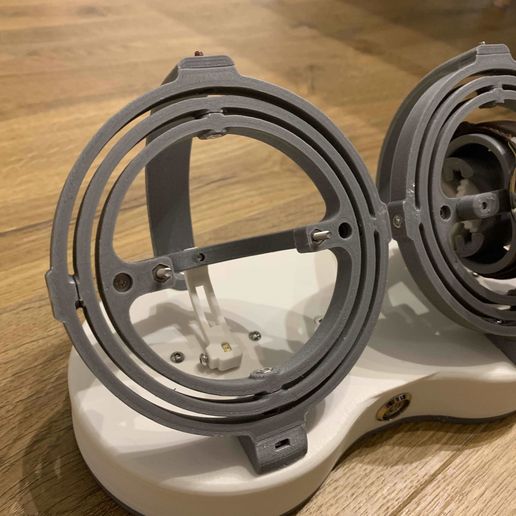

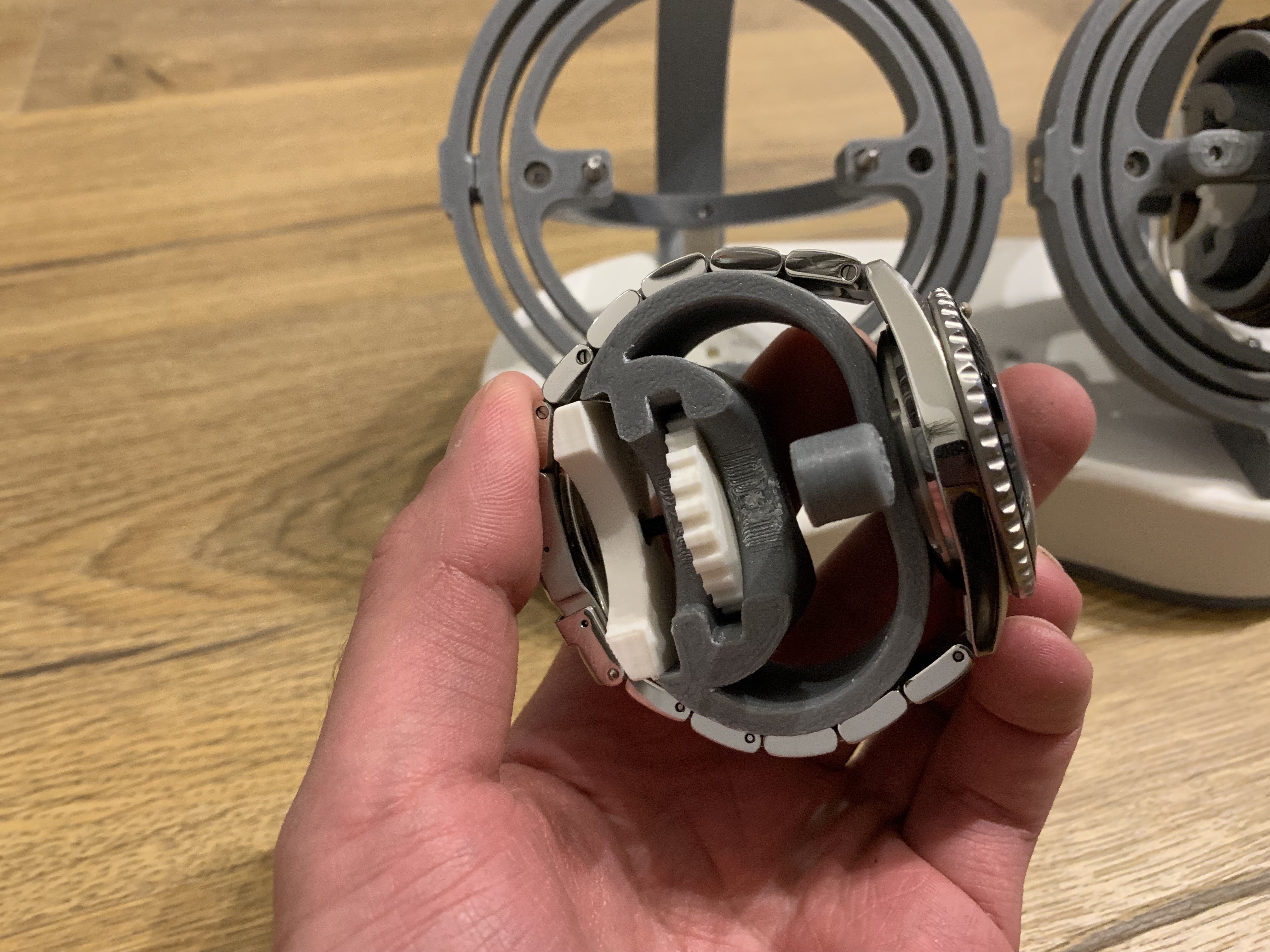

3D printing settings

ABS preferably because it is softer (facilitates the insertion of the Nuts)

2 perimeter

20% filling

  • 3D model format: ZIP
