3D model description
Want to tinker? A real project and a homemade drone?

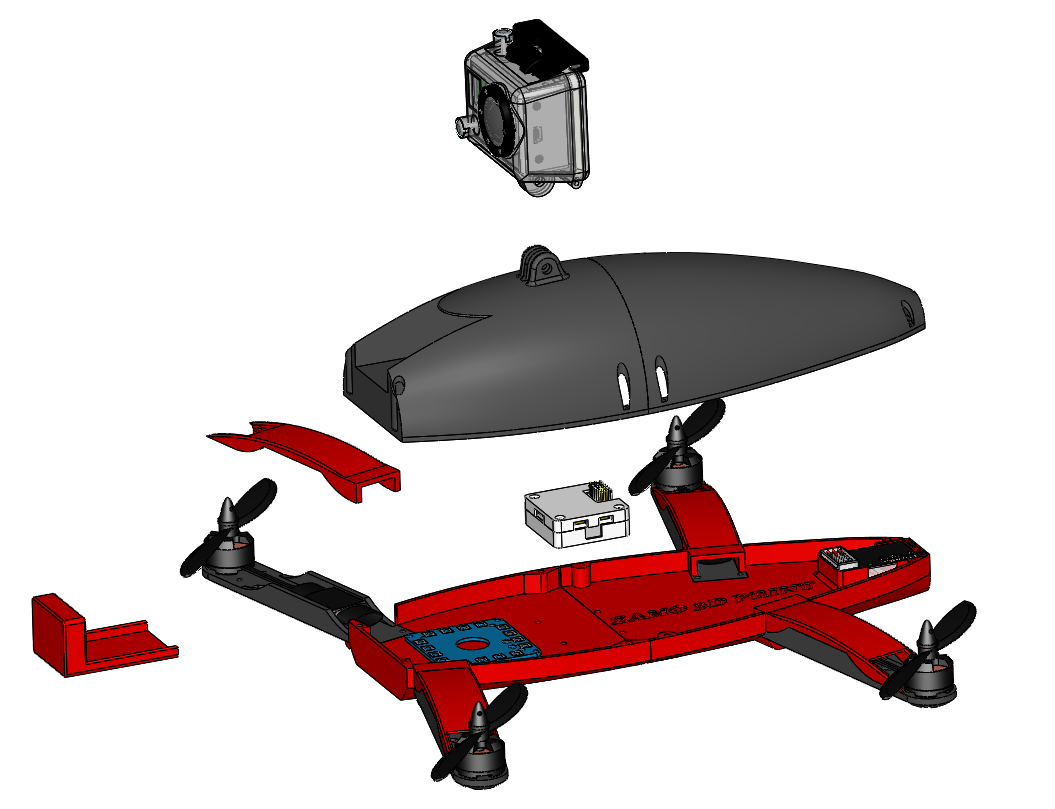

Here you will find all the files to print your own drone!
The latter is intended to be mounted with:
CC3d card programmable with LibrePilot software](https://www.banggood.com/fr/OpenPilot-CC3D-Flight-Controller-STM32-32-bit-Flexiport-p-937044.html?cur_warehouse=CN)
4 engines M1806 2280KV](https://www.banggood.com/fr/EMAX-MT1806-KV2280-Brushless-Motor-For-Multirotor-p-933931.html?gmcCountry=EN¤cy=EUR&createTmp=1&utm_source=googleshopping&utm_medium=cpc_ods&utm_content=heath&utm_campaign=pla-hobbies-en&ID=521310&cur_warehouse=CN)
A Futaba T6L remote control with its R3106GF receiver](https://www.flashrc.com/FUTABA/23991-radio_futaba_6l_r3106gf_2.4_ghz_mode_1.html?p=gachat&gclid=EAIaIQobChMI_9So7L-t2gbbHtCh12KgntEAQYASABEgLVPfD_BwE)
one battery 3s 1550mAh 11.1V 45C](https://www.droneshop.com/tattu-1550mah-111v-45c-3s1p-lipo-battery-pack)
Various M3 screws for tightening the assembly
Slightly sand the outside of the battery holder (smooth) for ease of use.
Add small rubbers or a little foam to the screws of the CC3D to limit the vibrations of the latter
If your cables are a little cramped inside the hull, add the shims
This is an example of configuration, you are free to choose your components, be careful the fixings will not necessarily be adequate.
3D printing settings
Supports required on several parts
- 3D file format: STL
- Last update: 2018/09/03 at 19:58
- Publication date: 2018/04/09 at 17:32
