DJI FPV Goggles X-Air Faceplate integration

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 4 likes
  • 14 downloads

3D model description

UPDATED: Some people tell me there is some variation between X-Air Antenna. I have give about 0.5mm of room to the Brackets. Please tell me if everything is fine.

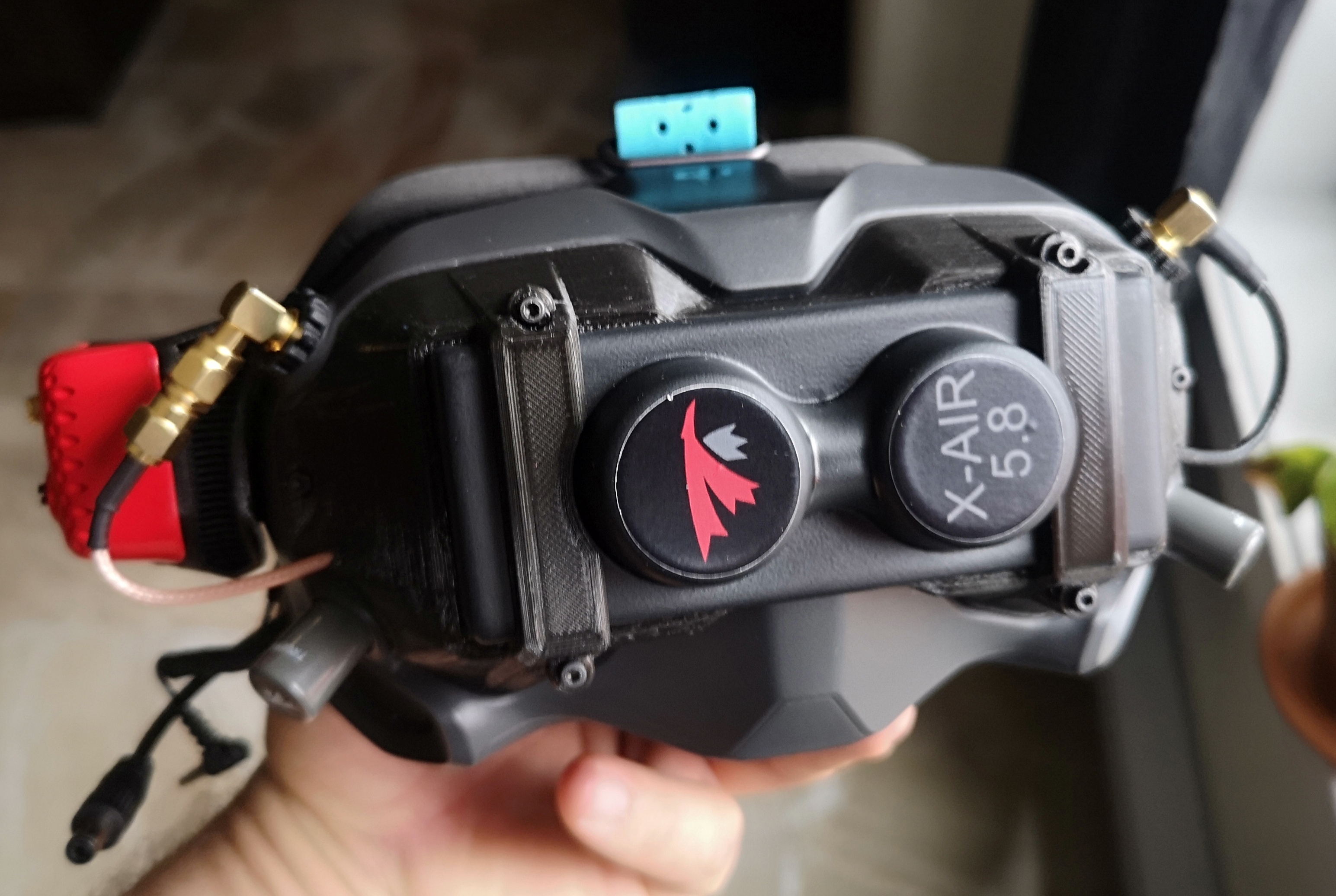

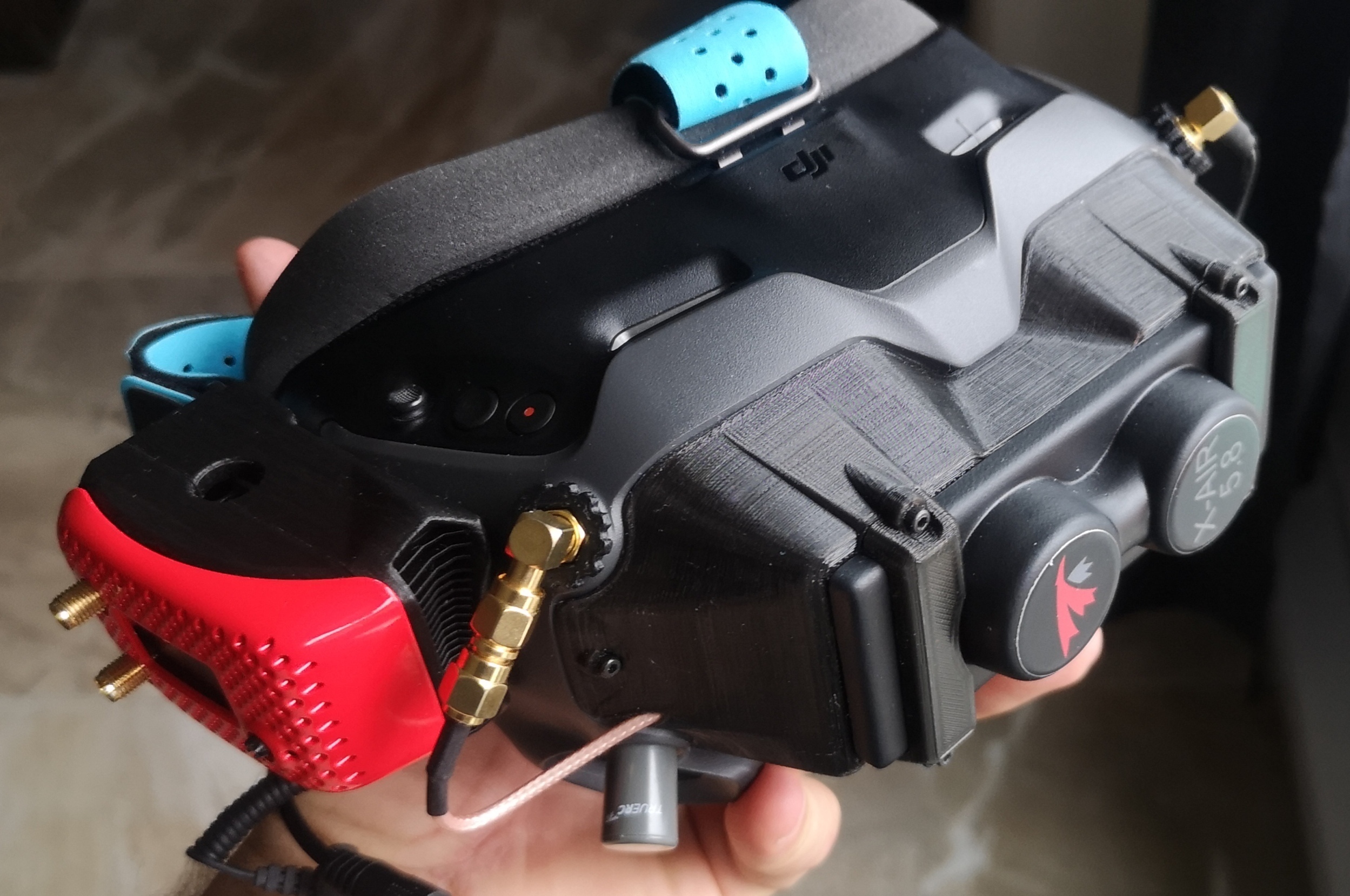

Since I use oly one X-Air antenna with two omnis, I decide to integrate the antenna to the goggles. I like the Night vision goggles look and the goggle are now more compact.

You will need standard M2 x 10mm screws to assemble it. For the moment I use a beige extention cable but if you buy those two items the left and right cables will be identical... If tou don't already own a X-Air I recommend you to buy a custom one with two cables instead of one. Contact Hugo at TrueRc

6 inches black extension cable:

https://www.aliexpress.com/item/4000378755210.html?spm=a2g0s.9042311.0.0.3a9a4c4d614vYZ

RP-SMA to SMA adapter (See picture):

https://www.aliexpress.com/item/4000265952325.html?spm=a2g0s.9042311.0.0.3a9a4c4d614vYZ

I recommend to print them in PLA face down slowly (50mm/s) with 0.12mm layer height.
