DIY Handheld Gimbal
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/13589525/illustration-file/f6b9faf2-07d1-47d5-8b1d-6553160296fa/Capture%20d%E2%80%99e%CC%81cran%202018-07-05%20a%CC%80%2011.25.06.png)
/https://files.cults3d.com/uploaders/13589525/illustration-file/f6b9faf2-07d1-47d5-8b1d-6553160296fa/Capture%20d%E2%80%99e%CC%81cran%202018-07-05%20a%CC%80%2011.25.06.png)
/https://files.cults3d.com/uploaders/13589525/illustration-file/a4ec6dea-3393-4a2b-b5ac-1a75de2d7be5/Capture%20d%E2%80%99e%CC%81cran%202018-07-05%20a%CC%80%2011.26.11.png)
/https://files.cults3d.com/uploaders/13589525/illustration-file/7bbcefe5-c7fb-4268-9da0-4244380a9858/Capture%20d%E2%80%99e%CC%81cran%202018-07-05%20a%CC%80%2011.26.16.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 3.3k views
- 8 likes
- 52 downloads
3D model description

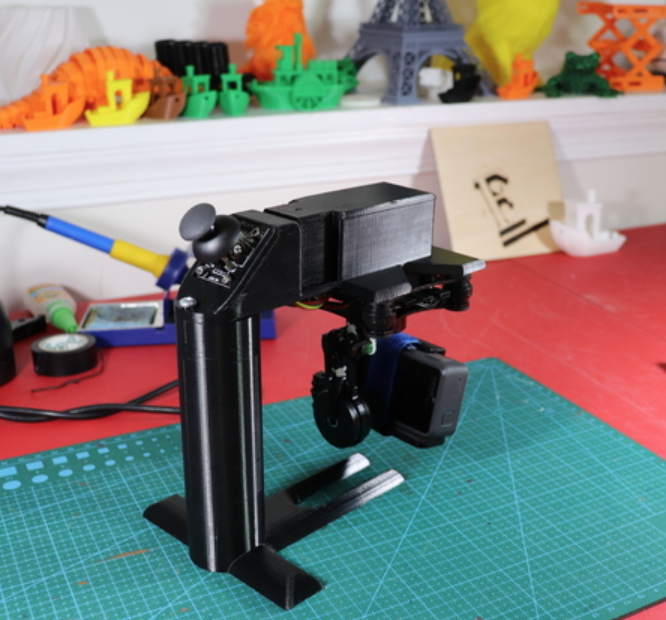

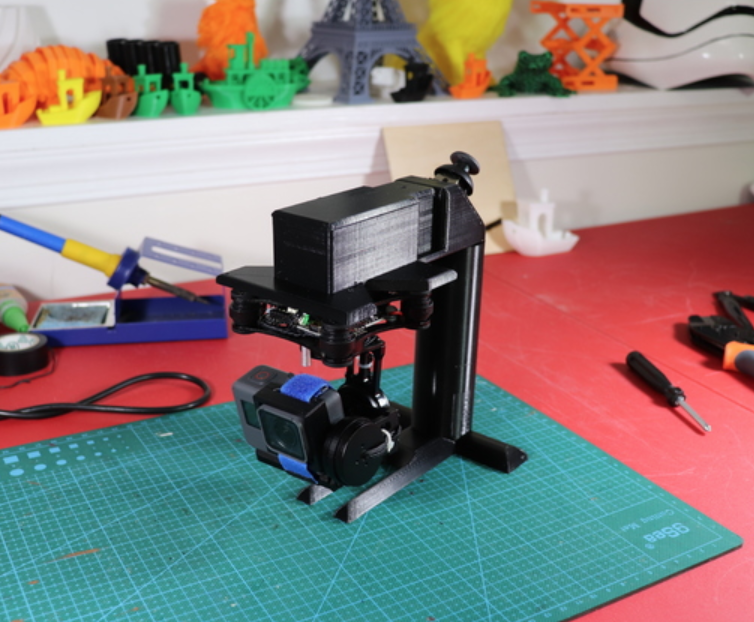

I bought a storm32 gimbal from eBay. I designed and printed the hand gimbal and put it all together.
Strom32 Documentation:
http://www.olliw.eu/storm32bgc-wiki/Manuals_and_Tutorials
Parts and tools that I used:
Storm32 3 axis Gimbal: https://rover.ebay.com/rover/1/711-53200-19255-0/1?icep_id=114&ipn=icep&toolid=20004&campid=5338189910&mpre=https%3A%2F%2Fwww.ebay.com%2Fitm%2F3-Axis-Brushless-Gimbal-Camera-Mount-32bit-Storm32-Controller-Gopro-3-4-FPV-US%2F281766820464%3Fhash%3Ditem419a9c7a70%3Ag%3A8P4AAOSw-RFaTvGl
Gearbest: https://www.gearbest.com/fpv-system/pp_244970.html?wid=1433363&lkid=14021777
2 axis gimbal: https://amzn.to/2HRXzhF
Joystick: https://amzn.to/2rpcaWQ
GoPro: https://amzn.to/2FMffpi
JST Connectors: https://amzn.to/2HRsIC2
JST Crimpers: https://amzn.to/2KGOdTY
Metric Tap: https://amzn.to/2riqdhR
SAE Tap: https://amzn.to/2rmljjF
3 mm machine screw: https://amzn.to/2KGqPG6
4 mm machine screwhttps://amzn.to/2KzOxDL:
Battery: https://amzn.to/2jvxA0X
Drill Bits: https://amzn.to/2rmMGKy
Drill Bits: https://amzn.to/2rmMGKy
PETG Filament: https://amzn.to/2JV1E17
Creality CR-10
amazon: https://amzn.to/2ro0lQW
GearBest: https://www.gearbest.com/3d-printers-3d-printer-kits/pp_441281.html?wid=1433363&lkid=14021765
3D printing settings
Printer Brand:
Creality
Printer:
CR-10
Rafts:
No
Supports:
No
Resolution:
.2
Infill:
5 mm of 100% the rest at 30%
3D printer file information
-
3D design format: STL Folder details Close

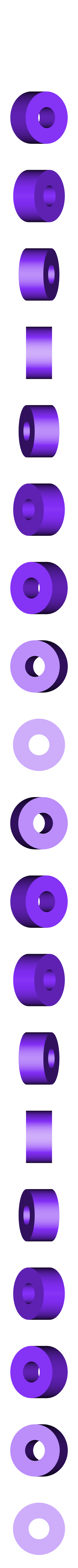

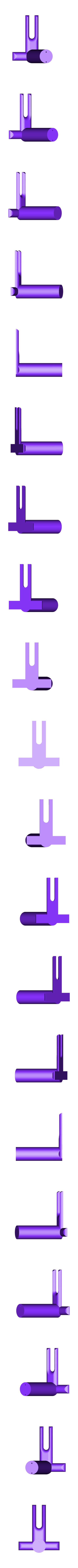

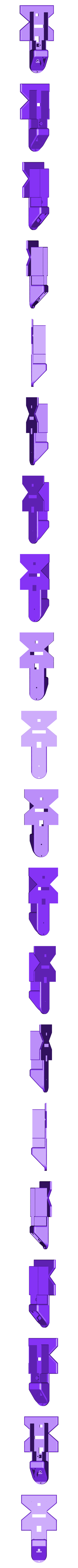

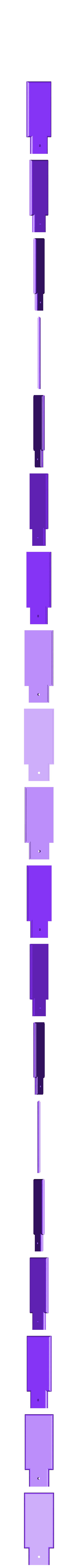

- Gimabl_Top.stl
- Gimbal_Base.stl
- Gimbal_Cover.stl
- Spacers.stl
- Publication date: 2018-07-05 at 11:28
