DIY Controller

?
Creation's quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 5.6k views
  • 35 likes
  • 236 downloads

3D model description

Hi!

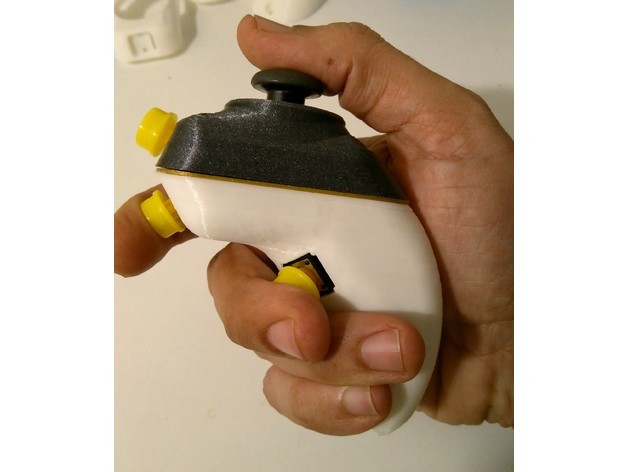

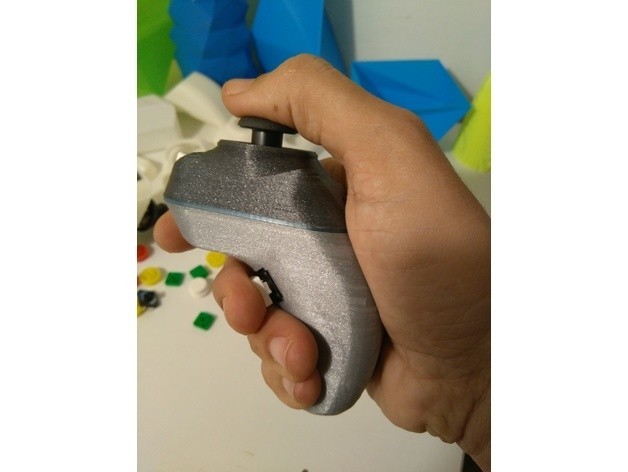

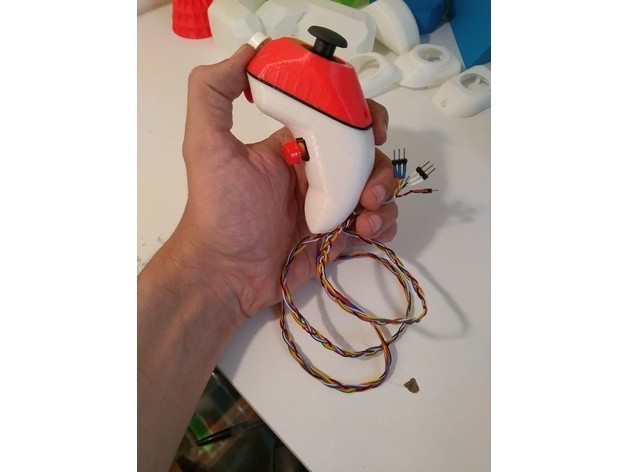

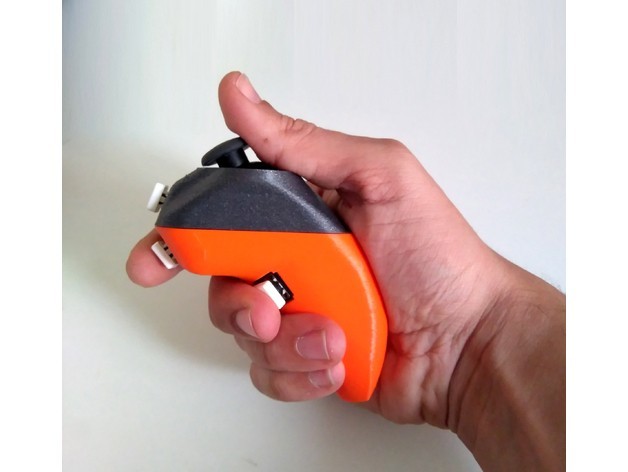

This is a Wii Nunchuk-style controller that i made for Arduino/Raspberry projects.

Suitable for most PS2-like joysticks and 12mms switch buttons.

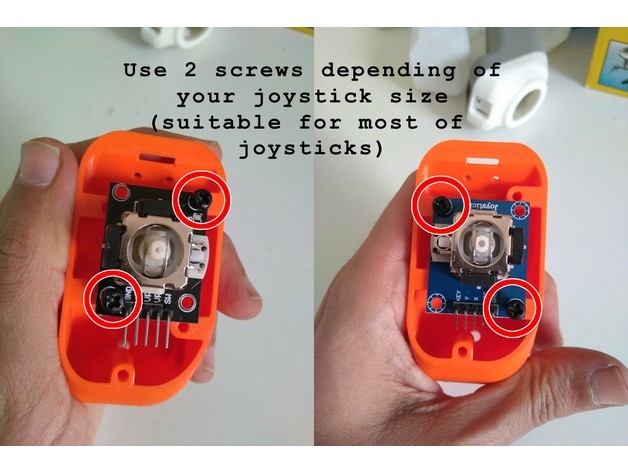

You'll need 3 M3 screws (two for joystick and one for the case).

'spacer.stl' not needed but looks nice in combination with some colors

Also, i uploaded a video showing the controller in action: https://youtu.be/qHTFjGCErSI

See more info below.

Hope you find it useful.
Have fun!


3D printing settings

Printer:

ANET E10 + Creality CR-10

Resolution:

0.2

Infill:

20%

Notes:
You can use supports for bottom part to avoid overhangs inside the controller. But you really don't needed as the overhangs are inside and once closed you can't see them.

3D printer file information

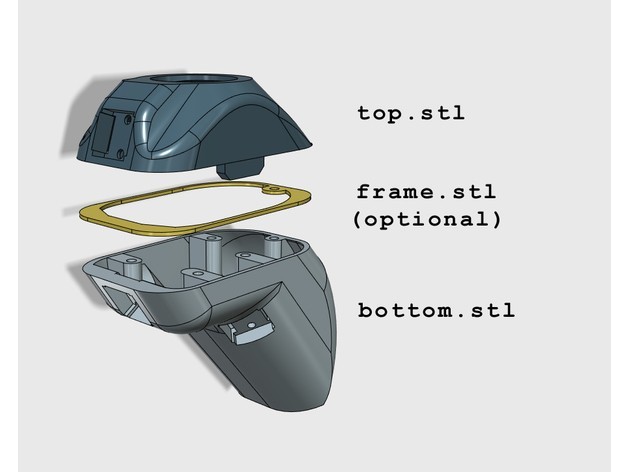

  • 3D design format: STL Folder details Close
    • bottom.stl
    • frame.stl
    • top.stl

    Learn more about the formats

  • Publication date: 2018/07/18 at 15:49

License

CC BY

Tags

Creator

Hi all! , I'm Fernando Jerez, computer science teacher, amateur designer and electronics noob.
Love procedural/generative stuff, robots, and all kind of 3D printable stuff.
Hope you enjoy my designs.

Contact me by private message: @ferjerez3d (Instagram,Twitter)
