DIMM Container Frames

3D model description

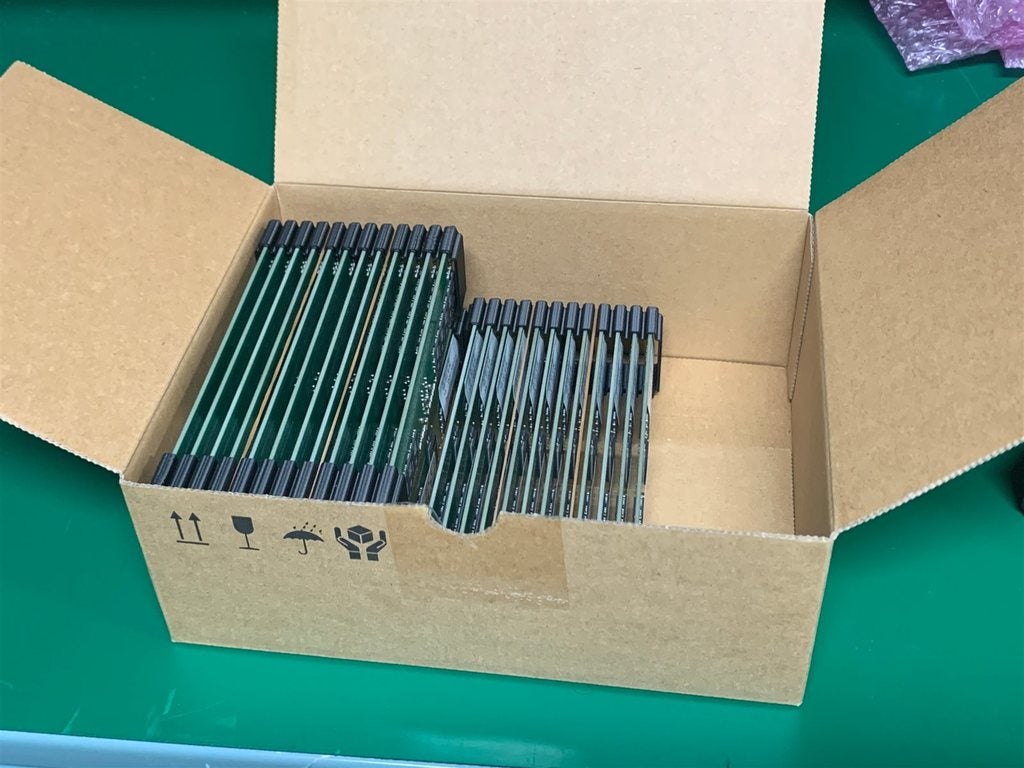

Store DIMMs in minimal space. I tested this model only with DDR4 DIMMs.

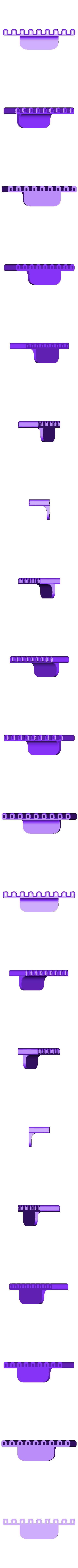

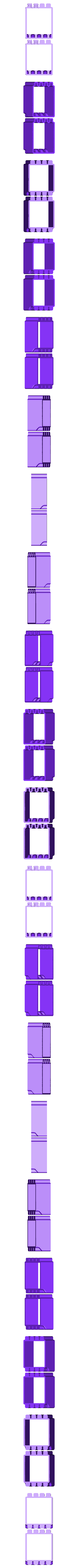

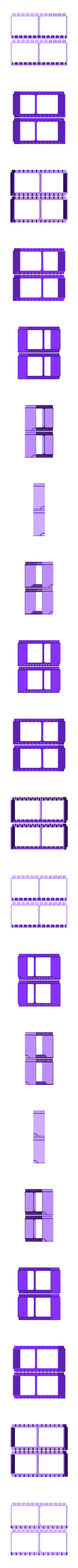

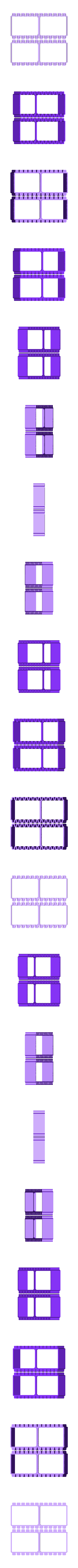

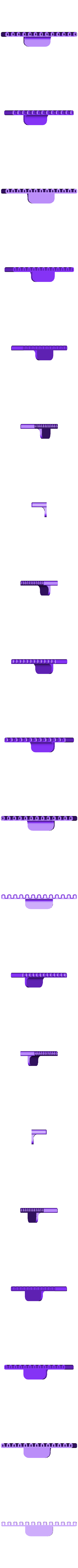

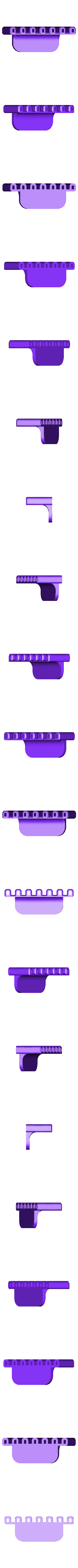

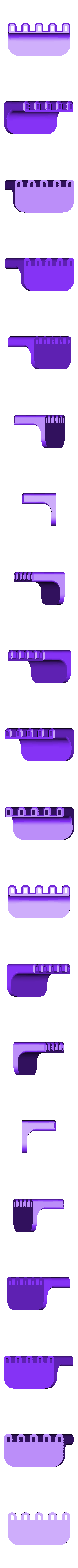

Type A supports simple DIMMs, Type B supports DIMMs with chip mounted to end.
DIMMs with cooler or DIMMs more than 6mm in thickness are not supported.

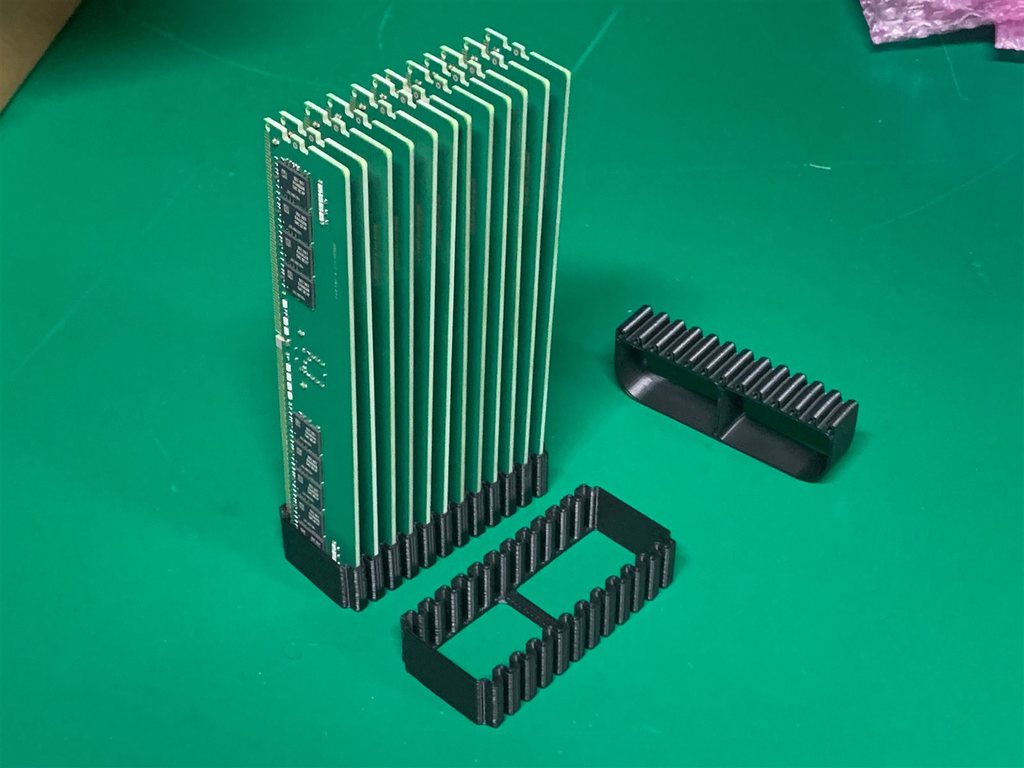

  1. Lay down one container part on table, then put DIMMs on it.
  2. Align DIMMs spacing by the jig, cover them with another container part.

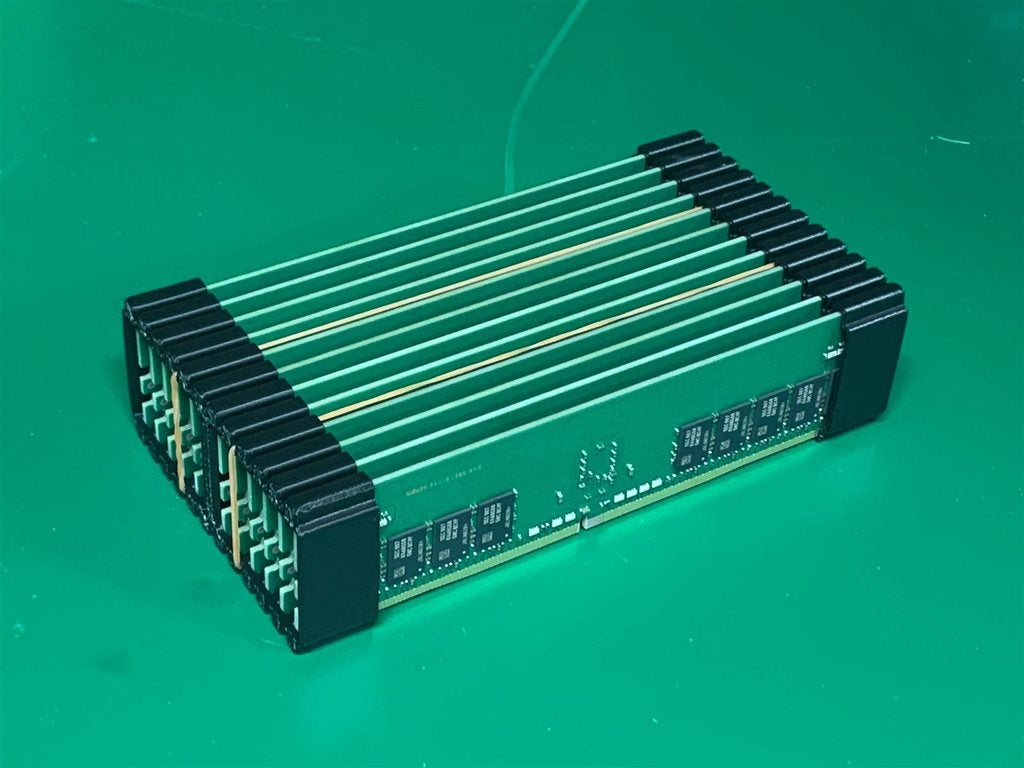

  3. Fix them with rubber bands.

https://www.youtube.com/watch?v=Ql8l7XketUU

[Japanese]
DIMMメモリを格納するためのパーツです。取り付け時に治具を使うので少し面倒ですが、高密度に箱詰めできます。
会社で100枚以上のDDR4メモリを保管する必要があった際に作成しました。

Type Aは通常版、Type Bは端の方までチップが実装されているDIMM用です。
冷却用カバーがついているメモリや厚みが6mm以上あるメモリは入りません。

  1. 片方のパーツを置いて、その上にメモリを挿していく
  2. メモリの間隔を治具で揃えながらもう一方のパーツを嵌め込む
  3. 輪ゴムをかける
  • 3D file format: STL
