V4 paper dispenser

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.9k views
  • 32 likes
  • 18 downloads

3D model description

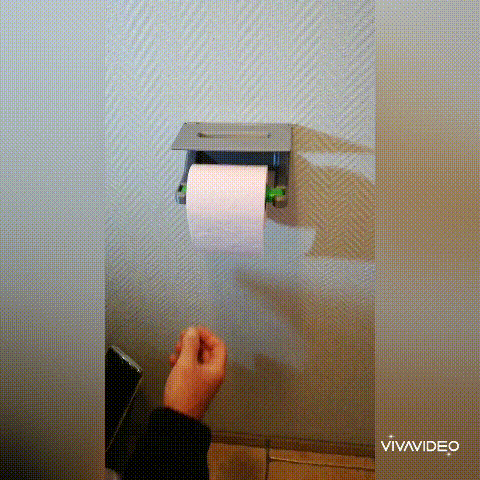

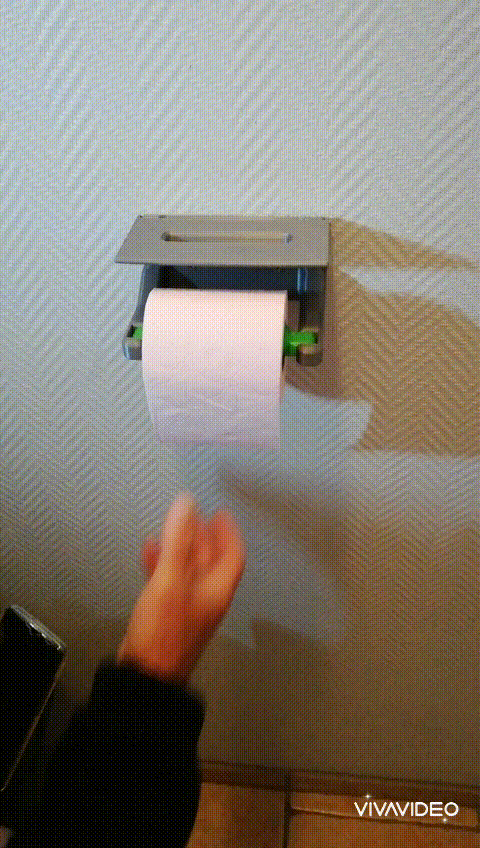

A version of toilet paper dispenser with single shelf or shelf with mobile phone slot.

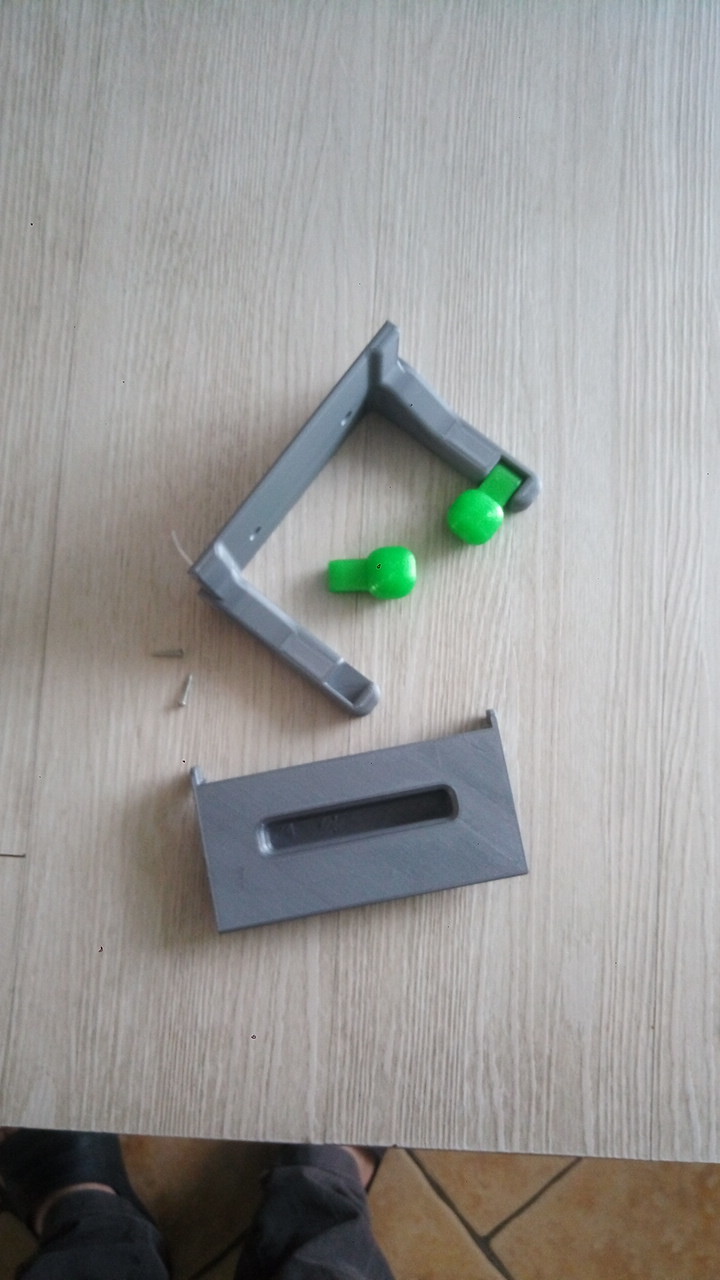

You will only need two pieces of filament ( or stripped 1.5mm2 rigid electrical wire) of about 10cm to connect the rockers to the bracket, cut flush with the bracket.

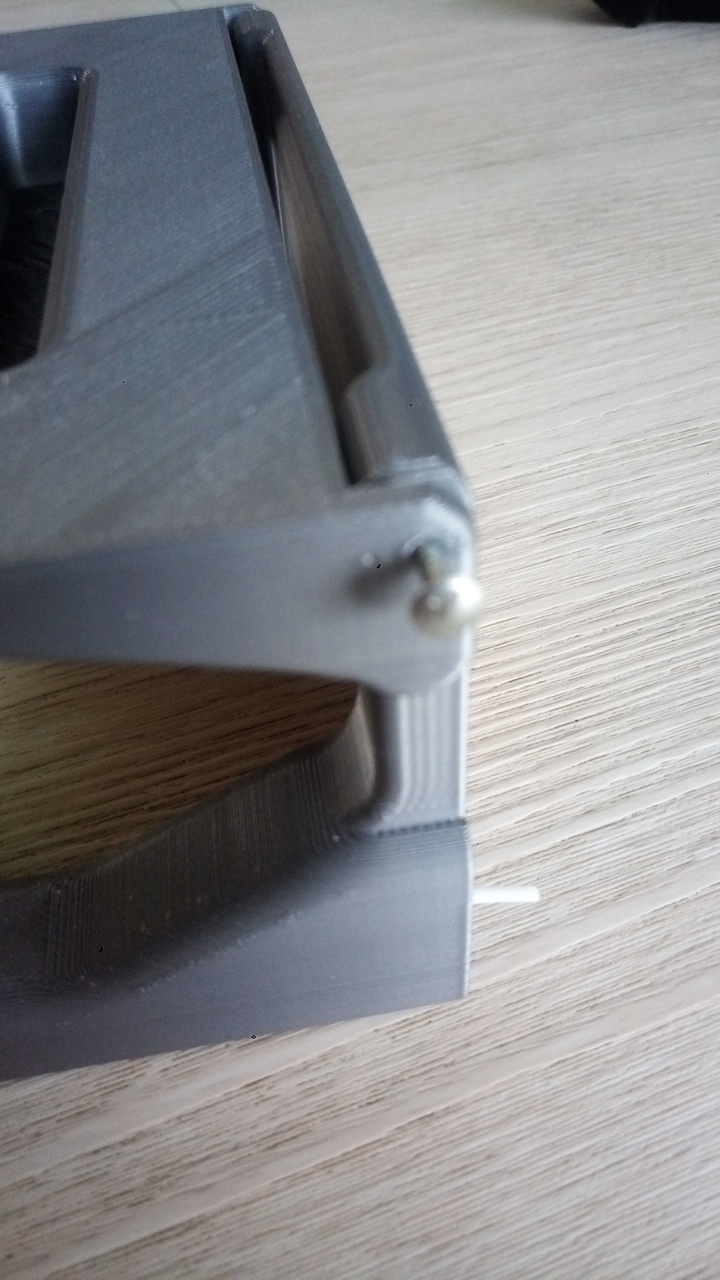

The shelf is fixed either with a round or flat head nail about 15 mm long, or with a piece of filament or wire cut flush.

Make sure the shelf hinges freely for the roll to be placed.

You will be able to re-drill according to the nails used.

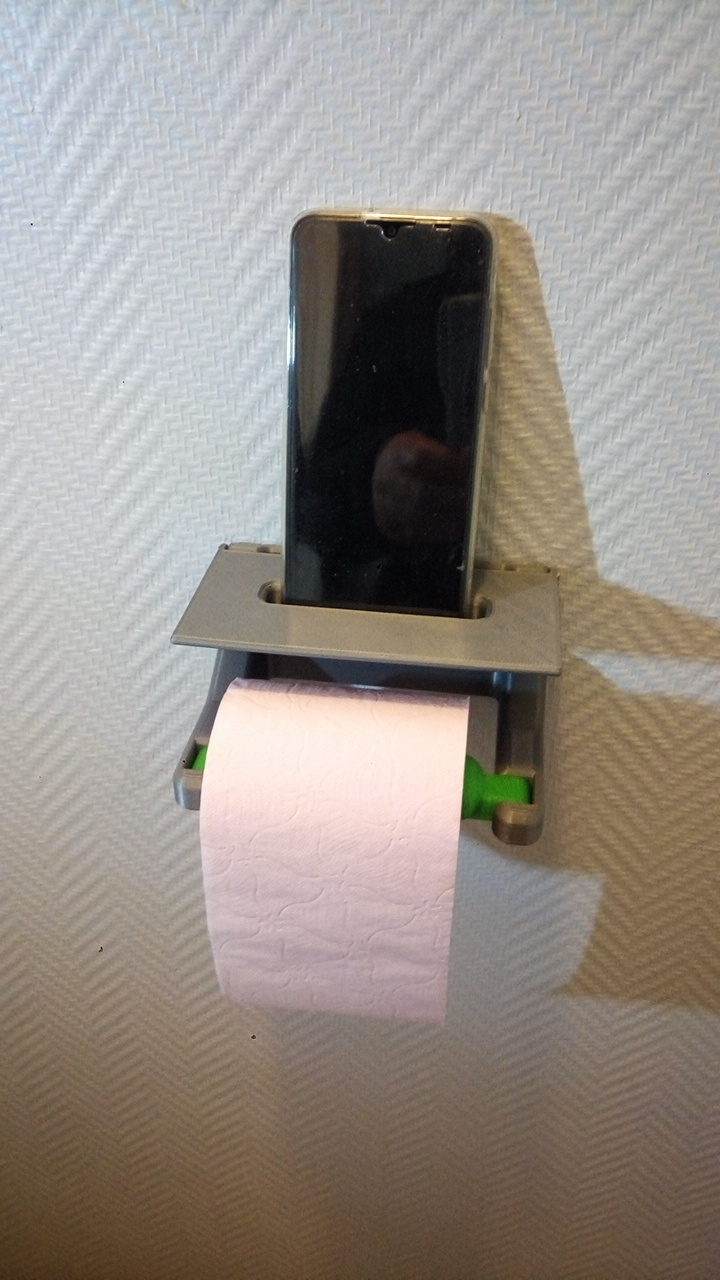

The phone slot, deliberately enlarged, allows you to put any type of smartphone with or without a shell.

It is possible to modify the size of the groove for phone on request by sending me your email address and desired dimensions.

The center distance for the screws is about 70 mm

You can see my other version without shelf here :

https://cults3d.com/en/3d-model/home/derouleur-papier-new-version-rfbat

Update 15/04/2021

Addition of a support without drilling (SP ) and one with a center distance of 90 mm

3D printing settings

layer height 0.2 mm

Filling 20 to 25 % for the support and the shelf,

30 % for the rockers

wall thickness 0.8 to 1.2 mm

  • 3D file format: STL
  • Last update: 2021/04/15 at 10:48
  • Publication date: 2020/07/04 at 20:26
