Dasaki Compact Animatronic Eyes

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.2k views
  • 6 likes
  • 81 downloads

3D model description

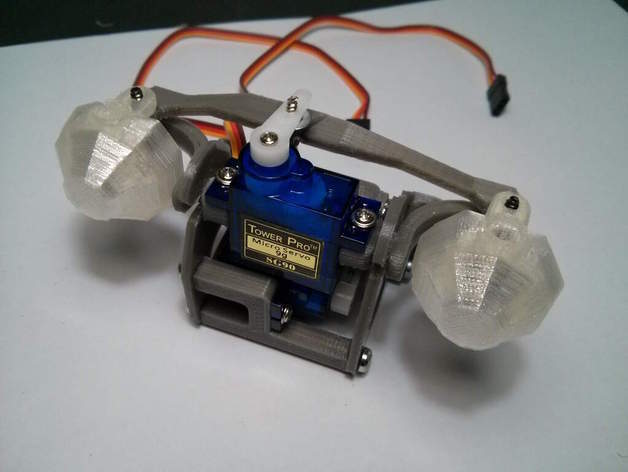

Animatronic eyes moved by micro hobby servos. Compact design able to be fitted in a robot head.
Eyes include a space for a PCB in case you want to add some led lighting.
Designed by myself from scratch, using Google Sketchup Free. Parts printed in 0.15 layer height, solid infill.
Metric thread screws and washers are M3. The rest of the screws are recycled.
Total action range in either pan and tilt axes is 90 degrees (-45 to 45).

Video: http://youtu.be/YpbuKT704FI

Change log:
11st june 2014 - Pan servo harness updated to ease assembly.

If you are a curious maker / "tinker" / hacker, have a look at my blog:
http://www.therandomlab.com


3D printing settings

How I Designed This
Designed with Google Sketchup 8 and a STL export plugin.

Instructions
Assembly process pictures included in a pdf file.
Make sure you screw the servos in the mid position (I chose 90 degrees), so you can have the proper range (in my case from 45deg to 135deg).

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • dasaki_animatronic_eyes.skp.zip
    • dasaki_animatronic_eyes_assembly_instructions.pdf.zip
    • eje_cap.stl
    • eye_ball.stl
    • fixture.stl
    • left_hinge.stl
    • pan_servo_arm.stl
    • pan_servo_harness.stl
    • pcb.stl
    • right_hinge.stl
    • tilt_servo_arm.stl
    • tilt_servo_harness_A.stl
    • tilt_servo_harness_B.stl

    Learn more about the formats

  • Publication date: 2018/04/05 at 15:03

License

CC BY NC SA
