Dasaki 2WD robot chassis

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.6k views
  • 6 likes
  • 122 downloads

3D model description

This is a 2WD robot I designed to teach an "Introduction to robotics" workshop, in the Master in Visual Arts and Multimedia, at the Fine Arts College of the Universidad Politécnica de Valencia (http://www.artesvisualesymultimedia.com/).

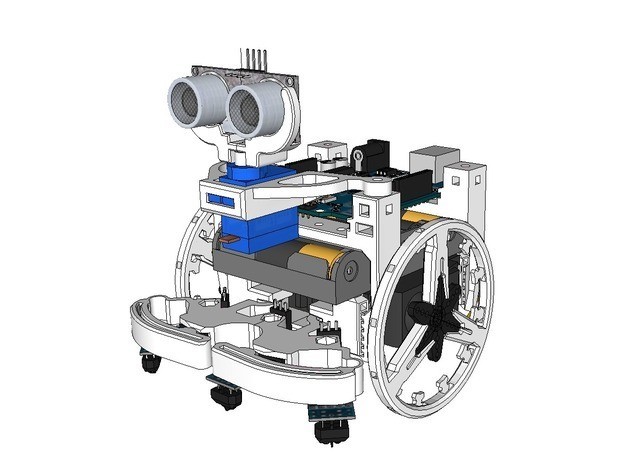

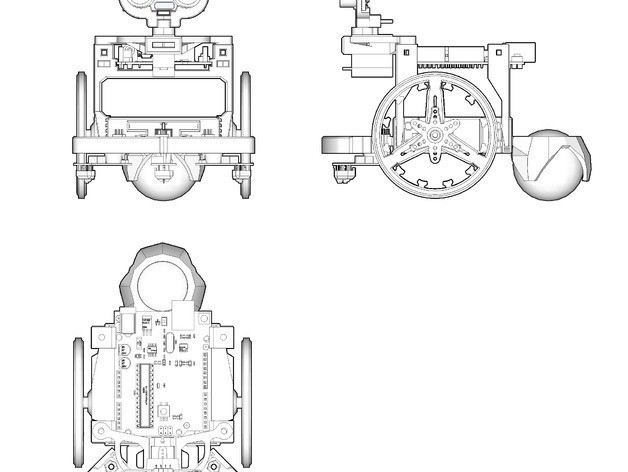

The goal was a design that could carry all the pieces included in the robot, such as battery, arduino microcontroller board, infrared sensors, ultrasonic range sensor, etc., at the minimal cost and easy to build. That means as many printed parts and as few accessory parts (screws,...) as possible.
You can adjust the position of the body pieces to match your battery height (maximum battery height is 30mm).

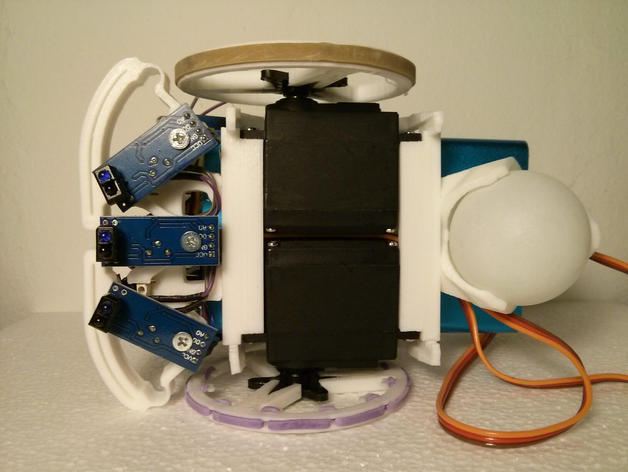

The piece called bumper is designed to carry three line sensors (with M3 screws and nuts) and two micro switches.
Using a ping pong ball as caster wheel saves some money (I had the idea before seeing that I was not the first one, which is what usually happens nowadays, but I designed it from scratch).
All the printed pieces fit in a 170x170mm area, to be printed in one 4 hour session with the suggested printing settings.
The wheels included are 70mm diameter, and designed to snap on a 6-arm standard servo horn and hold a 4mm width rubber band as tire. I already published separatelly a more advanced wheel, the Dasaki SGLP (super-grip + loose-proof) servo robot wheel. You can also double the speed of movements with my compact servo 1:2 (2x) multiplier gearbox.

If you are a curious maker / "tinker" / hacker, have a look at my blog:
www.therandomlab.com

3D printing settings

Printer:

Prusa i3 aluminium

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.25

Infill:

25

Notes:
Ensure good adhesion to print surface and good calibration.

  • 3D file format: STL
  • Publication date: 2018/04/05 at 15:20
