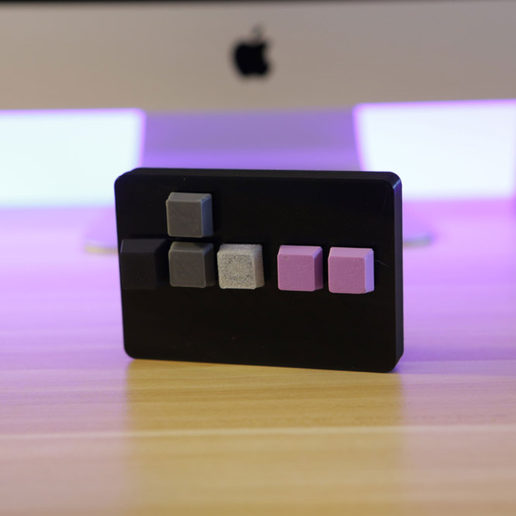

Custom Bluetooth Cherry MX Gamepad

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.8k views
  • 8 likes
  • 66 downloads

3D model description

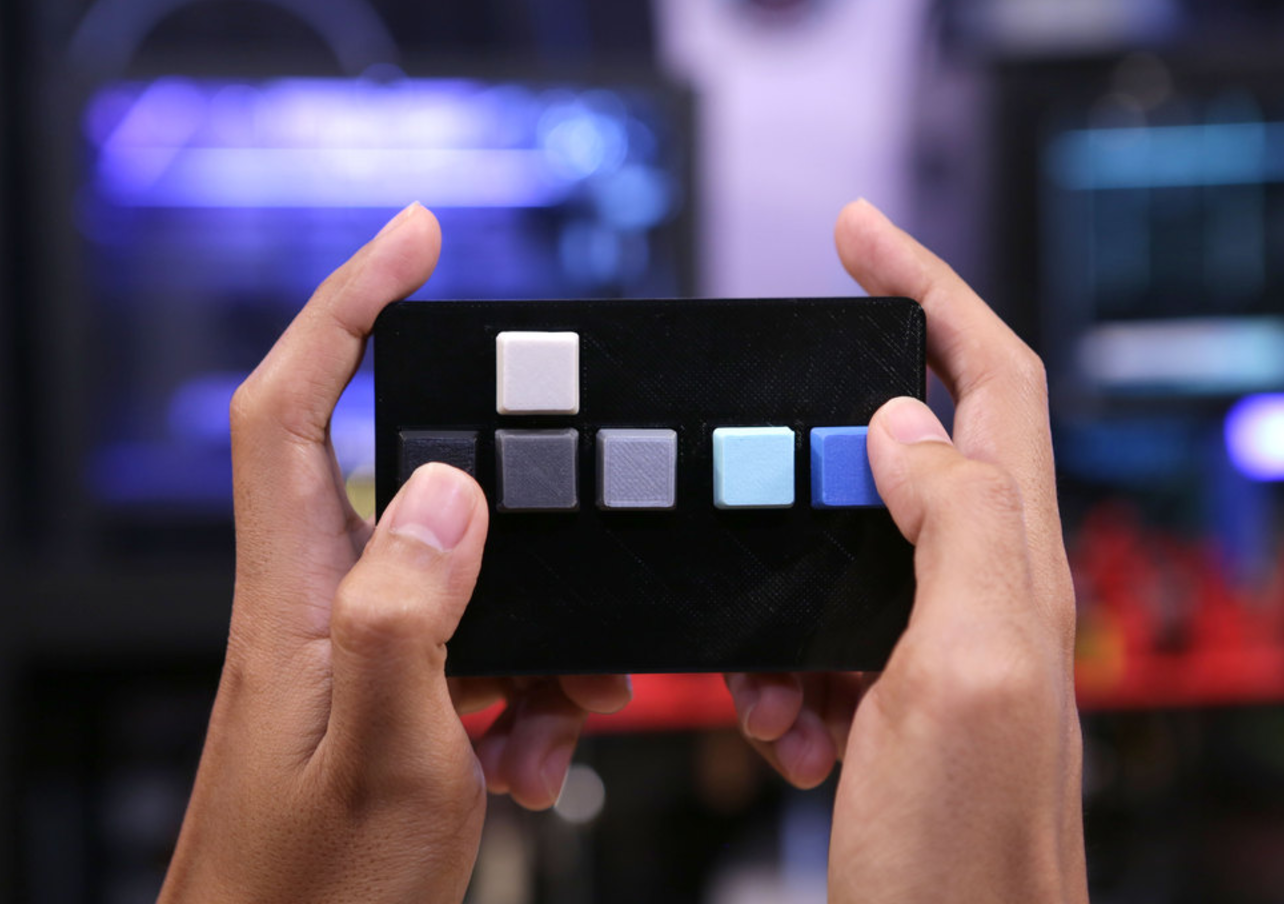

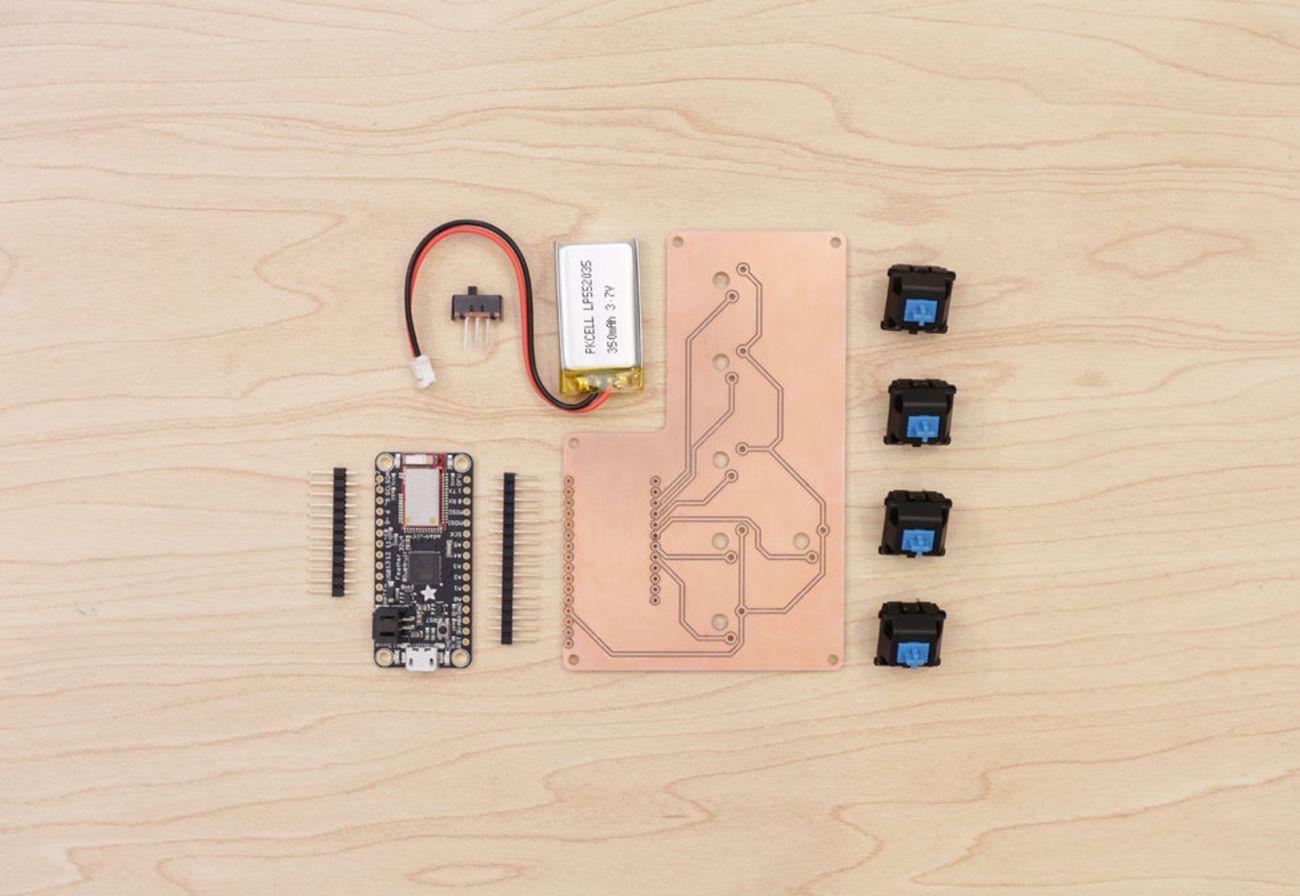

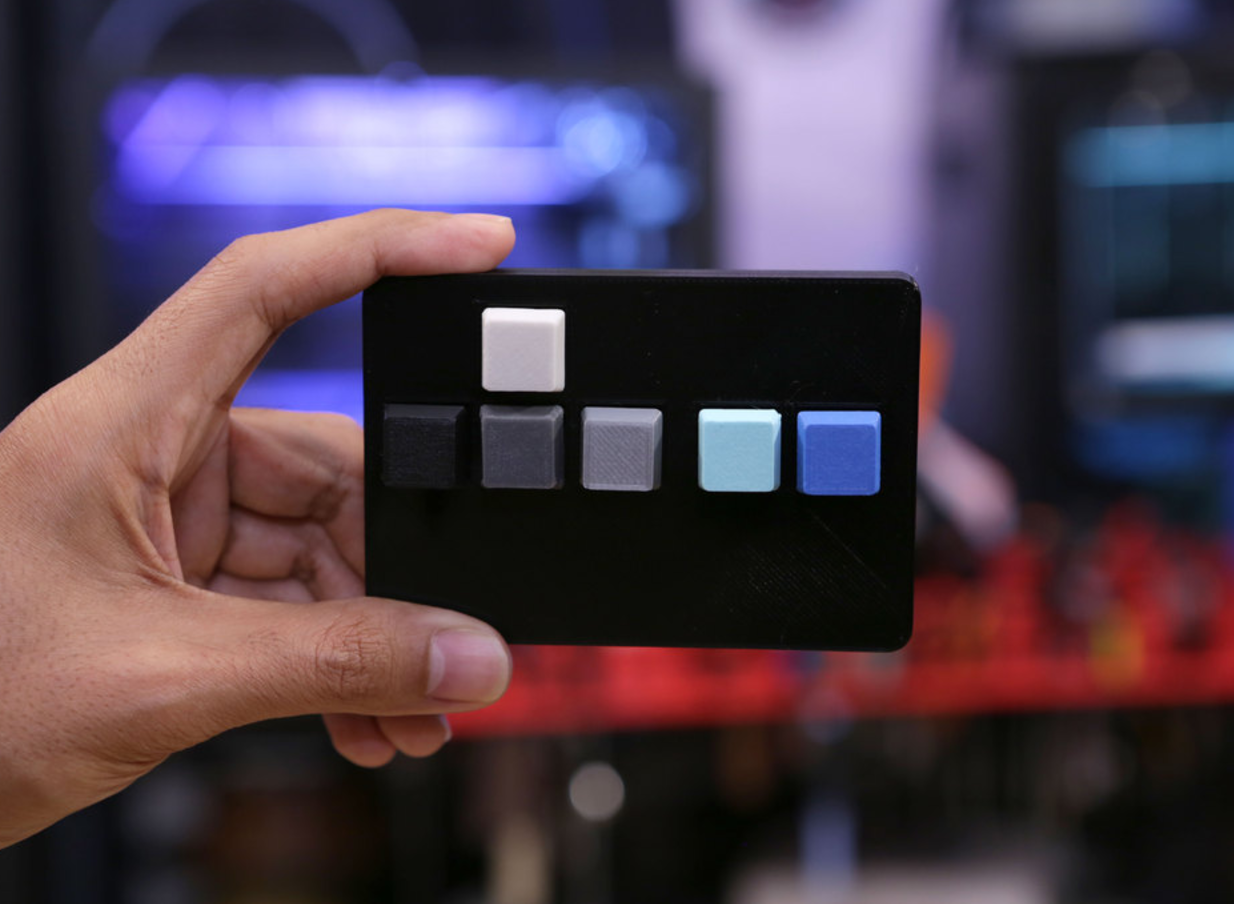

Make a custom wireless gamepad with Cherry MX Switches! In this project, we'll build a custom PCB for Cherry MX switches and the Adafruit Feather 32u4 Bluefruit LE to make a custom gamepad. We'll design and 3D print an enclosure and custom keycaps. This project is great for casual gaming, or creating custom controllers for various applications.

Full tutorial:
https://learn.adafruit.com/custom-wireless-bluetooth-cherry-mx-gamepad/

Project Video
https://youtu.be/pggjia89NO4

Layer by Layer – Eagle CAD
https://www.youtube.com/watch?v=s3TRig9bmjo

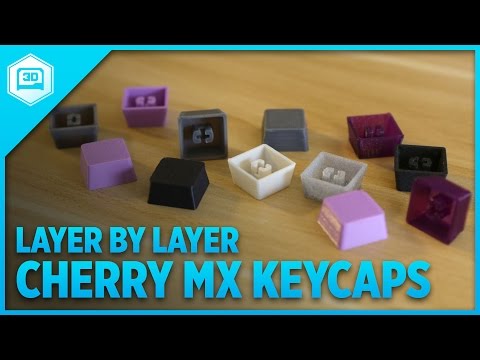

Layer by Layer – Custom Keycaps
https://www.youtube.com/watch?v=JVUZnU3jQ-s

  • 3D file format: STL
  • Publication date: 2016/12/22 at 16:54

Creator

Designs 366
Downloads 42.2k
Followers 801

http://adafruit.com

Adafruit was founded in 2005 by MIT engineer, Limor "Ladyada" Fried. Her goal was to create the best place online for learning electronics and making the best designed products for makers of all ages and skill levels. Since then Adafruit has grown to over 25 employees in the heart of NYC. We've expanded our offerings to include tools, equipment and electronics that Limor personally selects, tests and approves before going in to the Adafruit store. We pride ourselves on having great prices, the best customer service, technical support and fast shipping. We hope we can assist you on your journey of learning - At Adafruit we celebrate engineering happiness!

License

CC BY
