Cryptex new version with 4 alphabetic multicombination rings

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 468 views
  • 29 downloads

3D model description

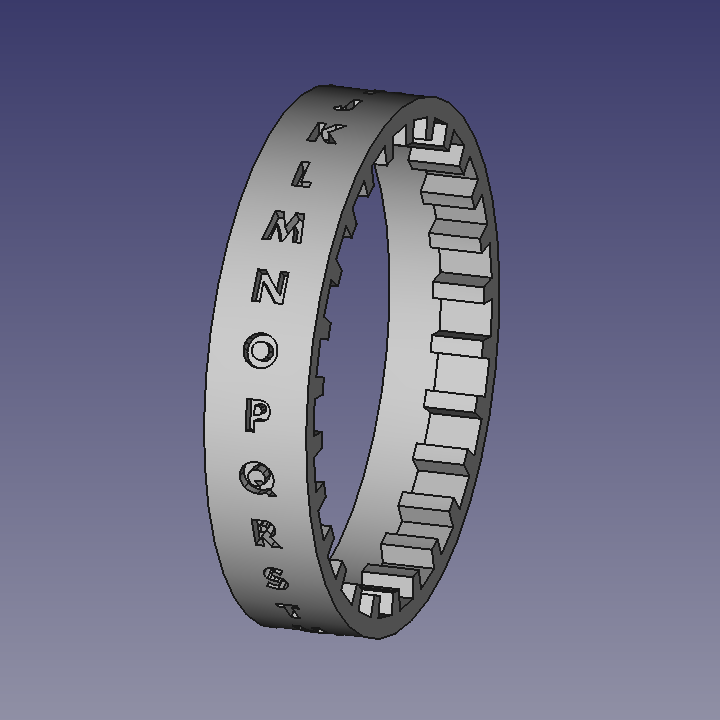

A cryptex offering 456976 different combinations via its 4 alphabetical rings.

It will contain small secret objects or confidential important messages that only you can access.

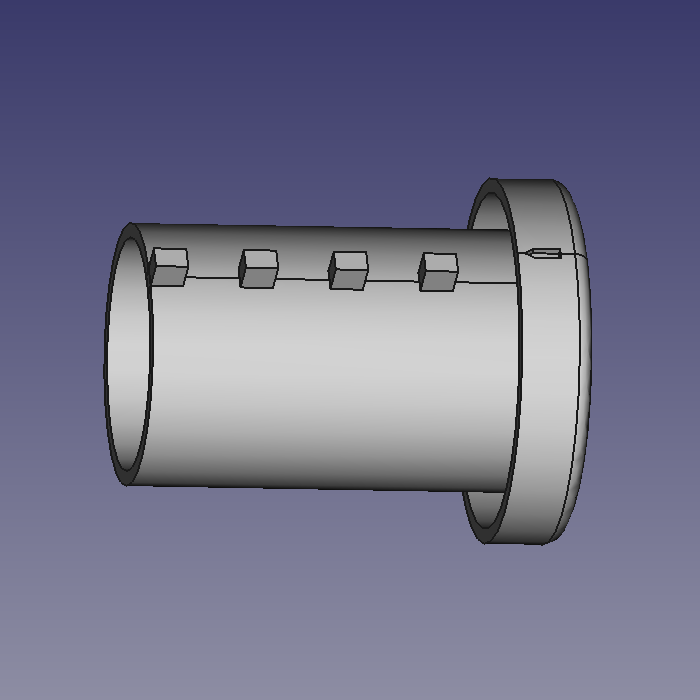

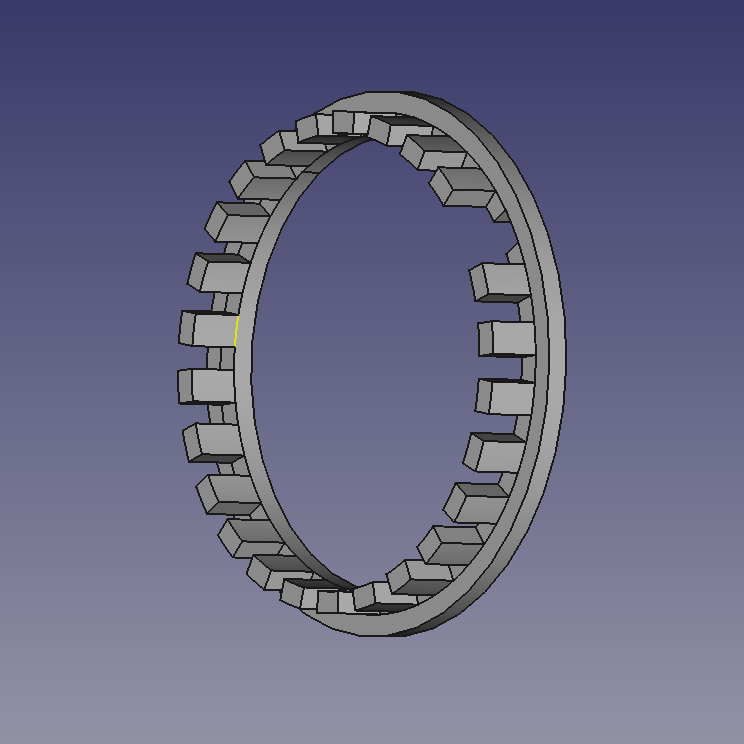

You can change the code whenever you want, without tools or screws. Indeed this model integrates a locking ring which locks the whole set of rings on the external cylinder, and which is itself held in position by the addition of the internal cylinder placed on top of it.

3D printing settings

External length: 72 mm

Outer diameter: 50 mm

Internal length (containing the message or secret object): 62 mm

Internal diameter (containing the message or secret object): 32 mm

For a dimensionally correct printing, the rings should be printed with 0.1 mm passes, but also the edge thickness should be adjusted to the thickness of the rings so that the filling does not come into play.

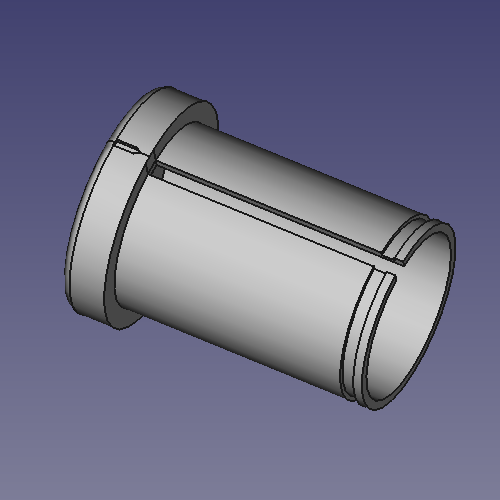

The parts named external and internal body can be printed with 0.2 mm passes and filling for enhanced rendering and strength.

  • 3D file format: STL
  • Publication date: 2020/10/13 at 18:34

Tags

Creator

License

CC BY NC SA
