MECHANICAL COUNTER // BIG NUMBERS - 0 to 39

Download 3D printer designs MECHANICAL COUNTER // BIG NUMBERS - 0 to 39, som195Download 3D printer designs MECHANICAL COUNTER // BIG NUMBERS - 0 to 39, som195Download 3D printer designs MECHANICAL COUNTER // BIG NUMBERS - 0 to 39, som195Download 3D printer designs MECHANICAL COUNTER // BIG NUMBERS - 0 to 39, som195Download 3D printer designs MECHANICAL COUNTER // BIG NUMBERS - 0 to 39, som195Download 3D printer designs MECHANICAL COUNTER // BIG NUMBERS - 0 to 39, som195

Did you 3D print this model?

3D model description

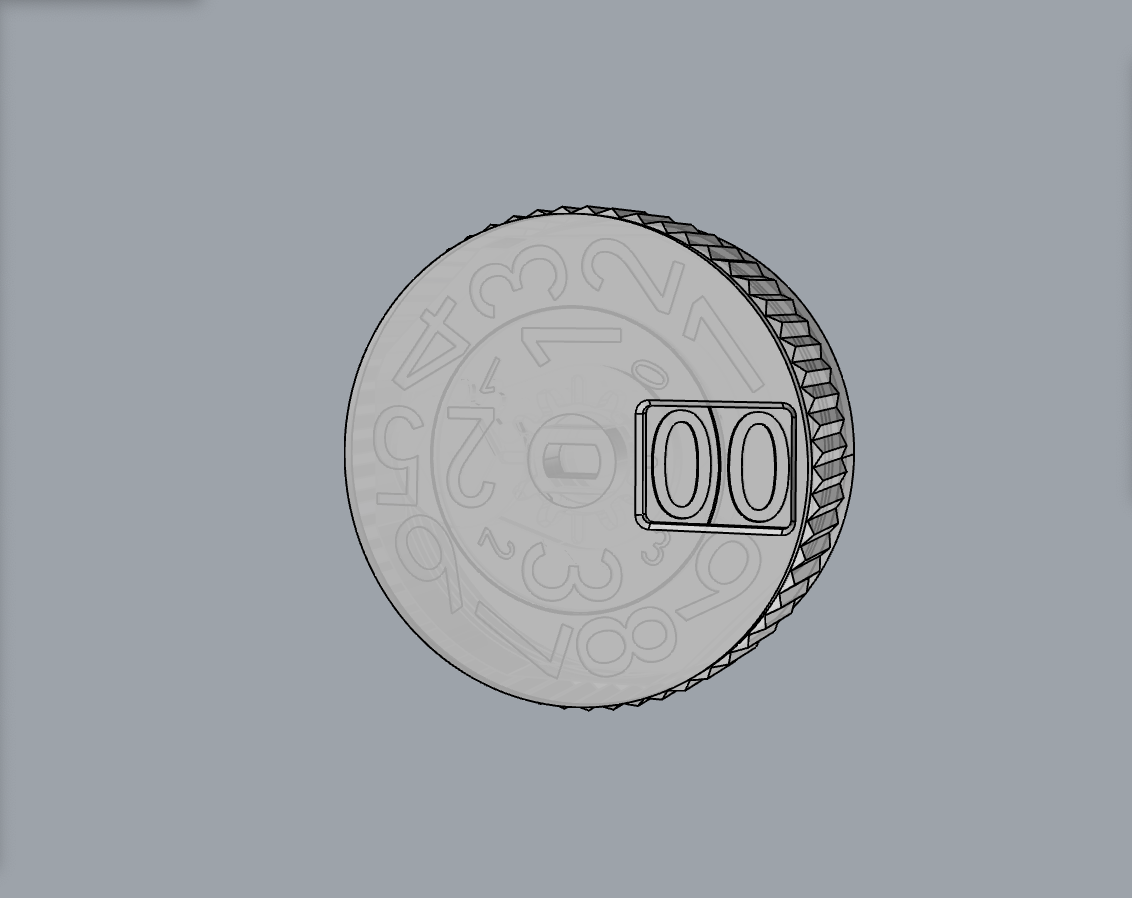

With this model I wanted to make a counter with large digits but in the most compact form possible.

It will allow you to count from 0 to 39 with a single movement:

Simply turn the toothed ring to scroll through the unit digits; the tens digits will automatically activate whether you turn the ring clockwise or counterclockwise.

All components are printable.

Step-by-step assembly included.

3D file format: STL.

Dimensions: 64 x 26 mm


With this model I wanted to make a counter with large digits but in the most compact form possible.

It will allow you to count from 0 to 39 with a single gesture:

Simply activate the serrated ring to scroll through the digits of the units; the digits of the tens will be activated automatically, whether you turn the ring clockwise or anticlockwise.

All components are printable.

Step-by-step assembly included.

3D file format: STL.

Dimensions: 64 x 26 mm

3D printing settings

Printing made with a Prusa I3 MK3S

12 pieces to print

Nozzle: 0.4 mm

Layer height: 0.2 mm

Filament: PLA 1.75mm

Support : Yes, for the "RatchetAxis".

Printing temperature: 190°C / 215°C (First layer)

Tray temperature: 60°C


12 Components to be printed

Nozzle: 0.4 mm

Layer height: 0.2 mm

Filament: PLA 1.75mm

Support : Yes for the "RatchetAxis"

Printing temperature: 190°C / 215°C (first layer)

Bed temperature : 60°C

  • 3D file format: ZIP
