Compact 40 Watt 4,000 Lumen LED Shop Light

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 11 likes
  • 94 downloads

3D model description

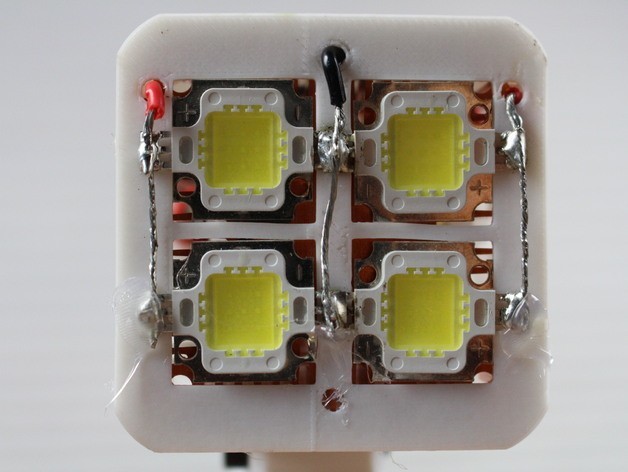

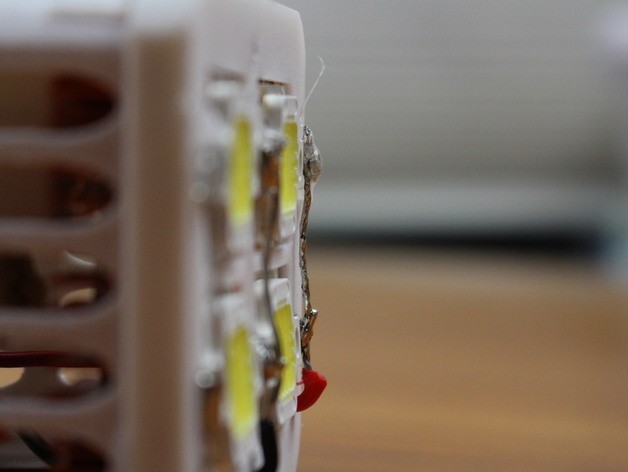

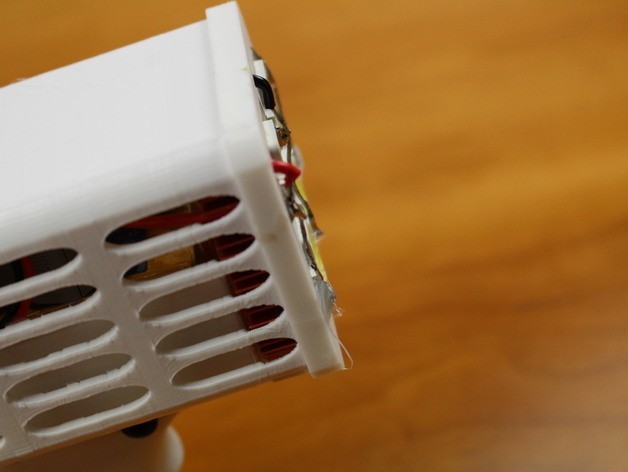

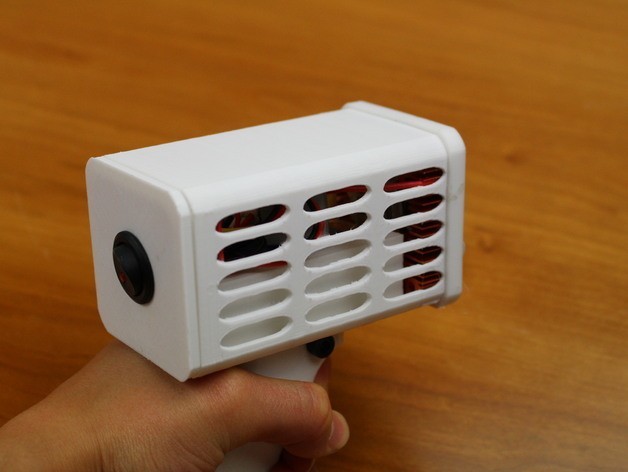

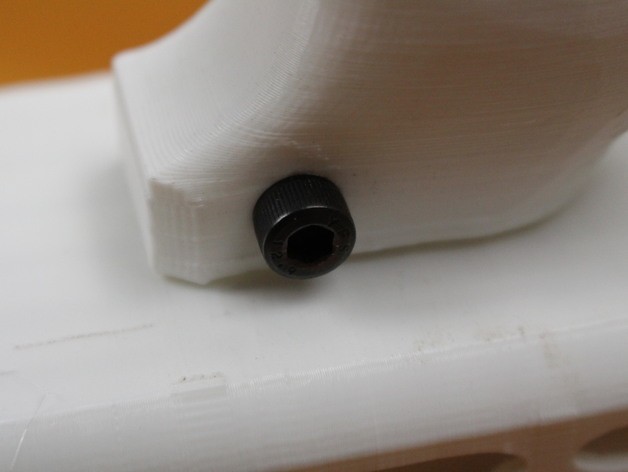

This is a super powerful and compact 40-watt shop plight. It can light up my entire street like day! This small device is capable of cranking out a crazy 4,000 lumens! This shop is about to get lit :) The assembly video listed below includes links to all the parts and tools you will need to build it. A GoPro mount can be used to attach any GoPro handle, or you can use one of our own custom handles. A 26mm external diameter acrylic rod is used for our custom rod handle.

Assembly Tutorial:
https://youtu.be/lTiddPHAx8E

3D printing settings

Printer:

FlashForge Creator Pro

Rafts:

Yes

Supports:

Yes

Notes:
I recommend that you use simplify 3D as a slicing program because their supports are super easy to get off and this design uses a lot of supports. Make sure to put all parts that have a raft .3mm off the raft, or the raft can be challenging to get off. If I don't mention a specific setting, just use your current setting.

MAIN BODY:

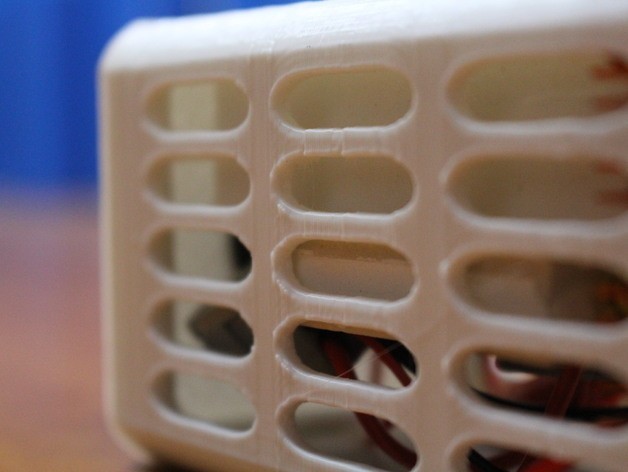

-Print the body file with supports and a raft in PLA.

OTHER:
-Print the front LED organiser in PLA with no supports or raft.
-Print the back in PLA with no rafts or supports.

HANDLES:
-Print the pistol grip handle with a raft and no supports.
-Print the rod handle with supports and 100% infill

Post-Printing
Step 1: Remove all supports

When you are done printing, there will be some supports on the mainframe/body and your rod handle extension. Carefully remove these supports with a pair of long nose pliers. If there are any other bits of bumpy/sharp pieces of plastic left on the outside of your mainframe/body make sure to remove them with your pliers.

Step 2: Assembly

Now that you have your 3D printed parts, you can move on to the next step of assembly. We have created a step by step tutorial video on youTube for you all to watch. We hope you all enjoy this project as much as we did!

  • 3D file format: STL
  • Publication date: 2018/03/02 at 12:06
