Commodore Amiga d-sub 23 display connector

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 724 views
  • 1 like
  • 8 downloads

3D model description

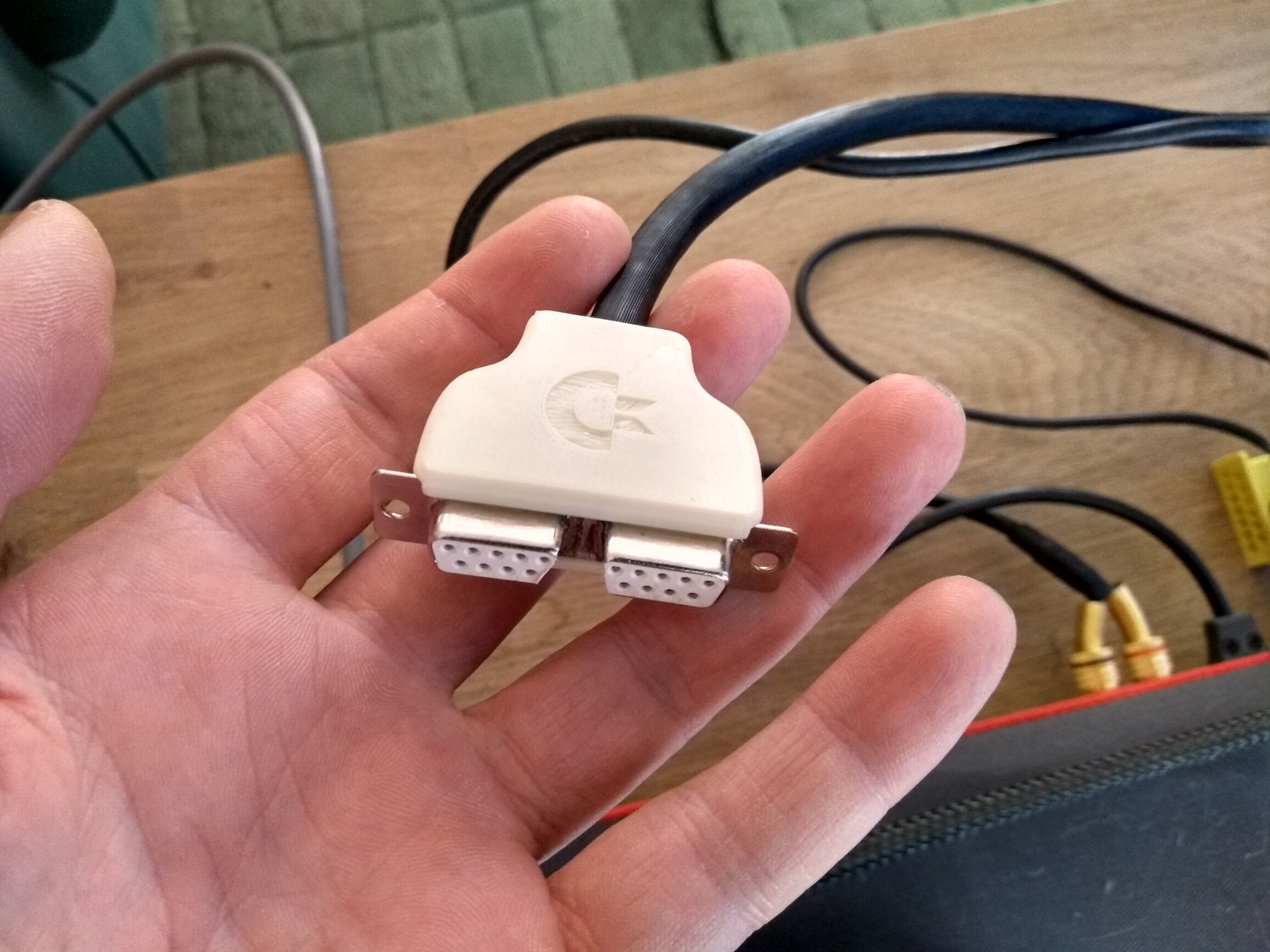

A plug housing for Making your own Amiga RGB video cables by joining two d-sub 9 connectors together. Trim the connector tabs and inside shielding as shown in the photo and solder together while aligned in a male d-sub connector like the Amiga RGB Video port.

Use M2 screws of 10 to 12 mm length to assemble the halves, or similar sizes self tapping screws.

The cable opening is made for 8 mm cable and has a radius for relief.

Mine was printed from beige PLA.


3D printing settings

Two perimeters and 100% infill. PLA is excellent for this.

3D printer file information

  • 3D design format: STL Folder details Close
    • Displayplughousing02.STL

    Learn more about the formats

  • 3D model size: X 41.4 × Y 67.1 × Z 7.5 mm
