Combination lock

3D model description

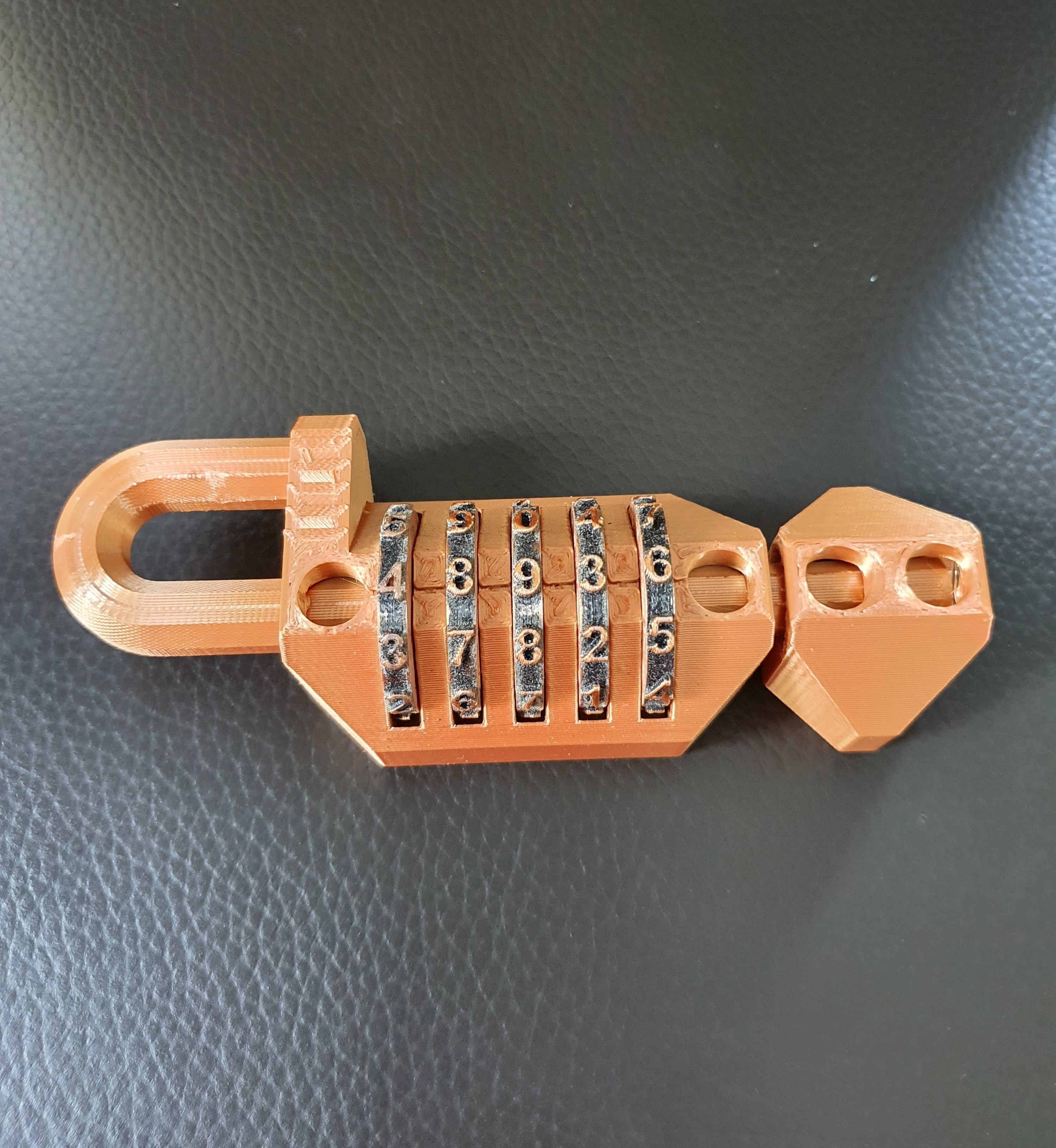

Combination lock and latch

printed and works well
screw holes are covered with pin while locked so it can not be unscrewed

strong design

choose your own number combination by lining up the numbers in relation to the cam slot on the opposite side to your chosen number.

The "pin" has a small hole at the end for an optional small screw to stop the pin from being pulled out when unlocked.

WARNING: DO NOT FORGET THE NUMBER!!
Its surprisingly very strong and difficult to break into.

3D printing settings

min 3 walls with 0.4 nozzle
no support
no infill needed
min 1mm top and bottom

  • 3D file format: STL

Tags

Creator

Designs 23
Downloads 187
Followers

The things I use and have are...

Tinkercad, 123design, Fusion360
Anycubic delta plus
Cura
Most common print material PLA
Most common print speed 30-40mm/sec
Most common layer hight 0.2-0.3mm
Travel speed 150mm/sec
Nozzle size 0.4
Glass bed
First layer bed temp 60 degrees
All other layers 50 degrees
Hot end 180-200 degrees for PLA

I think i get more enjoyment seeing people download or like my designs
rather then getting a few coins, so that is why all my designs are free so far.
Enjoy.
