3D model description

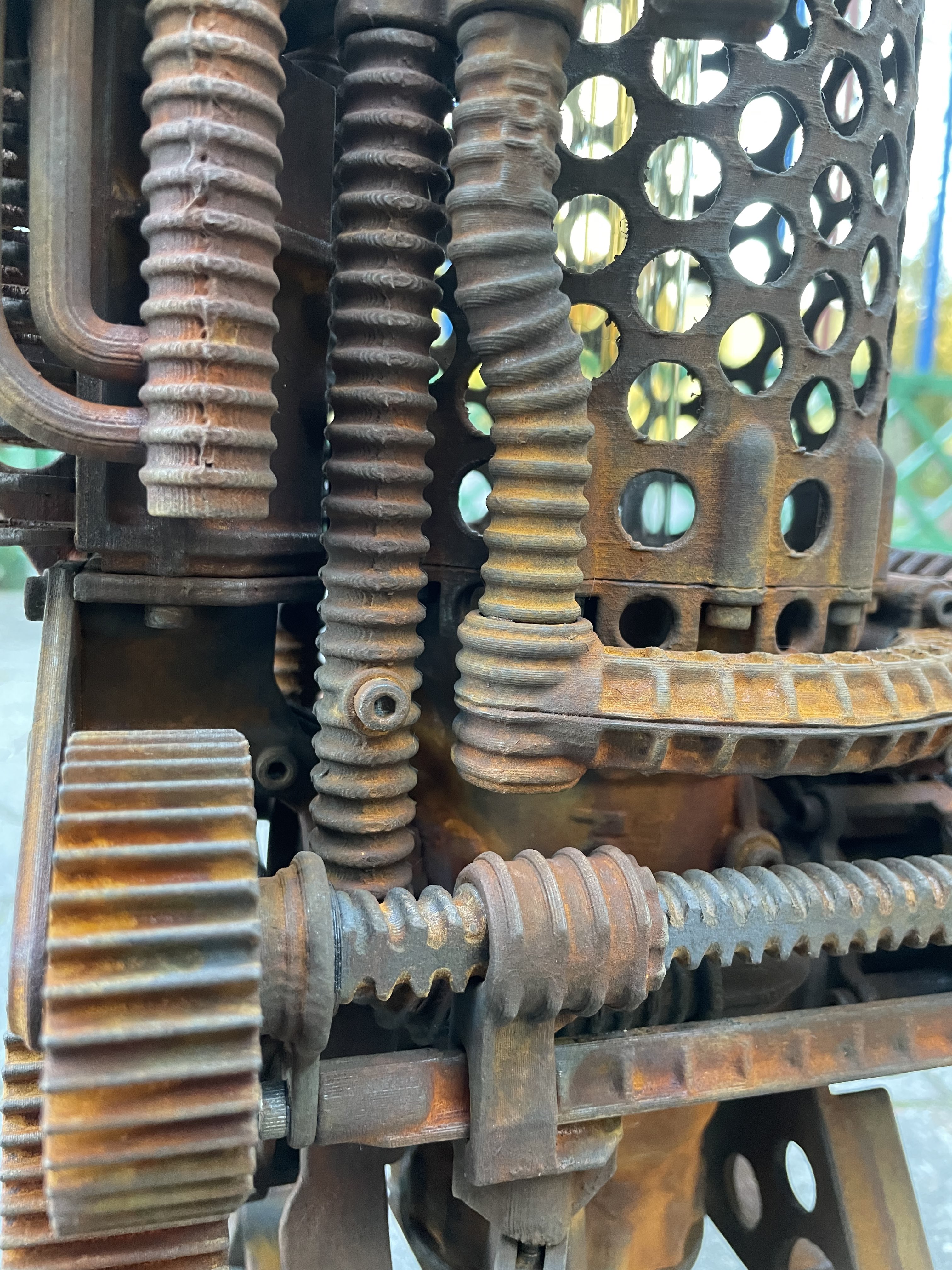

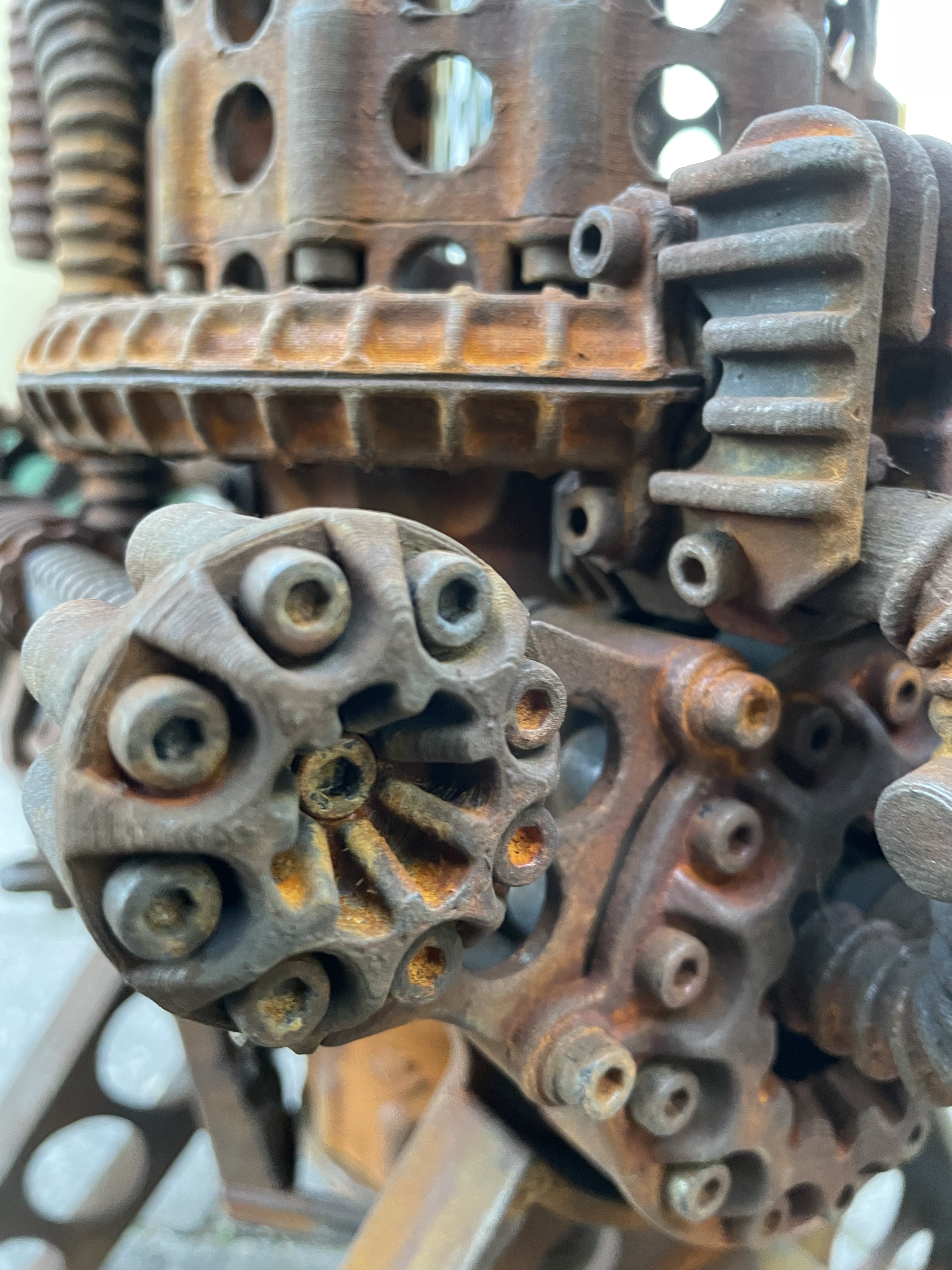

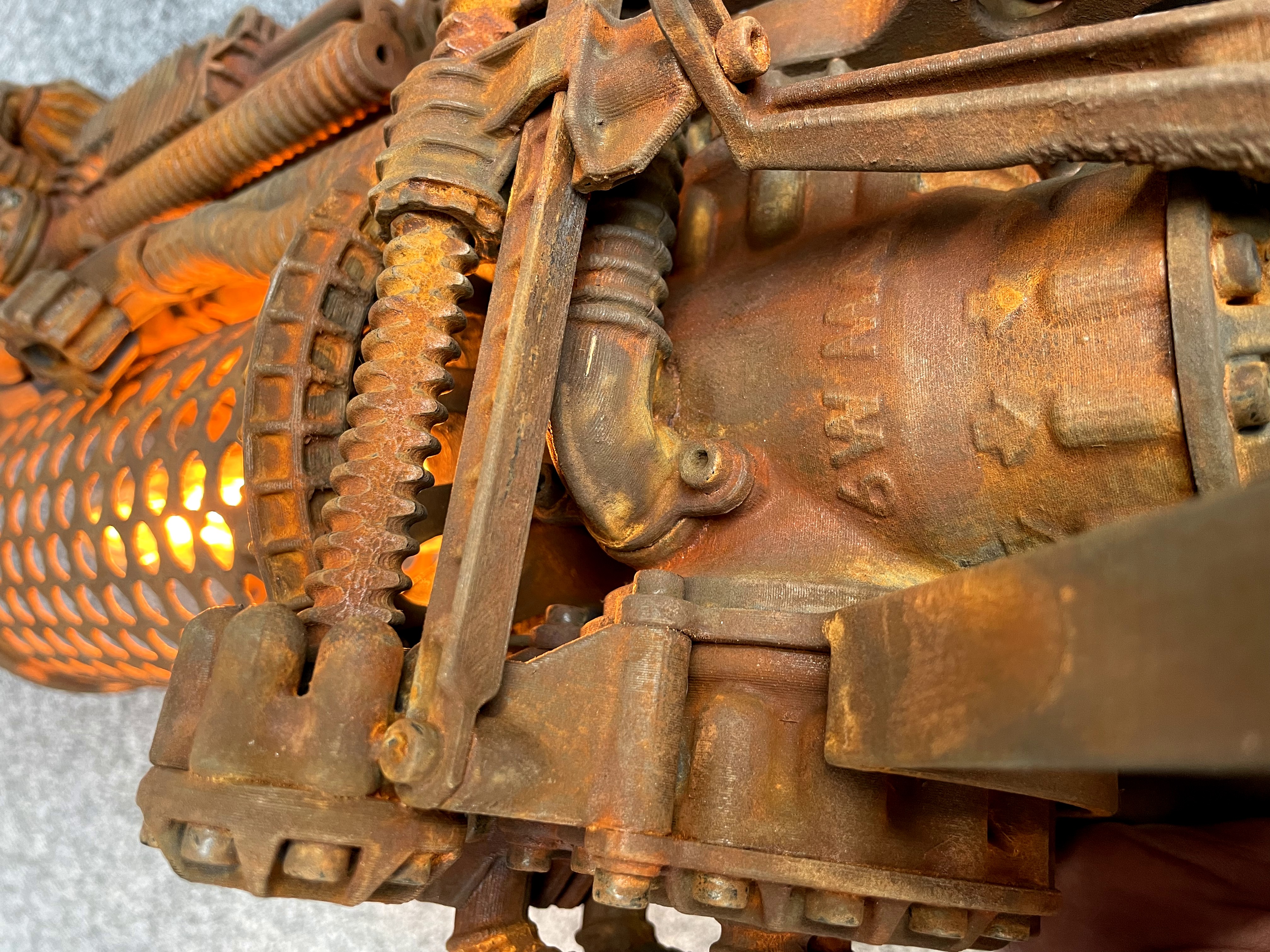

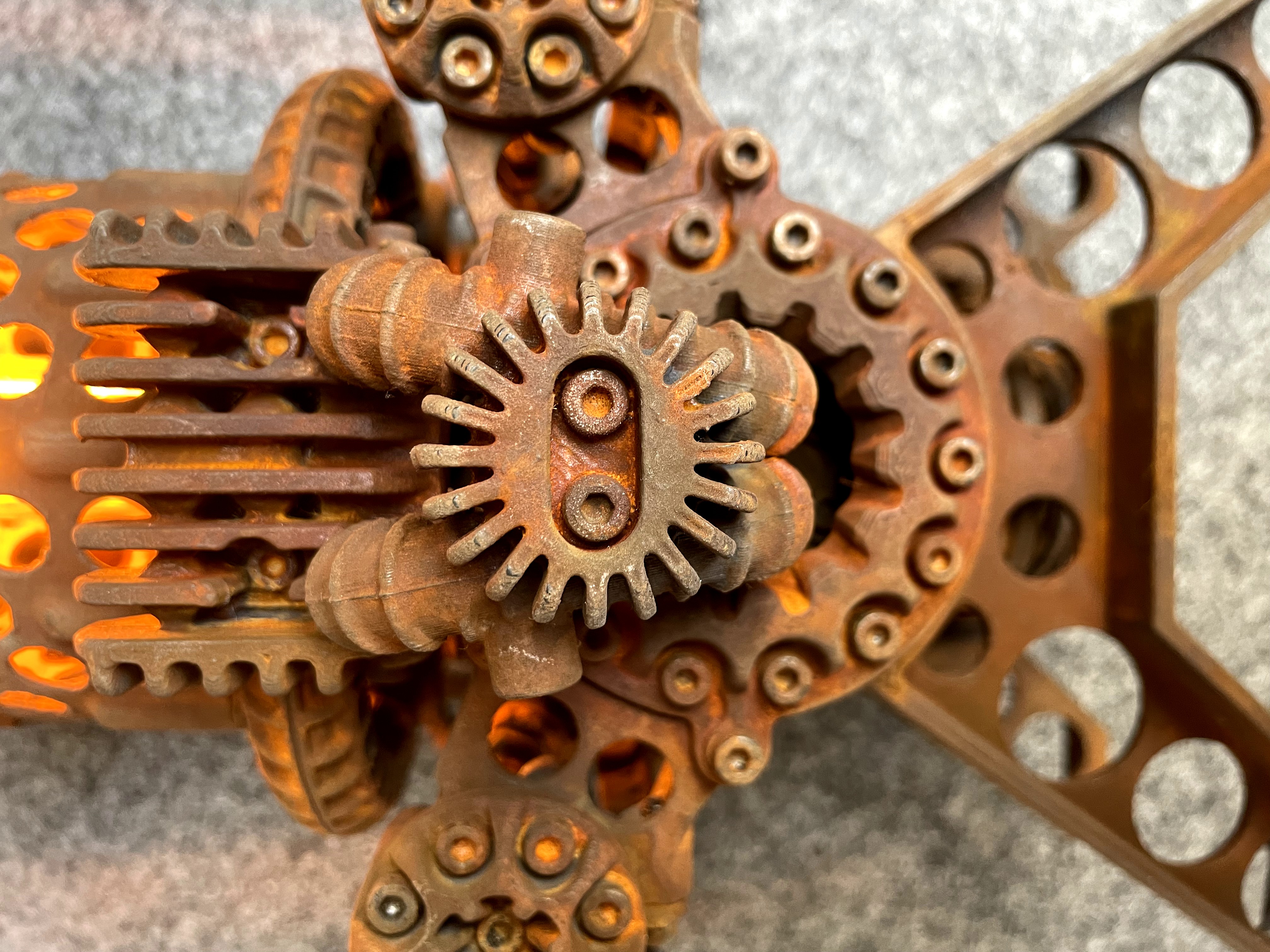

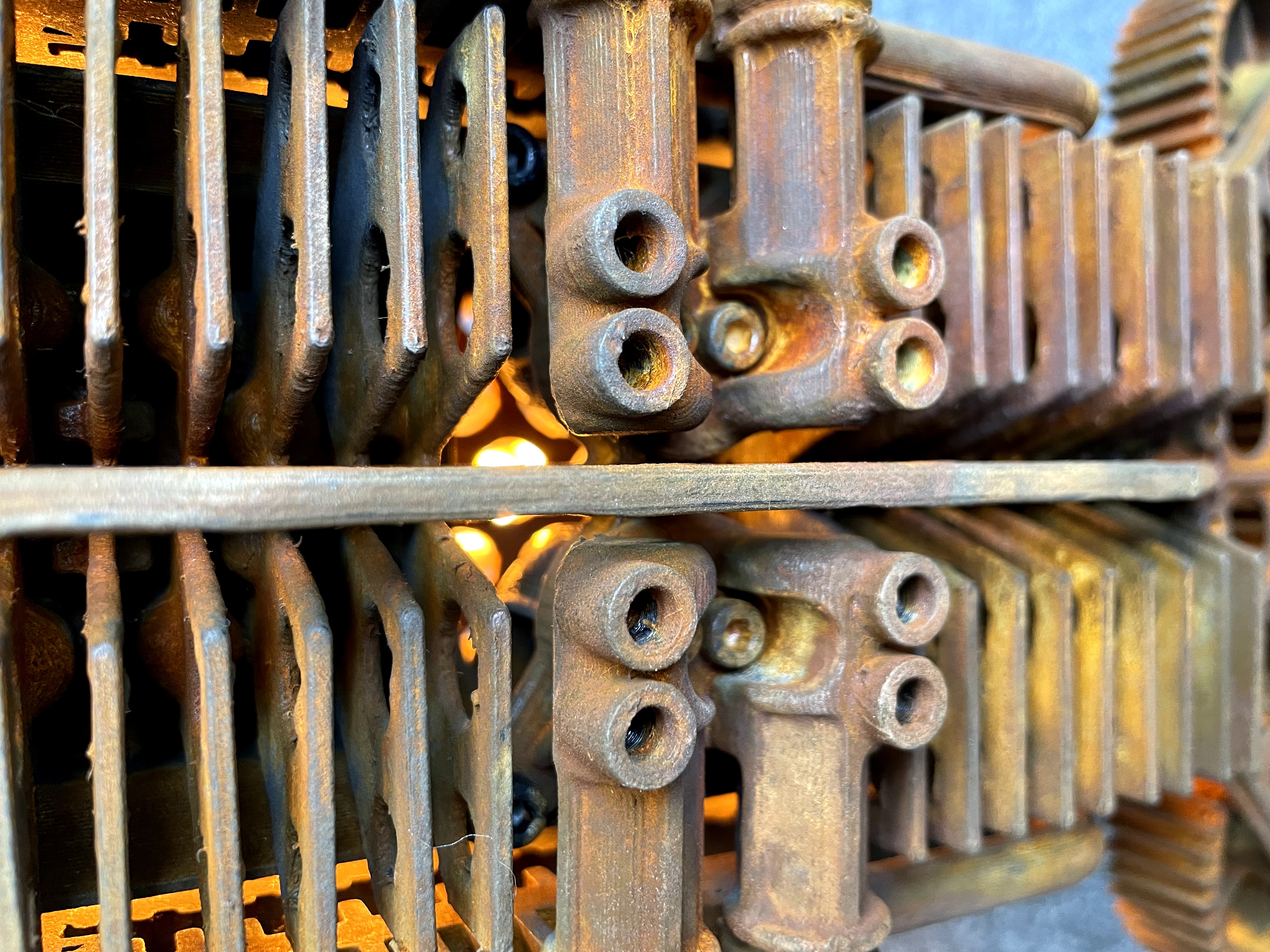

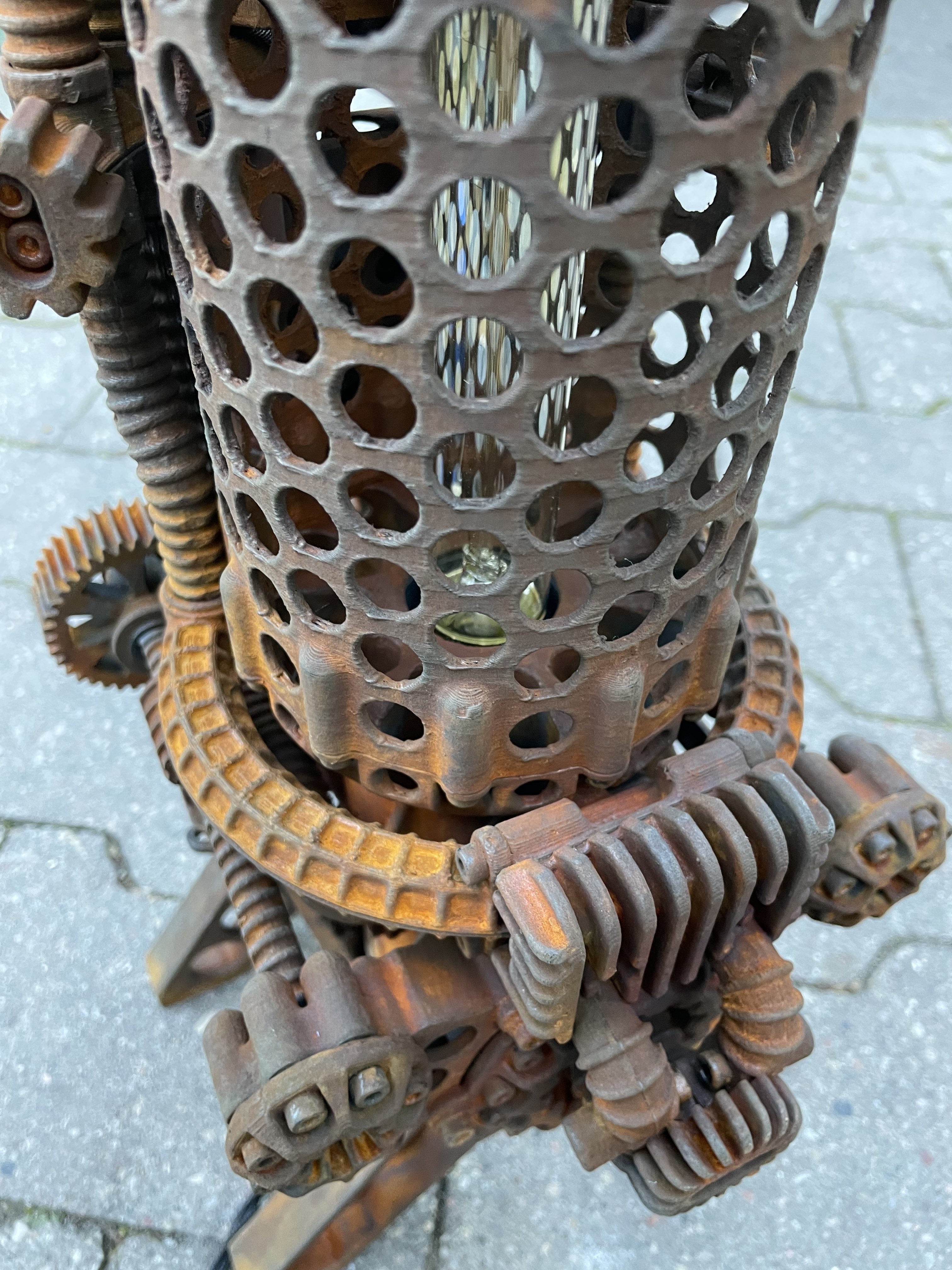

Fully functional desk lamp in Steampunk style.
Overview:
- Assembled lamp consist 98 pieces of 3D printed parts, 256 screws
- All parts can be printed on 200mm x 200mm x 220mm (z) bed or bigger
- All parts can be printed without support
Design updates:
EDIT 2022.01.04: Part number A39 is now in revision 2. The item was not placed correctly on the printing bed.
EDIT 2021.11.29: Part numbers: A10 is now in revision 2. The item was not placed correctly on the printing bed.
EDIT 2021.11.17: Part numbers: A14, A15, A38 is now in revision 2. Earlier mechanism had a tendency to block and not work properly. After changing a few things, the on-off switch works fine. Here is video showing updated mechanism: https://www.instagram.com/p/CWXt12FAPEr/
My social media:
If you have questions regarding assembling, suggestions to the project or want to see on what I'm currently working on, please join to Discord channel:
https://discord.gg/QKYsgs6BZG
https://instagram.com/tomaszfortyfour
https://facebook.com/TomaszFortyFour
https://youtube.com/channel/UCNhx2r8dA9hvST4pntiSzfQ
Painting guides:
Iron rust (Modern Masters paint):
https://youtu.be/1xOuB0sGLH0
Bronze patina (Modern Masters paint):
https://youtube.com/watch?v=98WkF9aaf6c
Iron rust (Ecorson Oxidecor Fine and Jeger activator):
https://www.youtube.com/watch?v=NA6MUdbfwLg
Assembling guides:
PDF: TBA
Youtube: https://www.youtube.com/watch?v=hUhmg1zEbRY
Bill of materials:
- 220/110V plug - plug type depends on the country
- R13-112A switch -
https://s.click.aliexpress.com/e/_AX8eMl
- 256 pcs of M4x16 screws (DIN912) - https://s.click.aliexpress.com/e/_A8p4pJ
- E27, 18.5 cm long Edison bulb LED type 5W max
https://s.click.aliexpress.com/e/_AZiN5B
Aliexpress (it is one shop where you can buy all this items):
- E27 Holder for bulb, black - https://s.click.aliexpress.com/e/_9IV8MN
- Around 4m retro cable - https://s.click.aliexpress.com/e/_Ab15zF
- B style Cable clamp - https://s.click.aliexpress.com/e/_DlqF1aL
For personal (non-commercial) use only. This model or parts of it CANNOT be sold, shared or distributed in digital, physical, original or modified form.
3D printing settings
- all parts can be printed without support
- if you want to paint you can print with 0.3mm layer height
- use 3 wall lines
- 5 bottom and top layers
- 20% infill
- nozzle - 0.4mm or 0.6mm (on all my prints I use 0.6mm)
3D printer file information
-
3D design format: STL Folder details Close
- A1.STL
- A10v2.STL
- A11.STL
- A12.STL
- A13.STL
- A14.STL
- A14v2.STL
- A15.STL
- A15v2.STL
- A16.STL
- A17.STL
- A18.STL
- A19.STL
- A2.STL
- A20-short version.STL
- A20.STL
- A21.STL
- A22.STL
- A23.STL
- A24.STL
- A25.STL
- A26.STL
- A27.STL
- A28.STL
- A29.STL
- A3.STL
- A30.STL
- A31.STL
- A32.STL
- A33.STL
- A34.STL
- A35.STL
- A36.STL
- A37.STL
- A38.STL
- A38v2.STL
- A39v2.STL
- A4.STL
- A5.STL
- A6.STL
- A7.STL
- A8.STL
- A9.STL
- Last update: 2022-11-11 at 22:48
- Publication date: 2021-10-11 at 10:20
License
CC BY-NC - Attribution - Non commercial
Tags
- functional
- gears
- lamp
- mechanical
- engineering
- steampunk
- desklamp
- edison
- assembling
- edisonbulb
- steampunklamp
Creator
3D printing hobbyist,
Automotive CAD designer
Issue with this design?
Report a problem.

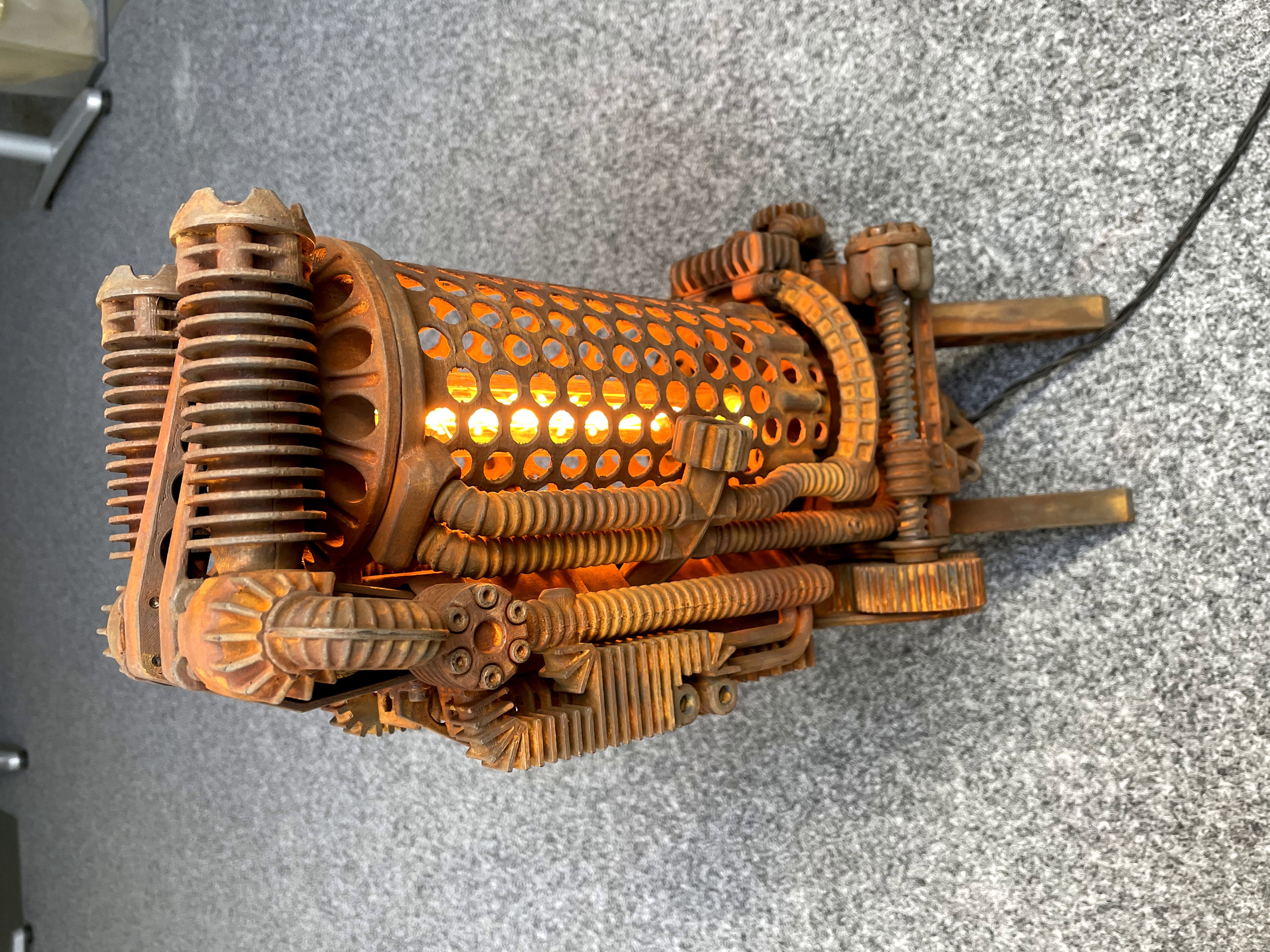

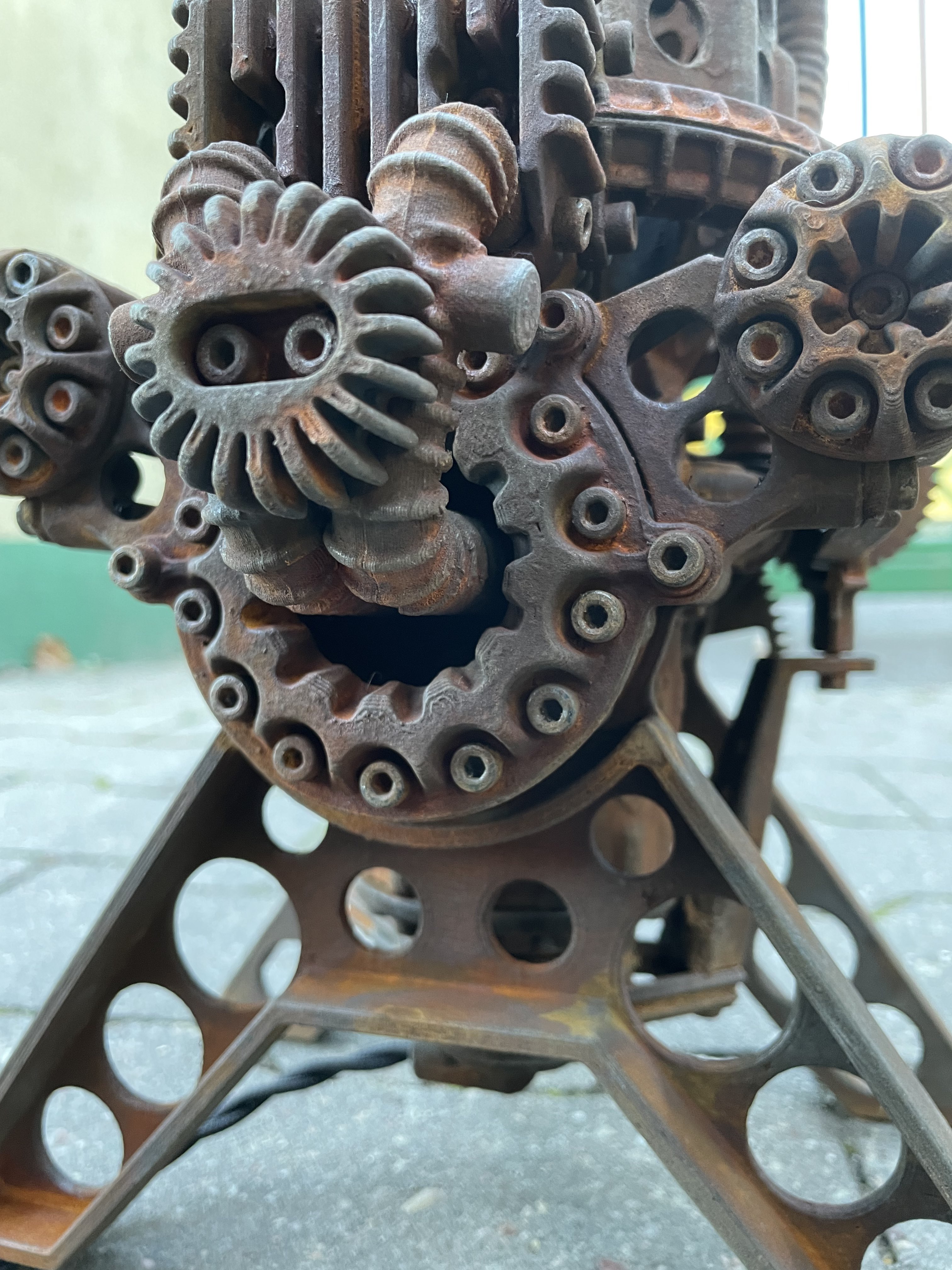

Makes created by the community
