3D model description
shown here is the successor of the co2-light which was already offered here on cults.

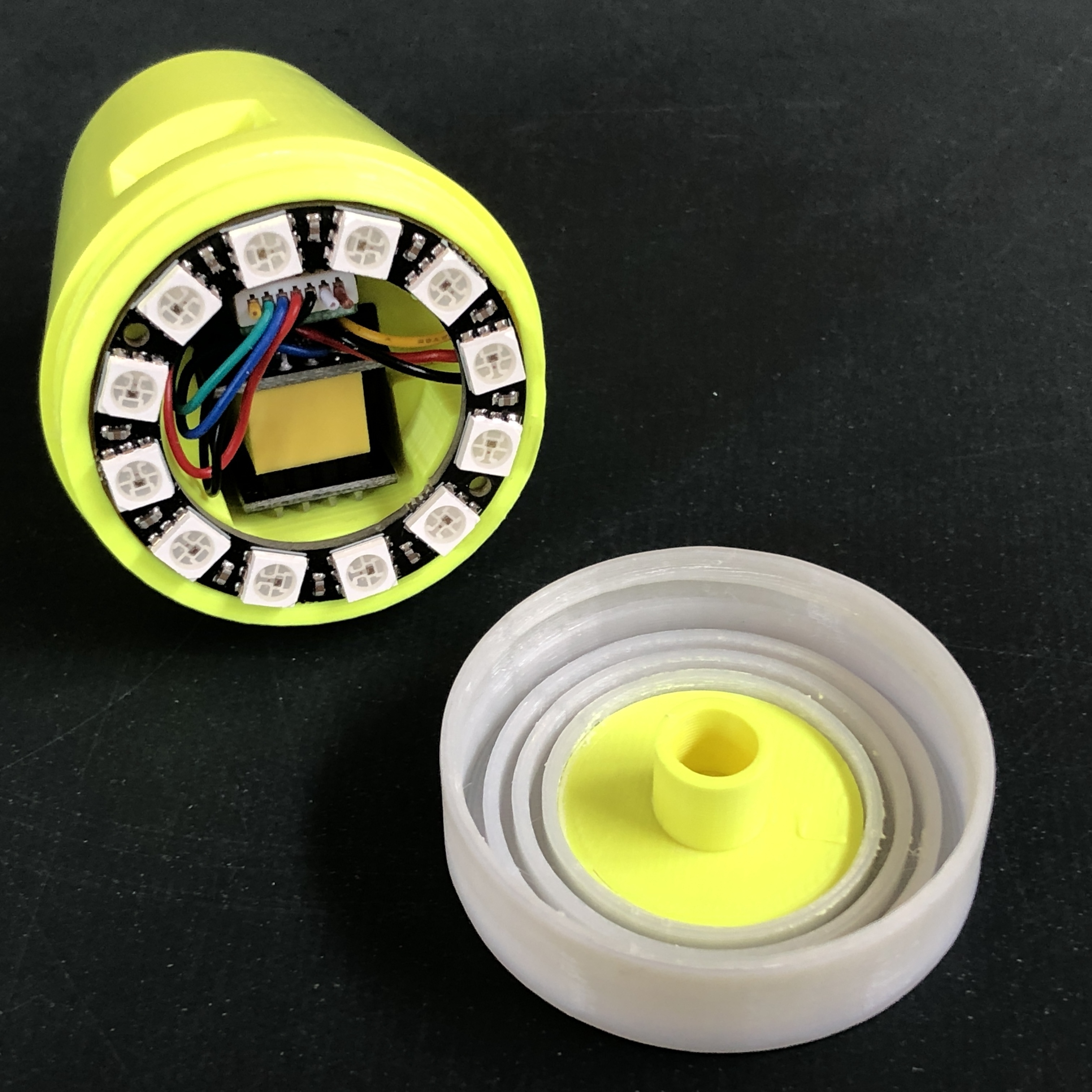

The co2-light-ring uses Neo Pixel rings with 8 12 or 16 pixels.

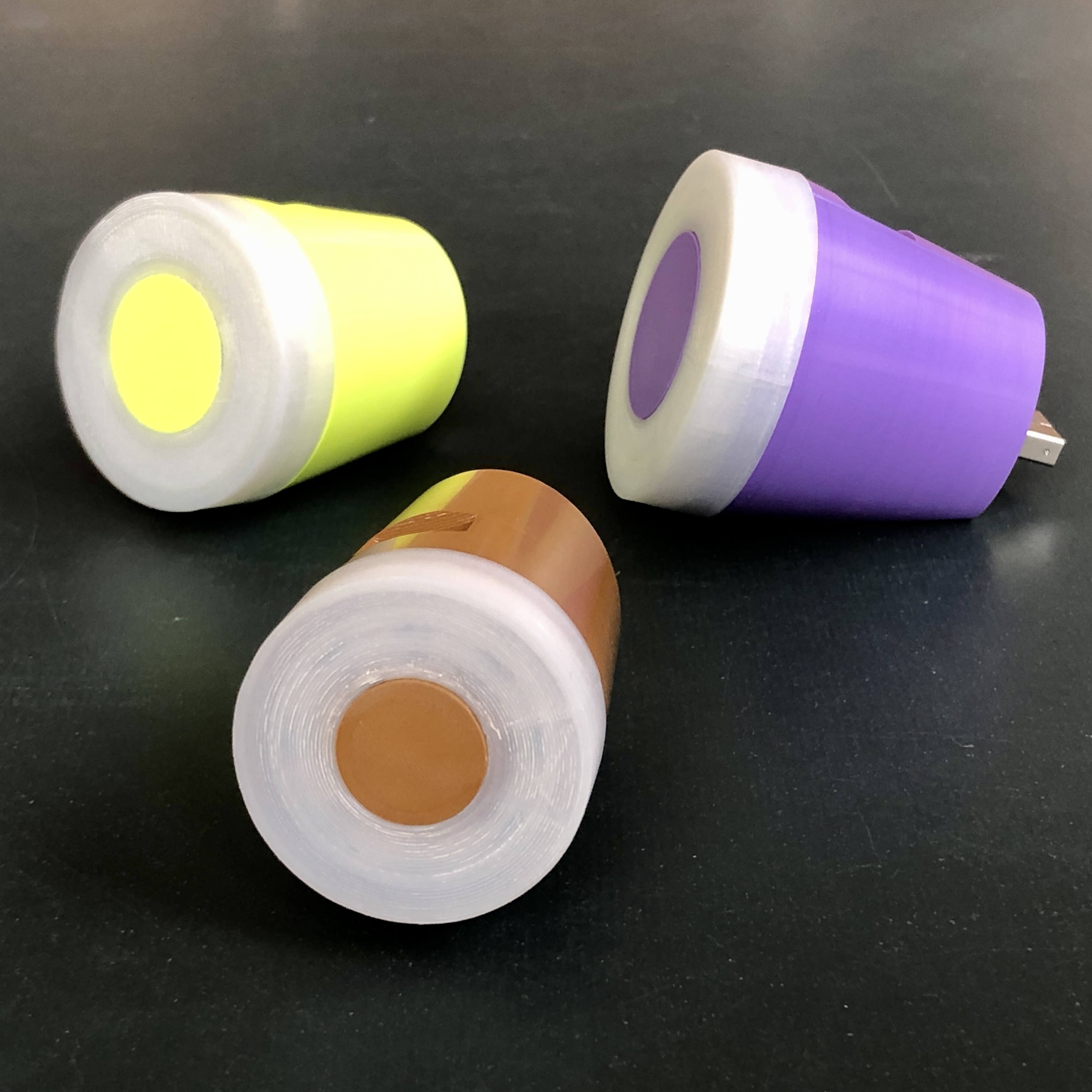

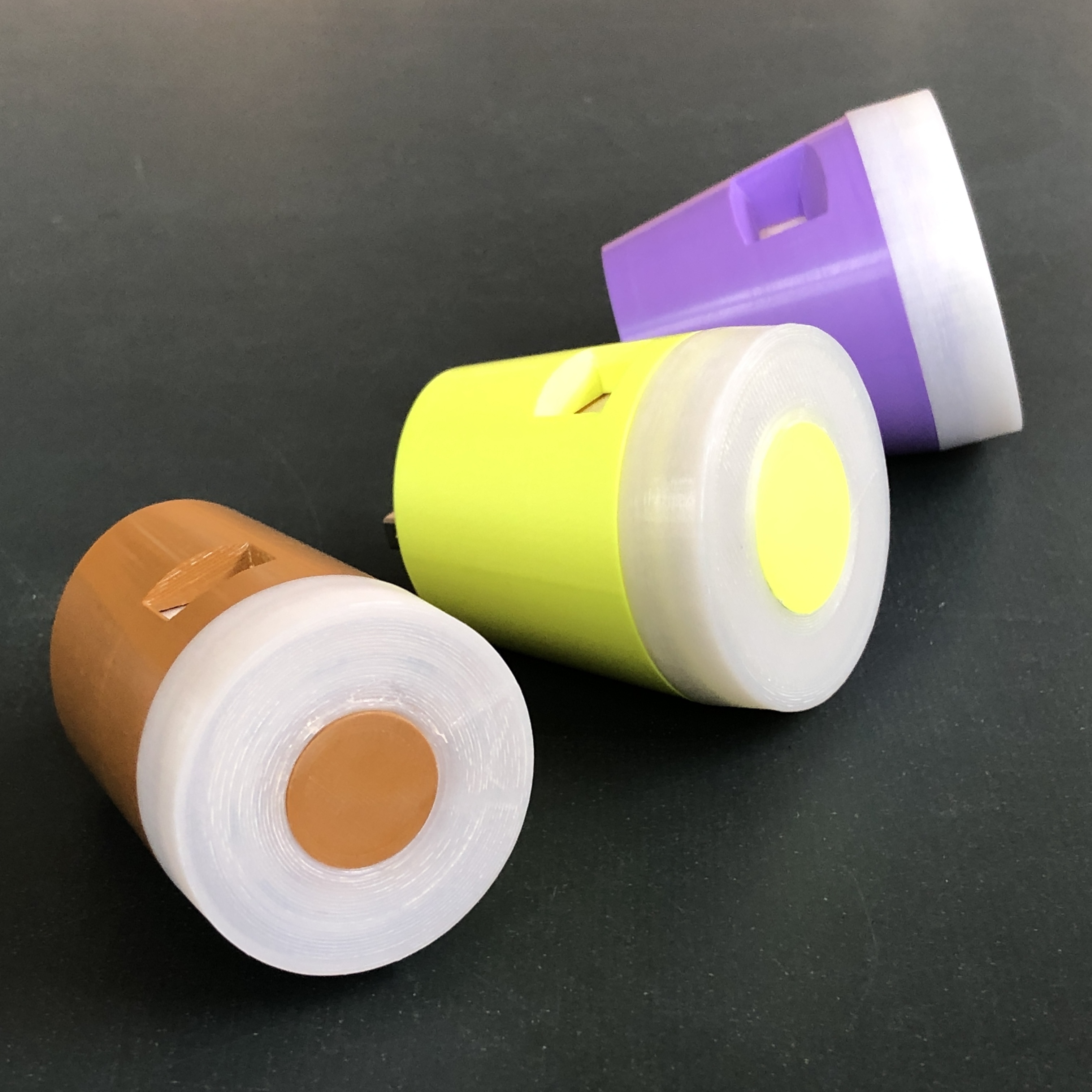

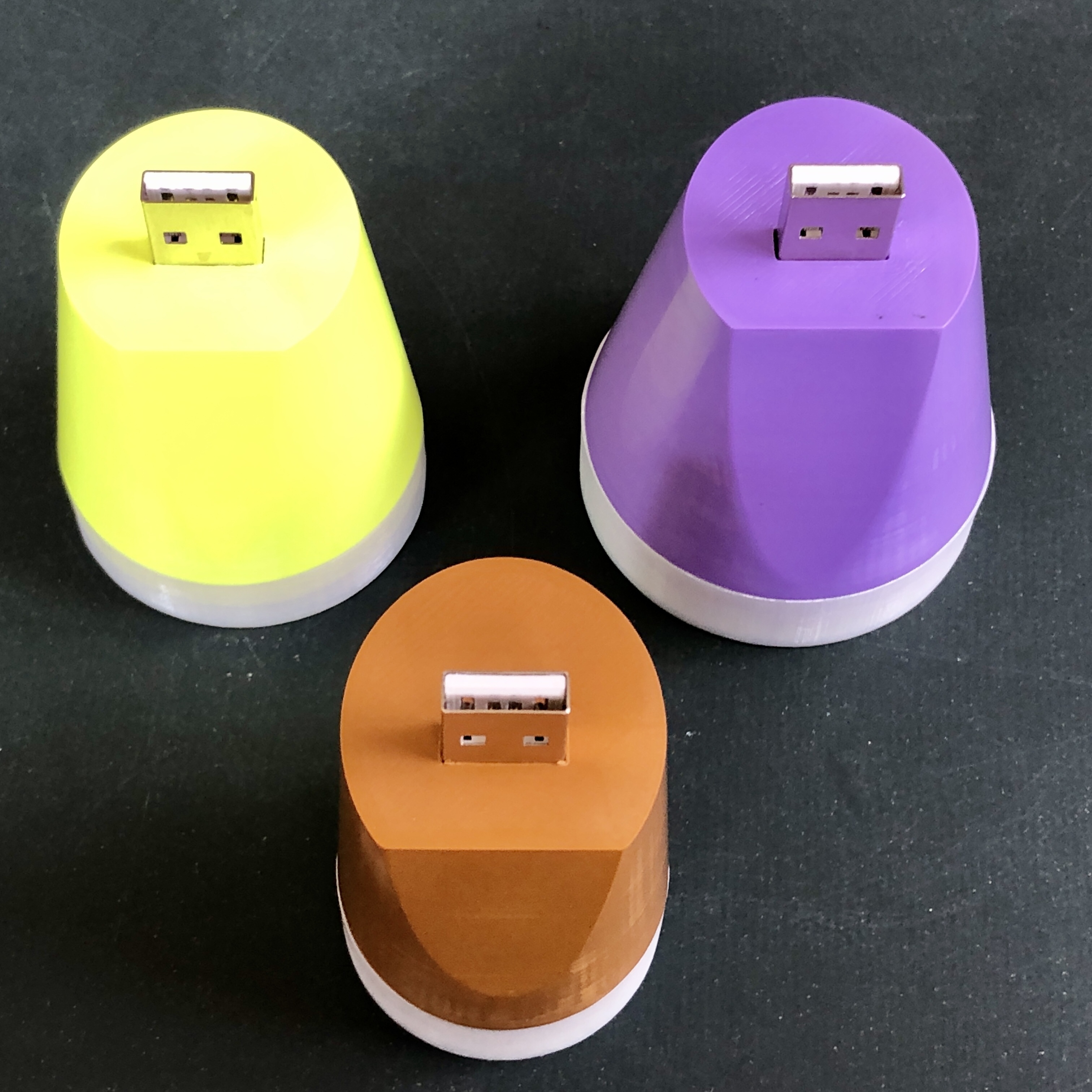

The housing data for the three ring sizes (outer diameter: 32.2 mm 38.5mm and 44.3mm) can be downloaded here.
The newer Co2 sensor MH-Z19C is also used - technical details and assembly instructions can be found here http://pits.tgd-consulting.de/.
Another new feature is the tendency display, which shows the direction of the light pixels after the measurement.

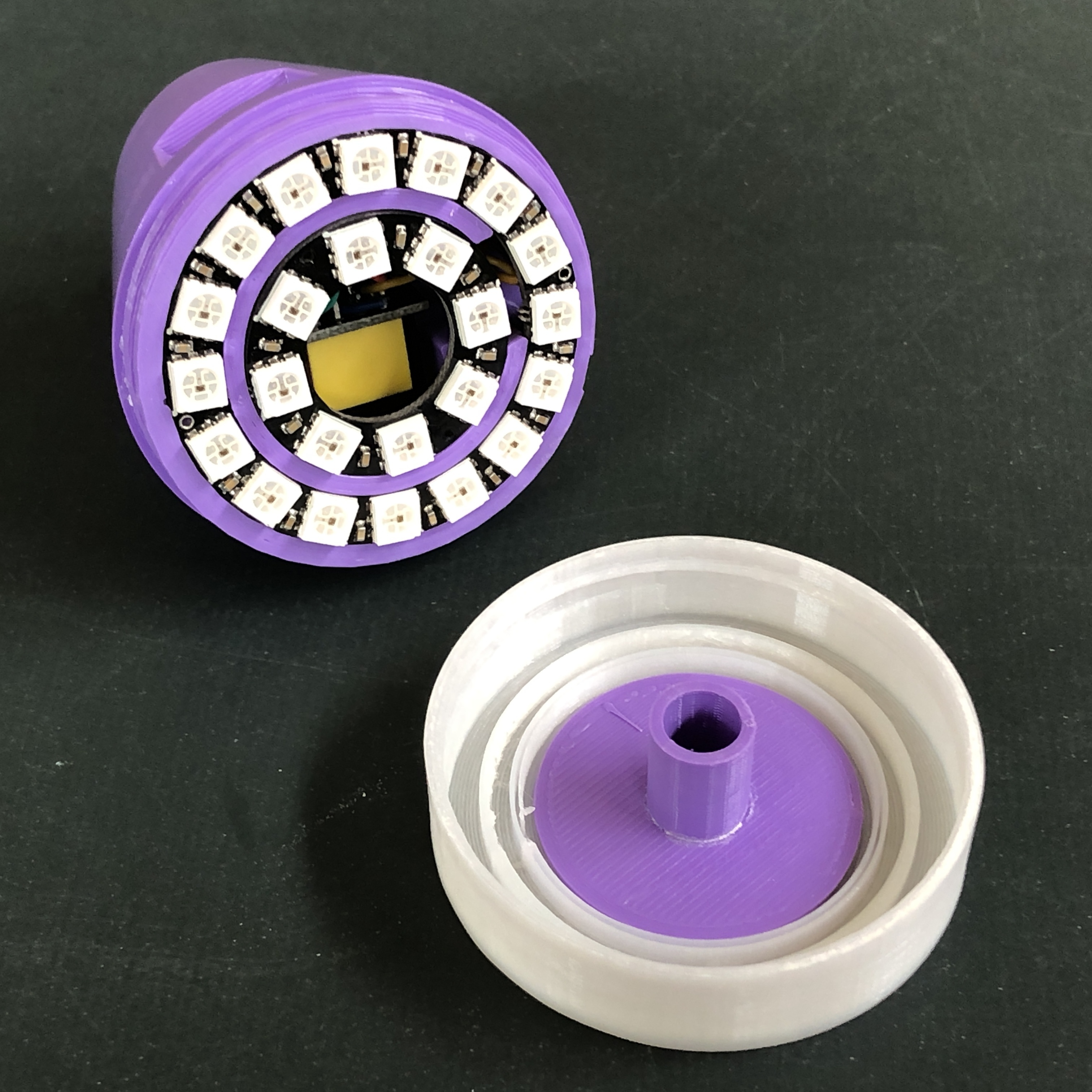

With the large housing, the 8 pixel ring can be added to the 16 pixel ring in the middle, so that 24 pixels are illuminated.

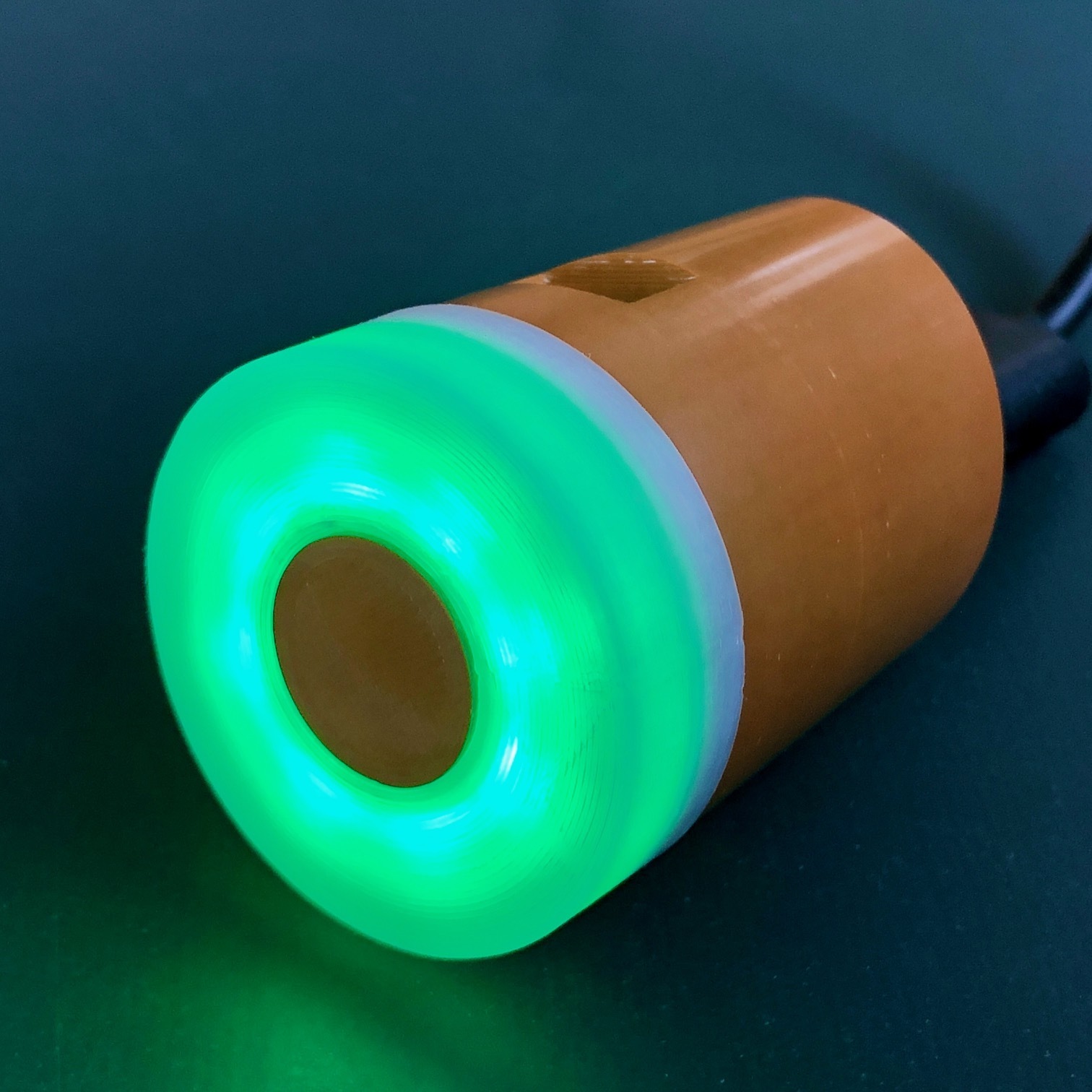

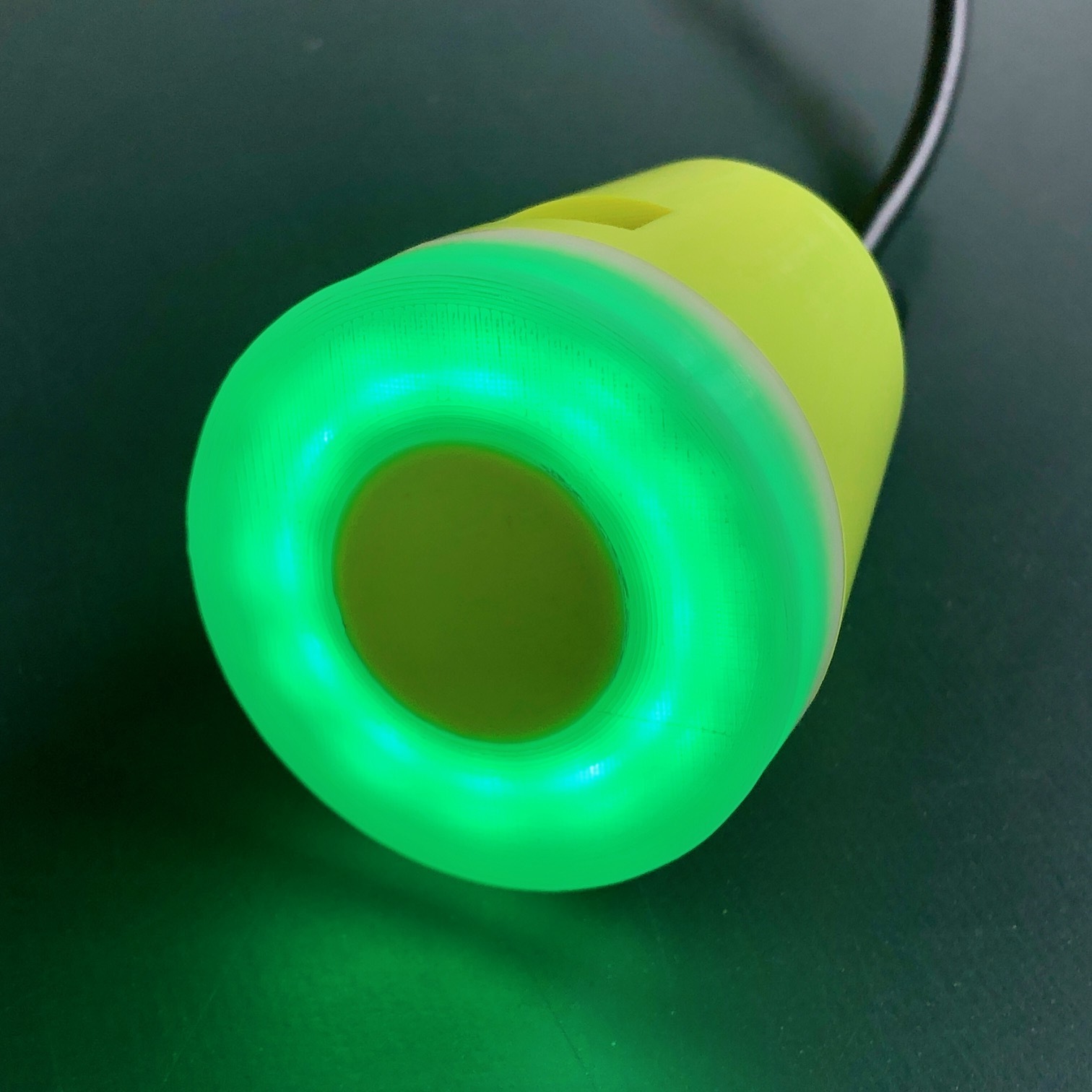

The cover is available in 2 versions - one and two-piece. The one-piece cover is easier to print, the two-piece cover can produce a more beautiful luminous image with an opaque centre.
3D printer file information
- Design number: 364712
-
3D design format: OBJ Folder details Close
- Neo 12Pixel 39mm Cap center.obj
- Neo 12Pixel 39mm Cap hole.obj
- Neo 12Pixel 39mm Cap.obj
- Neo 12Pixel 39mm Case.obj
- Neo 16Pixel 44mm Cap center.obj
- Neo 16Pixel 44mm Cap hole.obj
- Neo 16Pixel 44mm Cap.obj
- Neo 16Pixel 44mm Case.obj
- Neo 16Pixel 44mm Spacerring.obj
- Neo 8Pixel 32mm Cap hole.obj
- Neo 8Pixel 32mm Cap.obj
- Neo 8Pixel 32mm Case.obj
- Neo 8Pixel 32mm Center.obj
- Publication date: 2021-04-12 at 16:22
