CircuitPython Camera Slider

?
Creation's quality: 4.3/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 7 likes
  • 26 downloads

3D model description

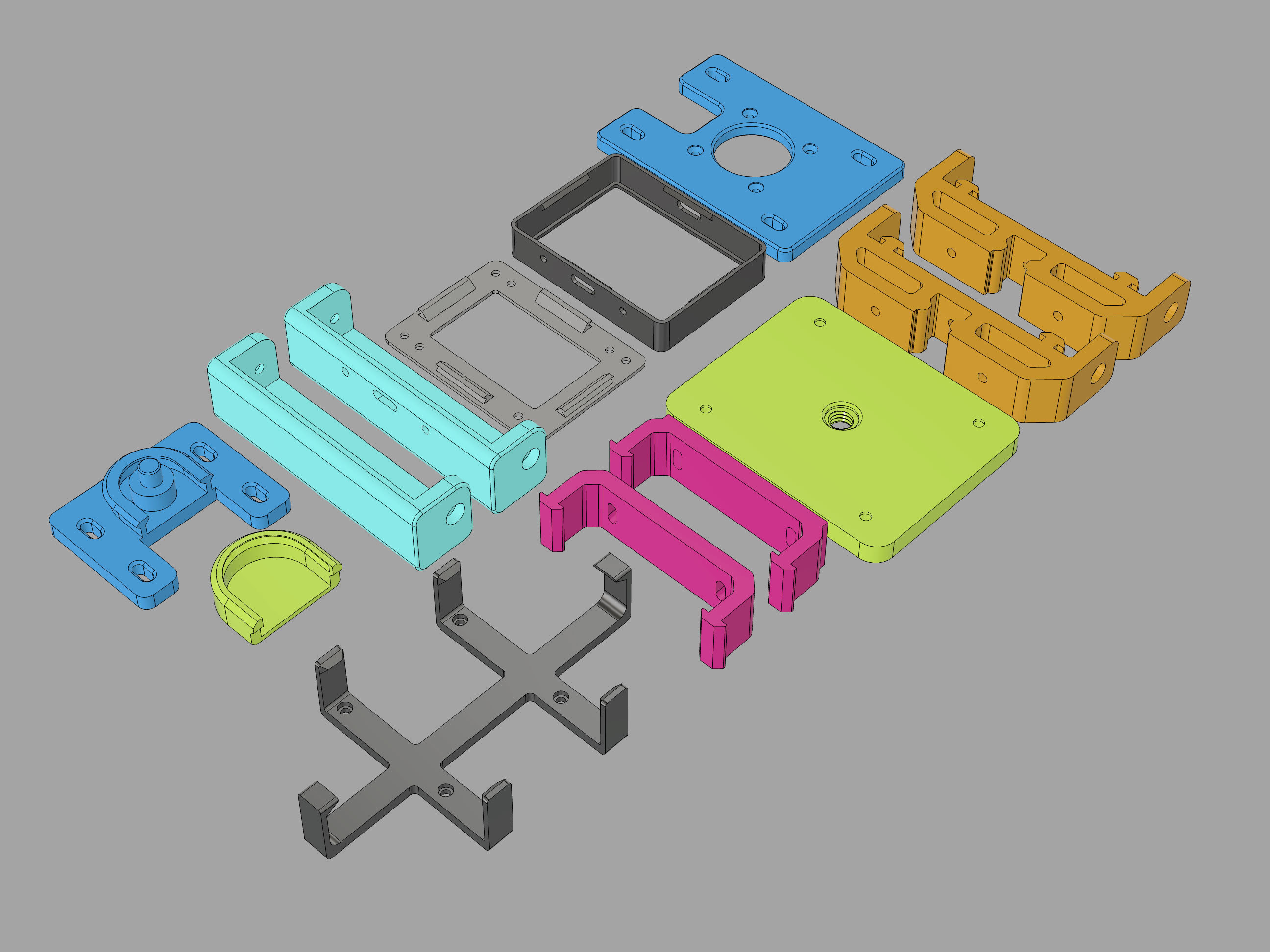

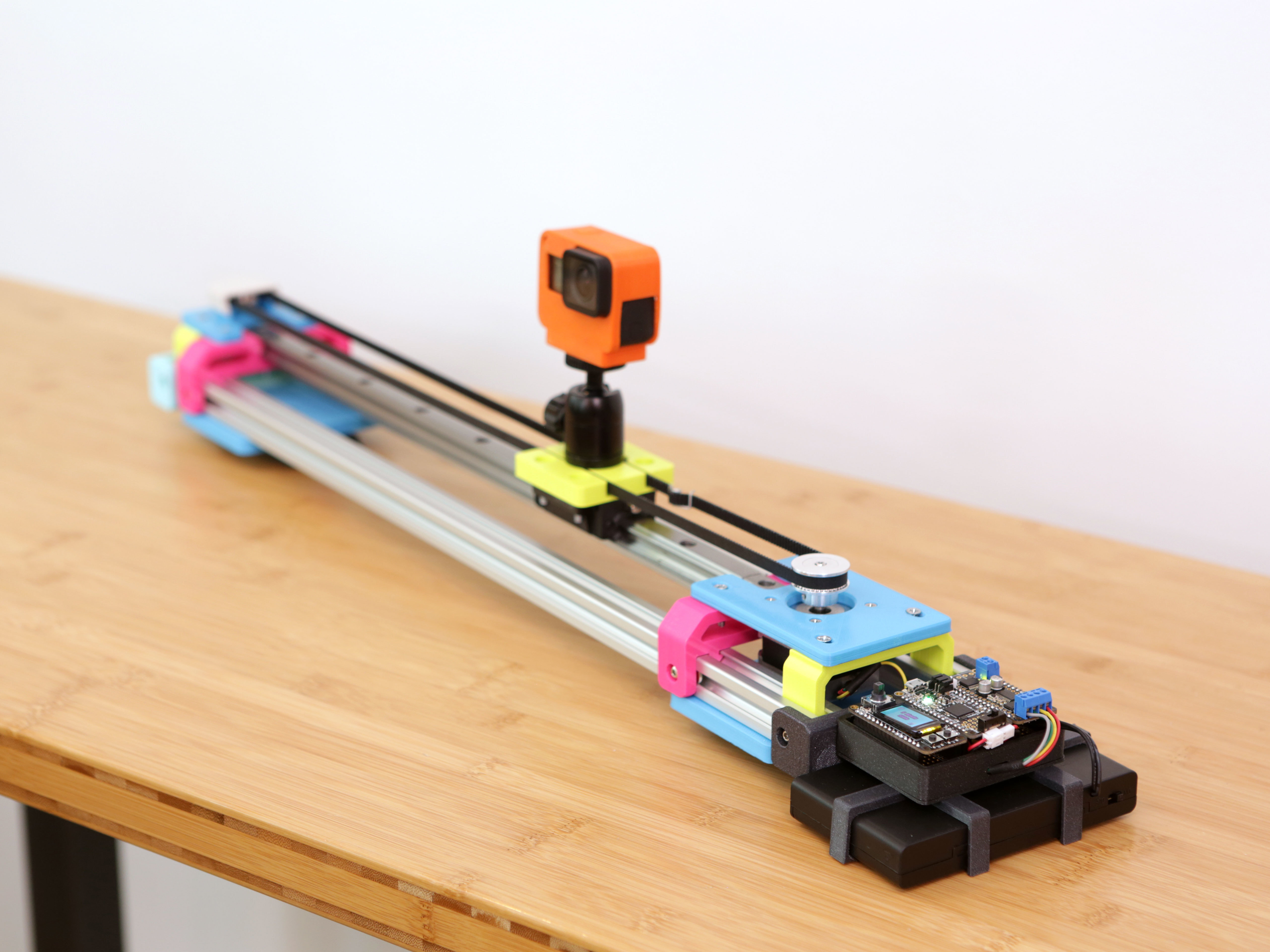

This project uses the Adafruit Feather platform and CircuitPython to make an easy to control motorized camera slider. The build uses aluminum extrusion to support a linear rail system with 3D printed parts. A camera can be mounted to the platform and slide along the rail. You may use the joystick and buttons to trigger different time settings presented on a mini TFT display.

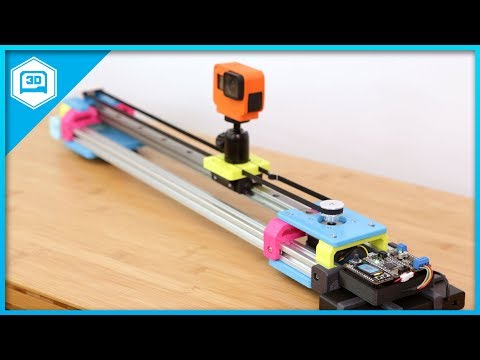

https://www.youtube.com/watch?v=v48WJUa1awA

https://learn.adafruit.com/circuitpython-motorized-camera-slider/

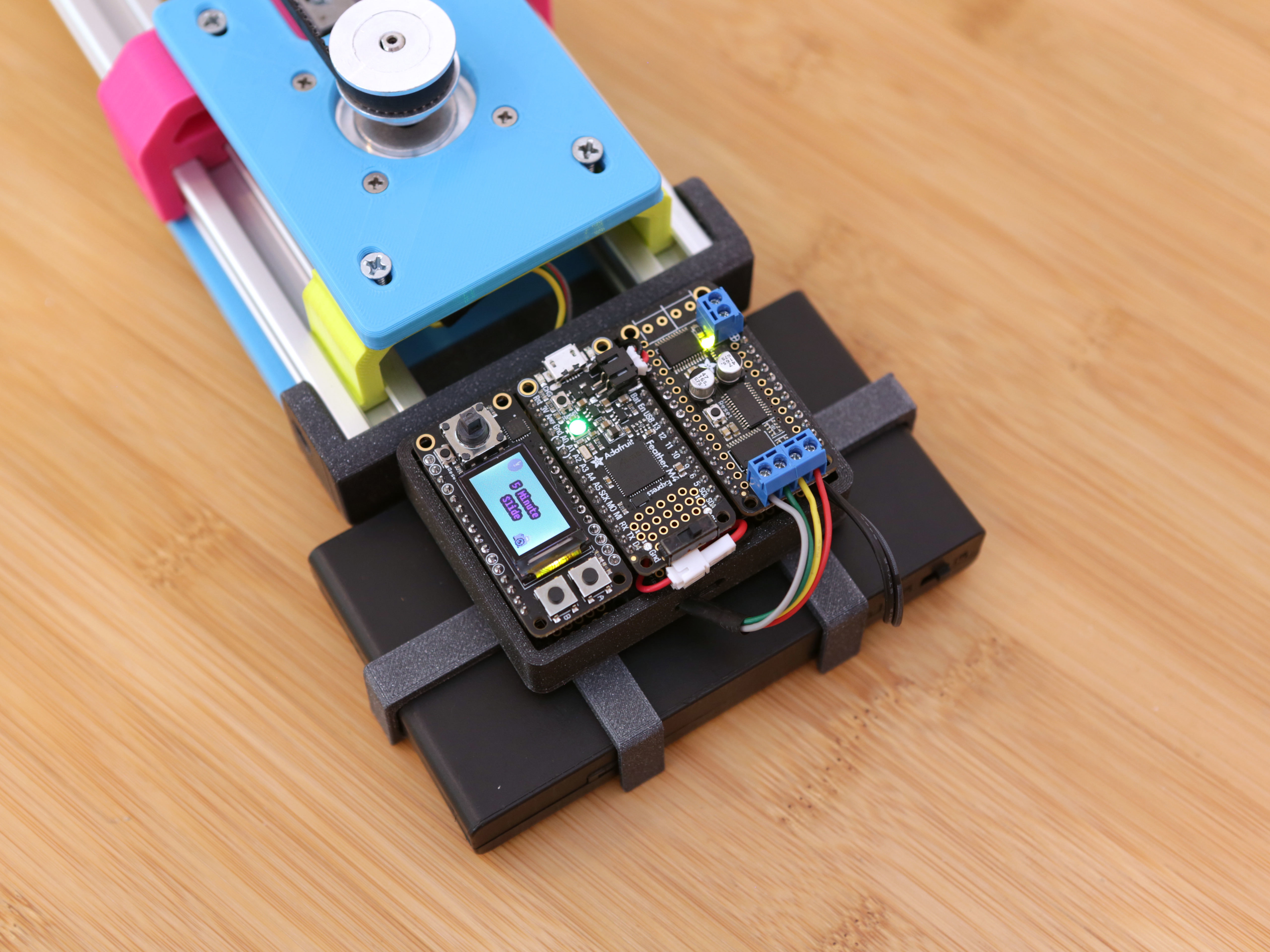

FeatherWings

The mini TFT FeatherWing is perfect for selecting settings and displaying modes! The MotorWing provides the Feather M4 with stepper motor control and makes it easy to connect. A Tripler FeatherWing keeps everything in place and makes it modular.

Features

The program features four timing presets to select from using the joystick and switch. 5-min, 10-min, 20-min and 60-min. The status of the slider is displayed while it's in motion. Time remaining is also displayed alongside a nifty graphic and icon. When the slide is approaching the end, a STOP graphic is presented.

Reverse & Back Up

At the end of a slide, you can choose either to back up or go into reverse mode. This makes it really convenient to kick off a new timelapse!

Circuit Python code by Liz Clark (@BlitzCityDIY)
https://www.twitter.com/BlitzCityDIY
https://www.instagram.com/BlitzCityDIY
https://www.youtube.com/channel/UCbAUKL7V6OOGumQEeDMYQvQ

Code on GitHub
https://github.com/adafruit/Adafruit_Learning_System_Guides/blob/master/CircuitPython_Slider/code.py

Download CAD source
http://a360.co/2AMIomg

Feather M4
https://www.adafruit.com/product/3857

Motor FeatherWing
https://www.adafruit.com/product/2927

Mini TFT FeatherWing
https://www.adafruit.com/product/3321

Tripler FeatherWing
https://www.adafruit.com/product/3417

Stepper Motor
https://www.adafruit.com/product/324

12V Battery Pack
https://www.adafruit.com/product/875

  • 3D file format: STEP and STL
