Check card mobile mount for smartphone as business card

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 787 views
  • 5 likes
  • 2 downloads

3D model description

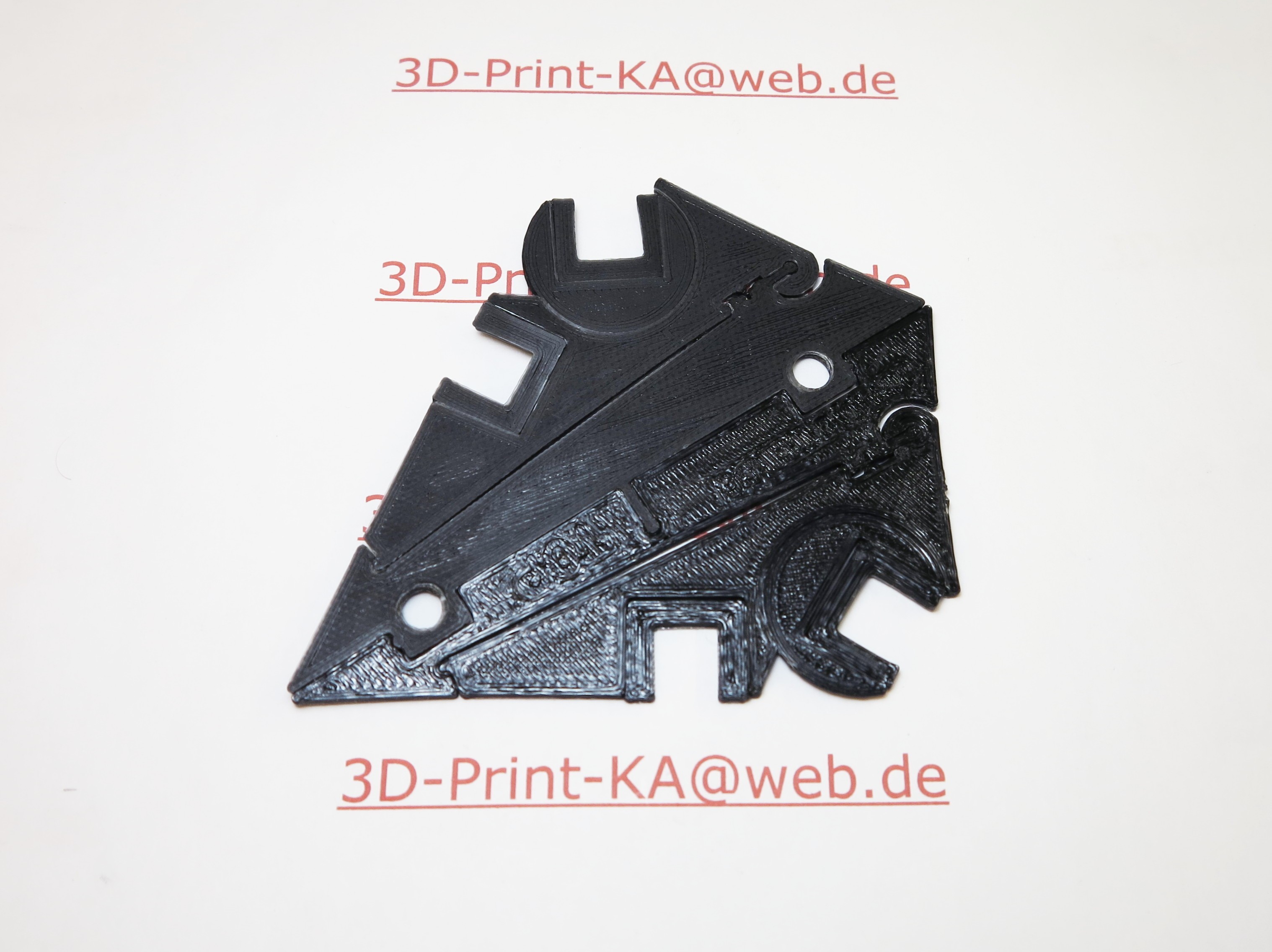

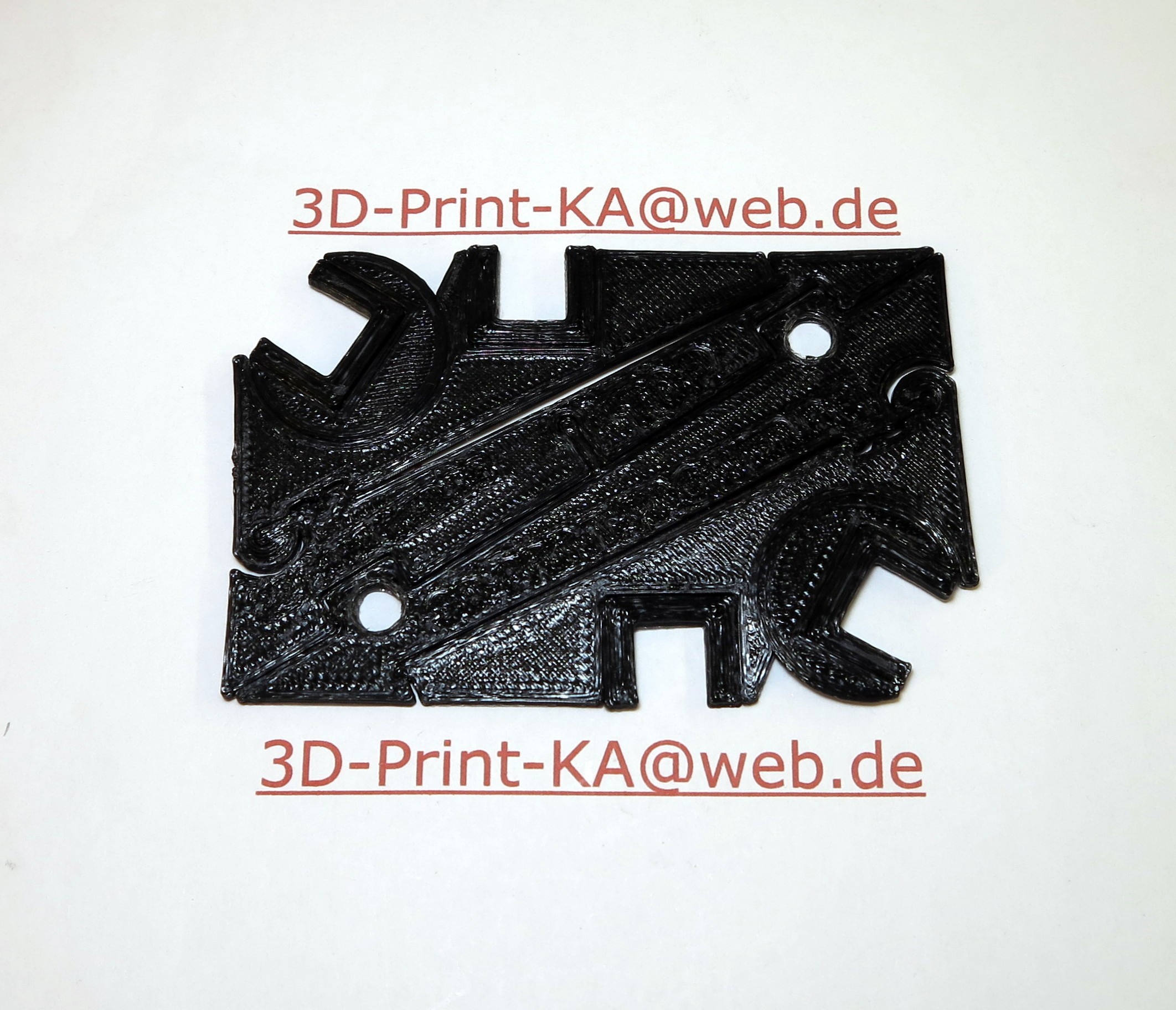

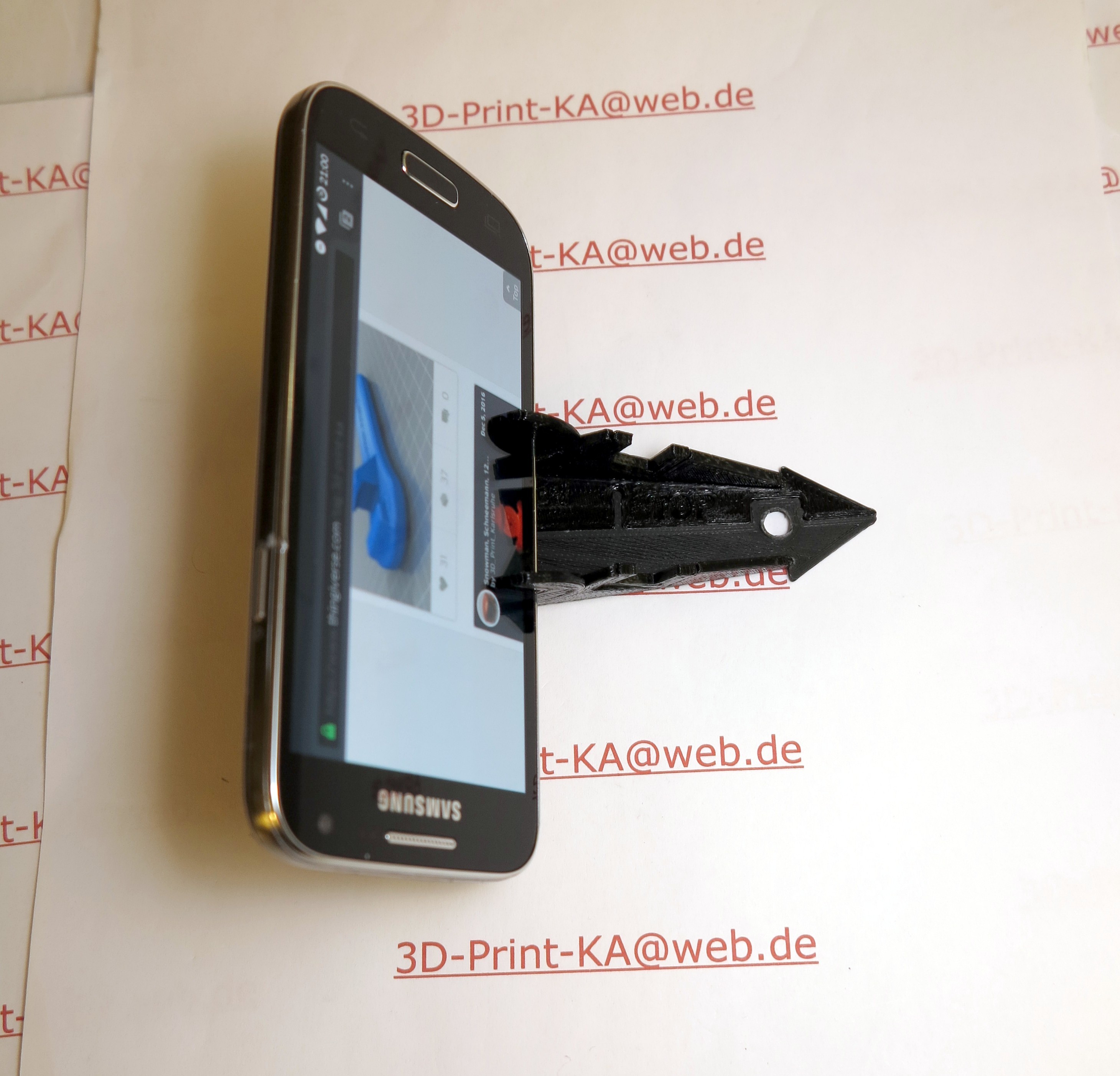

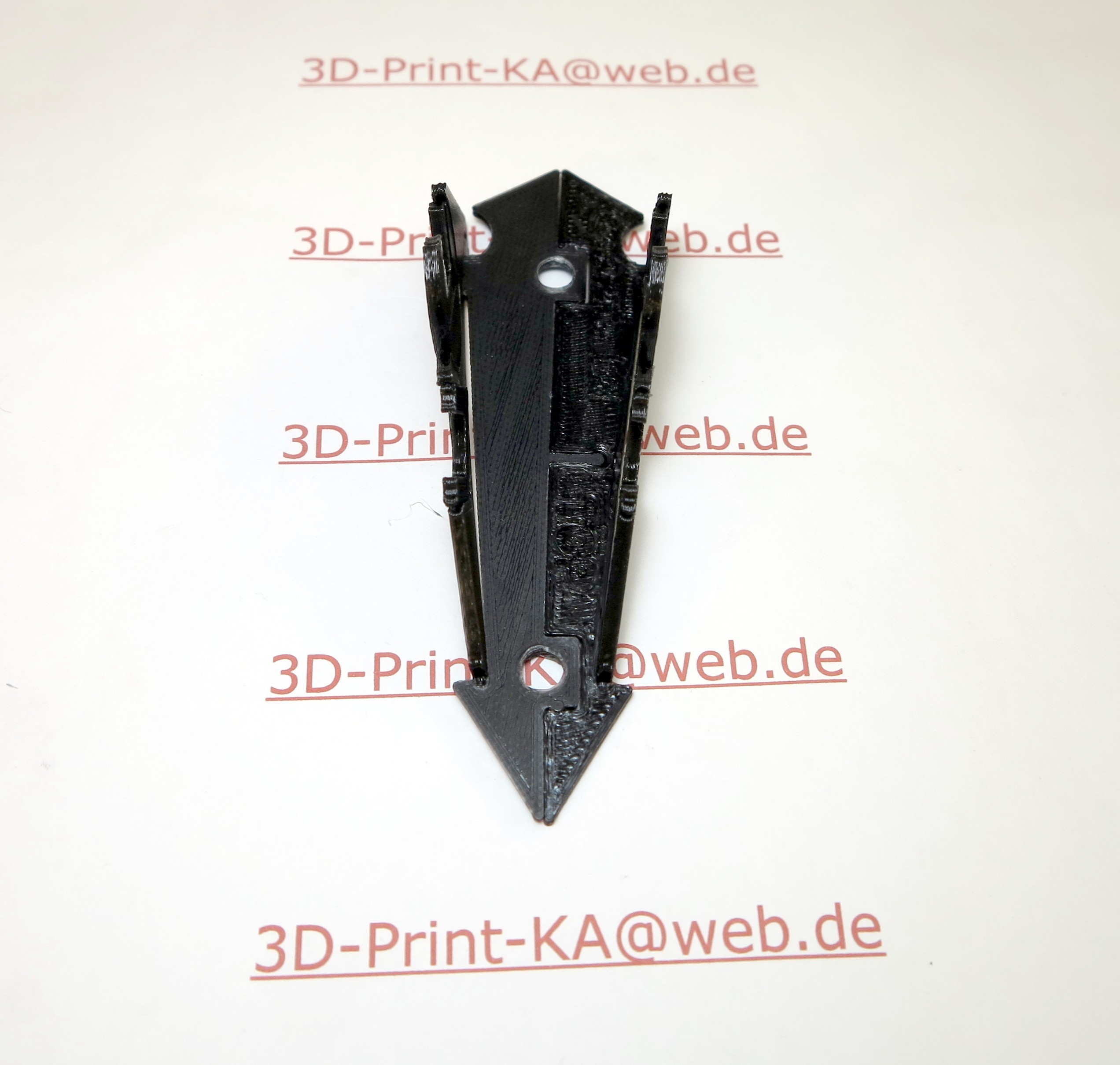

Here is my very small smartphone mount. Always with you. It's only 84x54x2MM
It's the Version V2.4

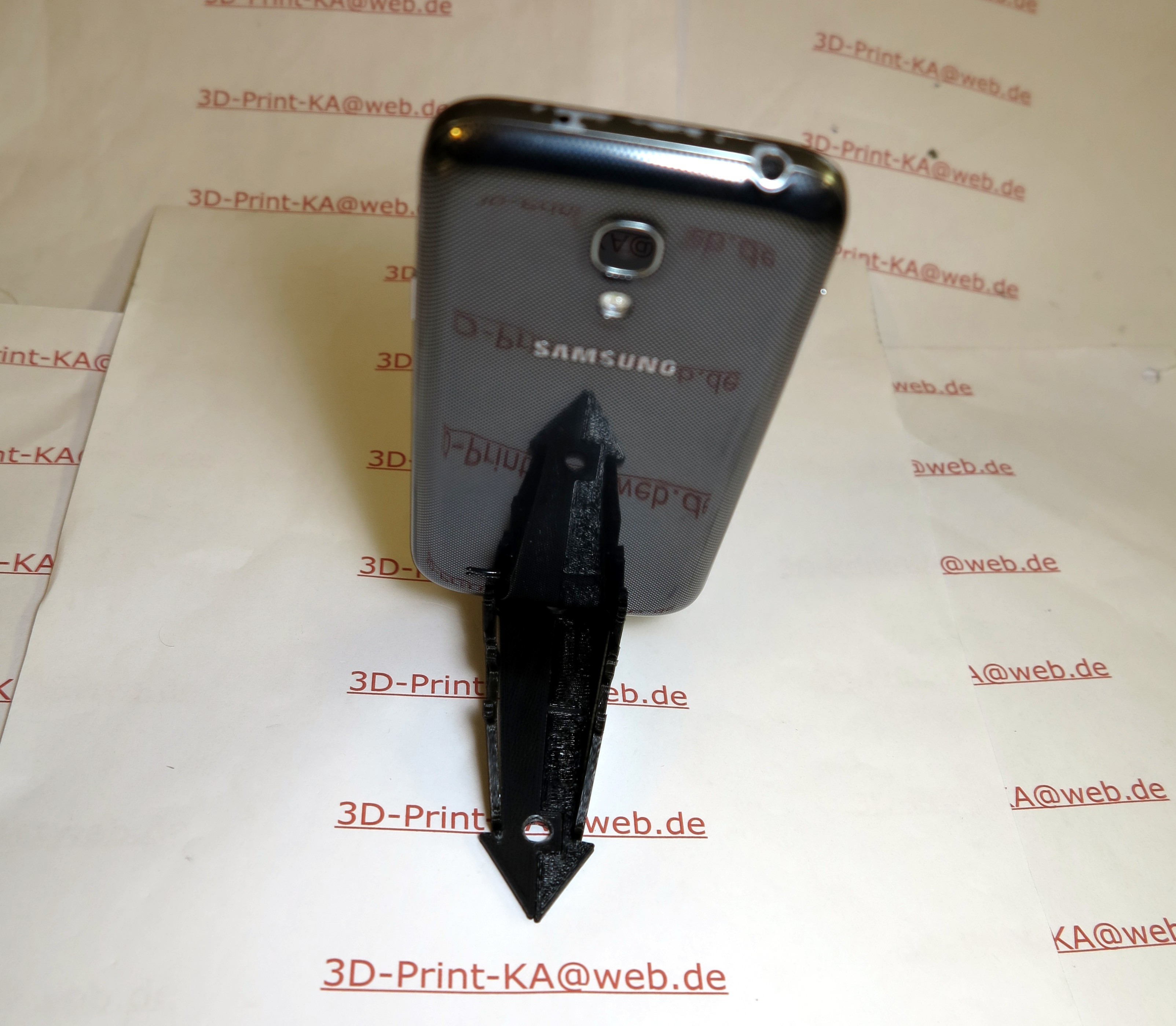

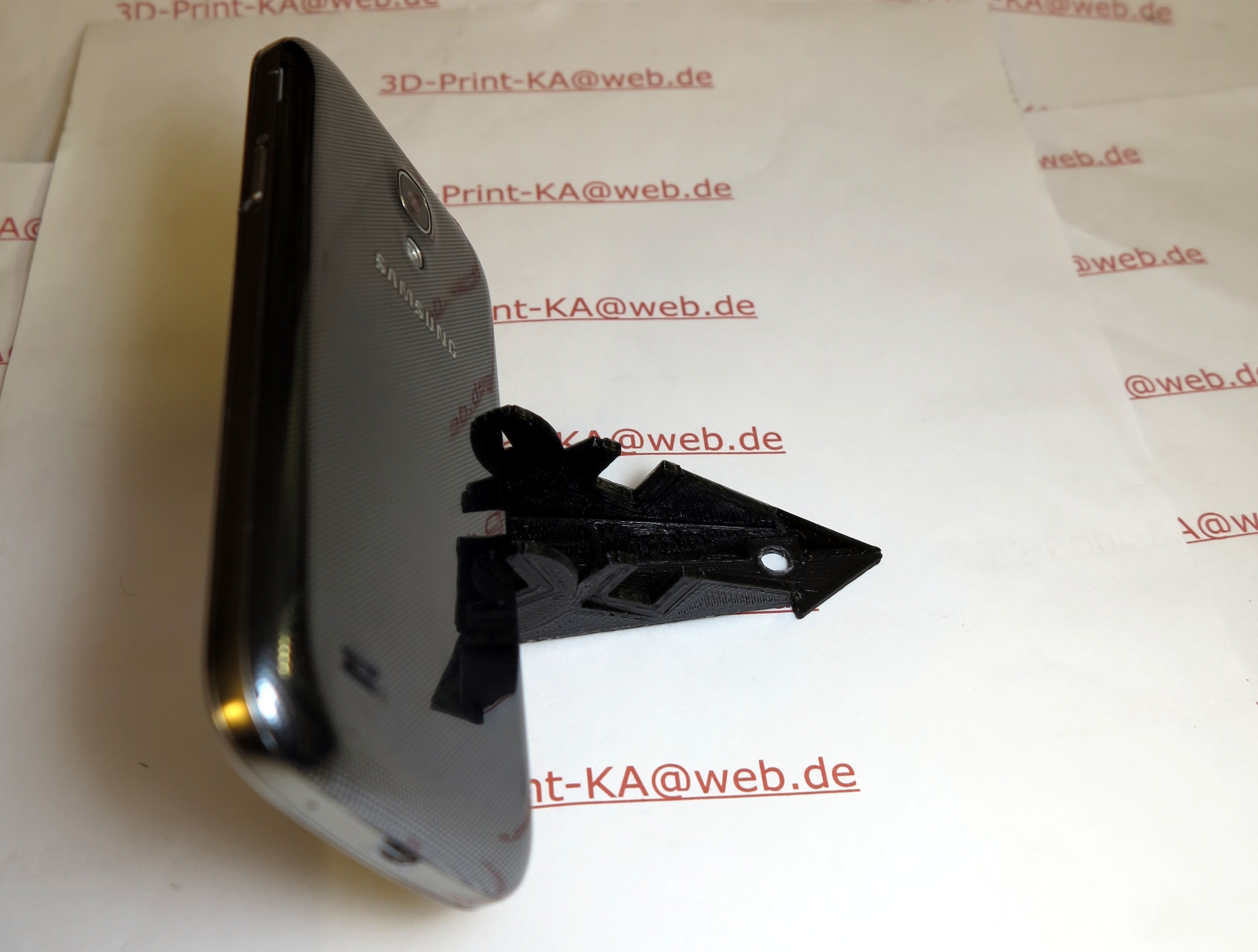

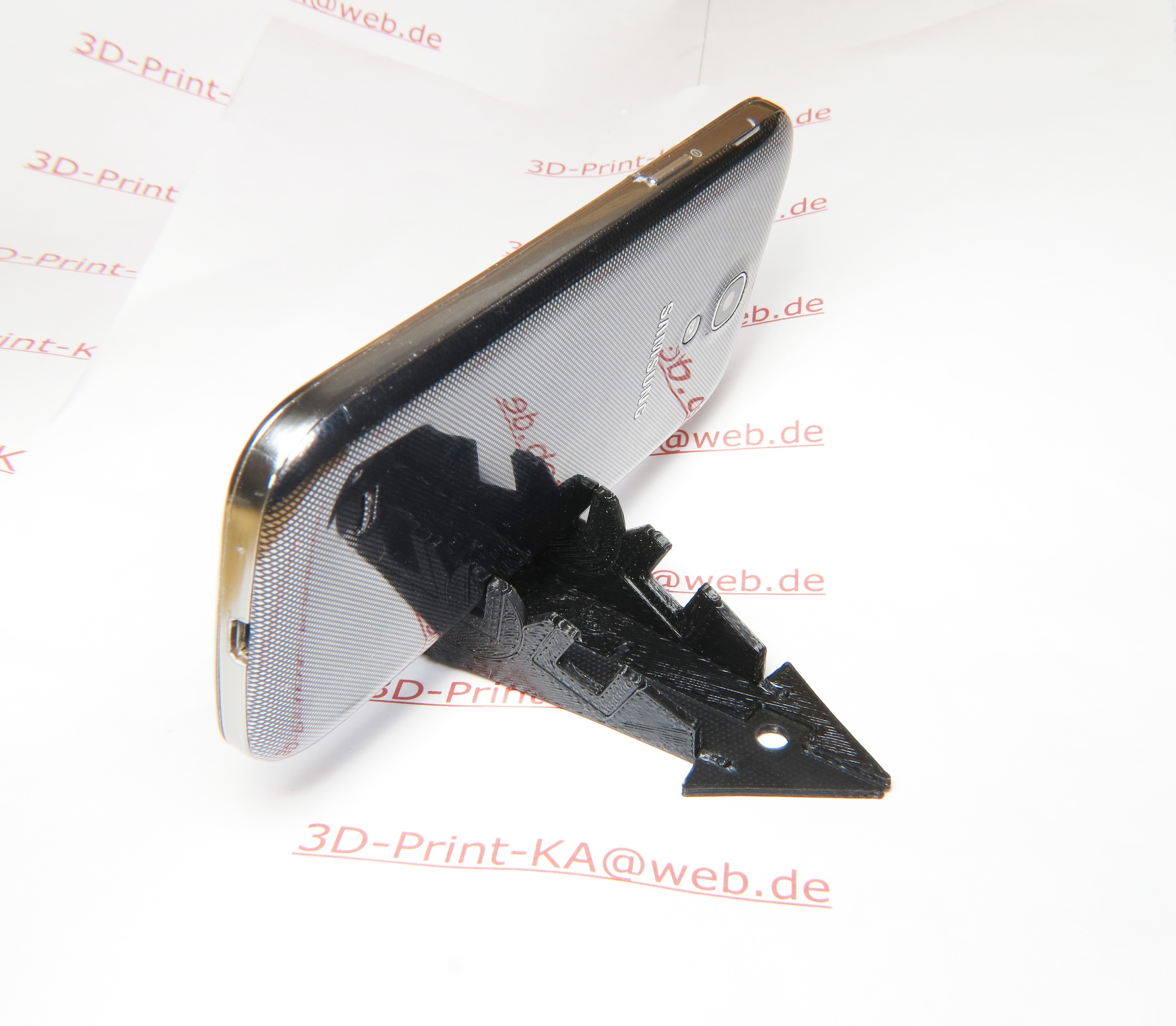

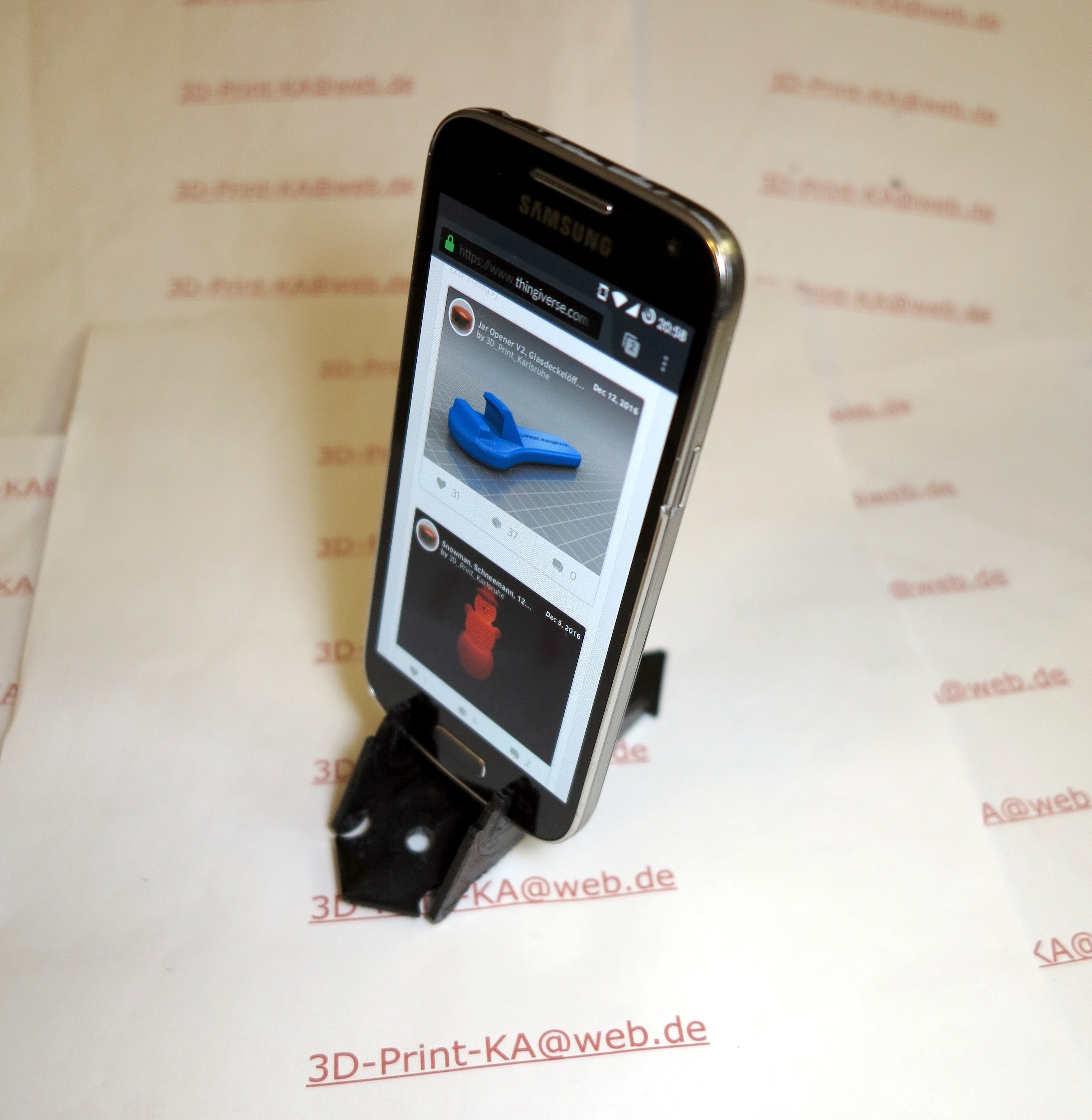

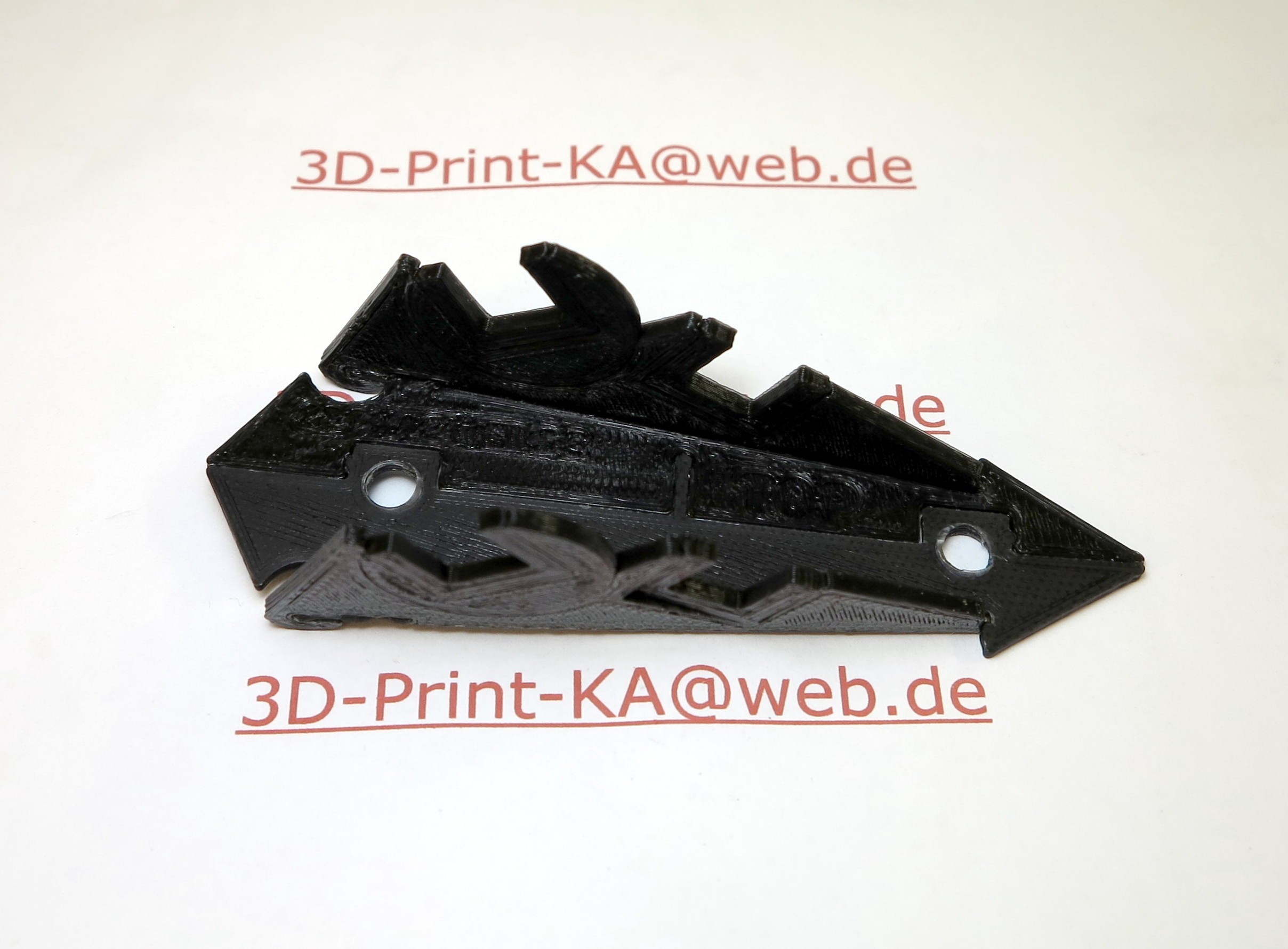

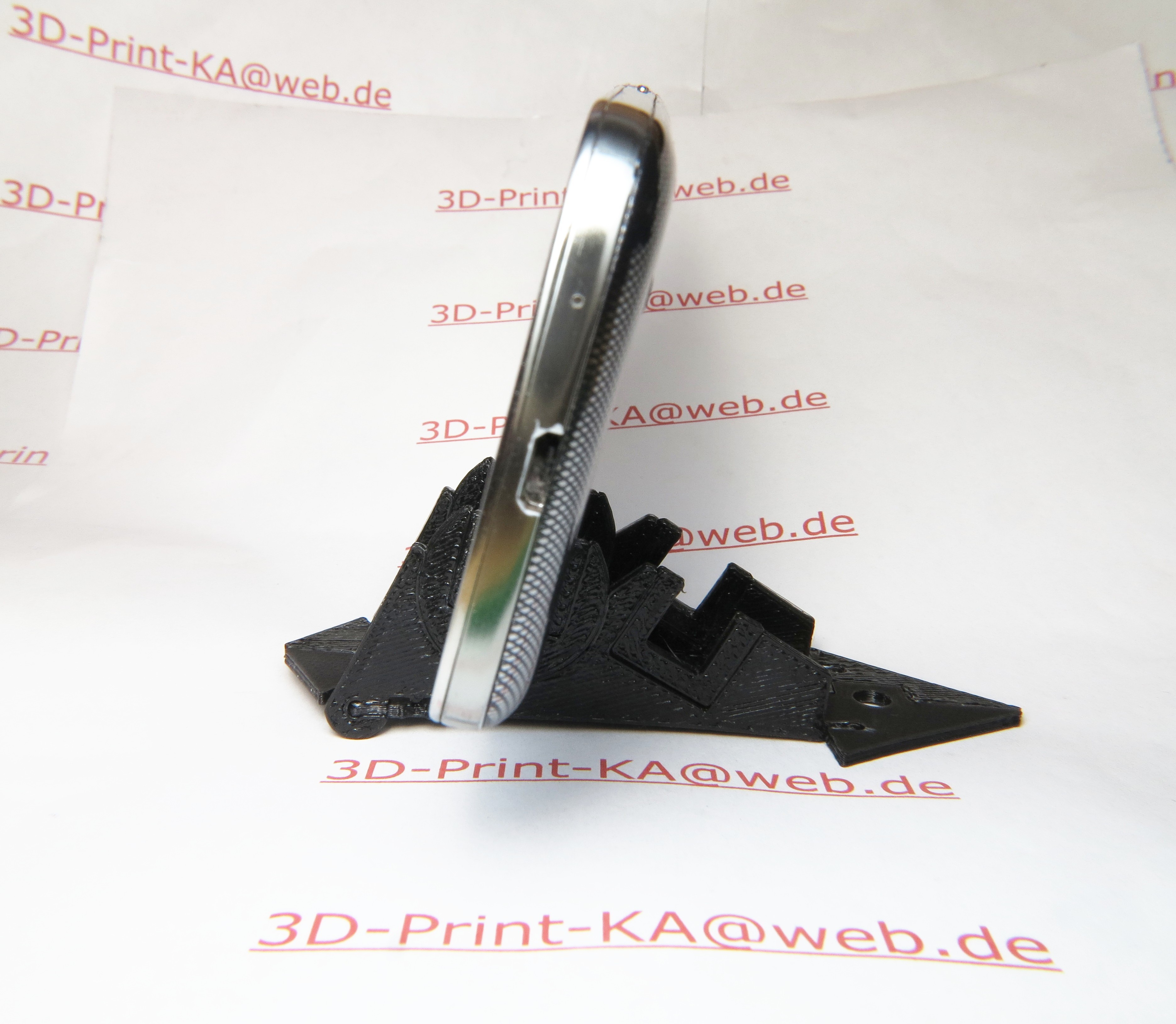

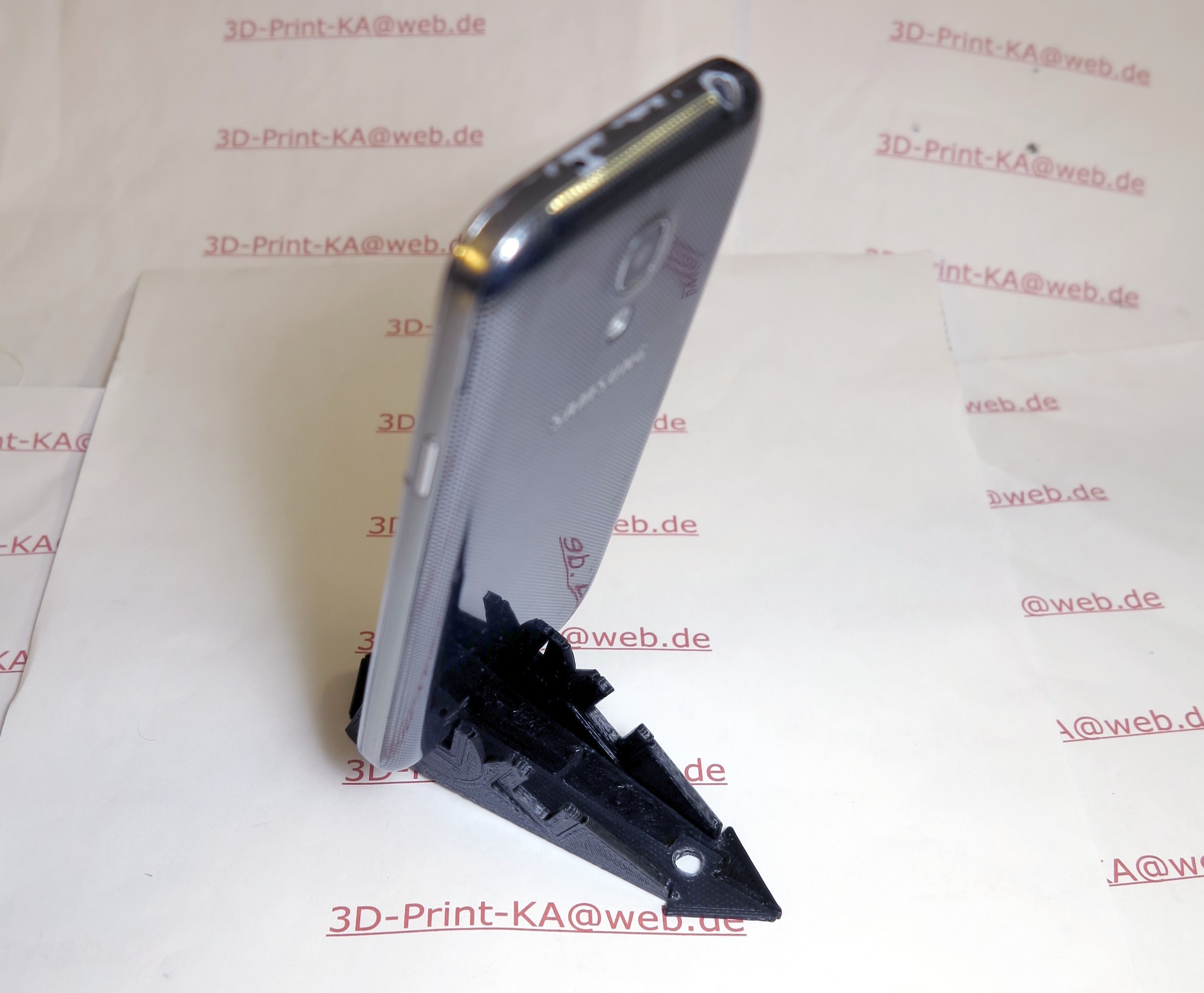

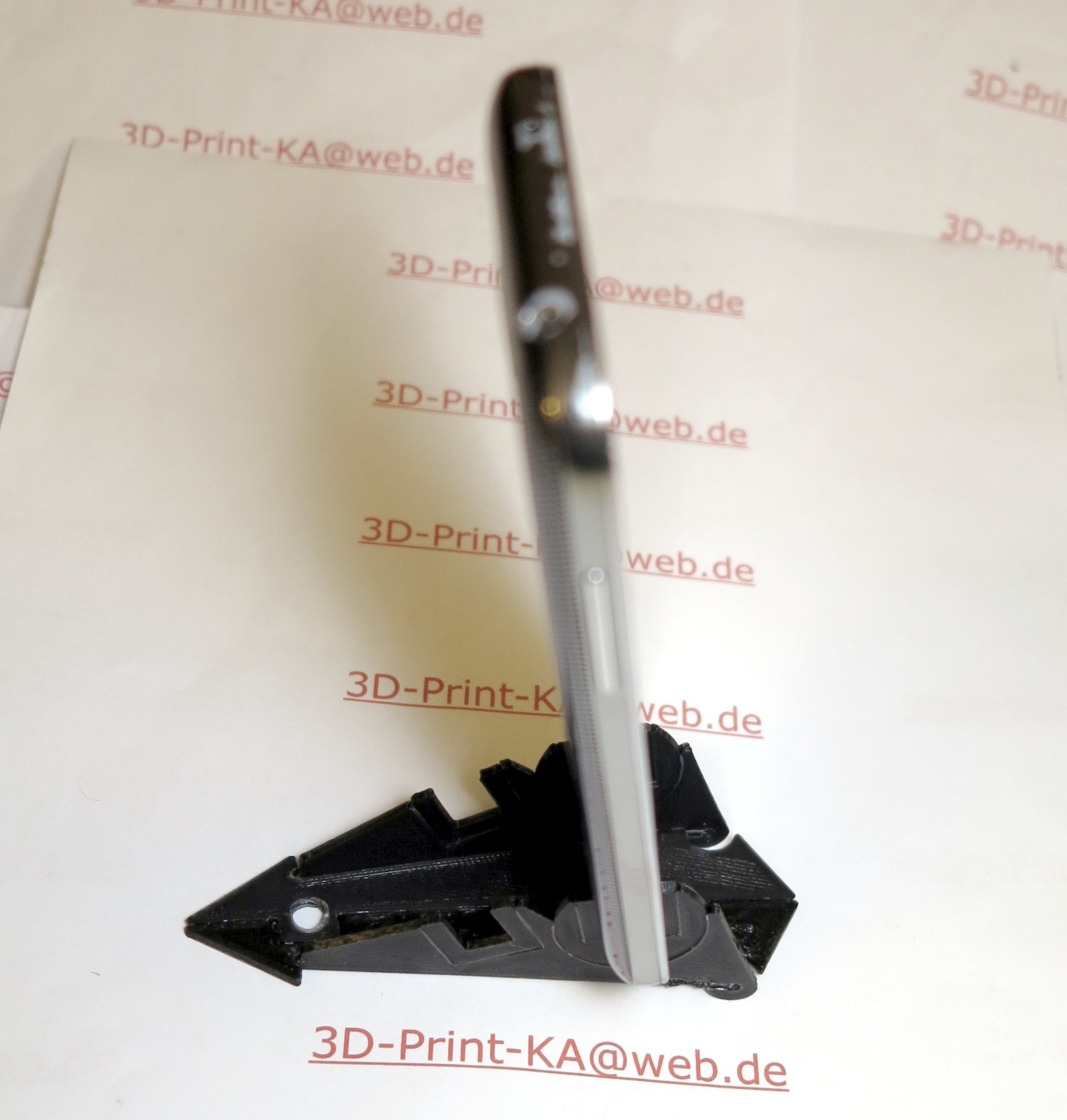

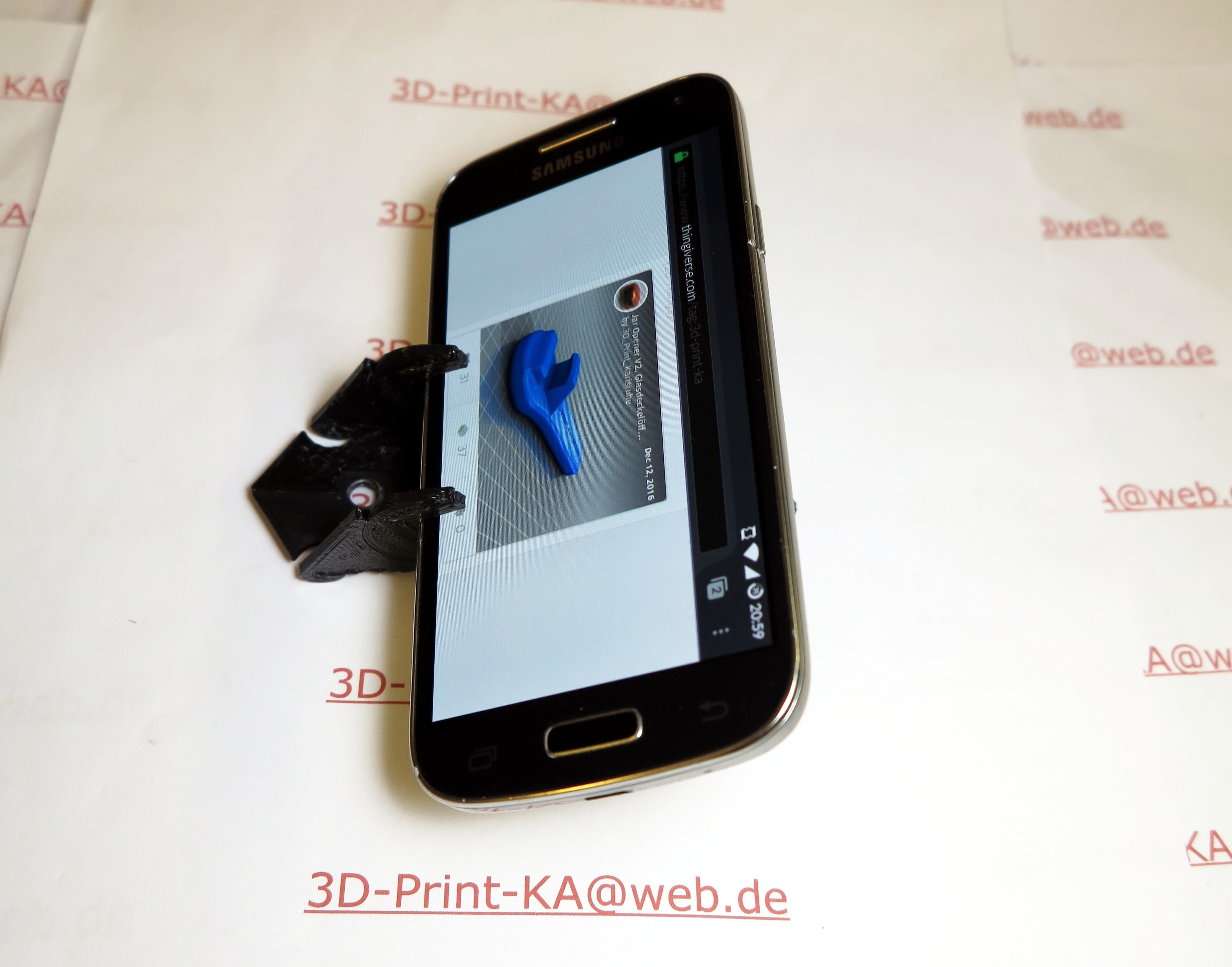

You can wear it in your wallet and assemble it in a few seconds to a stand.

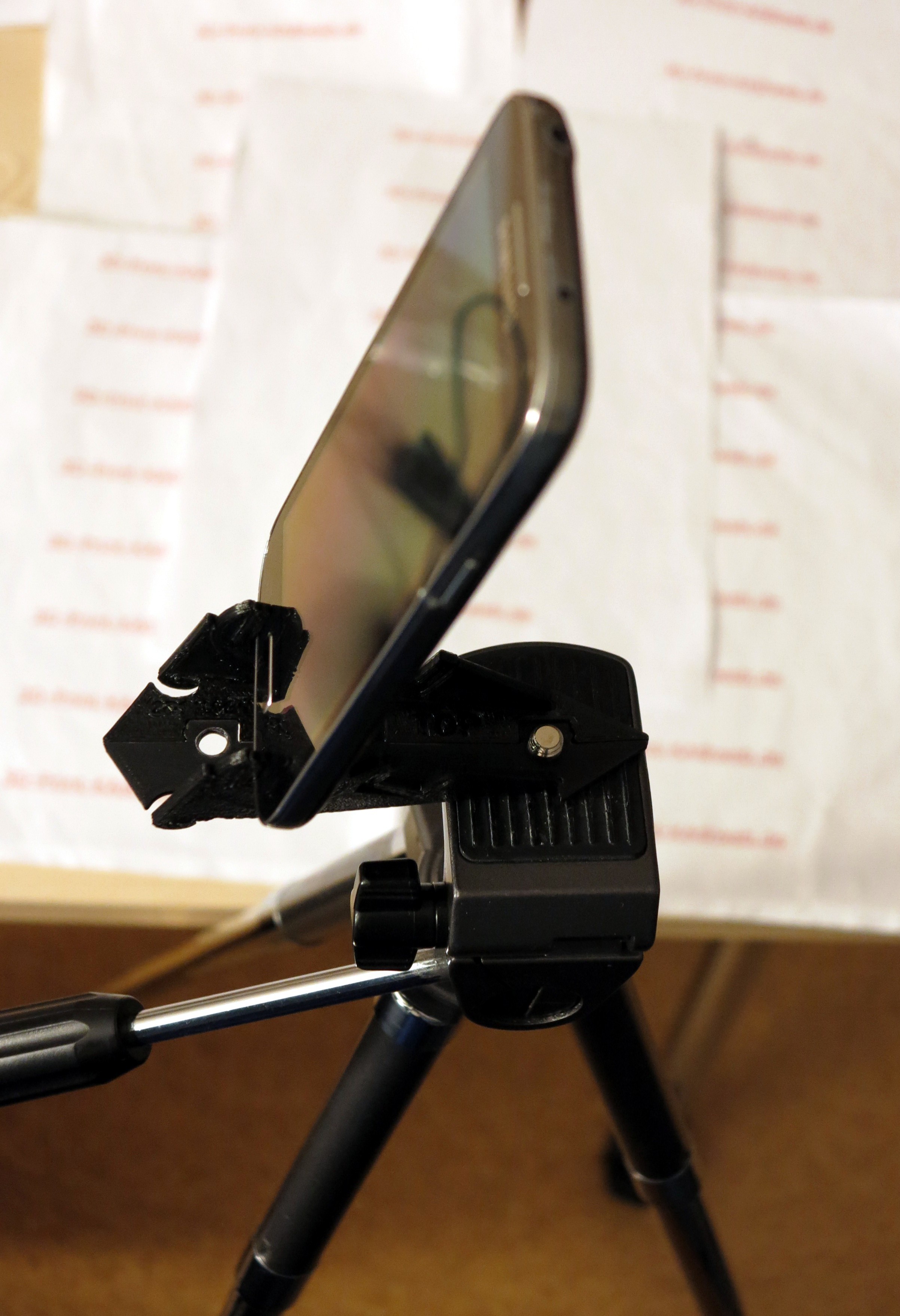

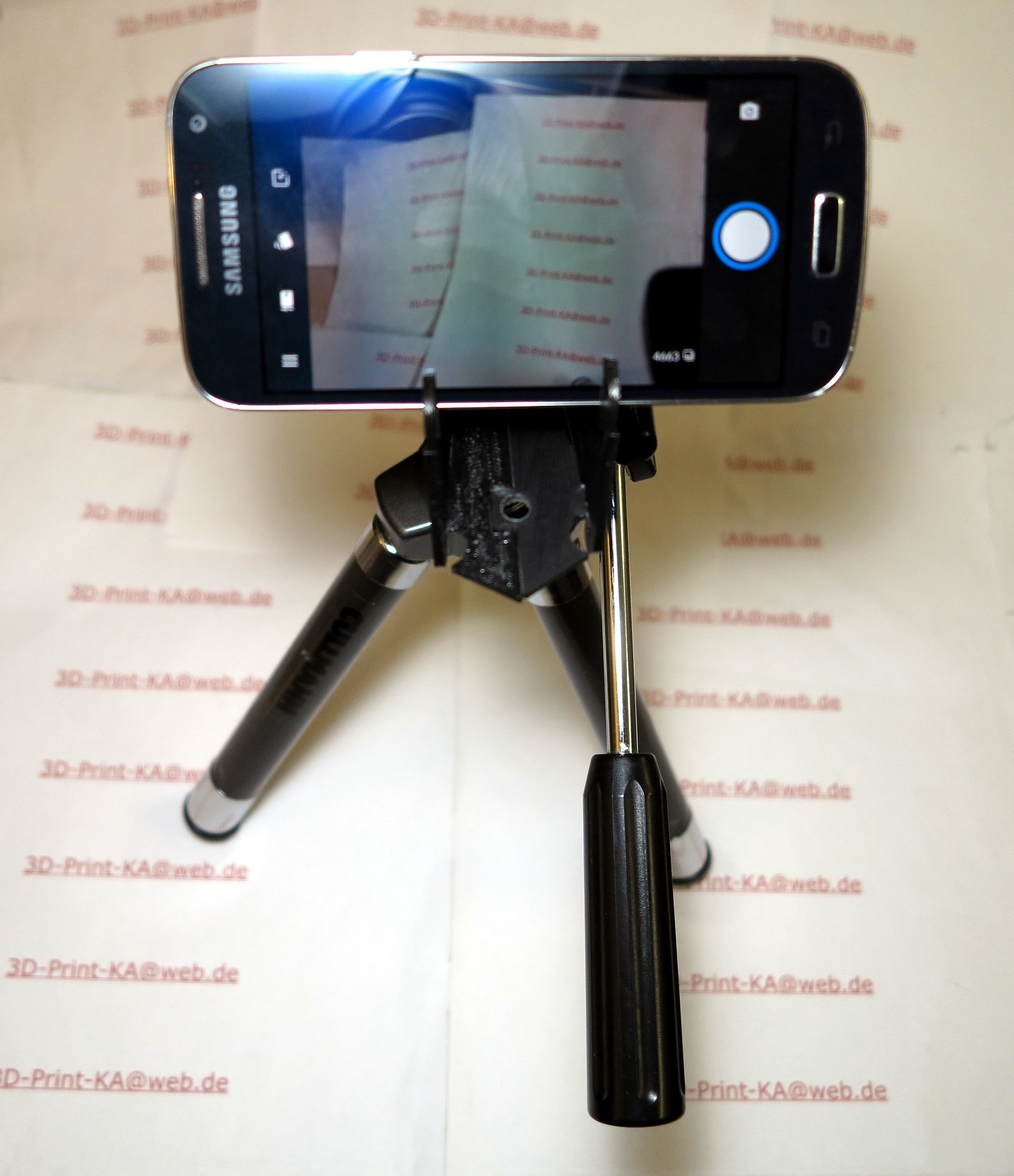

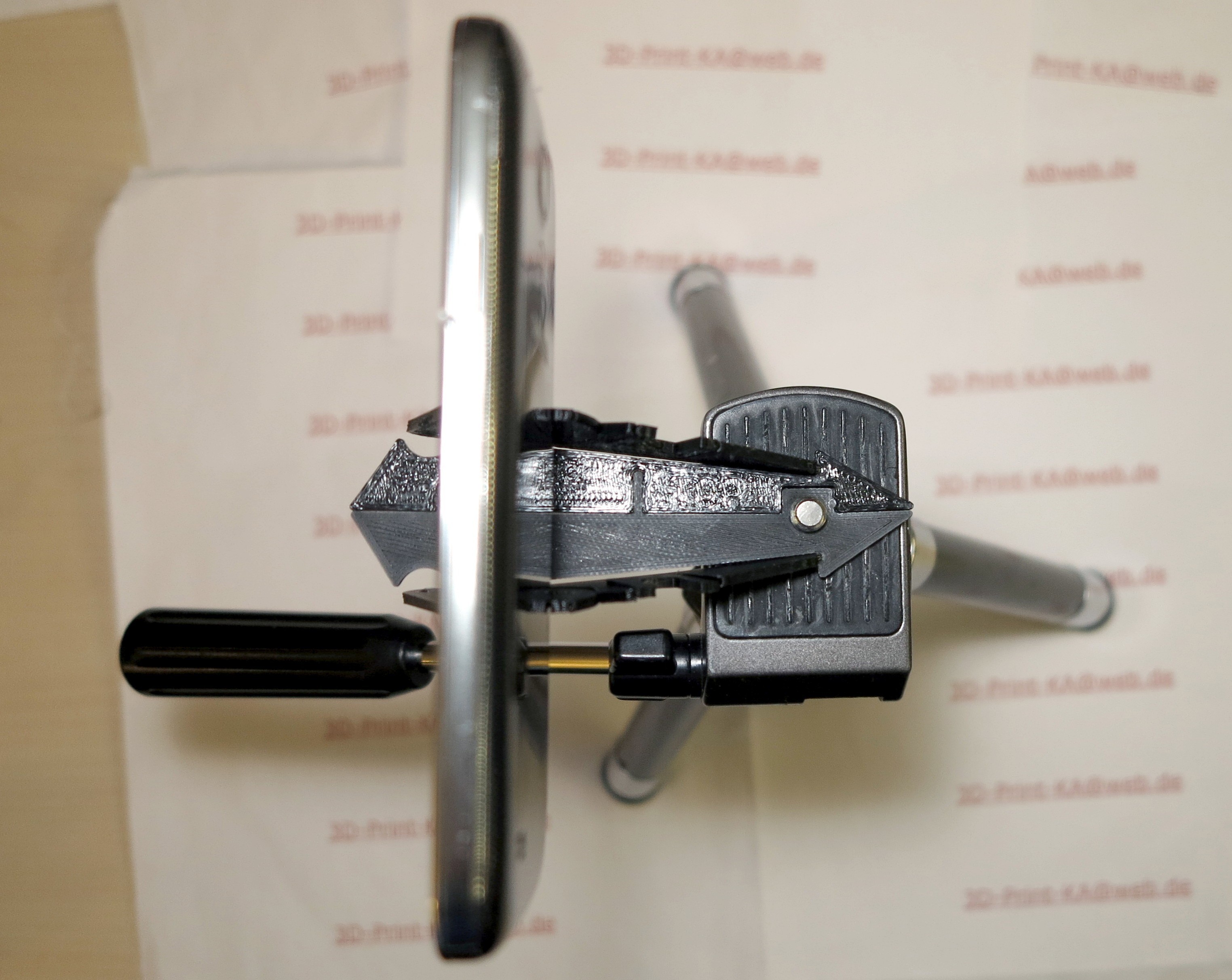

There are also two holes to use it with a tripod.

Here is a video how it works on youtube:
https://youtu.be/Kw5hPtZZA_M

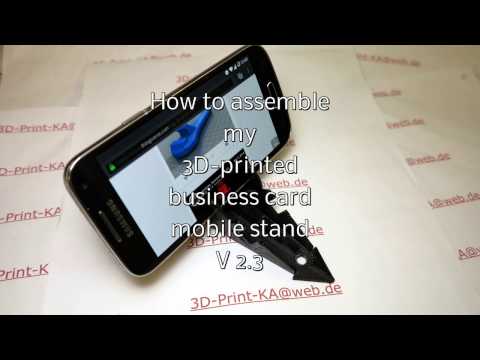

You can find an assemble video on youtube:
https://youtu.be/tuVGdW3C-PU
https://youtu.be/WRjGRb7x7aY

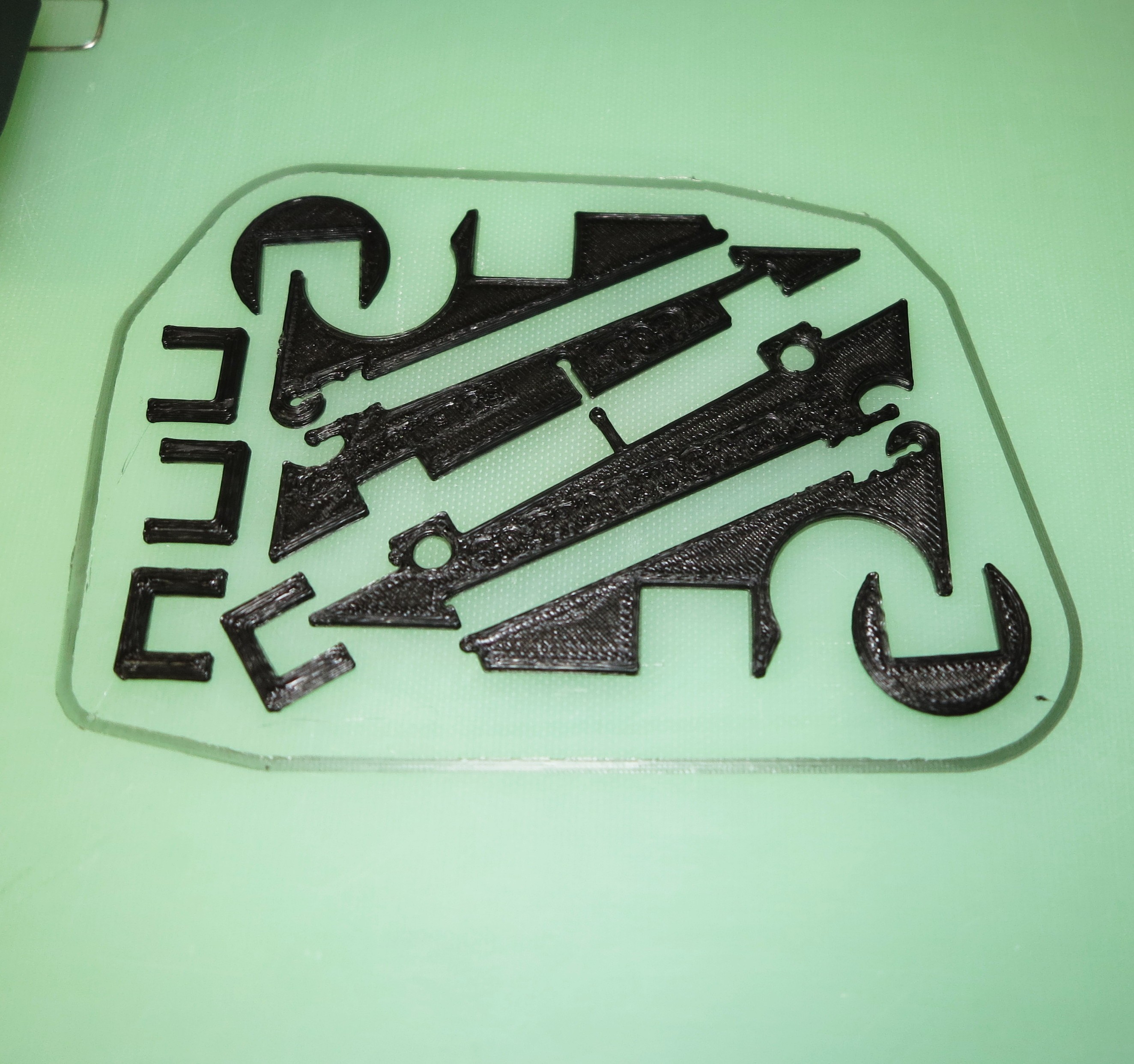

3D printing settings

Your printer should be very good callibrated to print the smartphone stand.
Specialy the "small hole problem" may be an issue.
Here are my options:

0.4mm nozzle
0.2mm layer
1.75mm PLA
210°C nozzle
65°C printed bed
15mm/sec. speed
slic3r 1.2.9

If the parts still don't fit, look if you have a small hole problem. There is a lot of information on the net.

I hope it helps you with the print.

File ending with -4 are from the version 2.4
"Einsatz" are the adapter for different phones from 8.5 to 12.5mm

There is also an adapter "_full" without a cut. So you can cut a hole for your phone yourself.
There is also a full disk "Scheibe_full" you can use to cut.

3D printer file information

  • 3D design format: STL Folder details Close
    • Einsatz_105-4.stl
    • Einsatz_115-4.stl
    • Einsatz_125-4.stl
    • Einsatz_85-4.stl
    • Einsatz_95-4.stl
    • Einsatz_full-4.stl
    • Einsatz_s4m-4.stl
    • Mitte1-4.stl
    • Mitte2-4.stl
    • MobileStand_Sheckcard_02x1print-4.stl
    • Scheibe14-4.stl
    • Scheibe_full.stl
    • Seite1-4.stl
  • Last update: 2017/01/27 at 11:02
  • Publication date: 2017/01/23 at 21:41

Copyright

©

Creator

Designs 7
Downloads 30
Sales US$41
Followers 12

I'm a 3d-printer from Stutensee (Karlsruhe) in Germany:

I have a Prusa i3 printer

You can follow me on twitter
https://twitter.com/3d_print_ka

Issue with this design? Report a problem

Best sellers of the category Gadget


Add a comment

3 comments

Thank you for your comment.
Yes the print of this model is very tricky as I wrote in the describtion :-)

Have fun with the check card mobile stand :-)

regards,

3d-print-ka

Made this, the tolerances on this model are a nightmare. PLA wears down extremely fast and the rotating disk loses it's grip.
The Model is awesome anyway.
