Chain Drive Desk Toy

?
Creation quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

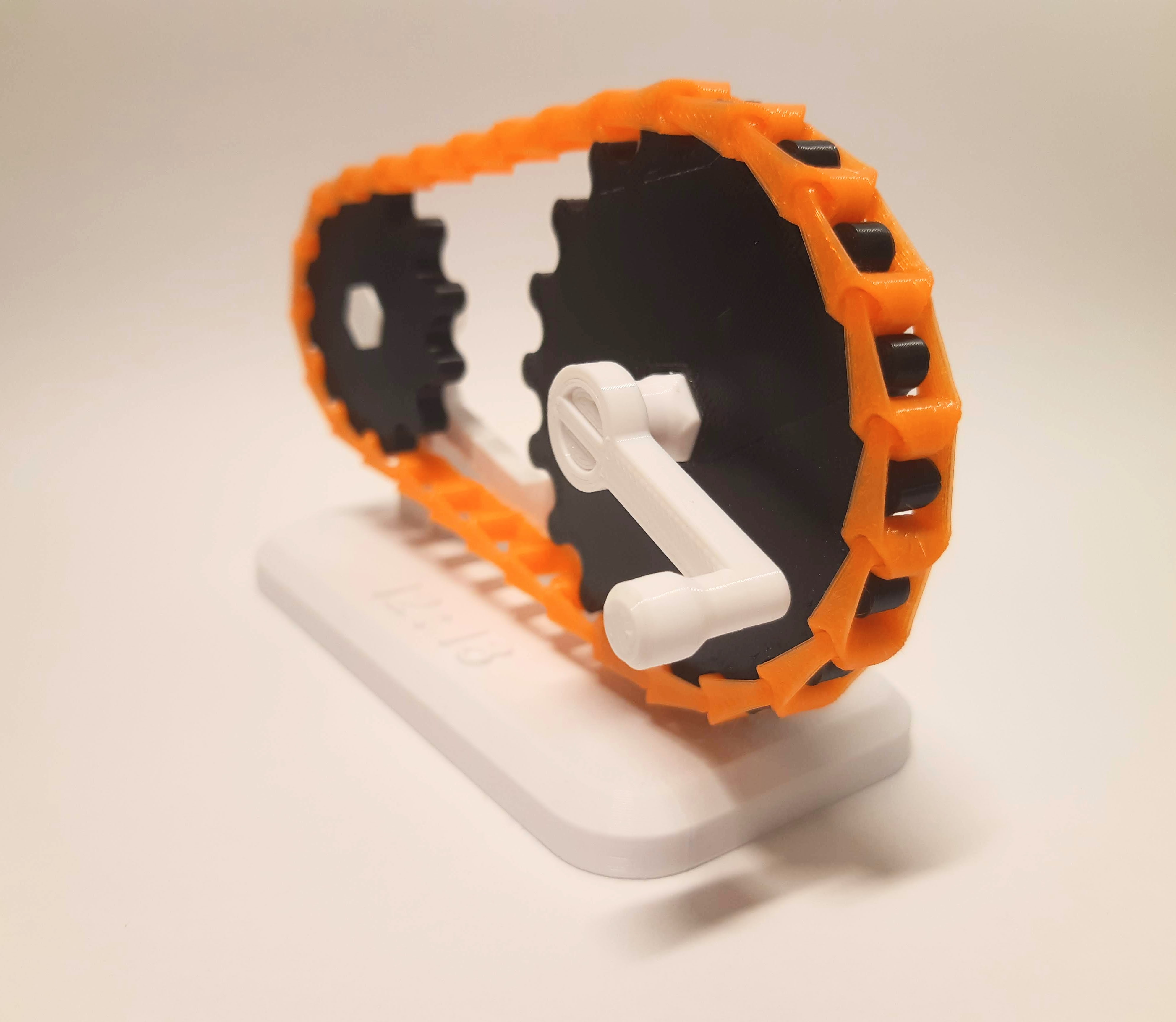

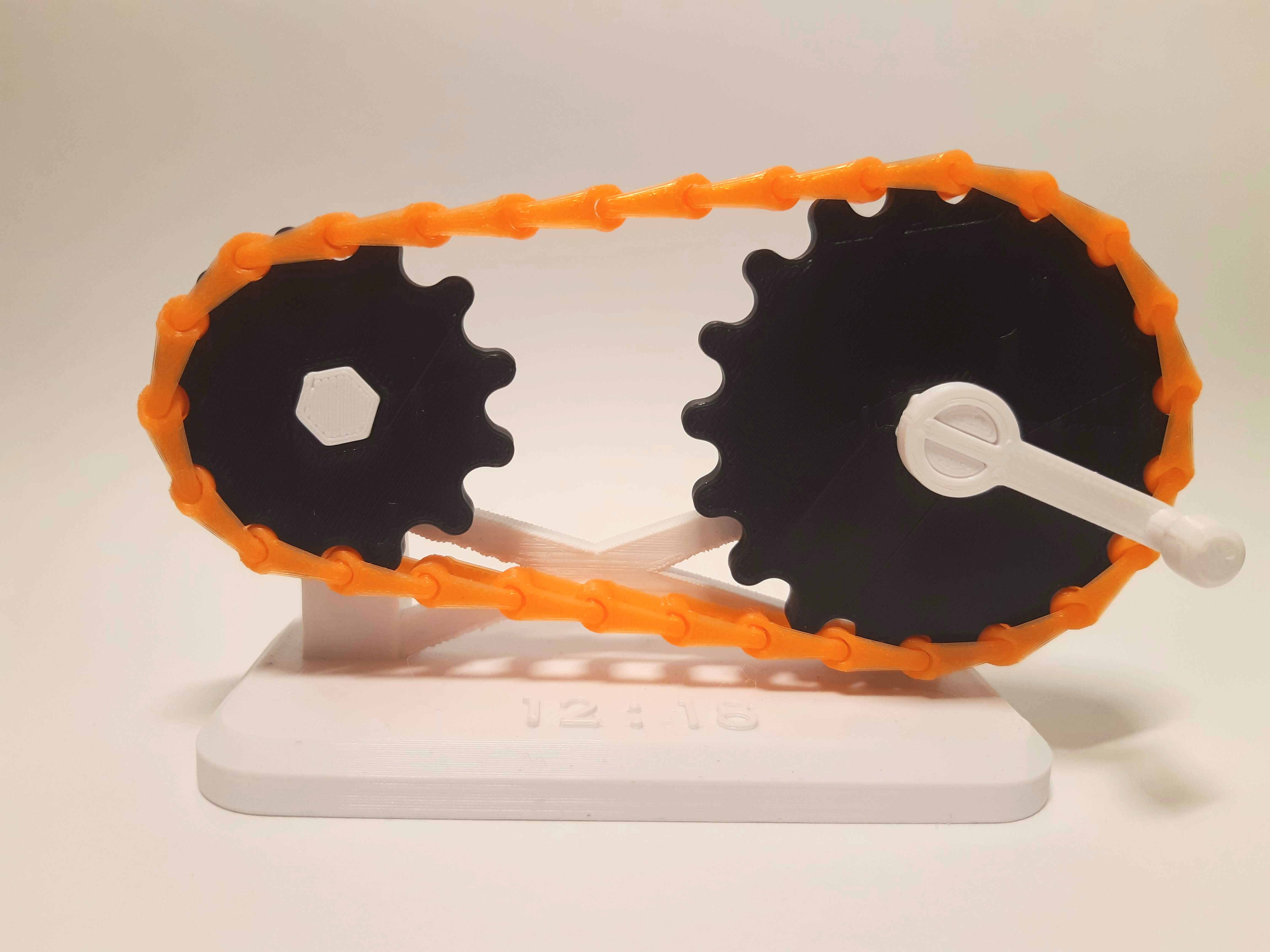

Inspired by the chain mechanism on bicycles, I decided to have a go at creating one that could be 3D printed. This is the result, requiring no support, and featuring a print-in-place chain without any end-links.

In the beginning the chain will be a bit tight, but it will fit if you stretch it a bit, and it will wear itself in with time.

Good luck printing it, and hope you have fun with it :)


3D printing settings

Filament: PLA 1.75mm wide
Nozzle: 0.4mm
Nozzle temp: 210c
Bed temp: 50c
Layer Height: 0.18mm
Print time: around 5h 30 min to print all the parts
Support: No support needed

Printer: FlashForge Adventurer 3

3D printer file information

  • 3D design format: STL Folder details Close
    • 29 link chain.STL
    • Big gear hub.STL
    • Big gear.STL
    • Chain gear stand.STL
    • Clip 8mm.STL
    • Crank 8mm.STL
    • Small gear hub.STL
    • Small gear.STL

    Learn more about the formats

  • Publication date: 2021-10-17 at 00:28

License

CC BY NC SA

Tags

Creator

I am an engineering student fallen in love with CAD and 3D printing <3
Here I will share my successful models :)
