Case for Beaglebone and LCD panel

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 871 views
  • 11 downloads

3D model description

Update on 10/31/2013: I fixed the button issue, so now I'm removing the "work in progress" flag. Here is a video of a button test: http://youtu.be/qMG862HK114

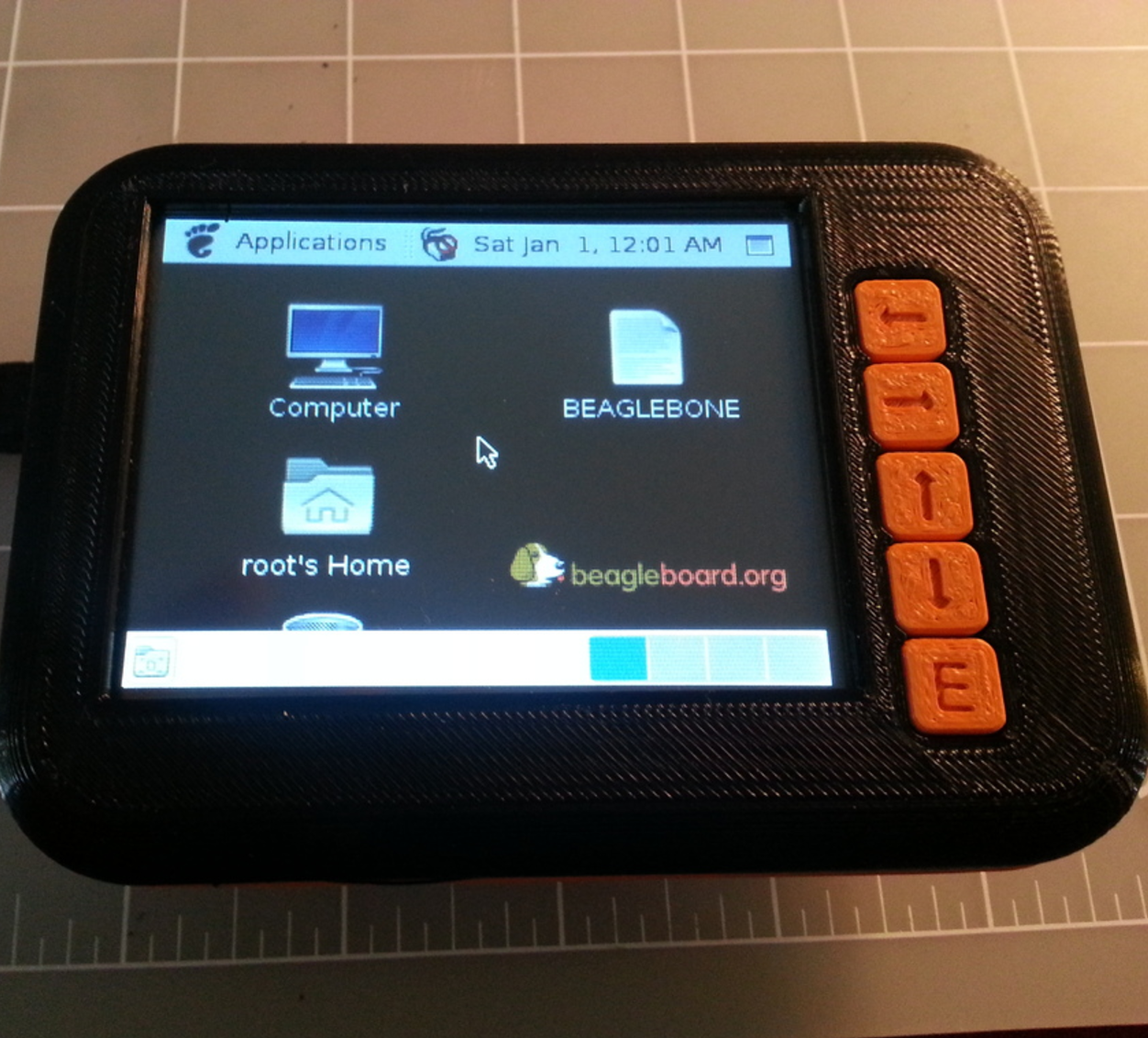

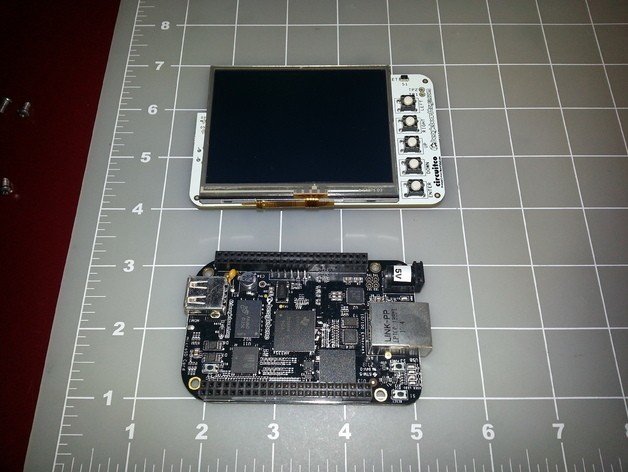

This design works for both the Beaglebone and the Beaglebone Black, using the BB-BONE-LCD3-01, 3.5" LCD panel from Circuitco.

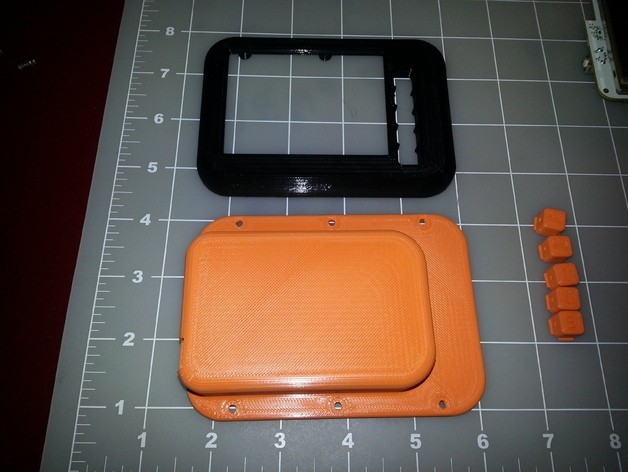

I've tested on both the Replicator 2 and the Replicator 2x, and aside from the buttons it works in both PLA and ABS, in it snaps together well enough you almost don't need screws (on the PLA version).
If you're printing in ABS please be patient, ABS prints of the buttons are a little finicky. You should use an obedient filament for those.


3D printing settings

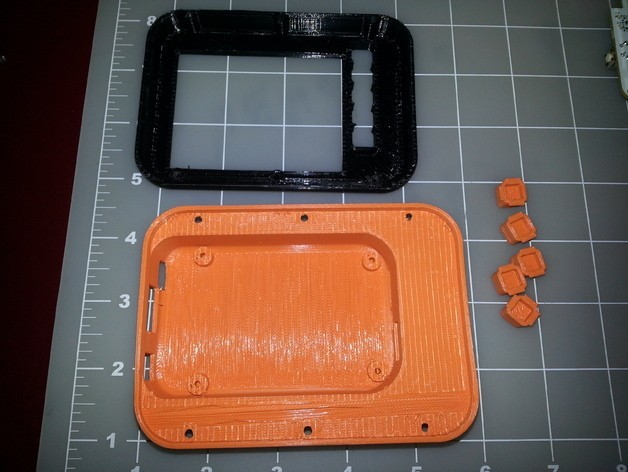

I printed all parts with the interiors down, in 3 layers and 0.2mm layer height. Print with raft and supports on all parts, except no supports on the buttons.
