Capra Headband V1

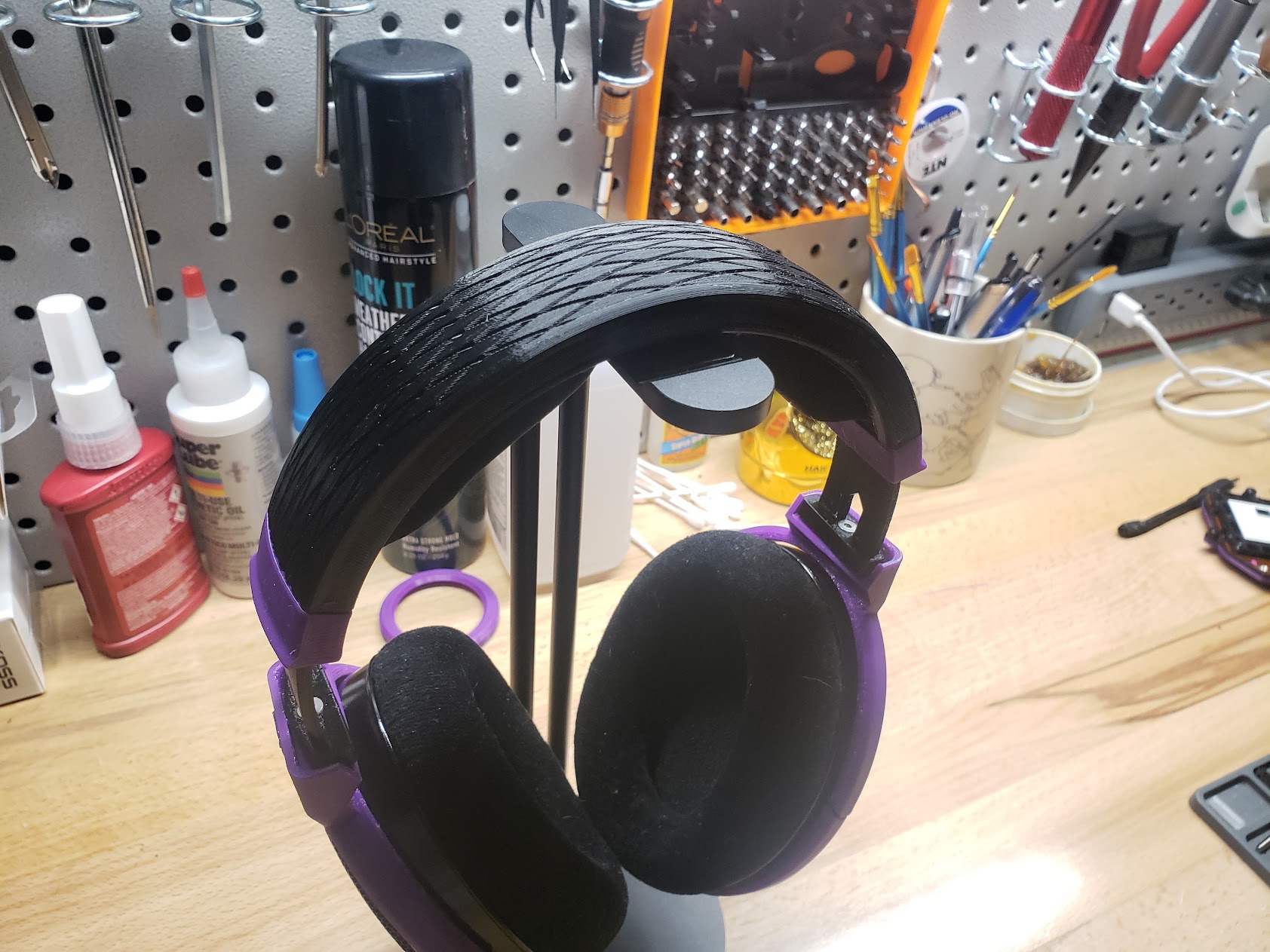

20220404_165821.jpg Capra Headband V1
20220327_223607.jpg Capra Headband V1

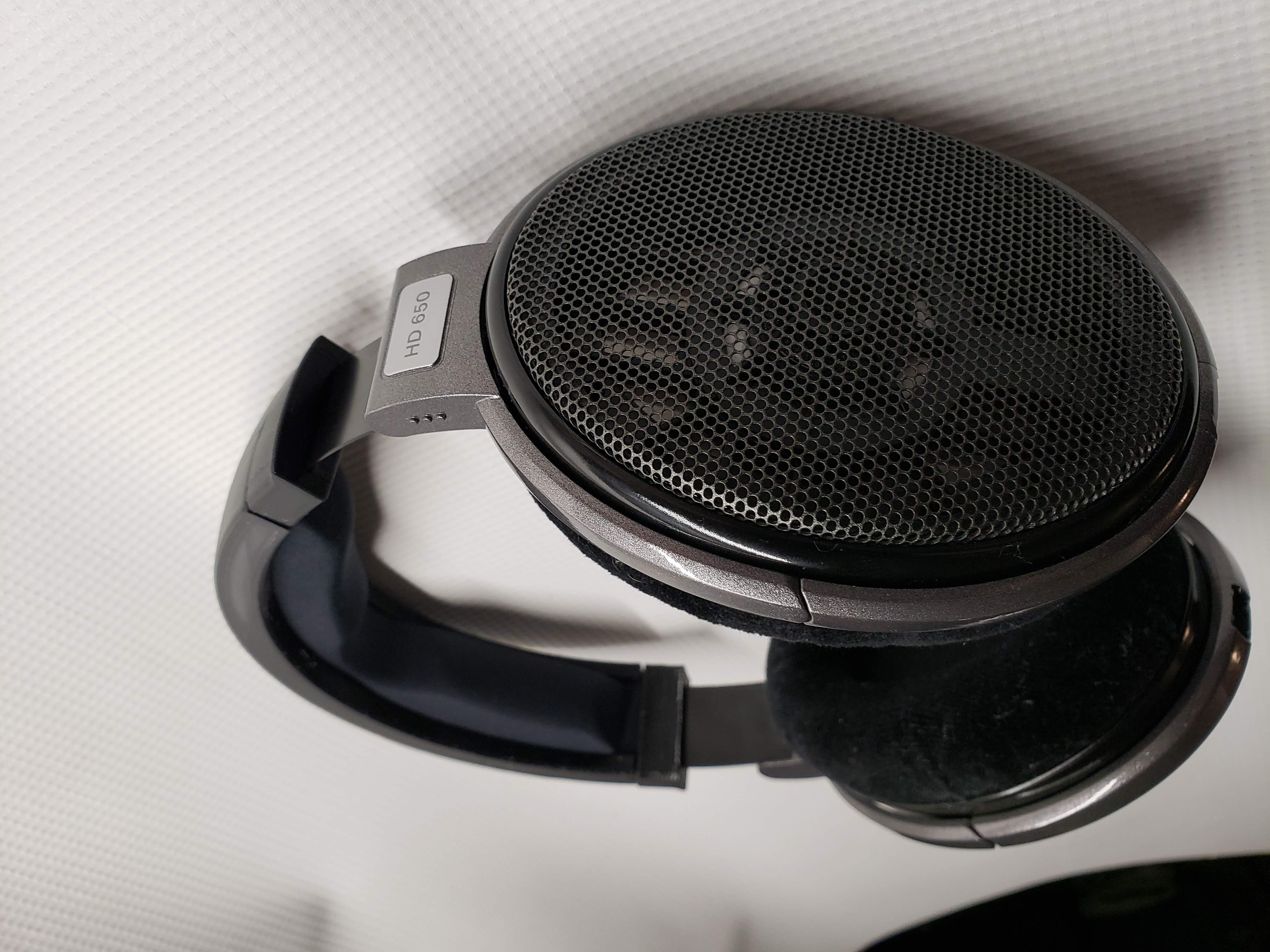

20220327_142446.jpg Capra Headband V1
Capra-Headband.png Capra Headband V1
Capra-Headband-6x0-yoke.png Capra Headband V1
Capra-Headband_Adjustment-Arm-Sliced.png Capra Headband V1

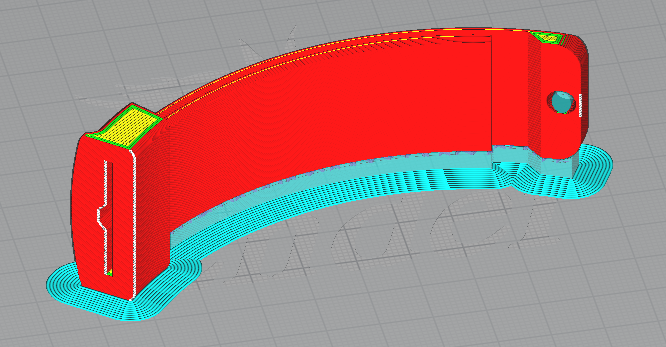

Capra-Headband_Adjustment-Band-6x0-Sliced.stl.png Capra Headband V1
Capra-Headband_Adjustment-Band-Sliced.png Capra Headband V1

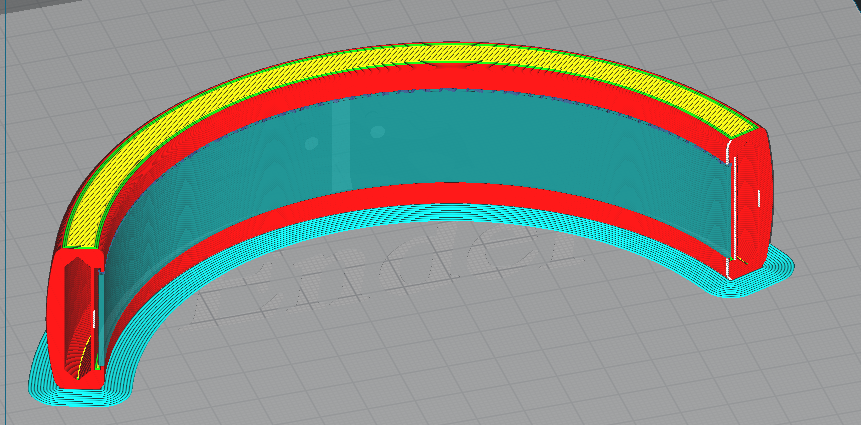

Capra-Headband_TPU-Band-Sliced.png Capra Headband V1

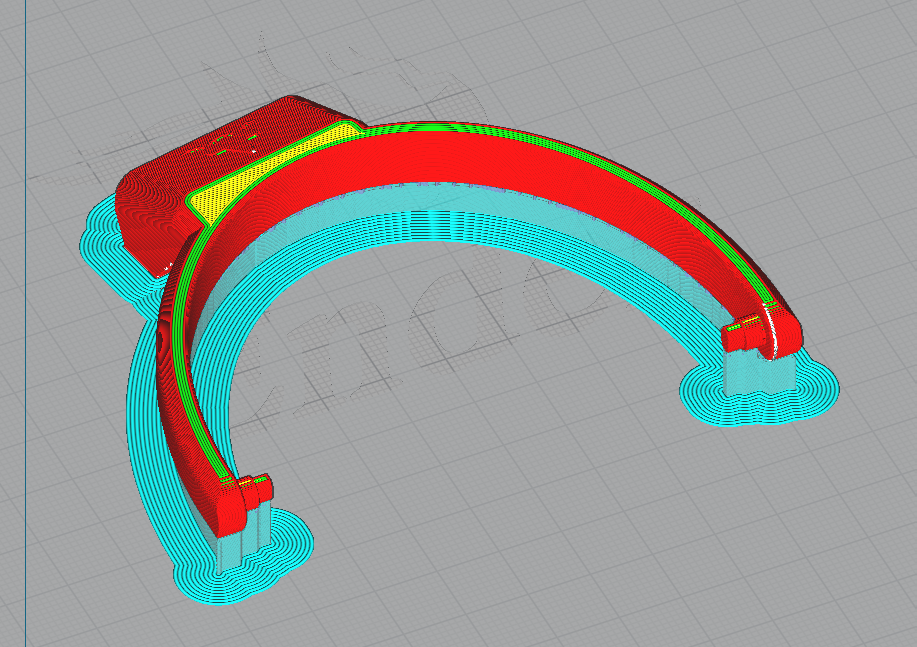

Capra-Headband_6x0-Yoke-Sliced.png Capra Headband V1
Capra-Headband_TPU-Band.stl Capra Headband V1
Capra-Headband_TPU-Band[Knurled].stl Capra Headband V1
Capra-Headband_Adjustment-Band(6x0).stl Capra Headband V1
Capra-Headband_Adjustment-Band-v2.stl Capra Headband V1
Capra-Headband_Adjustment-Arm-V2.stl Capra Headband V1
Capra-Headband_Adjustment-Arm-V2 notched.stl Capra Headband V1
Capra-Headband_6x0-Yoke-V2.stl Capra Headband V1
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
Licence CC BY-NC-ND
Last update 2022-05-04 at 07:07
Publication date 2022-03-28 at 02:58
Design number 676306
3D design format
PDF and STL Folder details Close
  • Capra Headband 6x0 yoke.pdf
  • Capra Headband.pdf
  • Capra-Headband_6x0-Yoke-V2.stl
  • Capra-Headband_Adjustment-Arm-V2 notched.stl
  • Capra-Headband_Adjustment-Arm-V2.stl
  • Capra-Headband_Adjustment-Band(6x0).stl
  • Capra-Headband_Adjustment-Band-v2.stl
  • Capra-Headband_TPU-Band.stl
  • Capra-Headband_TPU-Band[Knurled].stl

Learn more about the formats
Capra-Audio

Capra-Audio

3D printer file info

3D model description

V2 is available on my printables page! https://www.printables.com/model/429232-capra-headband-v2

The Capra Headband is a modular headband system designed to work with various models of headphone. Since the inspiration of this headband was the Sennheiser 6x0 series headband the first supported system of this headband is the 6x0. You can use either the original metal arms and yokes or you can use the Capra version depending on which Adjustment-Arm you print.

Pad:
https://www.amazon.com/Genuine-Sennheiser-Foam-Headband-HD650/dp/B01CF76O46
[I recommend you buy the stock sennheiser headband pad for maximum comfort]

Shown in photos:
https://cults3d.com/en/3d-model/gadget/sennheiser-6x0-bottom-ring-socket
[v9 is the version that matches the Capra yokes.]

If you need help with printing? Have questions about the designs? Want to keep up with what we're prototyping? Join our discord https://discord.gg/fb4HdDvErF

3D printing settings

1.6mm layer height
Printed in PETG and 95a TPU
(95a TPU is stiff enough it can be printed fairly easily on an Ender 3)
