Business Card Dispenser Card Shoe

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 663 views
  • 6 likes
  • 30 downloads

3D model description

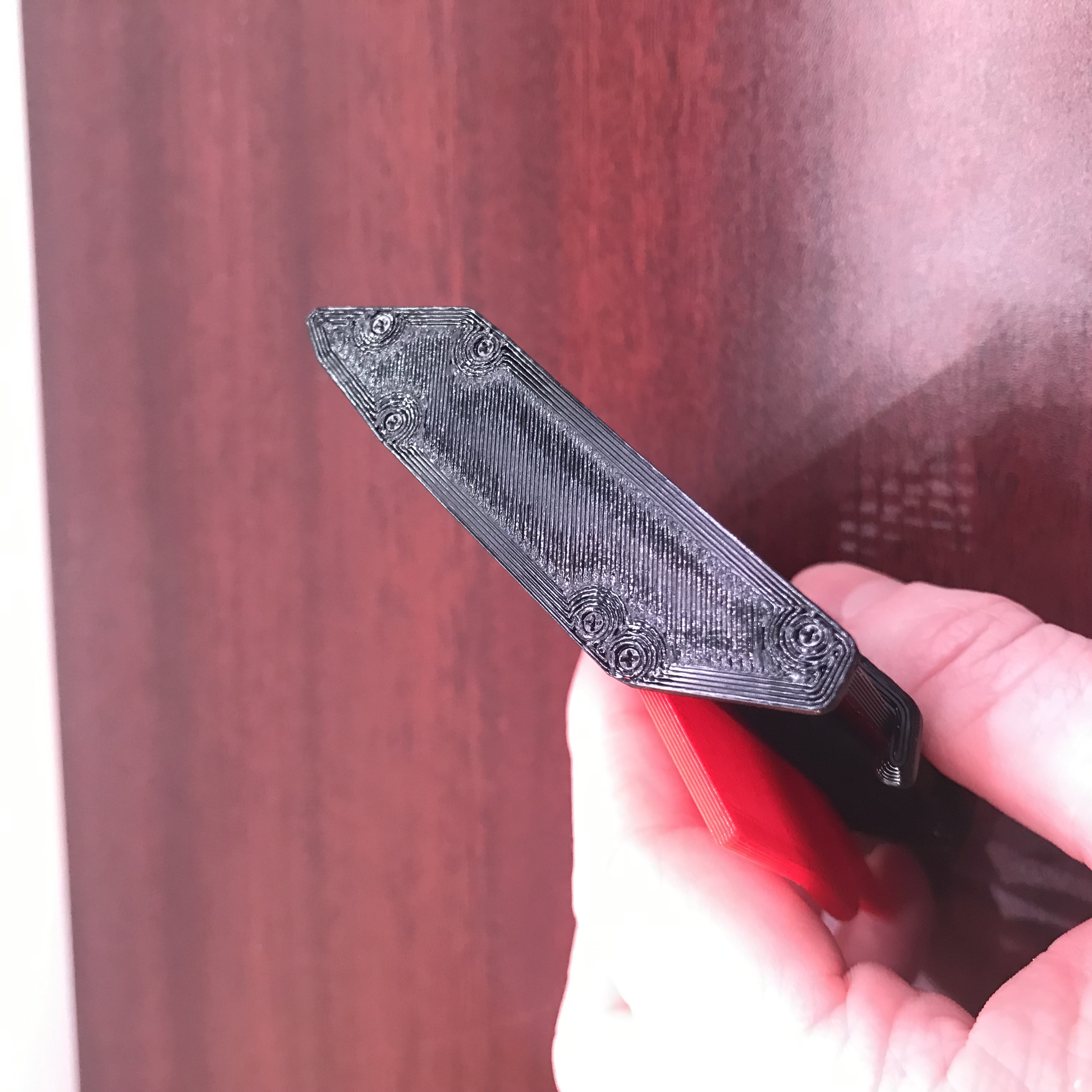

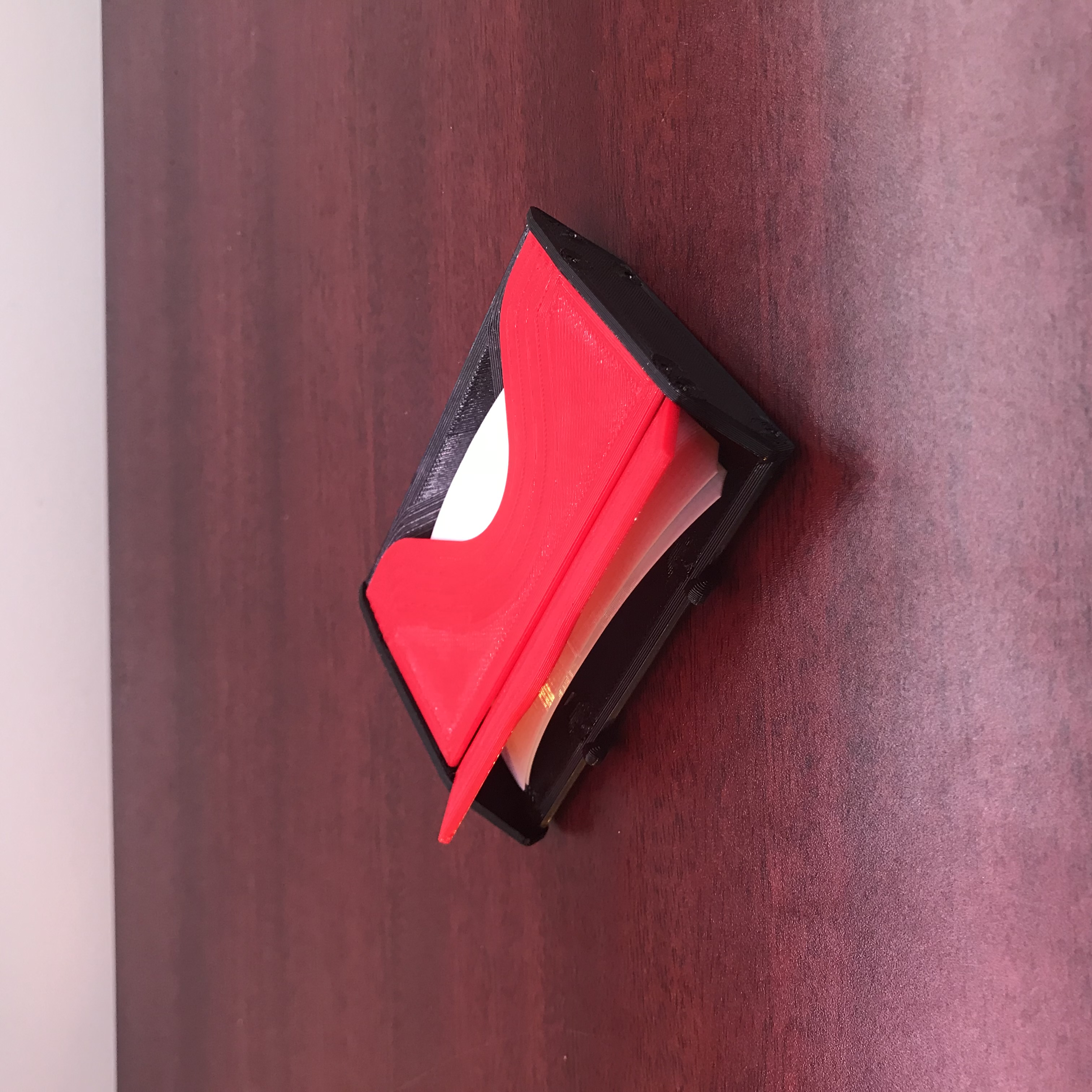

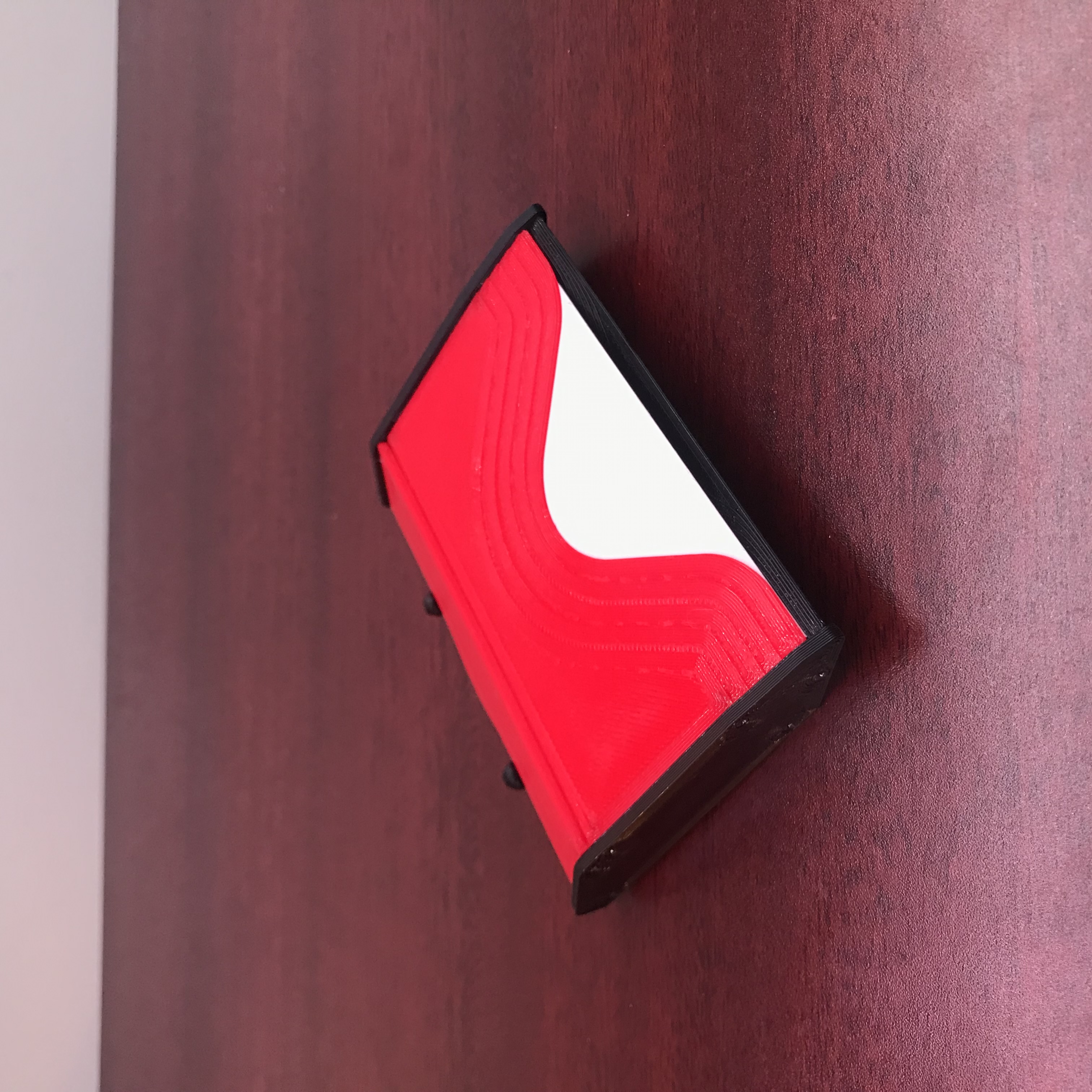

Here is a portable business card dispenser that works similarly to a card shoe.

This design is for 3-1/2" x 2" business cards. The dispenser holds around 18 cards(card thickness = 0.016"). The dispenser also works for slightly thinner and thicker cards.

You will need the following components:
M1-M1.7 Screw Kit

Screw List:
M1.2 x 5mm lg. (QTY.2)
M1.2 x 6mm lg. (QTY.10)
M1.2 x 8mm lg. (QTY.2)

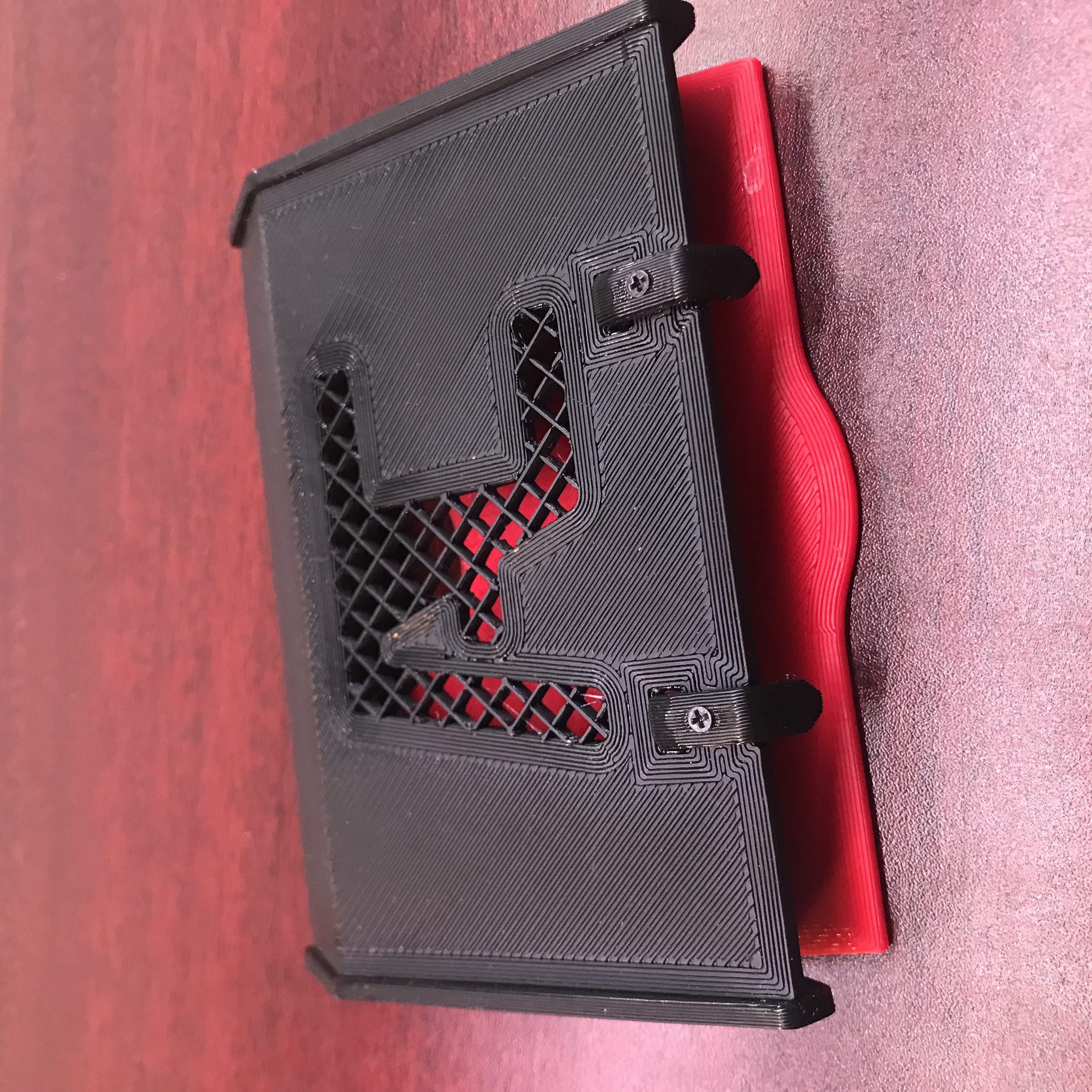

The 5mm long screws secure the small clasps to the bottom plate. The 8mm long screws are for the door.

The bottom plate needs to be bent into place after its printed.

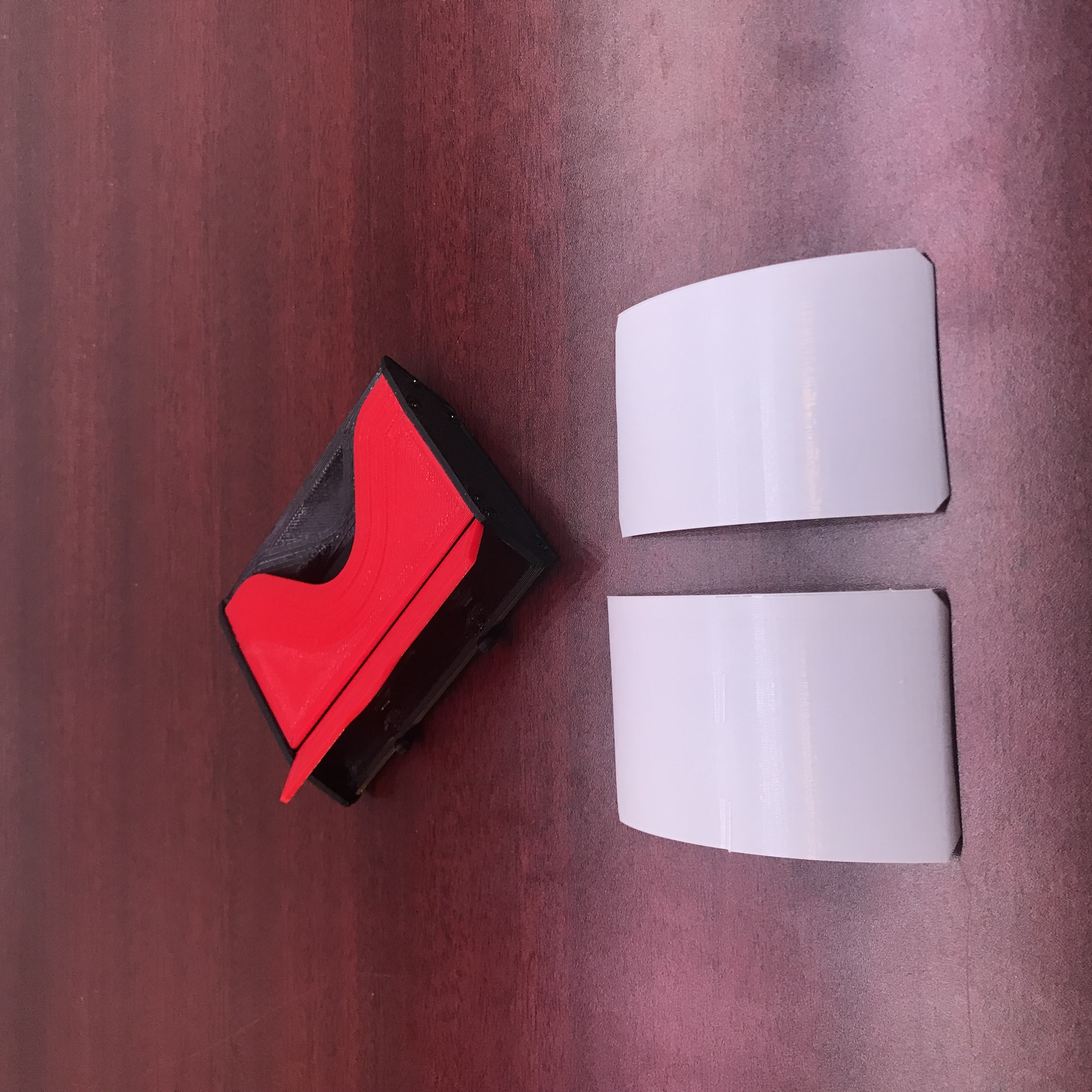

The spring needs to be printed in vase mode with one wall. It needs to be cut down the smaller sides, be sure not to bend it before cutting.


3D printing settings

PETG
0.3mm Layers
0.4mm Nozzle
No Supports

3D printer file information

  • 3D design format: STEP and STL Folder details Close
    • Assembly.step
    • Bottom Plate.stl
    • Door Clasp.stl
    • Door.stl
    • Side Plate Left.stl
    • Side Plate Right.stl
    • Spring.stl
    • Top Plate.stl

    Learn more about the formats

  • Publication date: 2022/01/12 at 05:54

License

CC BY NC SA

Tags
