BUDGETBIDET

Download STL file BUDGETBIDET, iTEKTURDownload STL file BUDGETBIDET, iTEKTURDownload STL file BUDGETBIDET, iTEKTURDownload STL file BUDGETBIDET, iTEKTUR

Makes created by the community

Did you 3D print this model?

3D model description

In Germany some crazy people bought all the toiletpaper in the supermarket. The other people (like me) have a very small amount of toiletpaper.
After running out of toiletpaper and lacking a bidet, i decided to invent a low-budged-bidet for emergencies.
With the BUDGETBIDET you can save big amounts of toilet paper. With the BUDGETBIDET you will stay cleaner compared to just using toiletpaper.

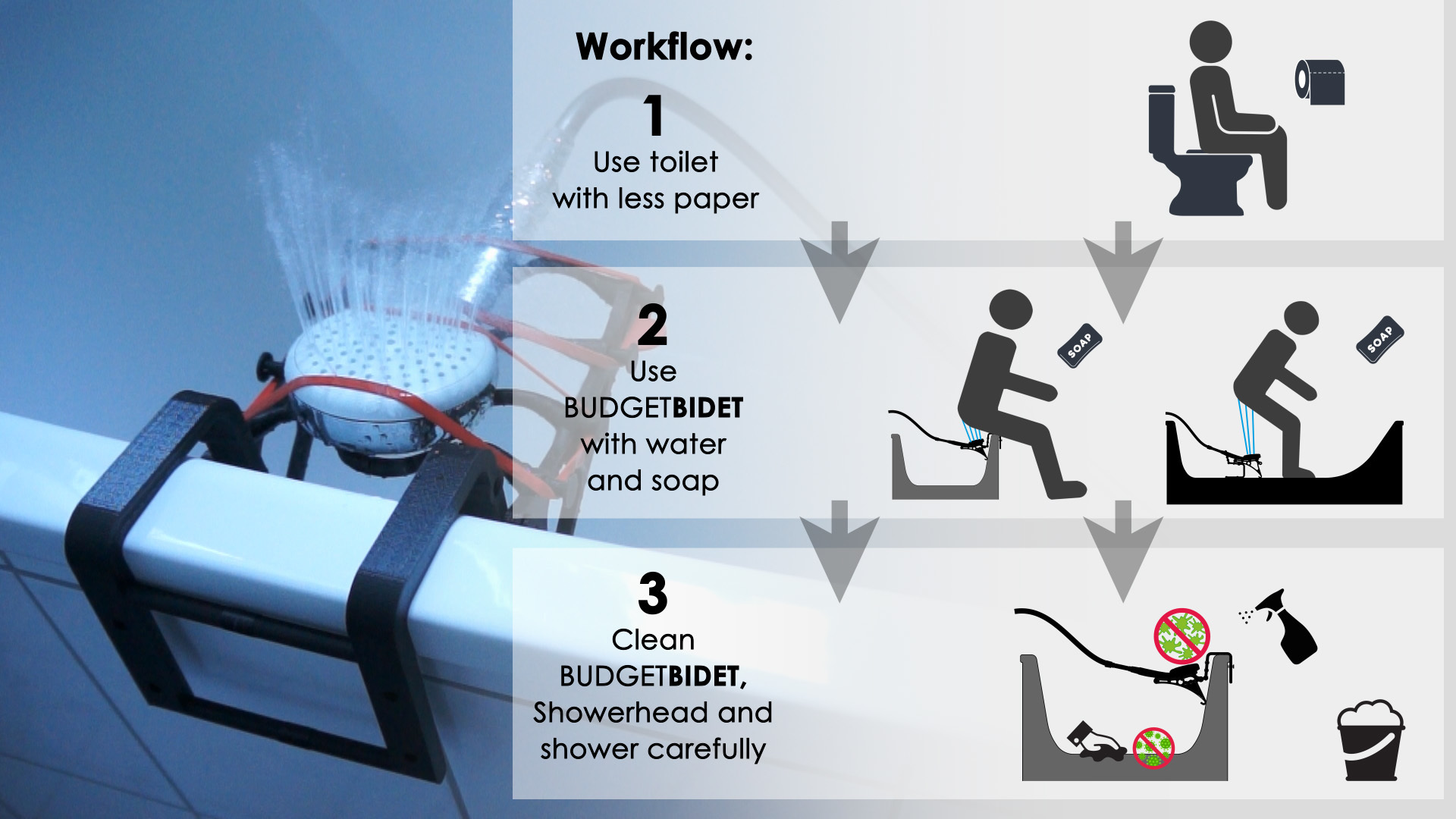

Workflow with BUDGETBIDET:
1. Use the toilet with a very small amount of toilet paper for primary cleaning.
2. After primary cleaning comes the precision cleaning with BUDGETBIDET using soap and water.
3.Clean the BUDGETBIDET, the Showerhead and the shower for the next use.

See this video to learn more about BUDGETBIDET:
https://youtu.be/m01QtAj7E0M

In the following video you see the fast start-up sequence:
https://youtu.be/ohKlxk5-qWE

A manual how to use the BUDGETBIDET is located on my website:

http://www.itektur.de/language/de/budgetbidet

Please desinfect the BUDGETBIDET and the Showerhead after usage.
It is usefull to have two showerheads with a switchover valve: One for the normal shower and the other for the BUDGETBIDET. That is the setup i use to avoid sprouts to contaminate my regular showerhead.

You need to print the following quantity of parts:
2 x k0000198
1 x k0000197
1 x k0000196
10 x k0000193
1 x k0000192
1 x k0000190

In addition you need two "boil down seals" made of rubber to fix the showerhead.

We need the small payment to improve BUDGETBIDET and perform test prints, thanks.

Change Log:
2020-03-27-Updated k0000192.stl and k0000190.stl - improved threadths
2020-03-29-Updated k0000192.stl and k0000190.stl - made the profiles more sturdy

3D printing settings

What slicer did you use?: Slic3r
Filament Volume: ca. 260cm³
No Support needed
how long took the printing process?: 2 days
Resolution: 0.3 mm
Speed: 50 mm/s
Infill: 20%
Temperature: 200 Grad
3D Printer: k8200
3D-Filament: PLA

  • 3D file format: STL

Tags

Creator

Interior Designer and Engineer. I mostly invent usefull designs and furniture.

You can also find me on:

Shapeways: https://www.shapeways.com/shops/itektur

Etsy: https://www.etsy.com/de/shop/stuccolight

Copyright

©

Best sellers of the category Gadget

Related contents


Add a comment

2 comments

Thank you for your comment. I explain on my website why I invented this bidet and also give advice to desinfect the Showerhead, the BUDGETBIDET and the Shower after using it. Unfortunately the website is in German language at the moment. I will translate the website in the next days. I will also add the advice in the description of the BUDGETBIDET on cults.
You are right with your opinion that this Gadget will work best in emergency situations. You may not know, that in Germany some crazy people bought all the toilet paper in the supermarkets and other people like me need a solution to overcome this situation with no or very small amount of toiletpaper. I think in this situation my Gadget will be helpfull. Because of that i will go on sharing it with the community.

Kind regards

In an emergency this may work for one person but it will be very unsanitary. You should not have it directly below you where the waste water falls back onto the showerhead, this is what makes it very unsanitary. If you look up normal bidets one of the biggest challenges they face is to ensure that the water spout NEVER gets contaminated because this is a big deal to remaining clean. If you do not share the toilet/bidet with others this is less of a fear.
