BLUEPRINT CUSTOM FOAM INSERT FOR EDELKRONE EQUIPMENT

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 426 views

3D model description

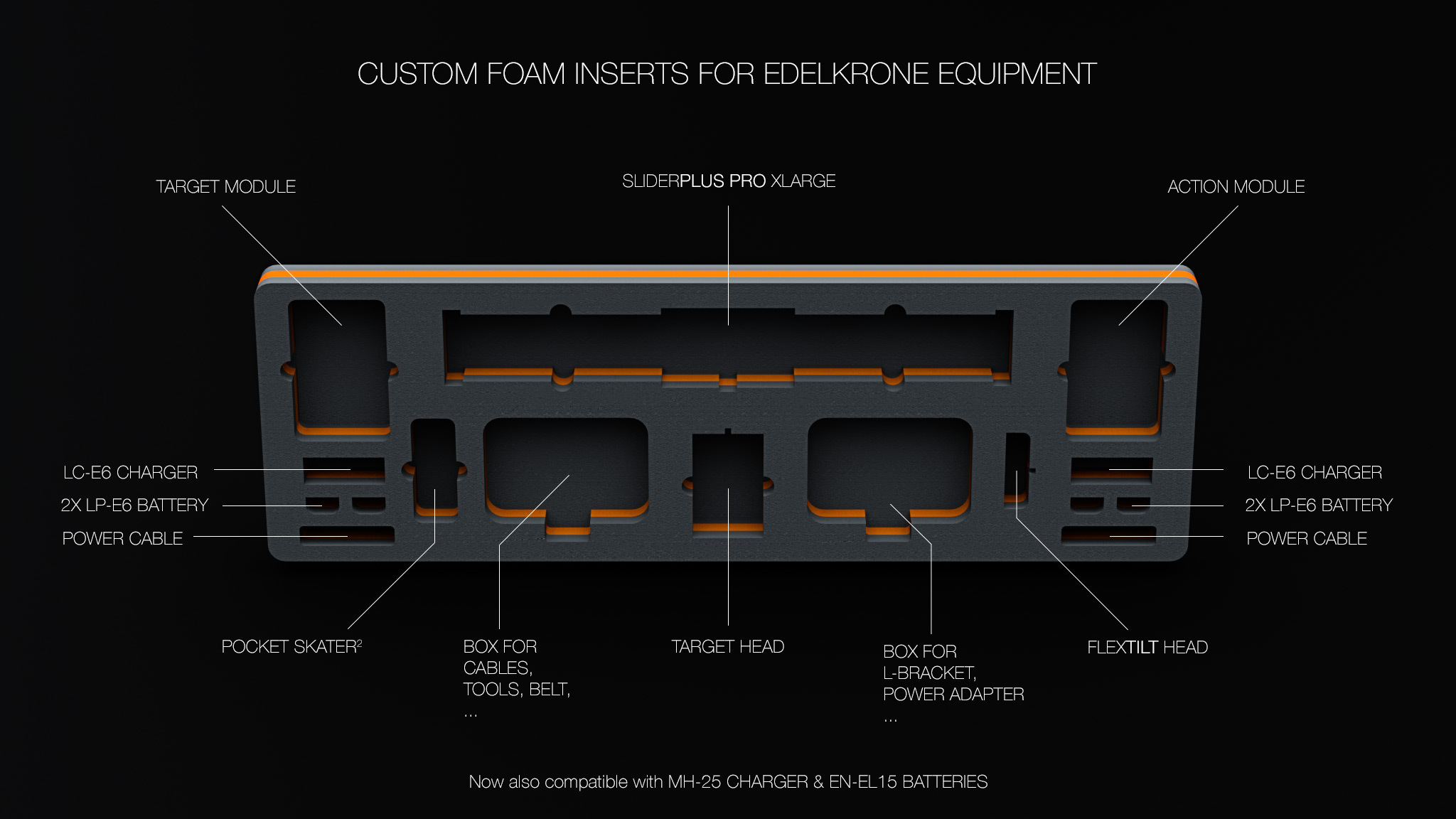

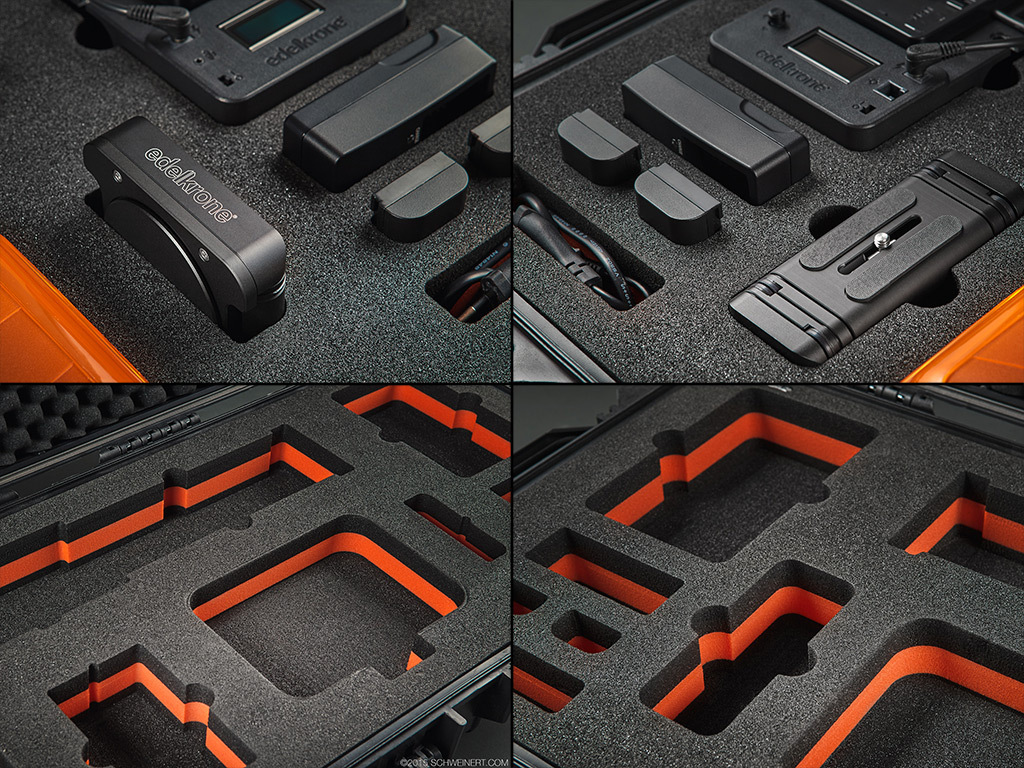

I’ve designed my own foam insert for all my edelkrone equipment (from 2015) and want to offer the blueprint here. You will get a 2D DXF CAD file with the blueprint. Every pocket in the foam insert is exactly measured so the parts will fit nice and smoothly.

Use the dxf blueprint with your local case builder or any online vendor that offers custom foam inserts. Ask for polyethylene foam. You can use different colors to match your company brand. In example I let them sandwich black and orange foam together to match my logo colors.

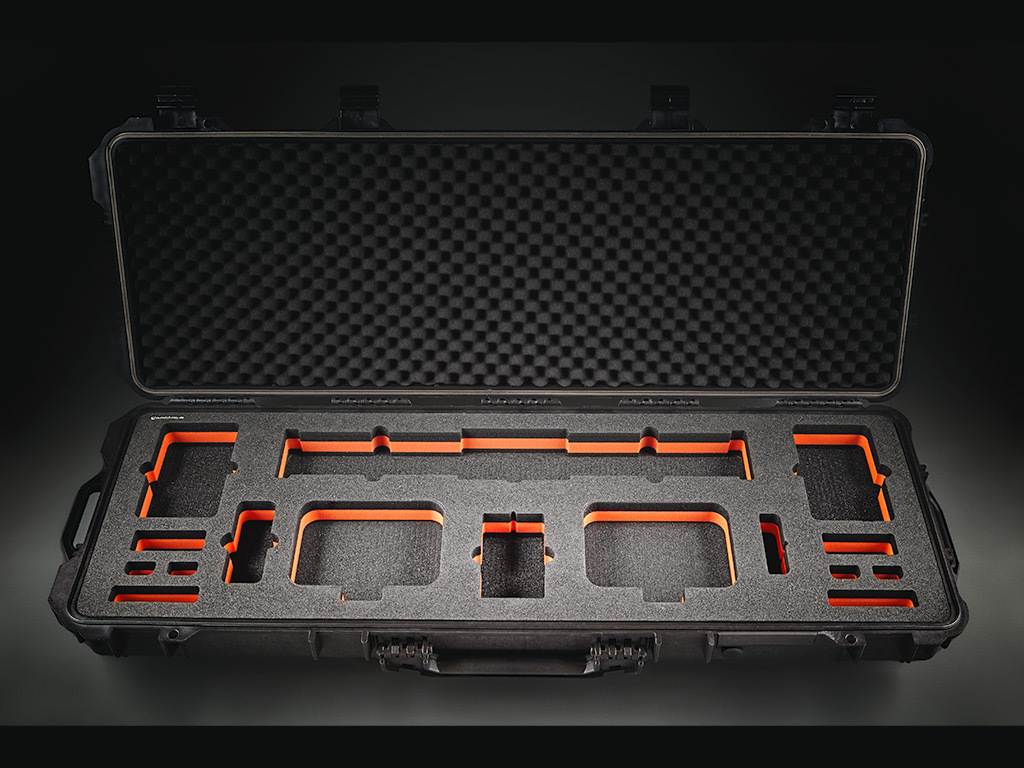

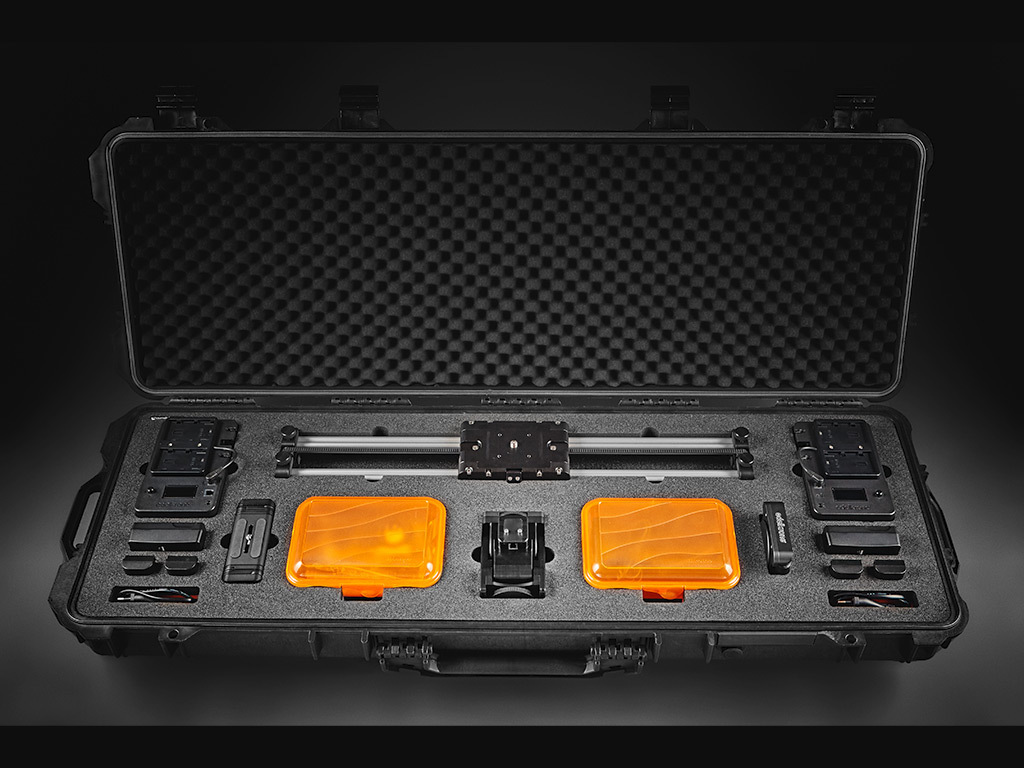

The actual case is a cheap knockoff hardcase. It’s actually a gun case that I've bought from ebay. The external dimensions of the gun case are 1140x420x150mm. You can also modify the DXF file to make it fit your own case.

The orange boxes are from a company called “rotho” model: FUNBOX 1,25 liter.
I got them from our local supermarket.

  • 3D file format: DXF
  • 3D model size: X 1070 × Y 0 × Z 345 mm
  • Publication date: 2021/01/26 at 22:02
