BigTrak Mount for Raspberry Pi Camera

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 159 views
  • 1 like
  • 2 downloads

3D model description

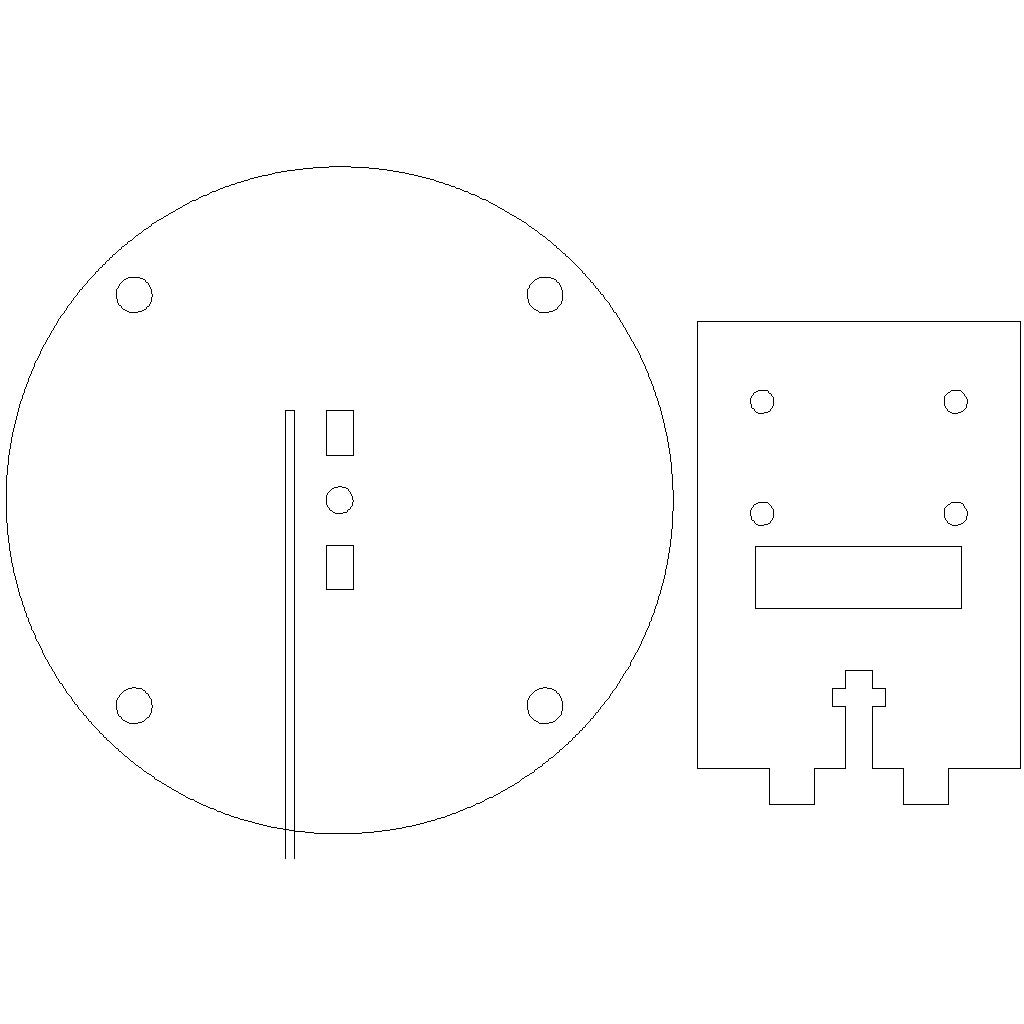

A simple T-slot bracket for mounting a Raspberry Pi camera on top of a BigTrak.


3D printing settings

Note that this has only been tested with the re-released BigTrak. The original had a PP3 battery compartment in place of the blanking plate we remove to fit the camera. You'll require an M3 nut and bolt to assemble the bracket and some M2 nylon nuts and bolts to secure the camera. If you're careful you can fit a PiFace to your Pi and route the camera cable out between the PiFace and ethernet socket.

3D printer file information

  • 3D design format: DXF Folder details Close
    • BigTrakCameraMount.dxf

    Learn more about the formats

  • 3D model size: X 82 × Y 0 × Z 60 mm
  • Publication date: 2021/08/15 at 01:13
