Beltless motorized camera slider

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

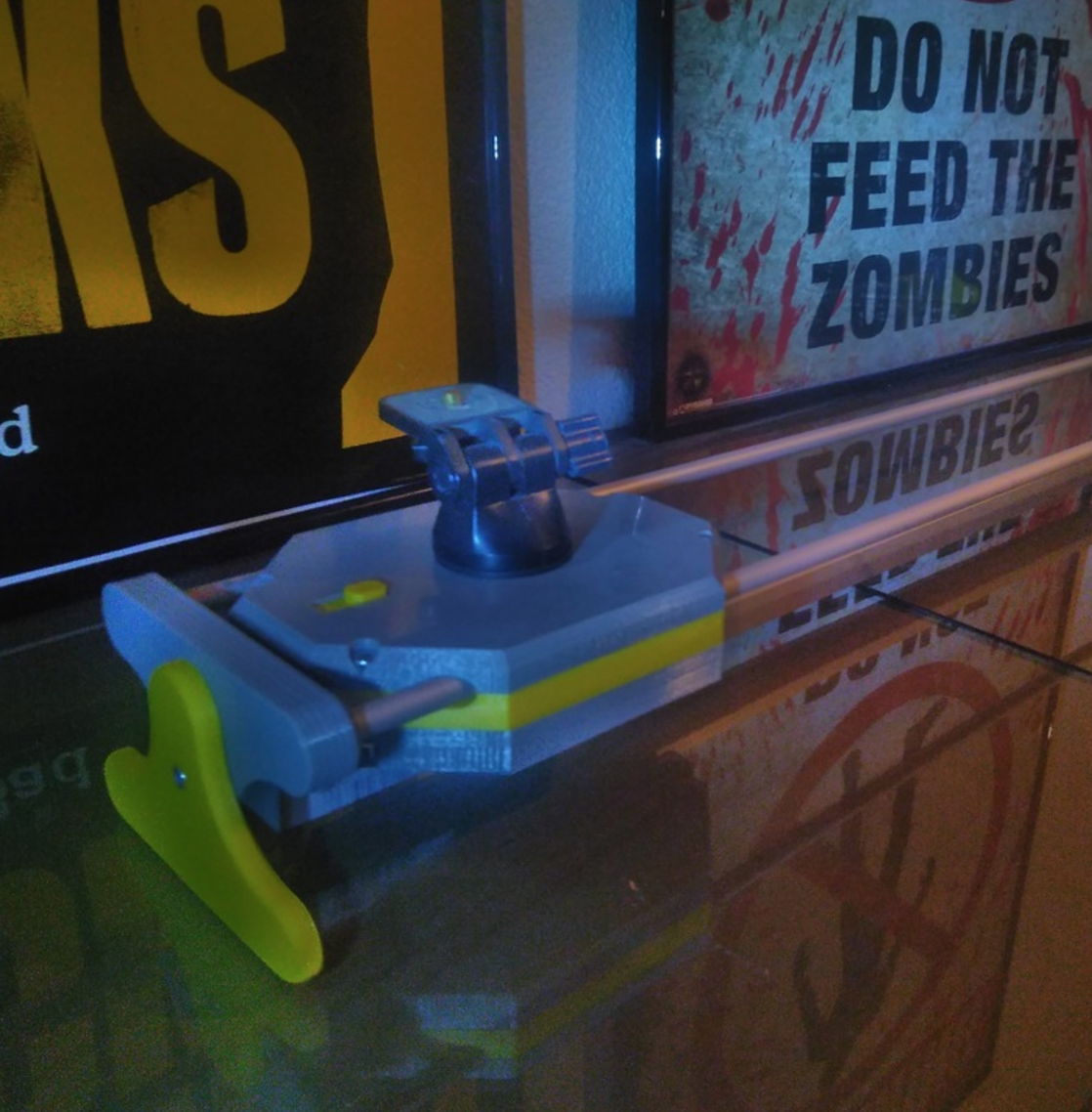

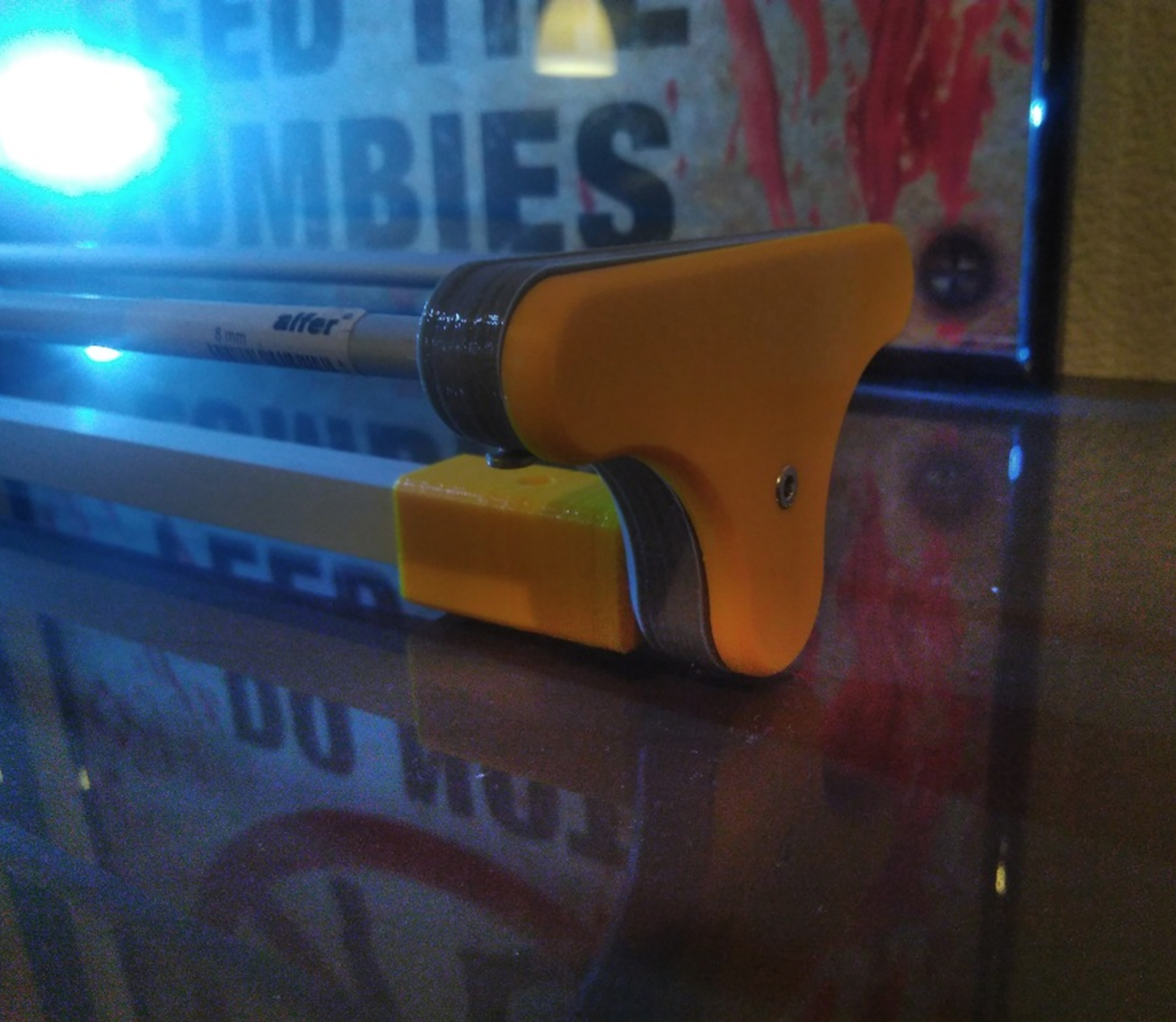

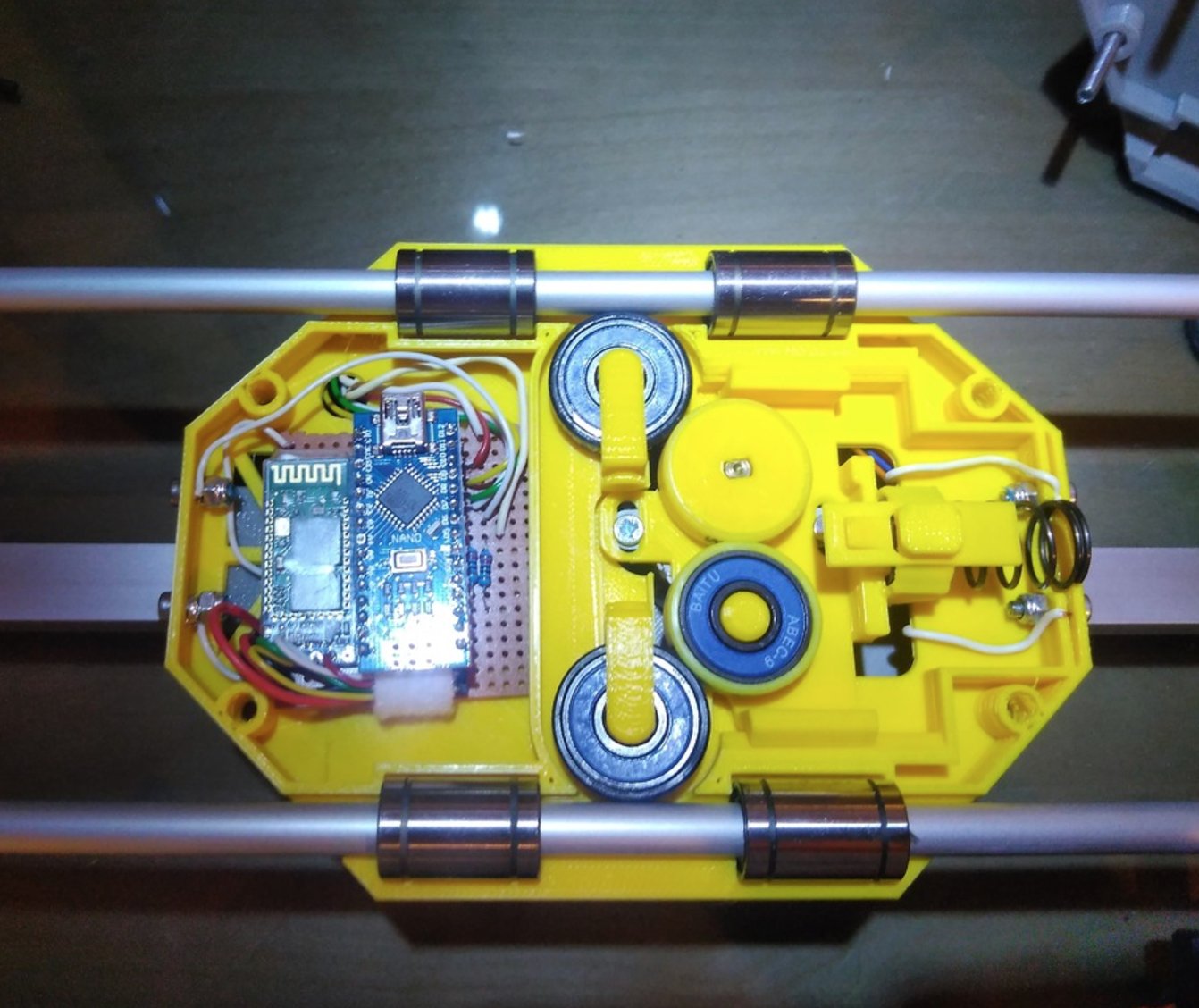

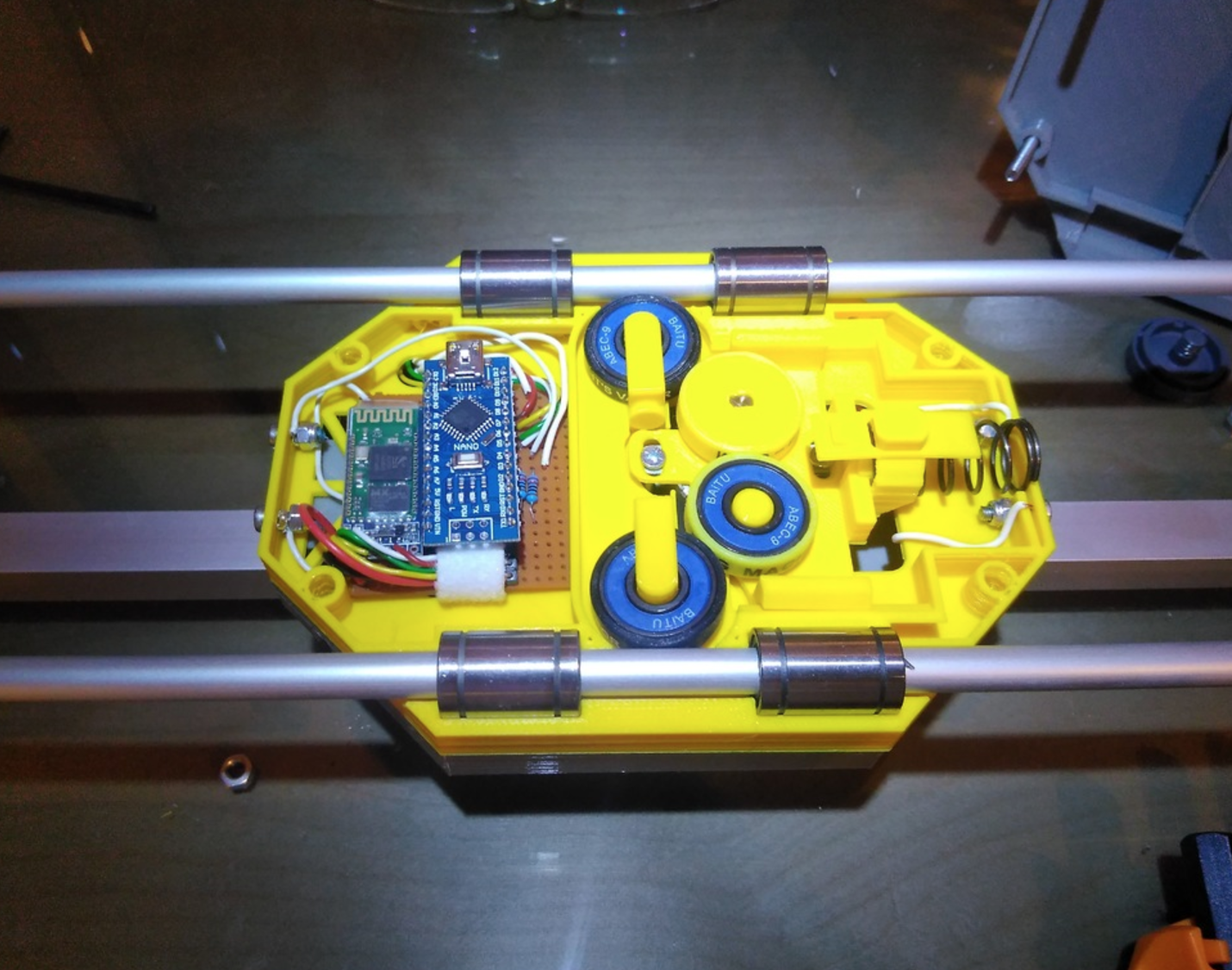

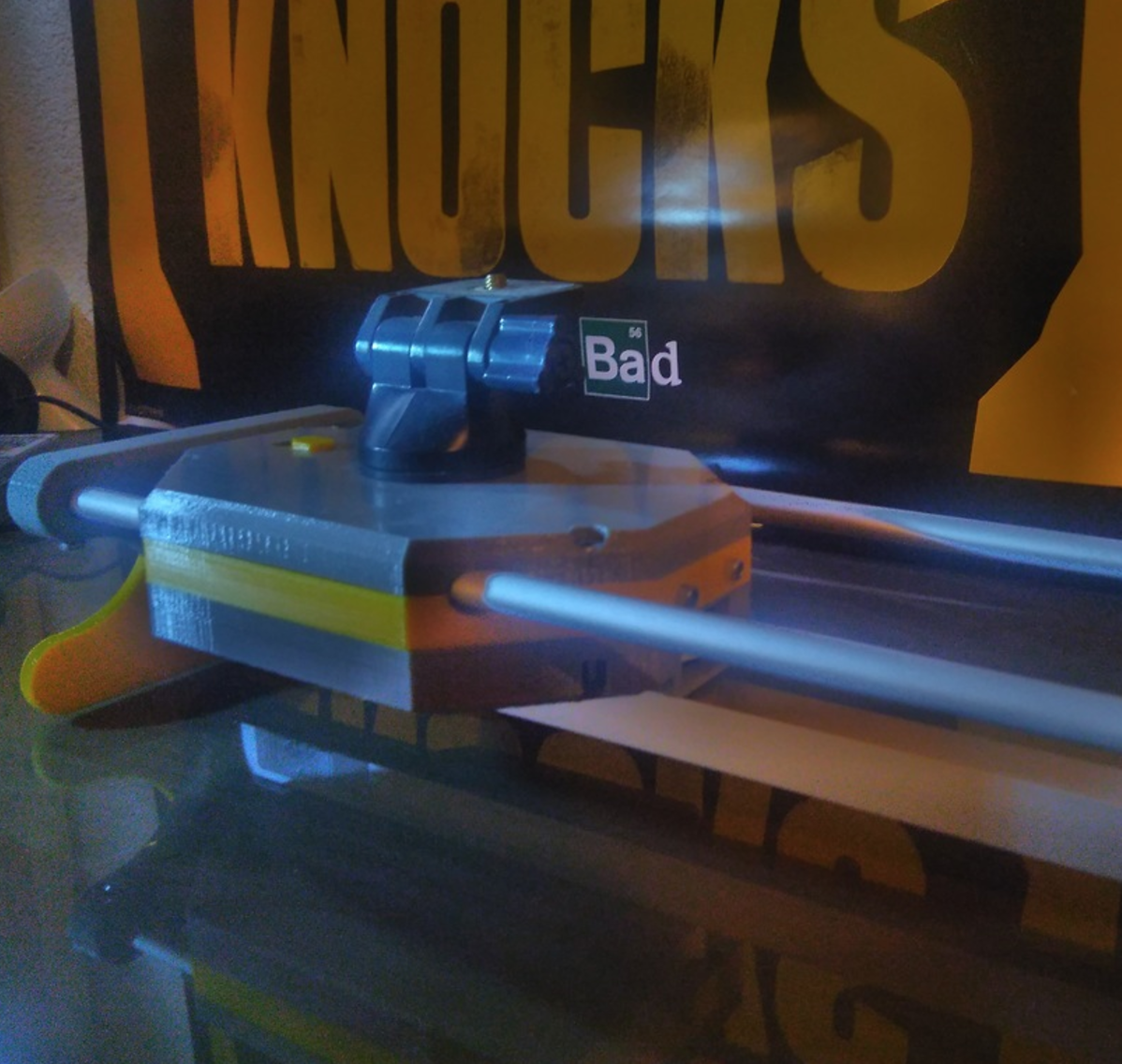

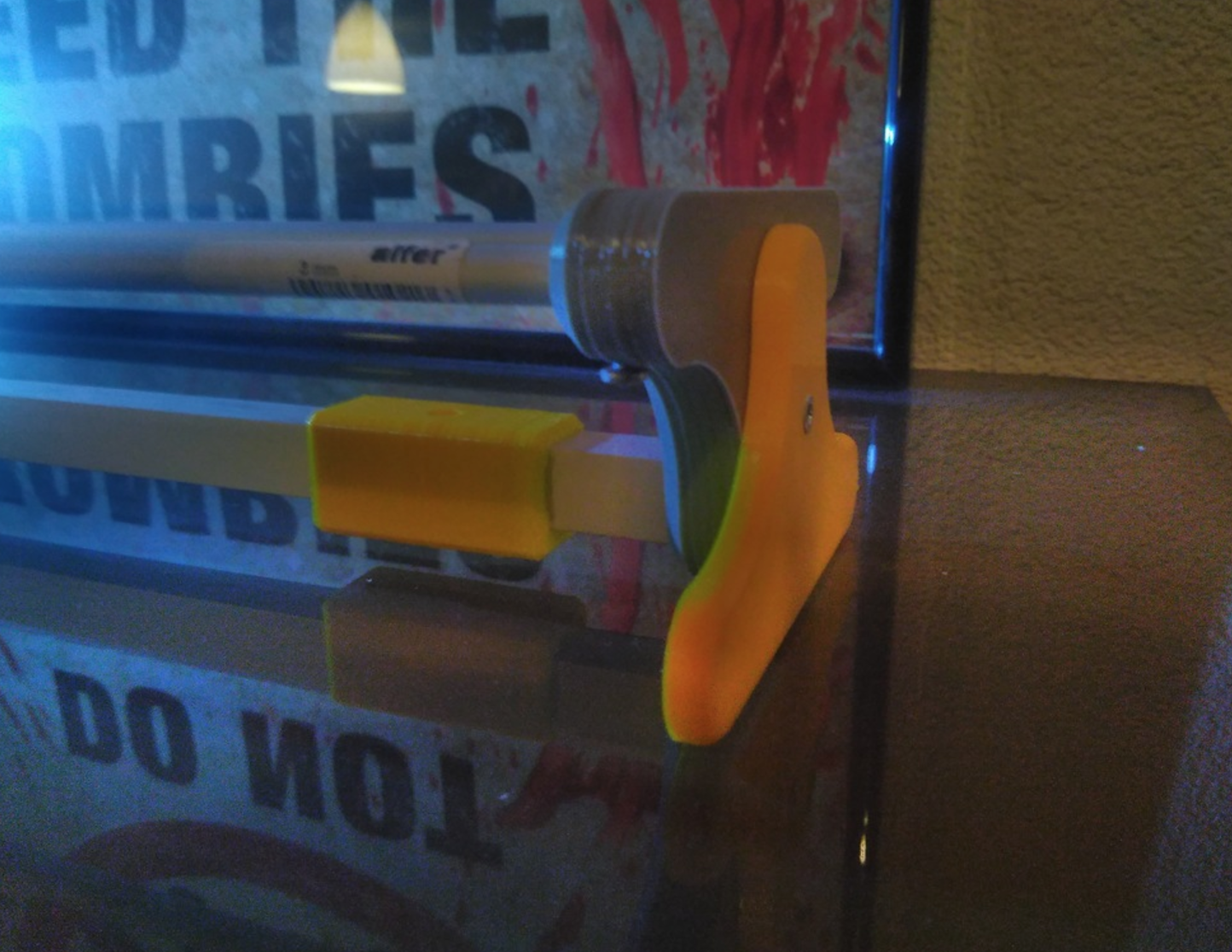

This slider is designed to have all the control electronics in the carriage. This allows you to make it as long as you want simply by stretching the tracks. It can be controlled via bluetooth from a smartphone or can be programmed to follow a certain movement. It also has ribaltabile stands, so if you mount it on a tripod, the stands are hidden.

To build it, you will need extra material:
-2 ⌀8mm steel bars (as long as you want)
-1 15x15mm aluminium square bar (long as the steel ones)
-8 M3 15mm screws
-8 M3 self-blocking nuts
-6 M4 20mm screws
-2 M4 self-blocking nuts
-4 M4 nuts
-4 ⌀8mm linear bearings
-3 bearings
-1 28byj-48 stepper motor
-1 arduino nano
-1 HC-06 bluetooth module
-1 Lebez 359-B
-1 7.4V 1200mAh battery
-4 vaporizer rubber bands

⌀12x40mm spring
some wires

3D printer file information

  • 3D design format: STL Folder details Close
    • battery_case.stl
    • bearing_support.stl
    • driving_wheel.stl
    • dust_cover.stl
    • motor_support.stl
    • pedestal.stl
    • rails_structure.stl
    • slider_-_bottom.stl
    • slider_-_top.stl

    Learn more about the formats

  • Publication date: 2017/09/13 at 18:51
