Baofeng 2-Way Radio Walkie Talkies Handheld Mini Mic Microphone

?
Creation's quality: 4.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 468 views
  • 1 like
  • 1 download

3D model description

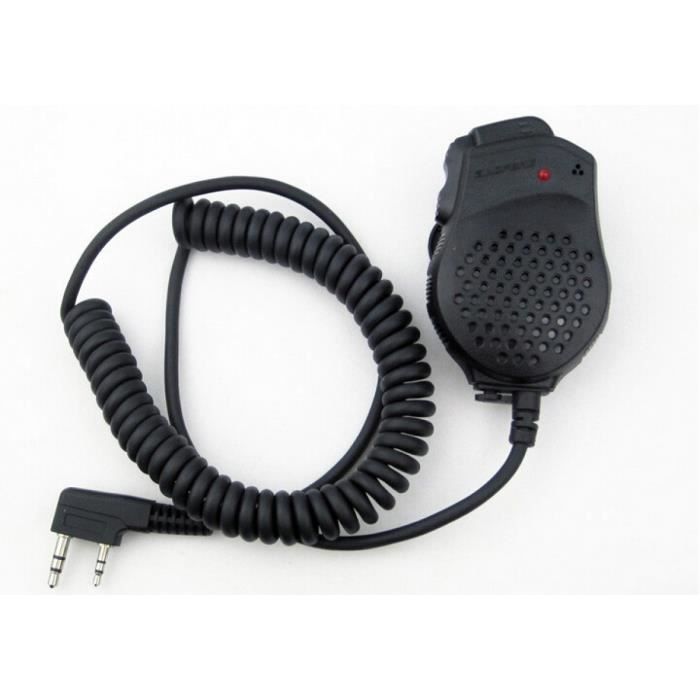

I got big hands, and the small baofeng duall MIC is so small i can't use it with gloves... (the device also broke is holder and have a dead switch...)

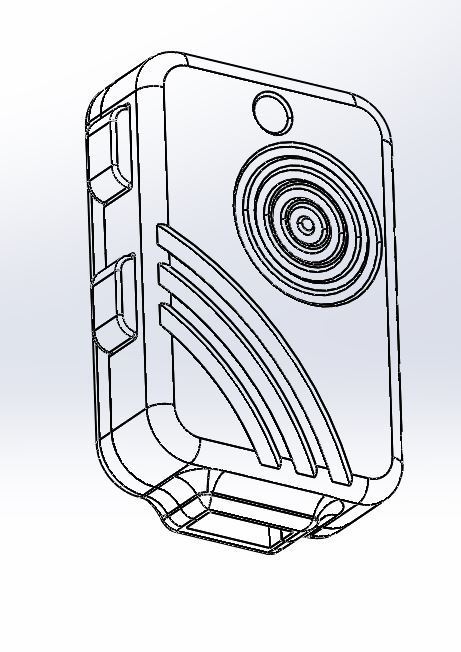

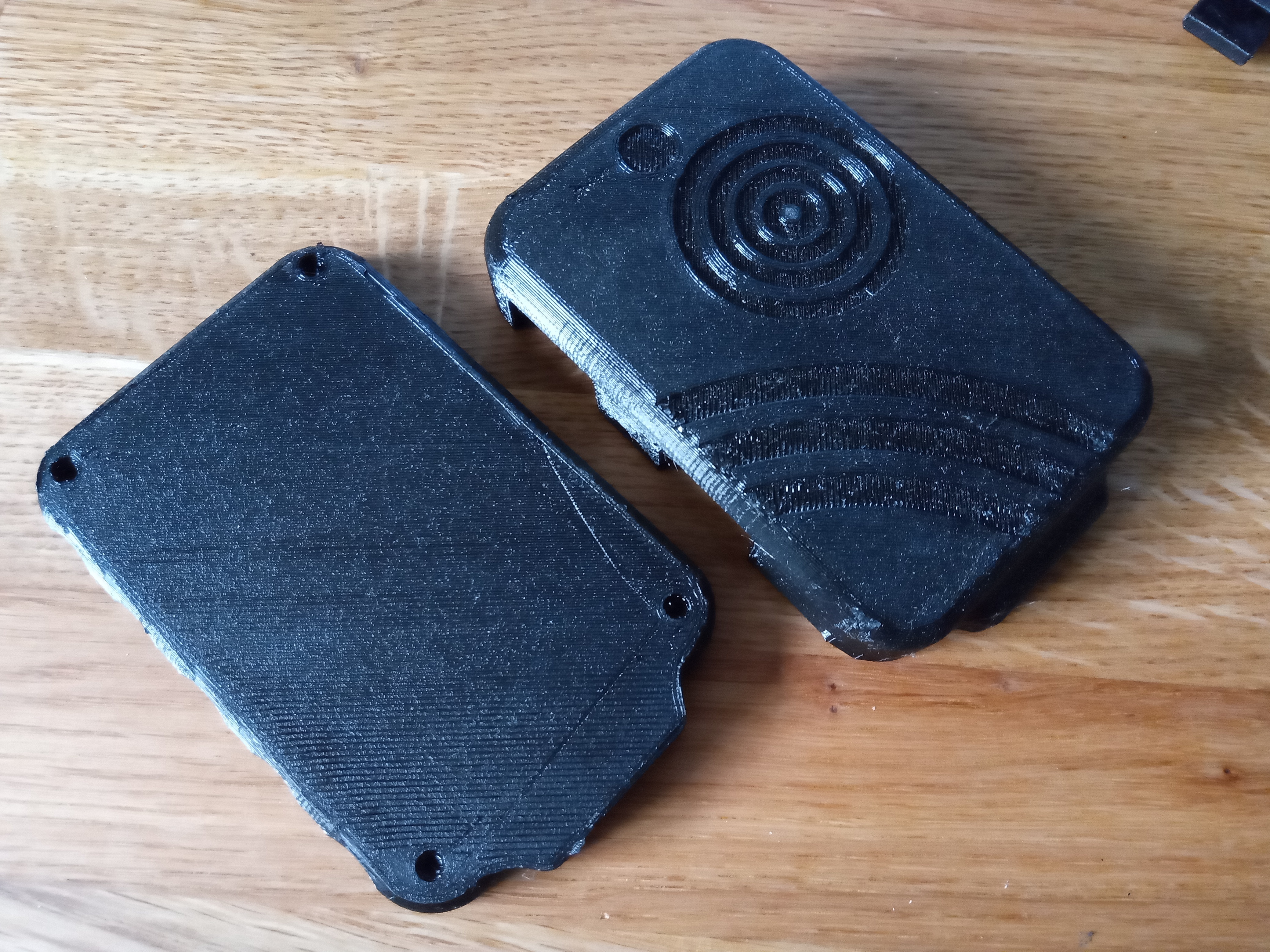

So i create a bigger box with bigger switches who are not afraid of dust and water and put everything inside

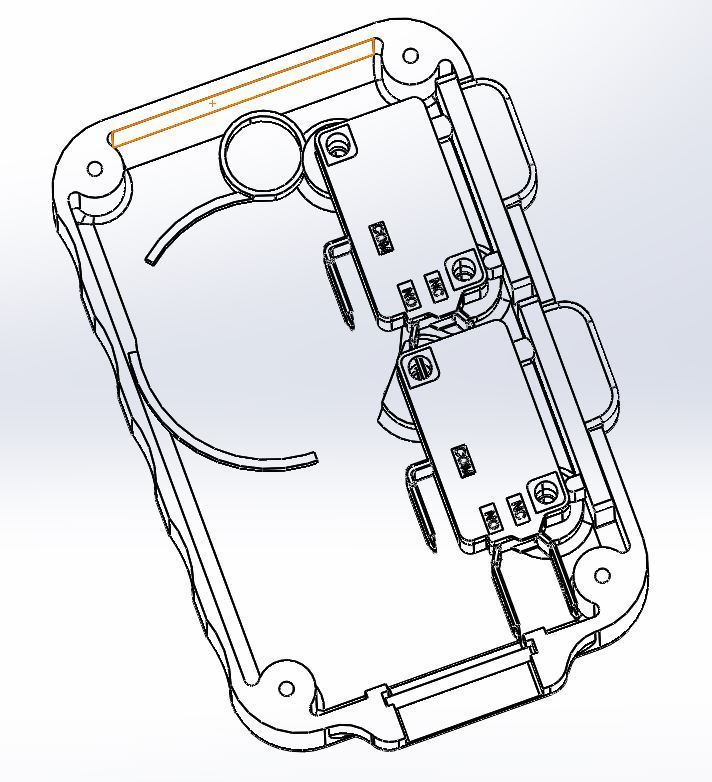

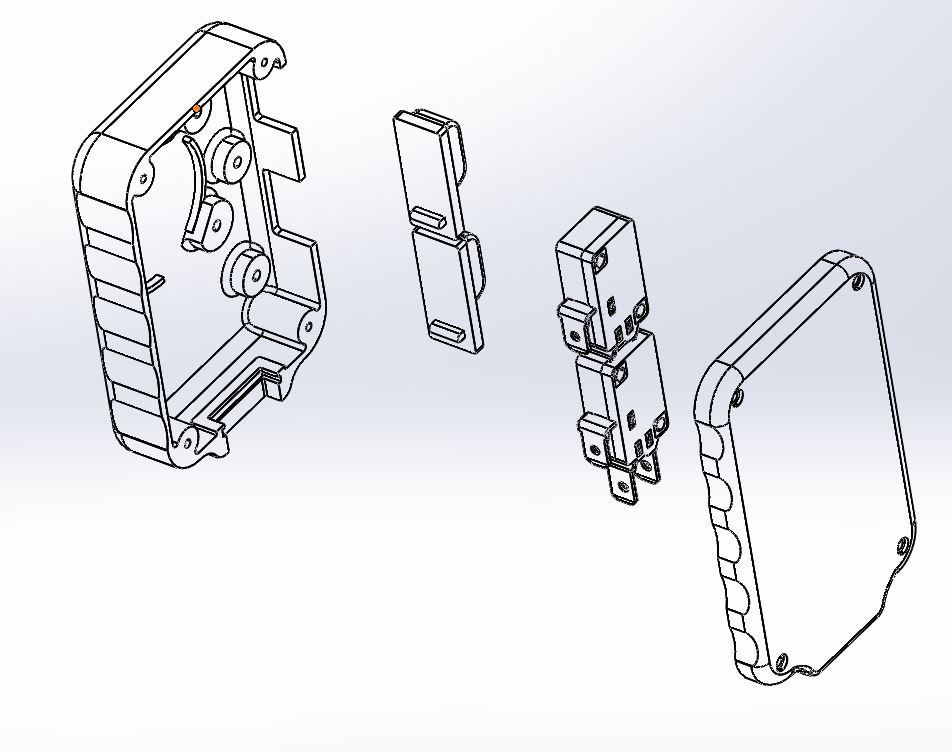

It uses 4 M3 forehead screws to close the shells and you need 4 screws inside for the switches.

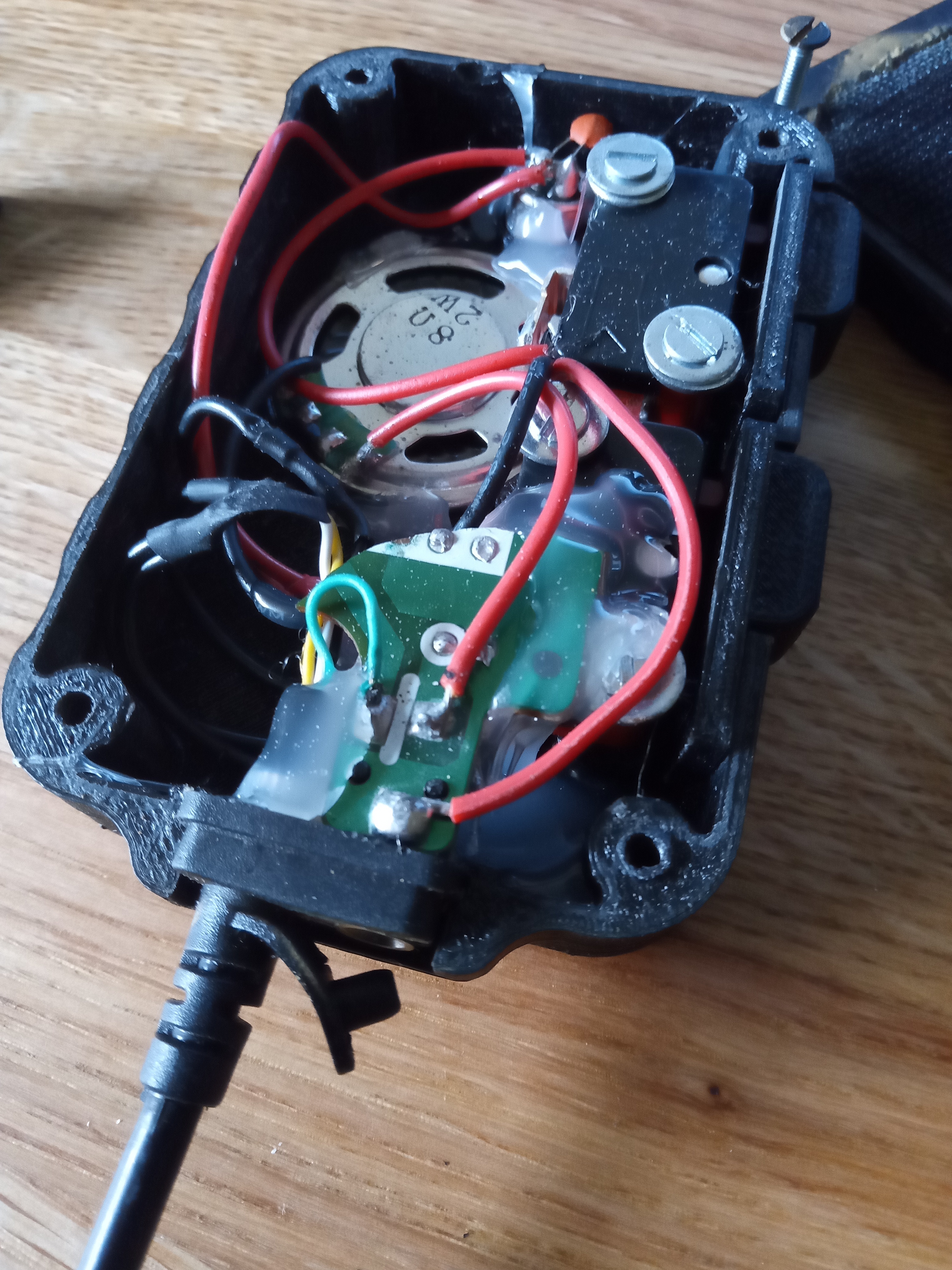

I use hot glue to hold everything in place inside.

To hold the mic on my rig, i glue some velcro in the back of the box...

3D printing settings

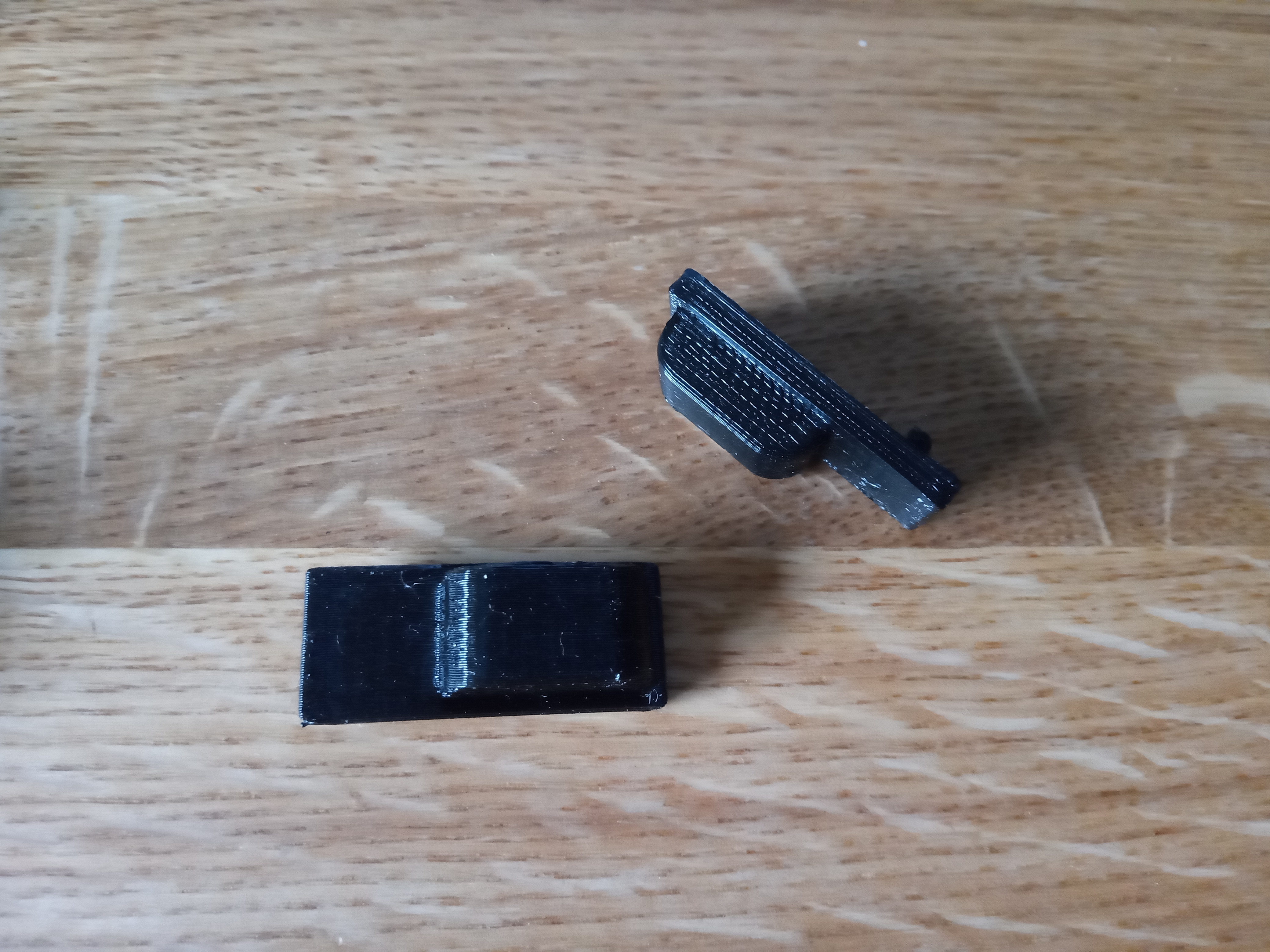

Just print flat on the bed, i use PETG to be able to tapdrill all the holes

  • 3D file format: STL
  • Publication date: 2020/10/04 at 11:09
