Baby Turtle Ship

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 833 views
  • 3 likes

3D model description

The design presented here is an reinterpretation of the world’s first armored turtle ship to be used as everyday gadget such as desktop decoration.

Have fun!

About Turtle Ship (Geobukseon)...

Turtle ship is the world’s first armored ship. At the end of sixteenth century, Admiral Yi Sun-Shin of Chosun Dynasty in Korean peninsular defeated invading Japanese naval ships using turtle ships as front-line penetrators. The characteristics of turtle ship include iron cover on the roof to protect from enemy firearms, sharp iron spikes on top of the iron cover to discourage enemy’s boarding, heavy cannons in position to attack enemy vessels around, and most importantly, a dragon head emitting smoke and fire.
No exact design drawings nor construction details survive to this day, but some drawings like the one made in 1795 show us the overall shapes and types of turtle ships. Reconstruction models are on exhibition at The War Memorial of Korea located in Seoul, Korea, and also in the city of Tongyeong.

3D printing settings

Size: 85 x 52 x 35 mm

Material: PLA, TPU, ABS

Layer height 0.2 mm, Wall thickness 1.2 mm, Infill 20%, Support needed (from 45 degrees), Brim needed only for HEAD
(Please see attached guideline)

Files:

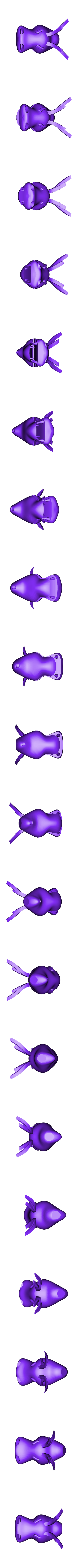

HEAD.stl

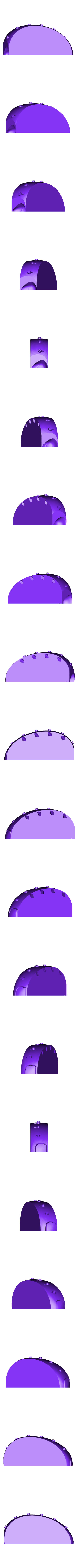

BODY L.stl

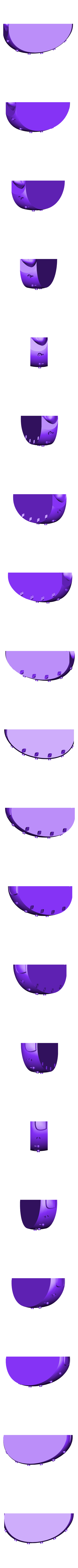

BODY R.stl
ROOF.stl

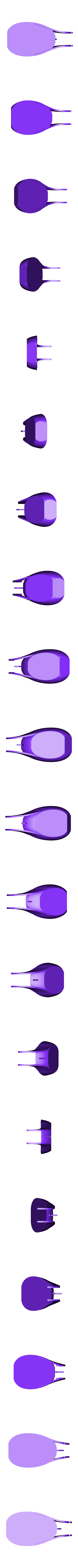

BOTTOM.stl
OARS.stl

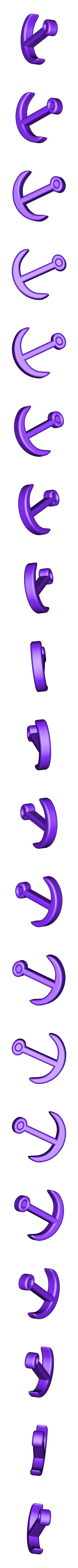

ANCHOR.stl
Print n assembly guideline.pdf (Zipped)

  • 3D file format: STL and ZIP
  • Publication date: 2018/07/18 at 07:24
