AXIAL SCX24 Trail Grappler M/T rim offset 7mm military type

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 127 views
  • 1 like

3D model description

This is a rim, military style 6 studs, with central hub for Axial AXI31567 tires which are Nitto Trail Grappler M/T tires.
tires you can find on the Deadbolt and Jeep models.

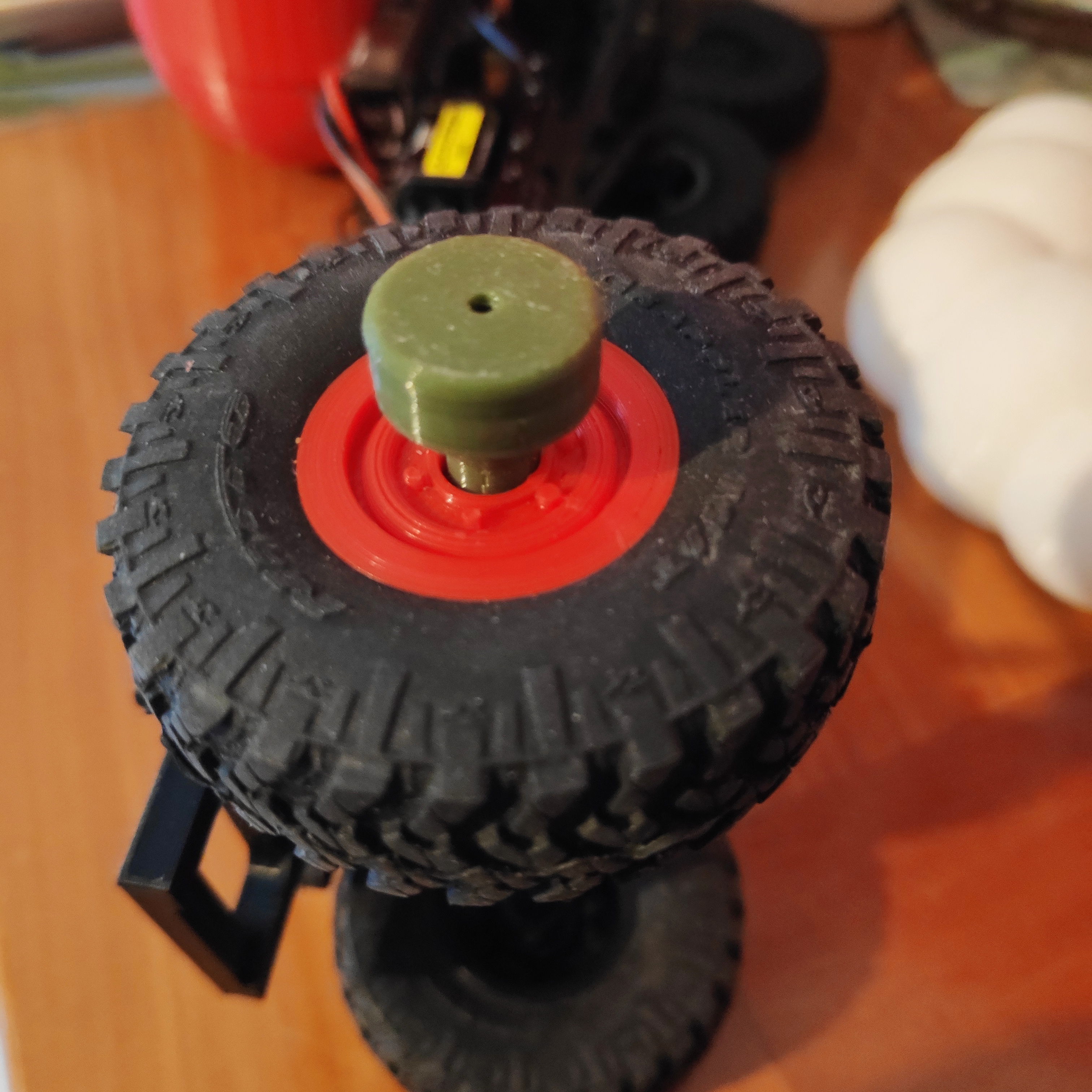

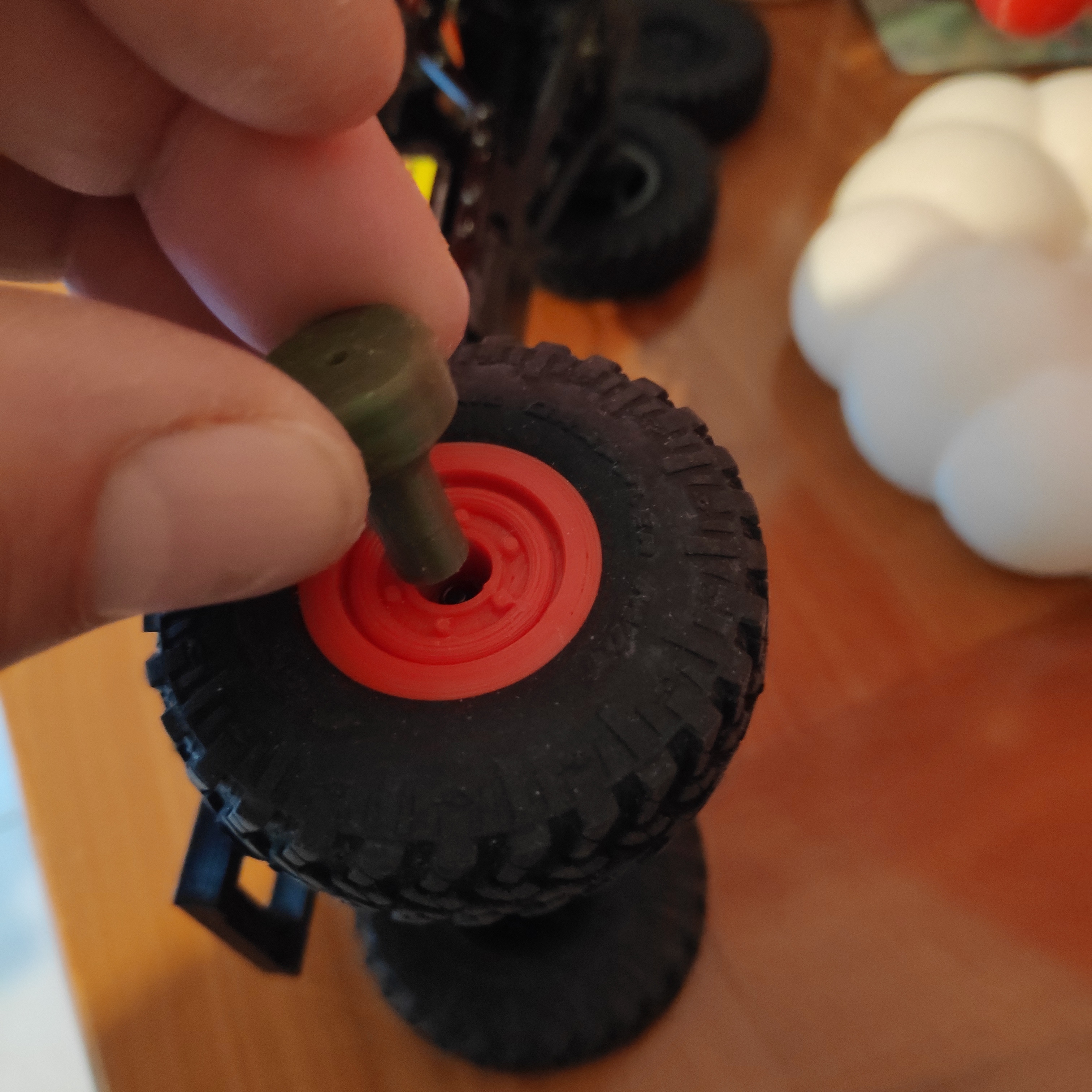

A special key is included to be able to unscrew and screw the original nut and change the wheel.

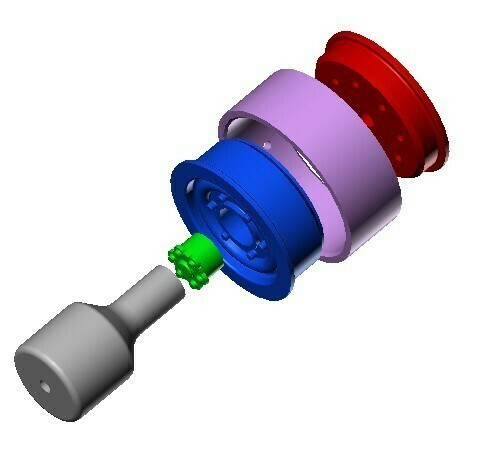

No glue is needed, the tire will be kept between the ring and the ext and int part.
You need some M1.4mm screws available on Ebay for example.
https://www.ebay.fr/itm/M1-4-M1-6-M2-Full-Thread-Socket-Head-Screws-Cap-Allen-Bolts-High-Tensile-12-9/352910341699?ssPageName=STRK%3AMEBIDX%3AIT&var=622163280837&_trksid=p2057872.m2749.l2649
Printing need some support for int and ext parts.

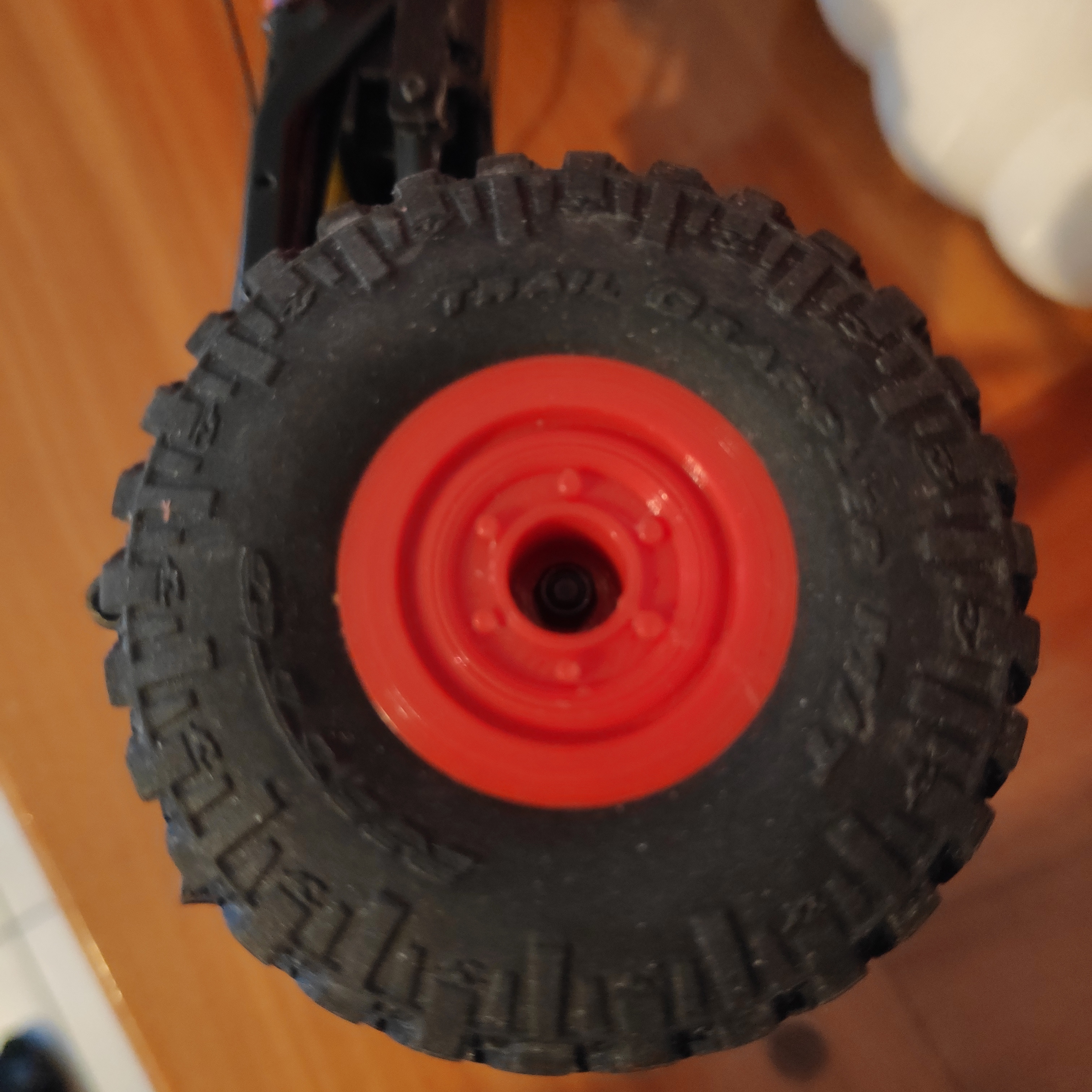

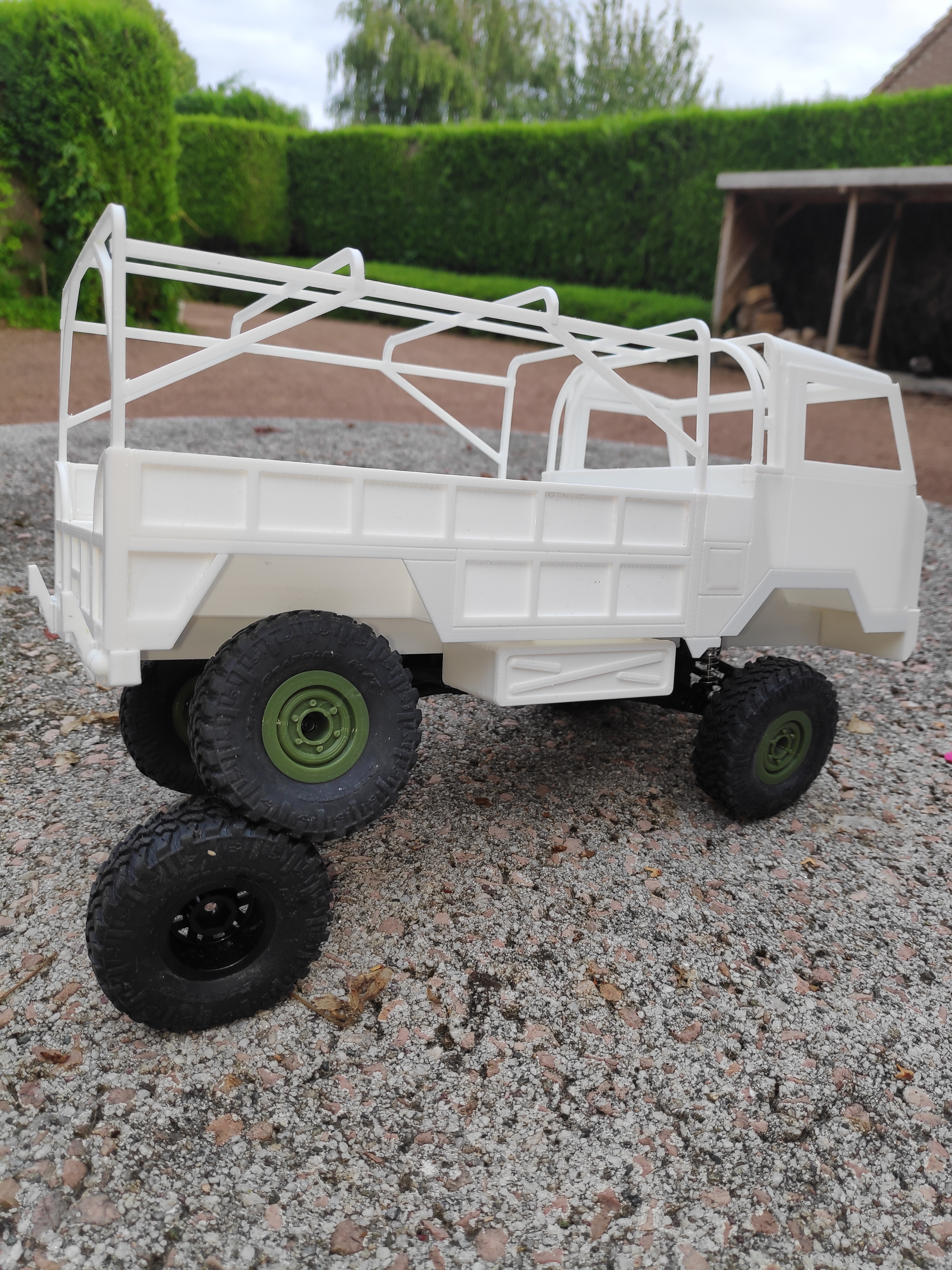

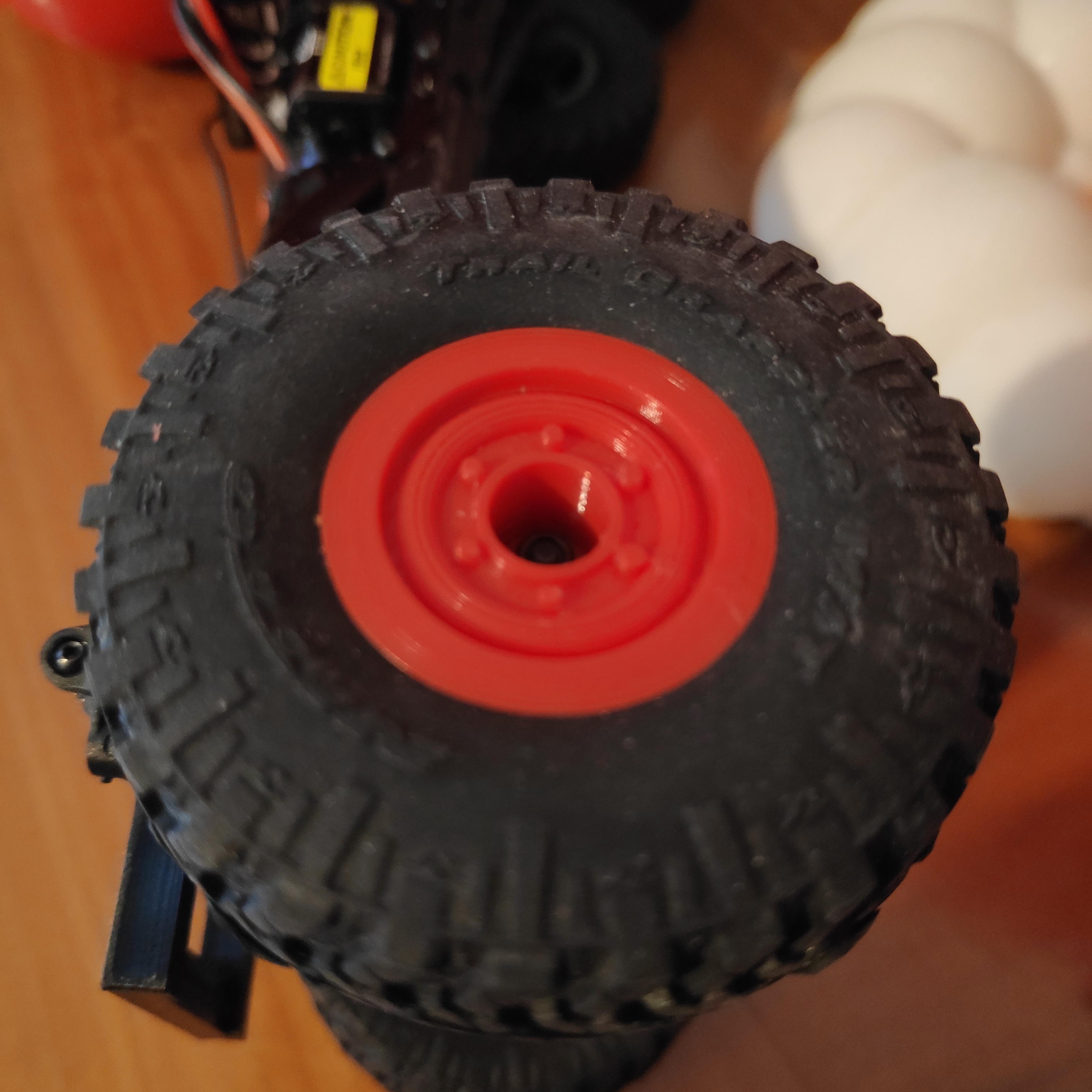

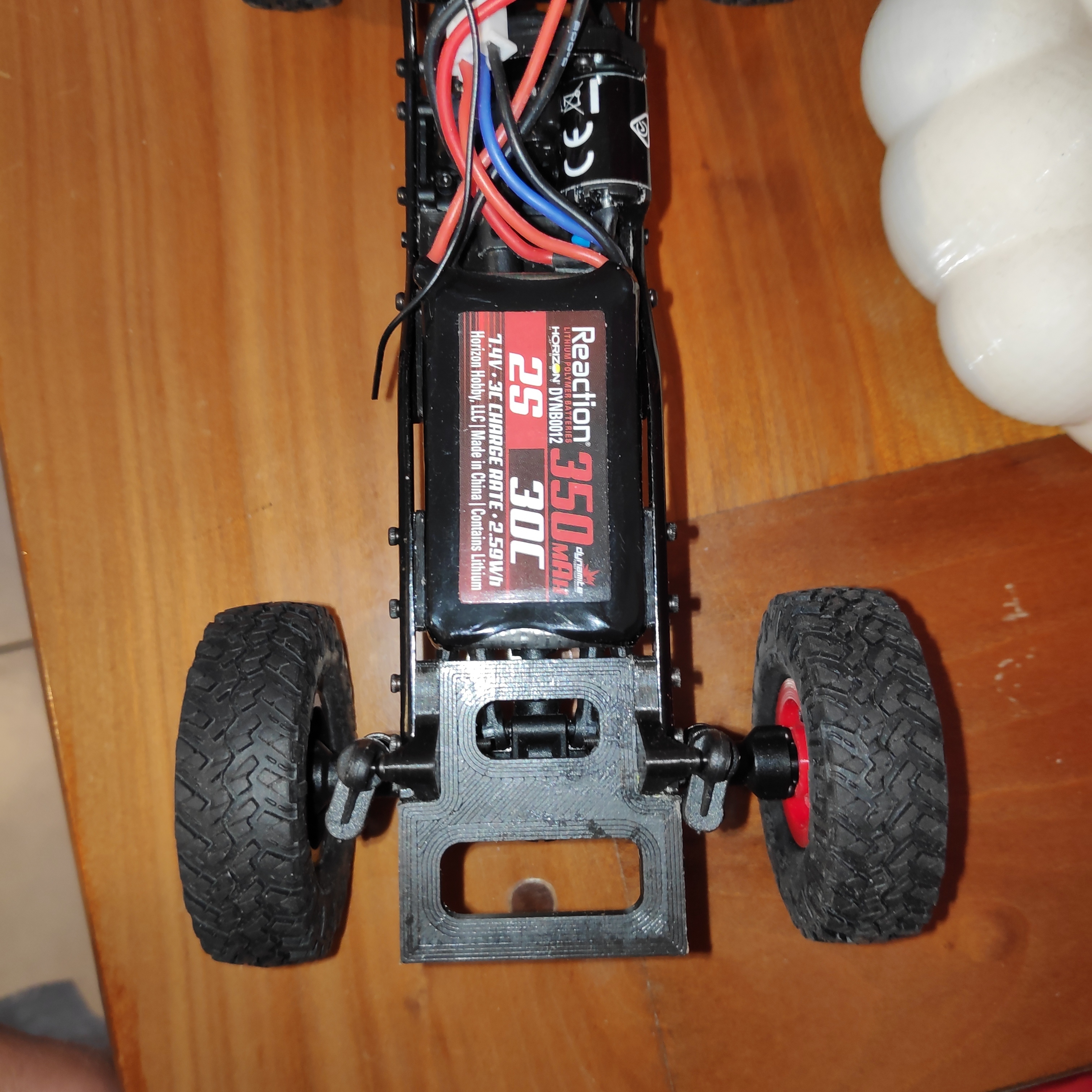

On the pictures you can see red and kaki versions. Kaki are installed on the 1/24 Land Rover 101 GS, prototype version.
Hope that could help some of you.

3D printing settings

PLA speed 15mm/s 2or3 walls and 5 layers up and botom
infl 30%
no retract seems to be better on my printer.

  • 3D file format: STL
