AXIAL SCX24 Trail Grappler M/T DUAL RIM

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 121 views

3D model description

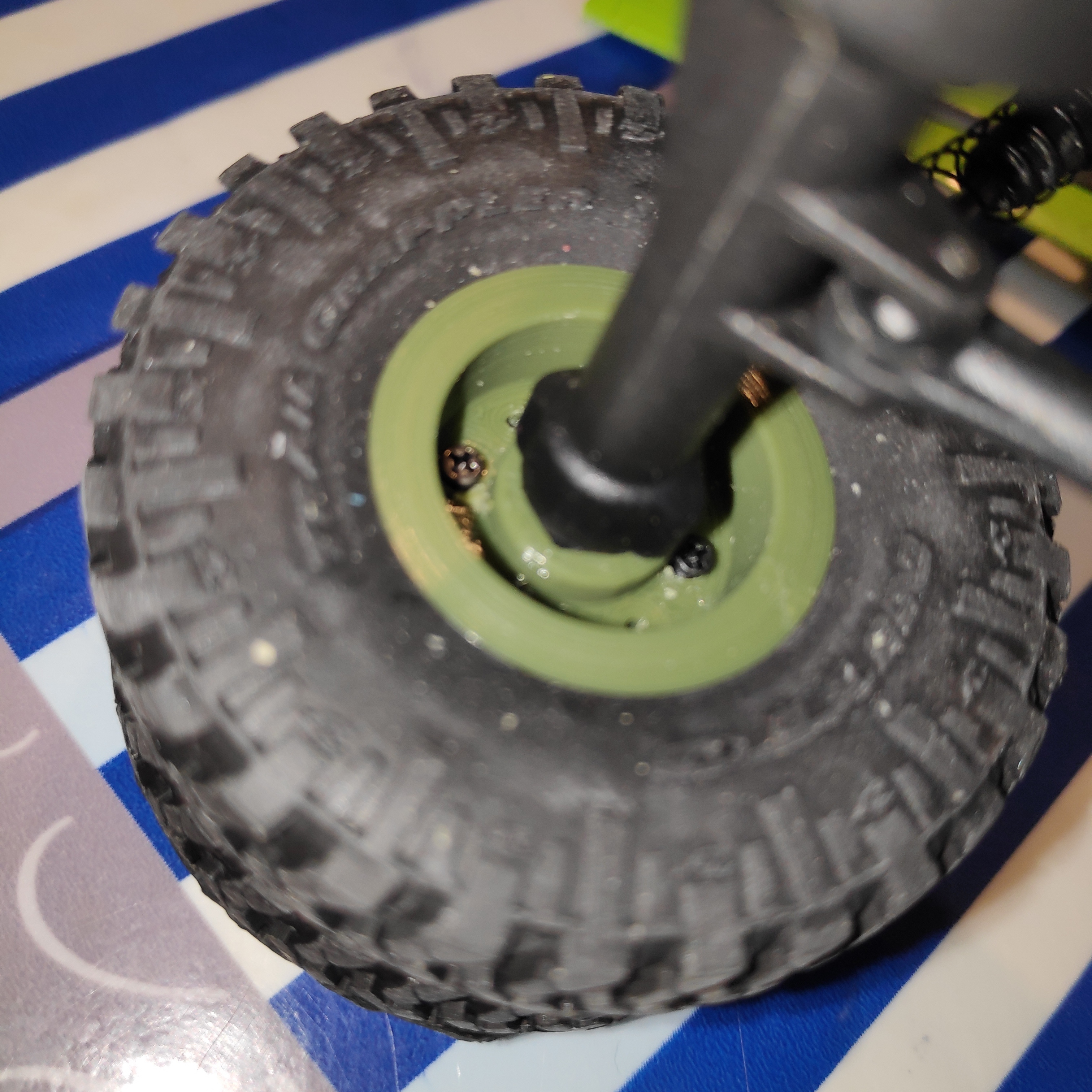

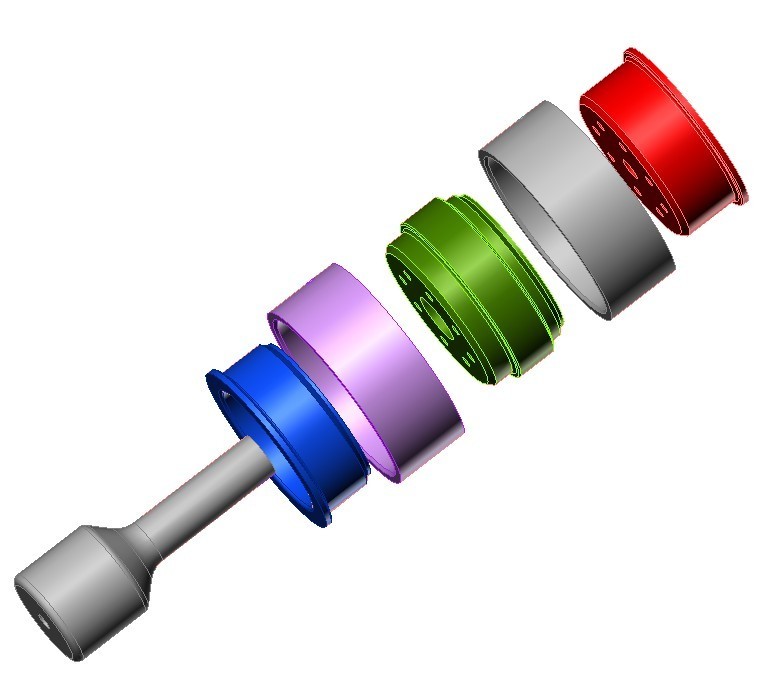

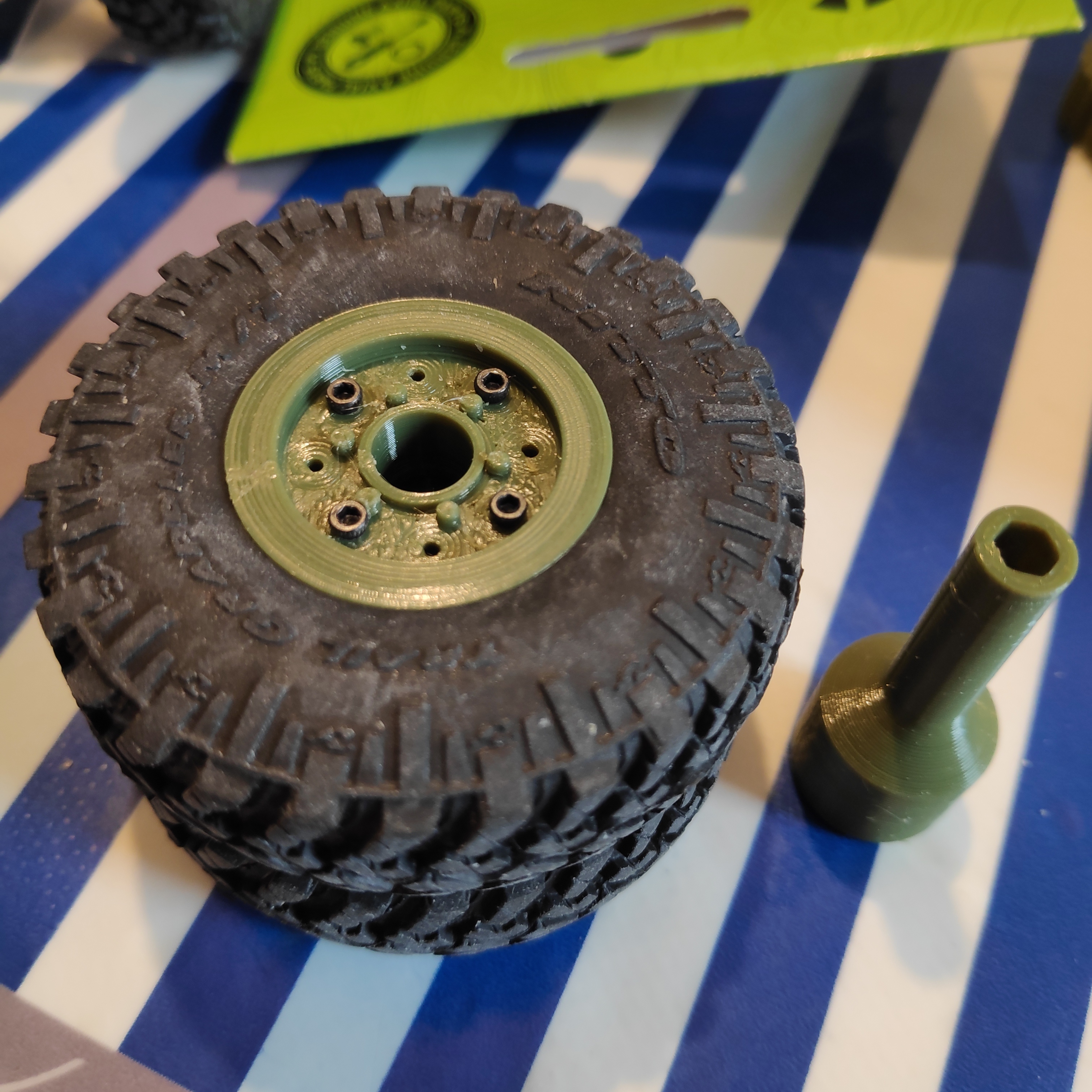

This is a DUAL rim, 6 studs, with central hub for Axial AXI31567 tires which are Nitto Trail Grappler M/T tires.
tires you can find on the Deadbolt and Jeep models.

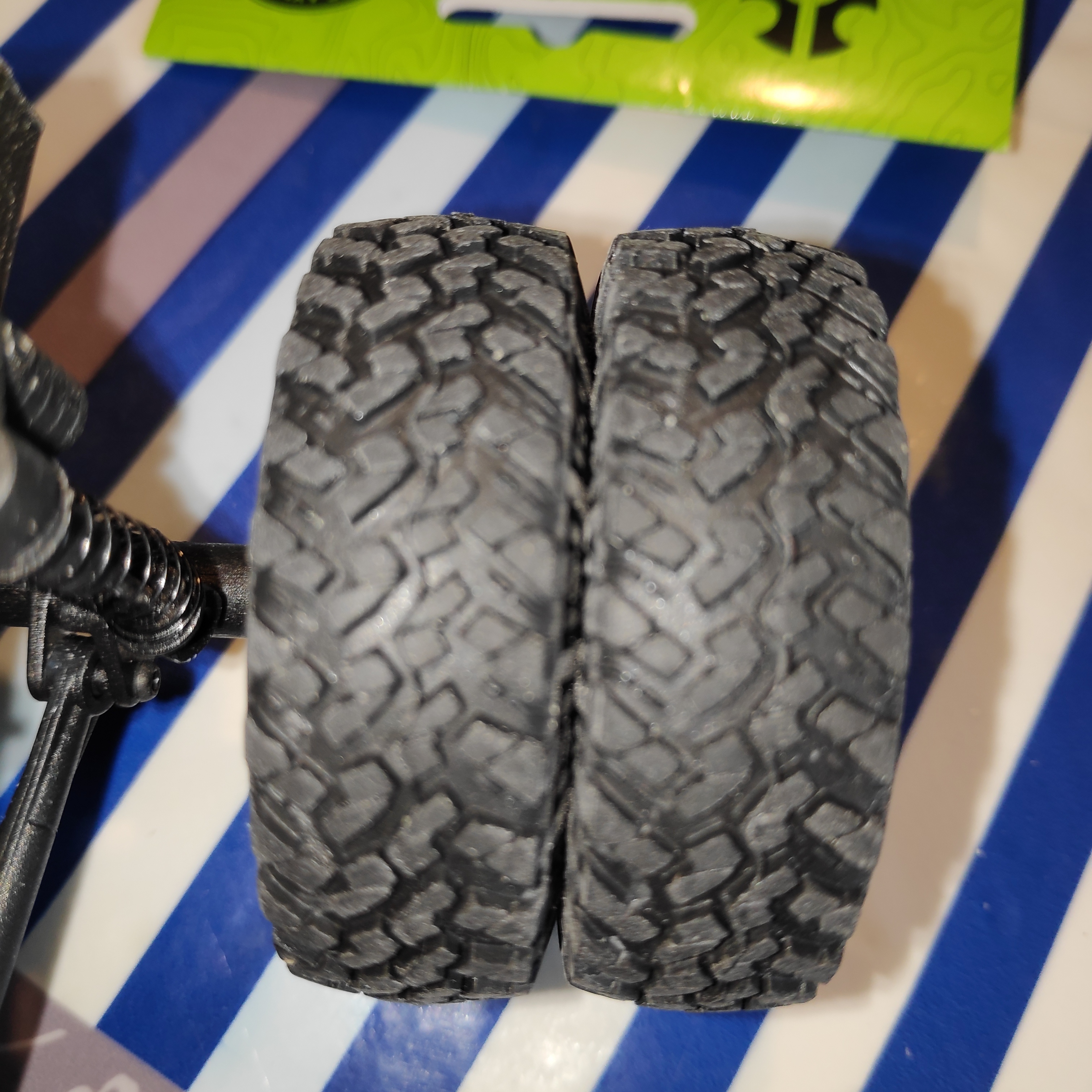

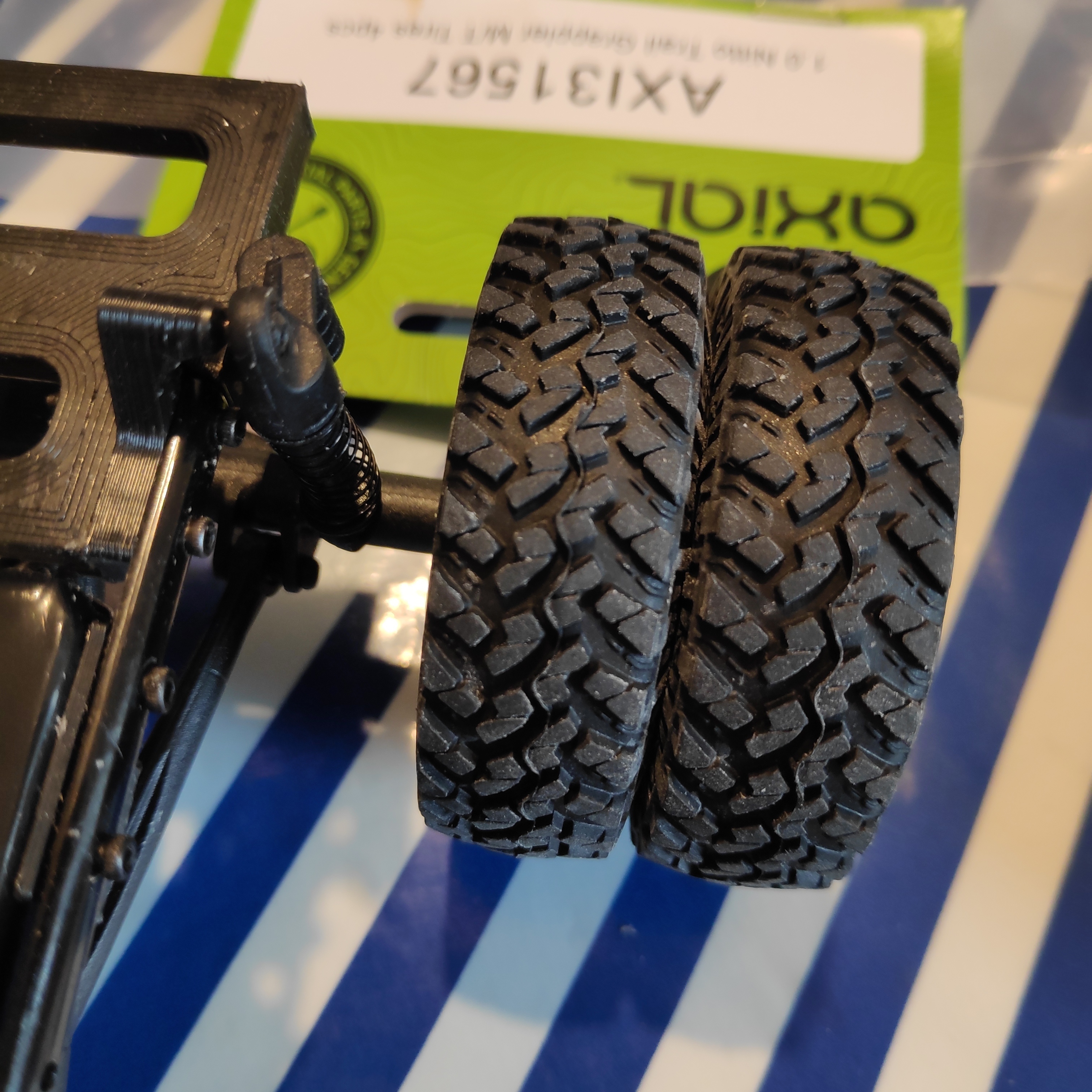

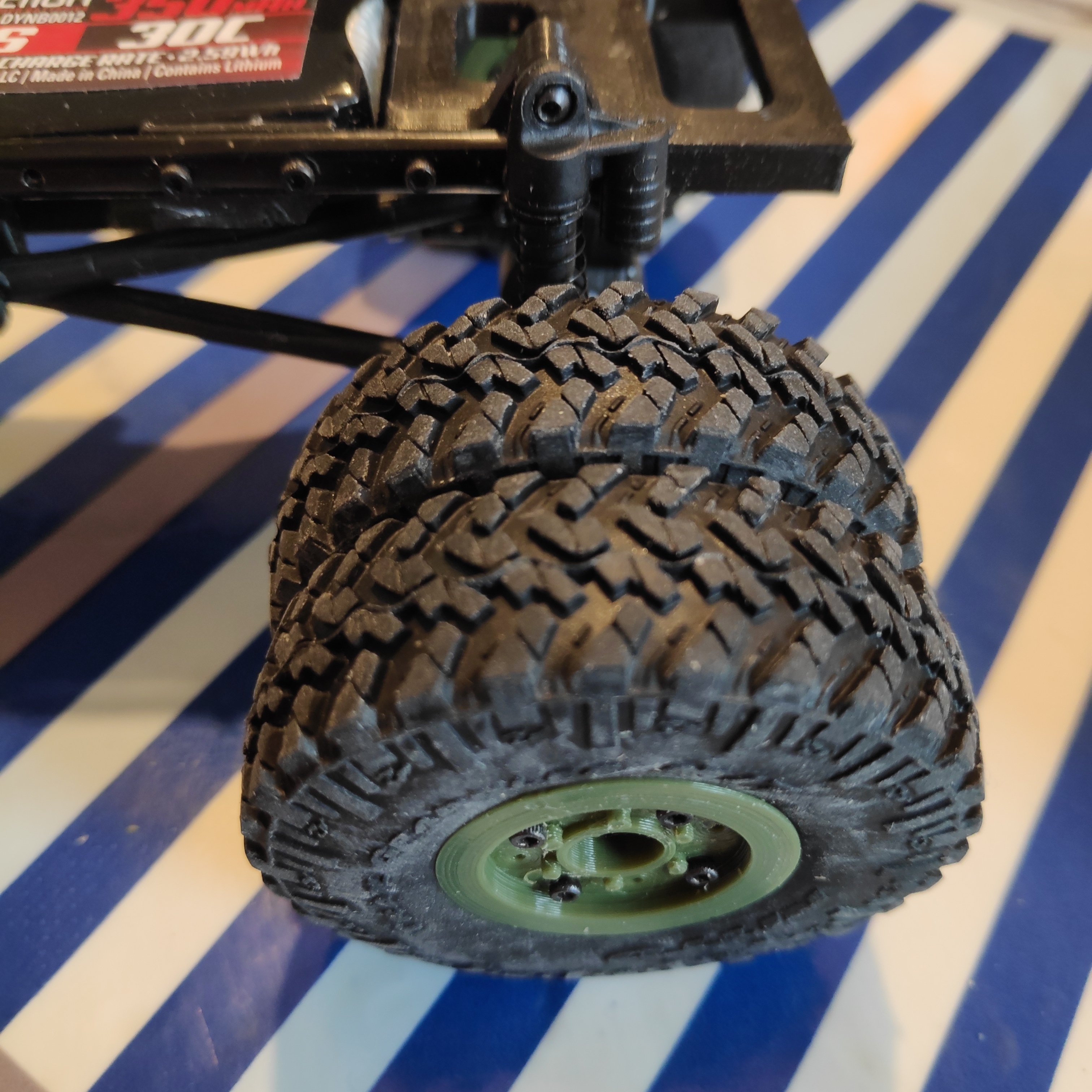

But with that rim you will have a dualer or dual tires like you can fnd on some trucks.
It is designed for one of my next project but already available for those who want to test it.
Holes are designed to allow air to come in and out of the tires.
A special key is included to be able to unscrew and screw the original nut and change the wheel.
No glue is needed,tires will be kept between the ring and the 2 ext and internal part.
You need some M1.4mm screws available on Ebay for example.
https://www.ebay.fr/itm/M1-4-M1-6-M2-Full-Thread-Socket-Head-Screws-Cap-Allen-Bolts-High-Tensile-12-9/352910341699?ssPageName=STRK%3AMEBIDX%3AIT&var=622163280837&_trksid=p2057872.m2749.l2649
Printing need some support for int and ext parts.

3D printing settings

PLA, 15mm/s 2or 3 walls, 5 layers top and bottom
infill 30%
support is required for 2 external parts and internal part.

  • 3D file format: STL
