3D model description

I wanted a new rim design for my rig, then I deceided to create a new one still with 9 holes.
This time it is more flat design. Rims are in 3 parts, inner outer and interioir ring you have to put in the tire first.
The set of file include 5 different rims with following offset :
- no offset, idem stock
- + 2mm per rim then track + 4mm
- + 4mm per rim then track + 8mm
- + 5mm per rim then track + 10mm
- + 6mm per rim then track + 12mm
you need 3 screws M1.4 x 6mm for small offsets and 3 screws M1.4x5mm for big offsets
There is a hole in the ring and in the rim to let air evacuate from the tire and goes in when needed.

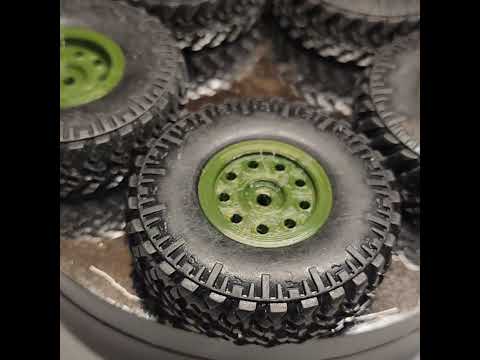

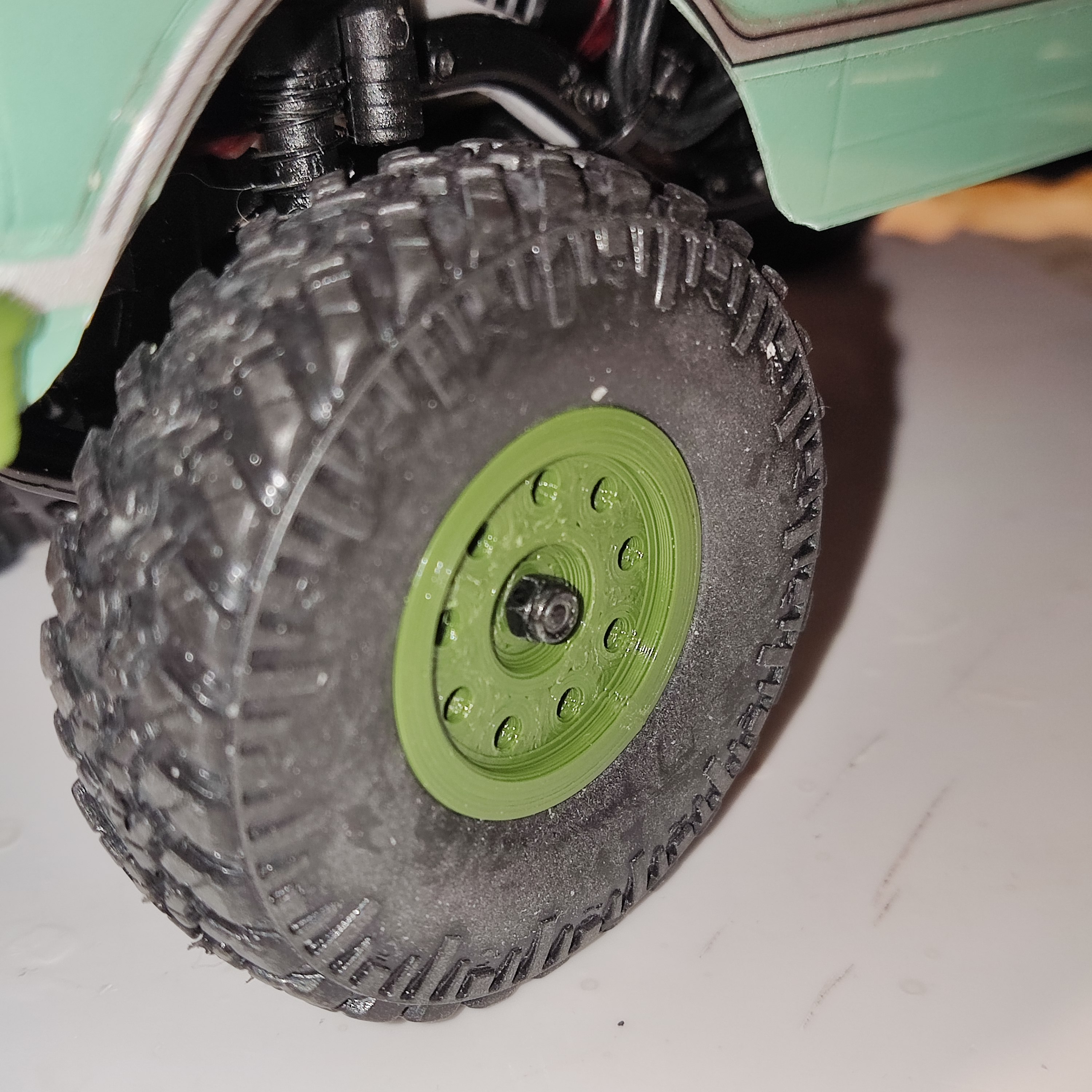

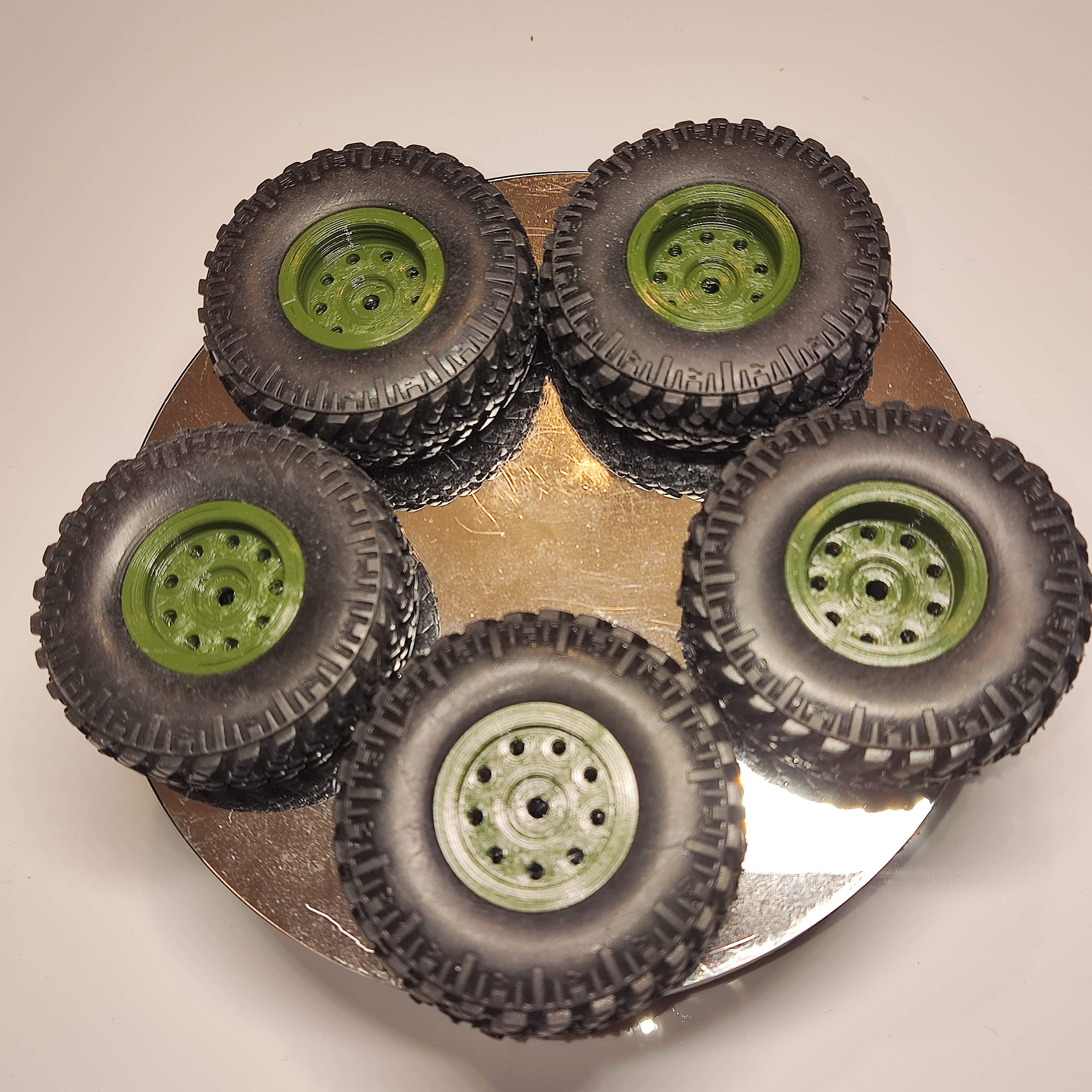

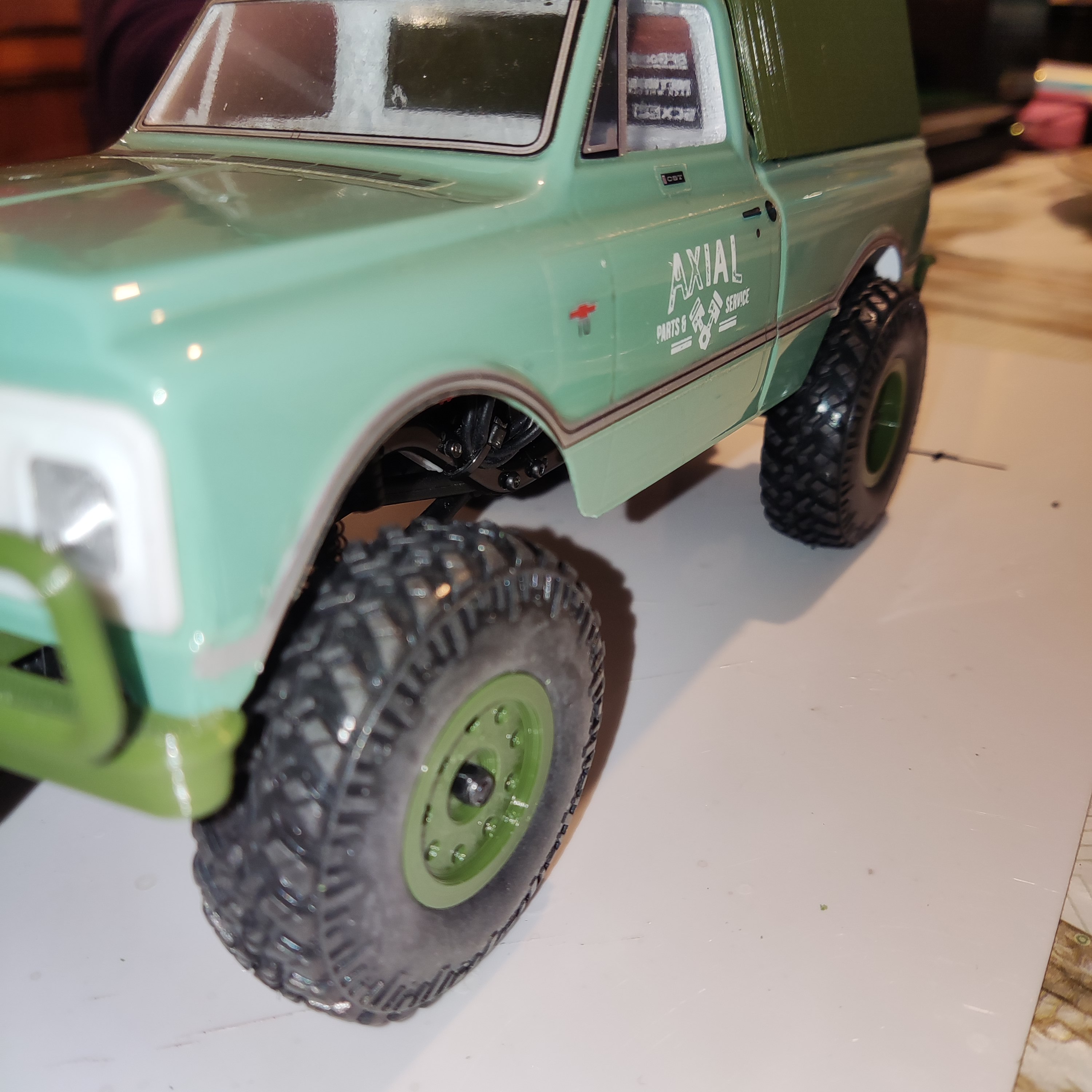

You can see the 5 type of wheels in video and picture.

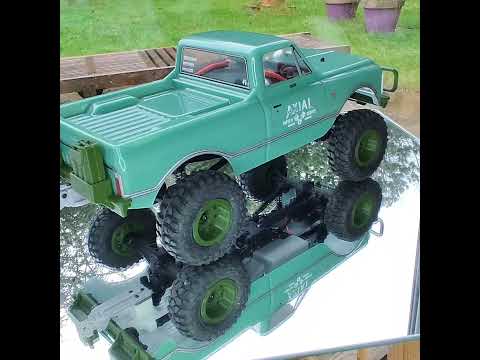

Video is showing +6mm rims all around
https://youtu.be/VnWDxnL8tO0
https://youtu.be/35htgud_JYI

3D printing settings

support needed along the external ring
speed 30mm/s
infill 30%

3D printer file information

  • 3D design format: STL Folder details Close
    • Jante c10 2 in .STL
    • Jante c10 2 offset +2 in .STL
    • Jante c10 2 offset +2 out .STL
    • Jante c10 2 offset +4 in .STL
    • Jante c10 2 offset +4 out .STL
    • Jante c10 2 offset +5 in .STL
    • Jante c10 2 offset +5 out.STL
    • Jante c10 2 offset +6 in.STL
    • Jante c10 2 offset +6 out.STL
    • Jante c10 2 out .STL
    • anneau int jante 11.STL
