Awesome 200 Motor Guards & 22XX TPU Soft Mount Pads

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.3k views
  • 8 likes
  • 40 downloads

3D model description

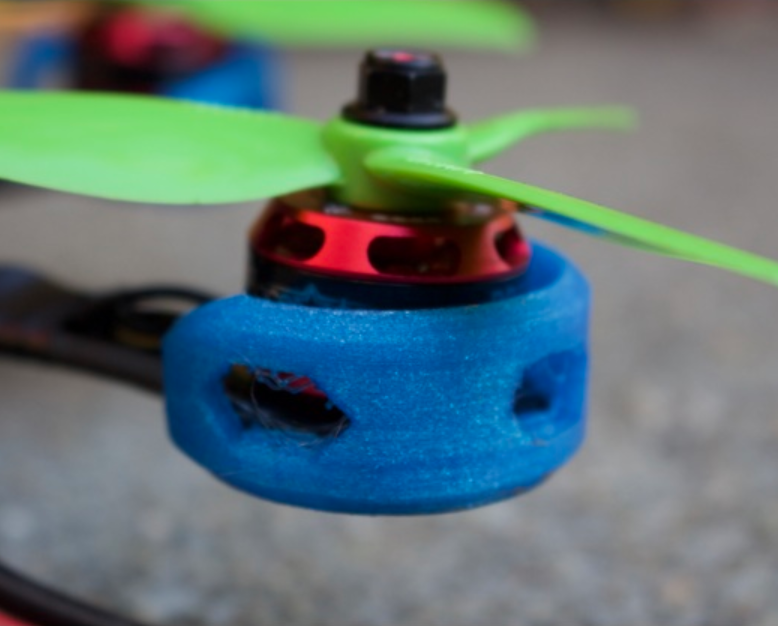

Prolong the life of your expensive carbon fiber frame, significantly improve FPV video quality, and improve overall copter performance with these Awesome 200 TPU motor guards and soft mount pads. After crashing my new Awesome 200 into a streetlight on its first flight and severely fraying the carbon fiber on one arm, I decided that it was time for me to design it some new motor guards. These motor guards are designed for 22XX size motors and are custom fit for the Awesome 200 frame. Small trapezoidal notches on the inside of the guards allow it to fit seamlessly onto the similar shape of each carbon arm of the Awesome 200. The 22XX TPU soft mount pads are also compatible with 22XX size motors and install between the motor and arm to help reduce the amount of vibrations transferred to the frame.

eBay Link
Don't own a 3D printer? Purchase these Awesome 200 Motor Guards & 22XX TPU Soft Mount Pads on eBay!


3D printing settings

Printer:

FlashForge Creator Pro

Resolution:

Use your default settings

Infill:

50% 3 Shells

Notes:
For best results, print the motor guard in a stiffer TPU like Hatchbox's TPU or SainSmart's TPU and print the soft mount pads in super flexible Ninjaflex. The stiffer Hatchbox TPU will serve to protect your carbon fiber and motors while remaining relatively stiff, while the Ninjaflex will absorb vibrations much better due to its super flexible properties.
