Assassins Creed Single/Hybrid Dual Action Hidden Blade (By Rawice511)

?
Creation's quality: 5.0/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.8k views
  • 25 likes
  • 38 downloads

3D model description

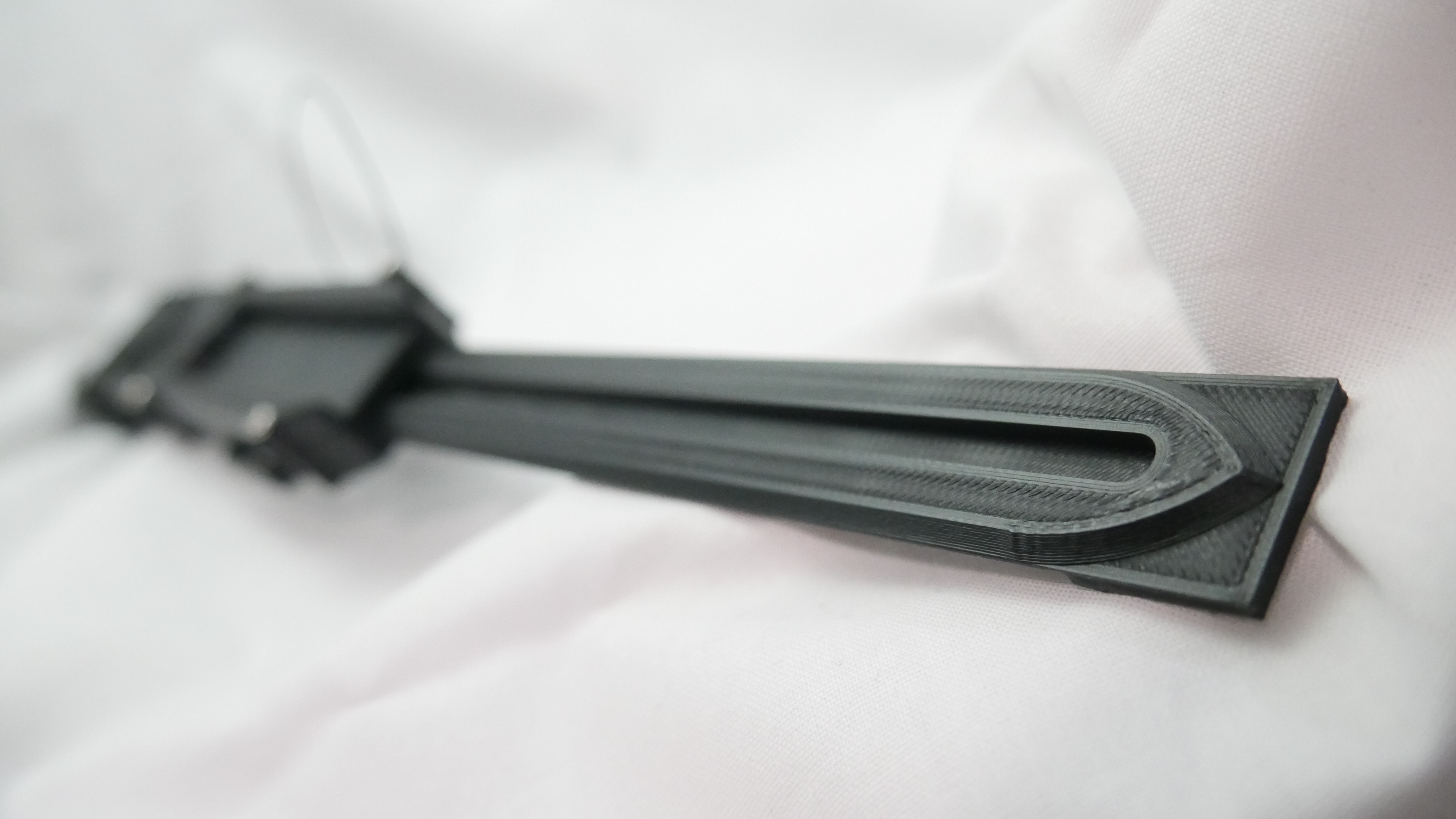

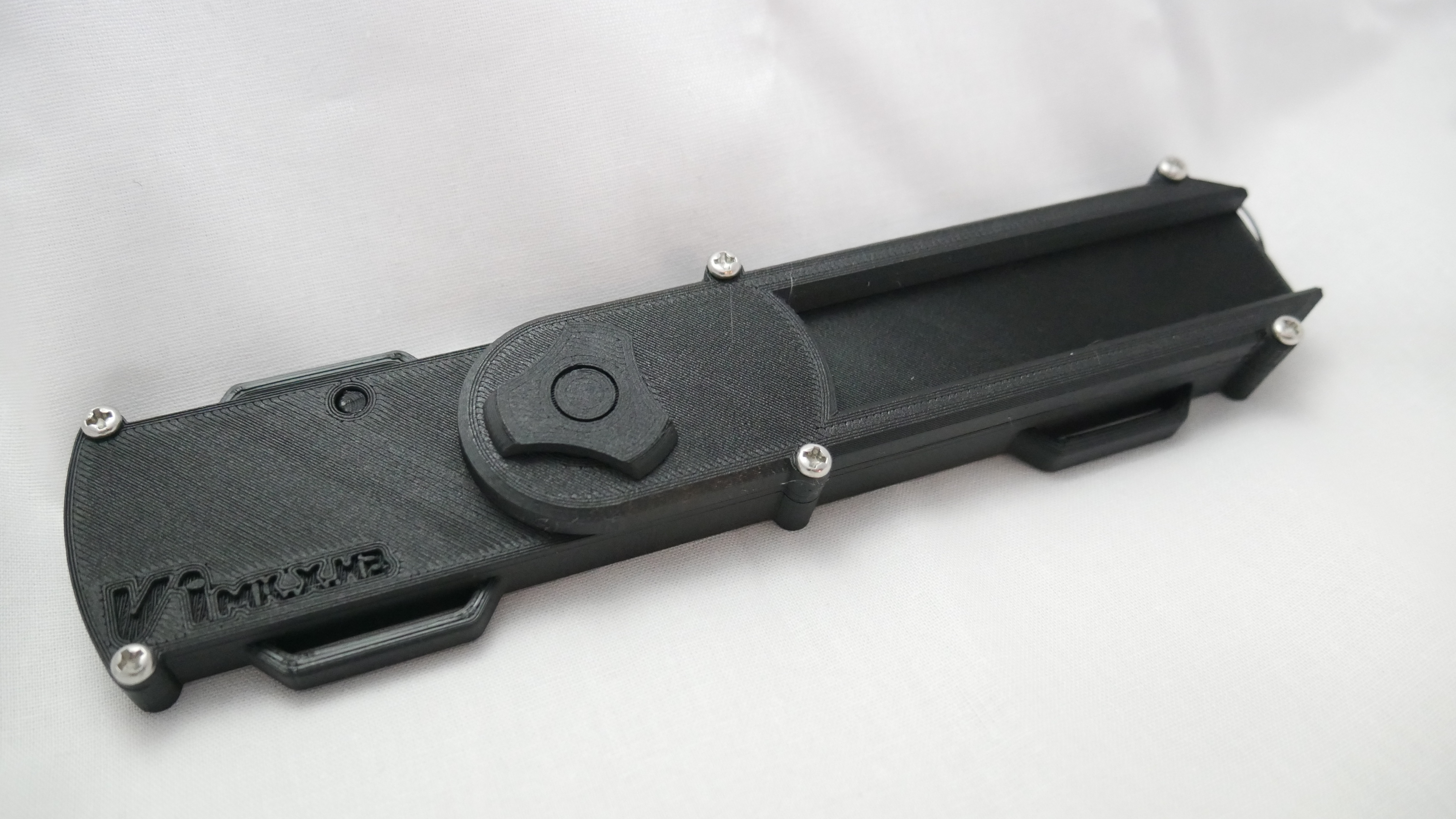

This is the Mk11 Single and Hybrid blade model that I have shown on my YouTube channel and is the same model as the hidden blades I sell on my Etsy with the newer Mk11 upgrades! I have spent around 6 years perfecting this mechanism to the point where I am confident it will out perform any other OTF style hidden blade using a similar mechanism. I've loved sharing these with you guys for the past few years and it is now finally time for me to gift you guys the files which you have requested since I first started posting videos on my 3D printed design! Thankyou for any and all support! The Blade works just like the game with each pull of the string causing the blade to come out and lock and then retract and lock!

Files Included:
- Single Blade
- Hybrid Blade
- Riser For Hidden Blade (Print in flexible filament eg: PLAFlex)
- Rings Size 8-13

Video Tutorial on how to put the blade together:
https://www.youtube.com/watch?v=0uWsWZ93hiA

NOTE: This is not the Dual Extended Model

3D printing settings

I have only ever printed this blade in a PLA+ material.

Settings I have used on my Flashforge Creator3 V2 printer have been:
Temp: 205c - 210c (depending on colour)
Speed: 70mm/s (slower the better for moving parts)
Base layer Speed: 15mm/s
Platform temp: 55c
Infill on Large pieces: 25-50%
Infill on Small pieces: 50-100% (I would recommend much higher infill for small parts like the kickers and lock tabs to improve longevity of the pieces 100% infill for lock tabs and kickers is recommended)
No rafts were used on any parts but support was used for the kickers.
Layer height: 0.18mm

Videos Of Blades:
https://www.youtube.com/watch?v=ARyL-M65PKQ
https://www.youtube.com/watch?v=ZNnq1Y7U4Xg

  • 3D file format: STL
  • Publication date: 2021/03/11 at 10:36
