Arduino Chassis for Drawing Robot

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.3k views
  • 7 likes
  • 147 downloads

3D model description

Note: I have a new version of this robot that uses a printed circuit board, is easier to build, and has IR obstacle detection! Check it out at www.thingiverse.com/thing:2881396.

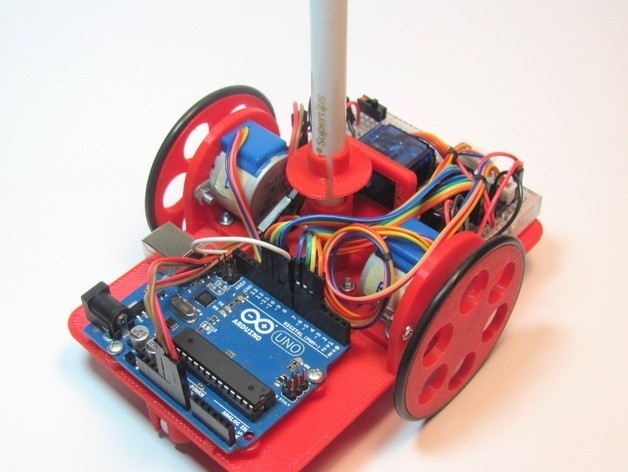

Arduino version of the chassis for:
http://www.instructables.com/id/Low-Cost-Arduino-Compatible-Drawing-Robot/

Timelapse of build: https://youtu.be/dU8eyvjanKc


3D printing settings

Rafts:

No

Supports:

No

Resolution:

low

Infill:

100%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Archive.zip
    • Caster2.stl
    • Chassis_Arduino2.stl
    • Pen_Collar2.stl
    • Pen_Holder2.stl
    • Stepper_Bracket2.stl
    • Wheel_60_spokes.stl
  • Publication date: 2018/05/25 at 16:24
