Arduino Arcade Bartop

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.9k views
  • 34 likes
  • 104 downloads

3D model description

Hi!

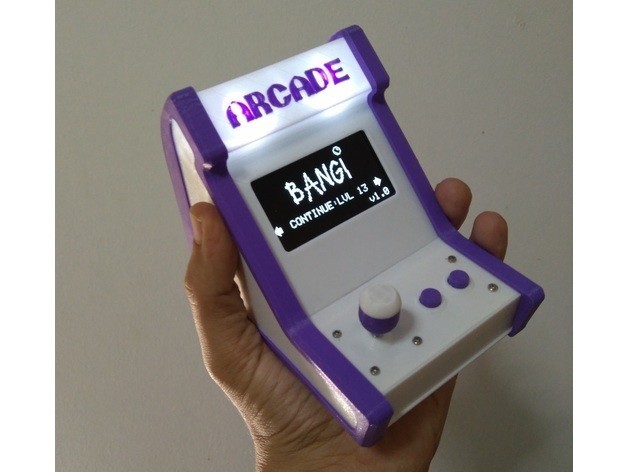

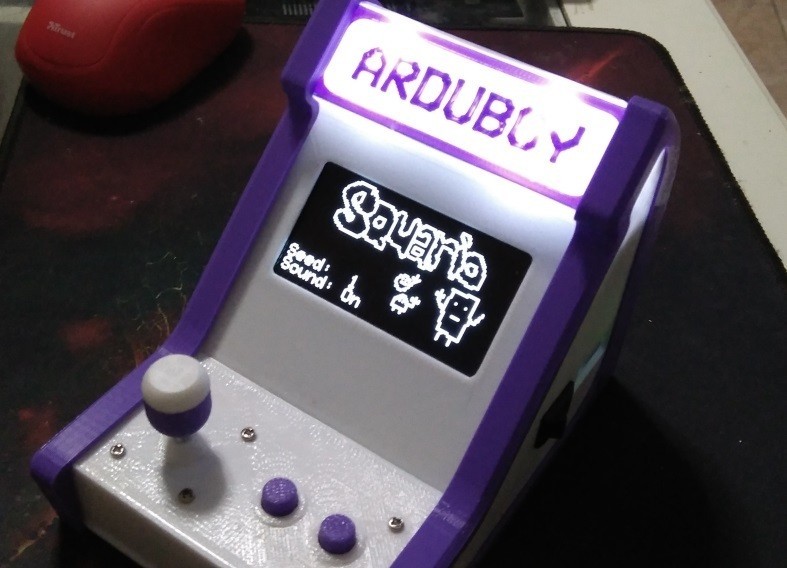

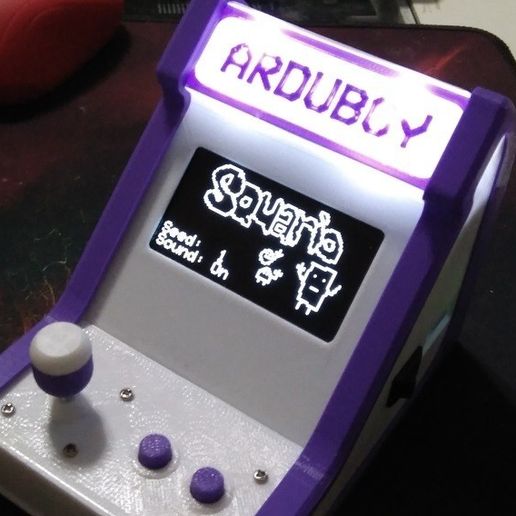

This is an Arduino Game System in Bartop Format. It's compatible with Arduboy (http://www.arduboy.com) and uses a modification of the recently uploaded Mini Arcade controller

Components:

OLED screen 2.42''
Arduino Pro Micro Board
Two white leds
Speaker/buzzer
Mini switch (On/off)
M2x6 screws for mounting the board, the screen and the controller.
All case pieces fits well and don't need screwing or gluying.

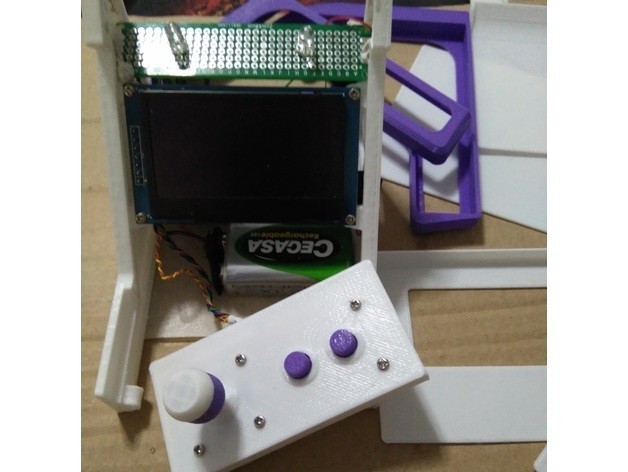

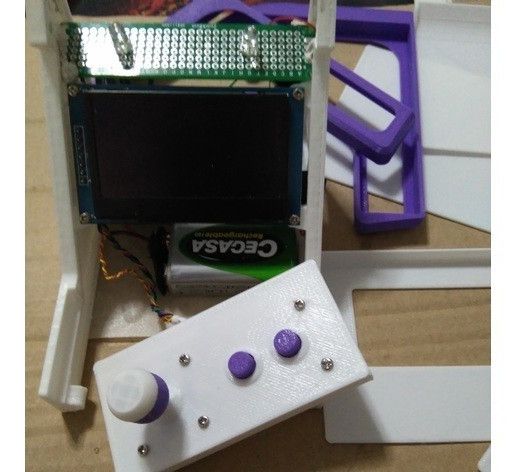

Inside the case there's a lot of room for mounting the circuits. For the main board i used a 70x30 mms solderboard (there's mounting holes for 70x50) and a bit of double sided tape for some other components

I've feeded the circuit with a rechargeable 9V battery. As all arduinos you can feed by USB or any kind of battery.

Not my intention doing here a electronics tutorial so visit the Arduino forums and the Arduboy community for tons of info an lot of people pleased to help.

Recently i uploaded a Arduino Handheld based on same hardware but using a 1.3'' OLED screen.

For more information about Arduboy Hardware and Games please visit http://community.arduboy.com

And a little video showing the thing alive: https://www.youtube.com/watch?v=APSXYWg92vU

Hope you enjoy it!!
Have fun!!


3D printing settings

Printer:

BQ Prusa i3 Hephestos

Rafts:

No

Supports:

No

Resolution:

0.2 for bigger parts and 0.1 for controller lille parts

3D printer file information

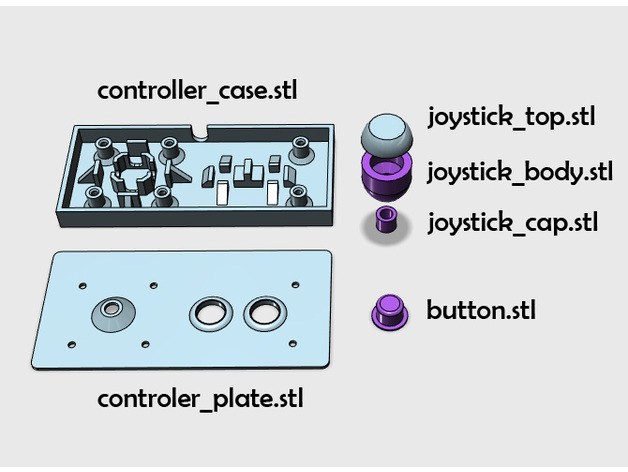

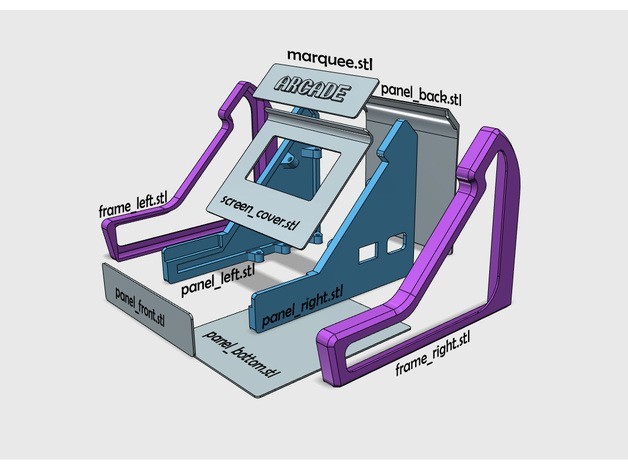

  • 3D design format: STL and ZIP Folder details Close
    • Archive.zip

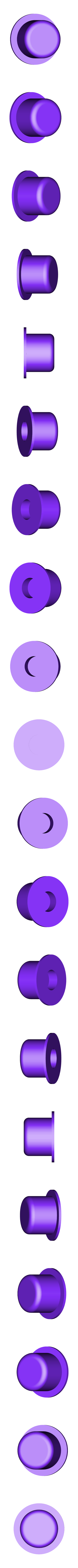

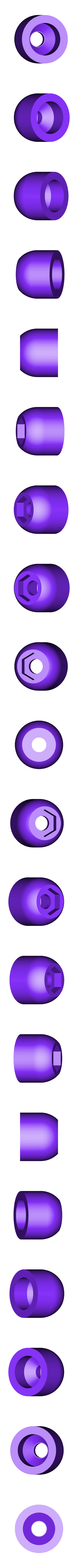

    • button.stl
    • controller_case.stl
    • controller_plate.stl

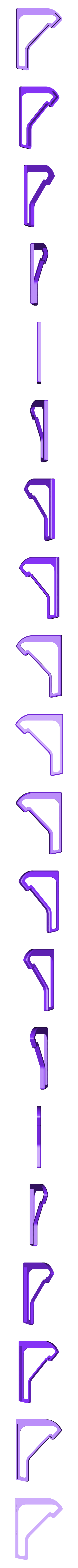

    • frame_left.stl
    • frame_right.stl

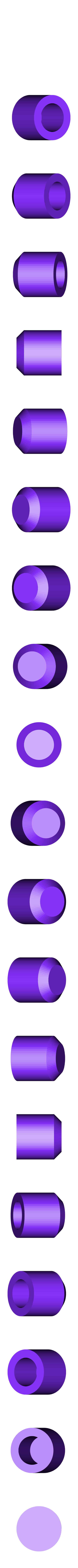

    • joystick_body.stl

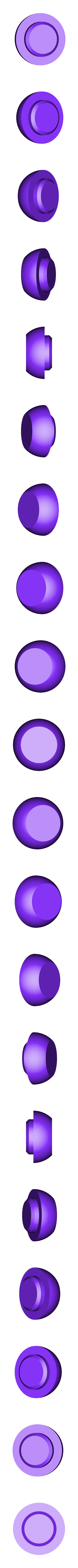

    • joystick_cap.stl
    • joystick_top.stl
    • marquee.stl
    • marquee_arduboy.stl

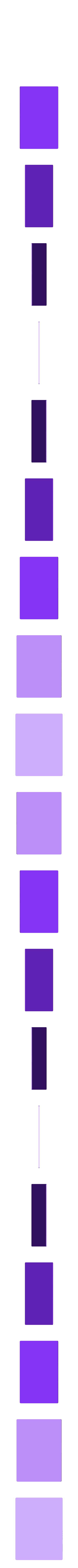

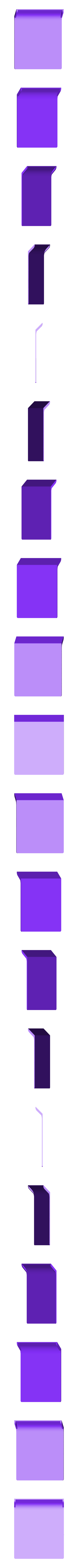

    • panel_back.stl
    • panel_bottom.stl
    • panel_front.stl
    • panel_left.stl
    • panel_right.stl
    • screen_cover.stl

    Learn more about the formats

  • Last update: 2018/07/23 at 11:53
  • Publication date: 2018/07/18 at 15:01
