Arcade Controller BIG case

3D model description

Hi!

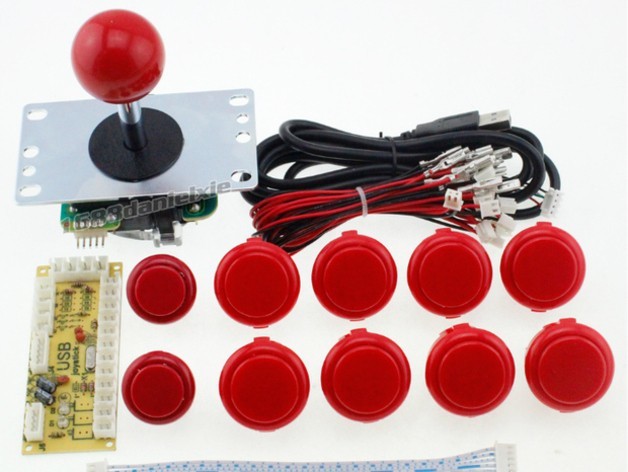

Recently i bought an Arcade Controller Kit (http://www.ebay.es/itm/201344779838) and always wanted a big case so i designed this.

Not need much explanation. Just print an assemble.

Great for classics arcades on MAME emulator.

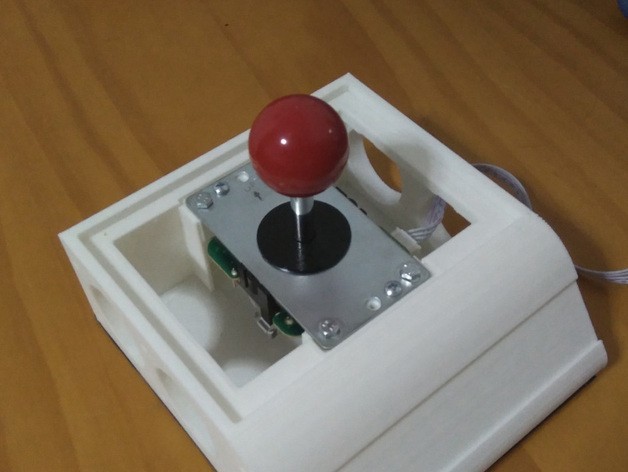

Only need some screws for fixing the joystick.

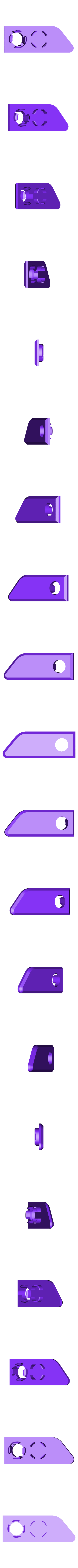

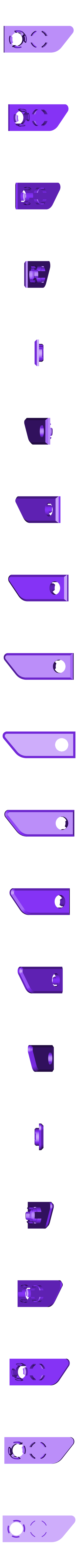

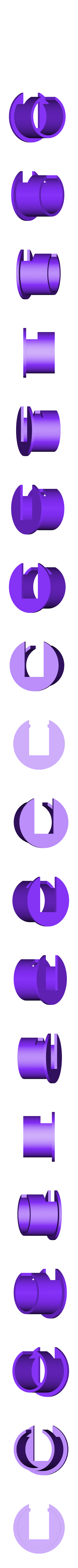

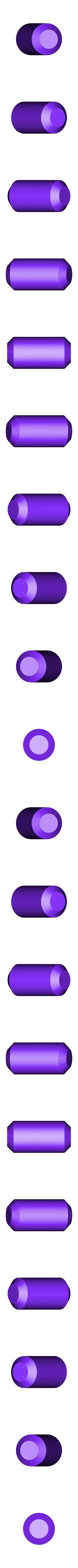

The modules are joined using some 'pins' and some glue. Lateral parts fits without glue. and covers for buttons and joystick just fits without glue or screws.

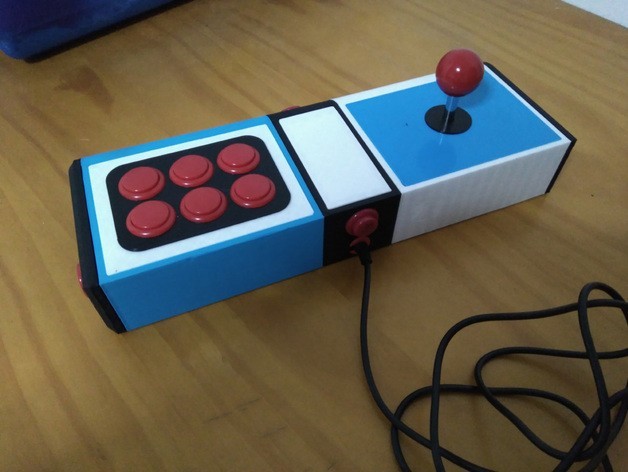

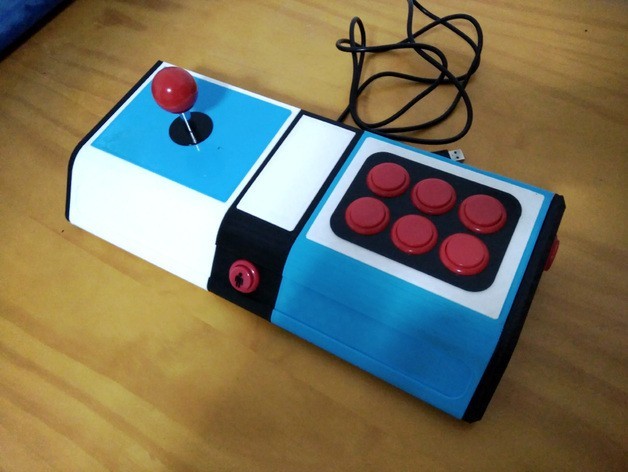

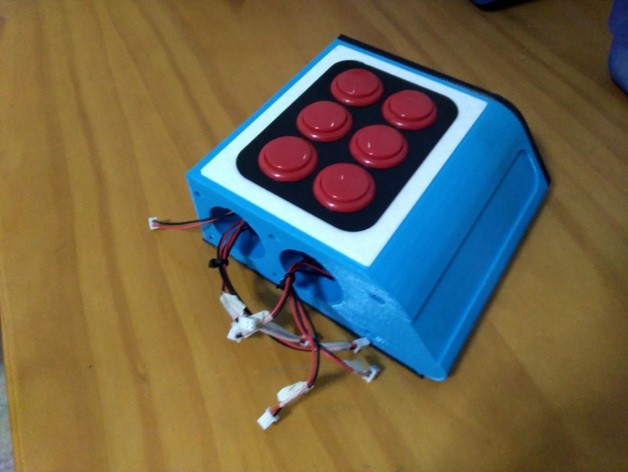

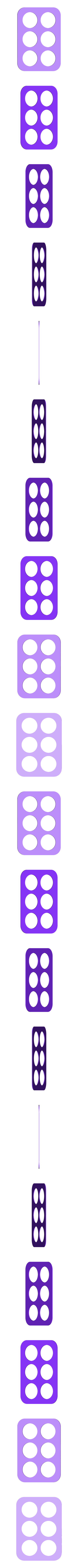

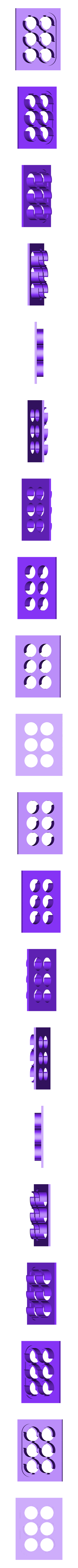

You have room for 6 buttons (30 mms) on top, one 30 mm button on every side (great for pinballs) and two 24 mms buttons in central module (Used for Coin and Start).

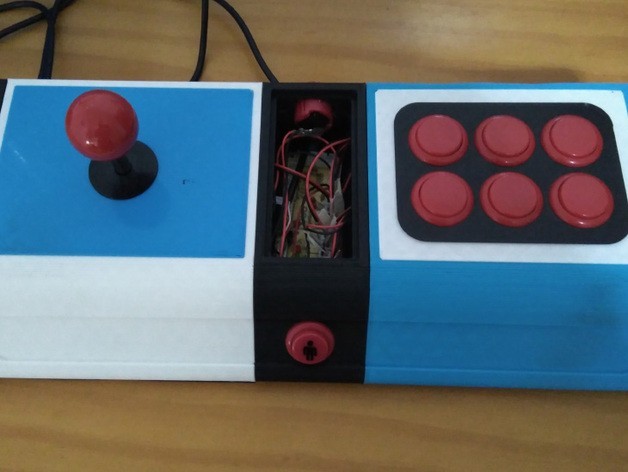

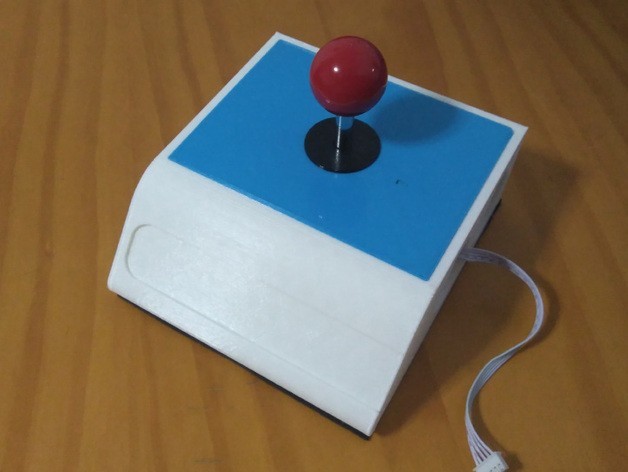

The central piece have room for the 'electronics' and i don't use any support, just put inside and conect all the wires.

Tip: Glue some EVA foam at bottom to get a good grip on table.
Tip:Use some 'cyanocrilate' based glue for PLA. Works really well.

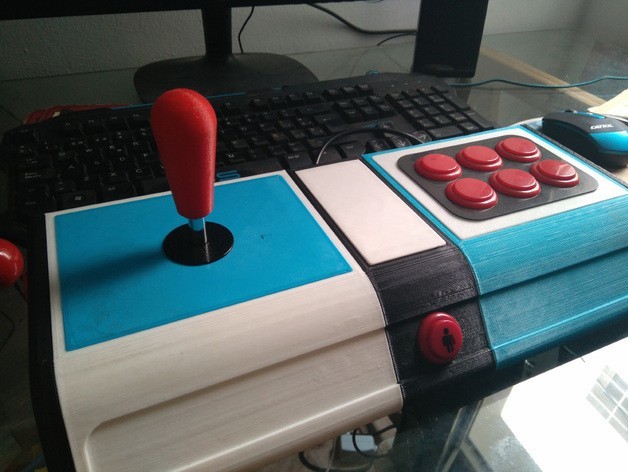

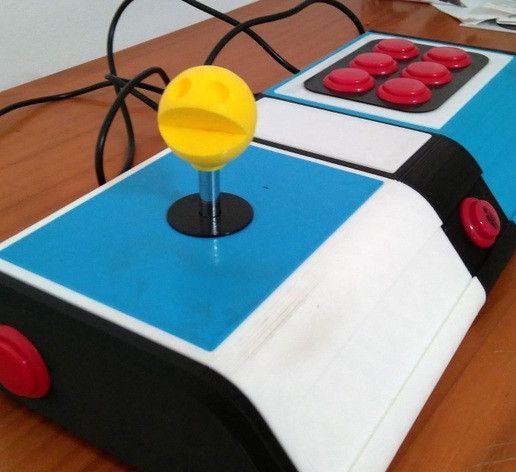

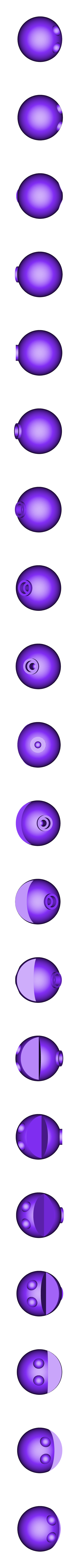

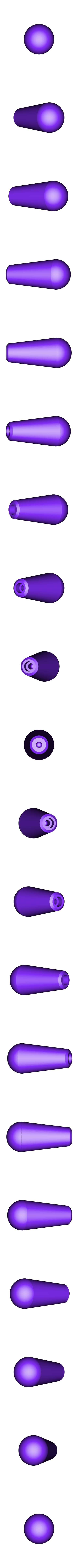

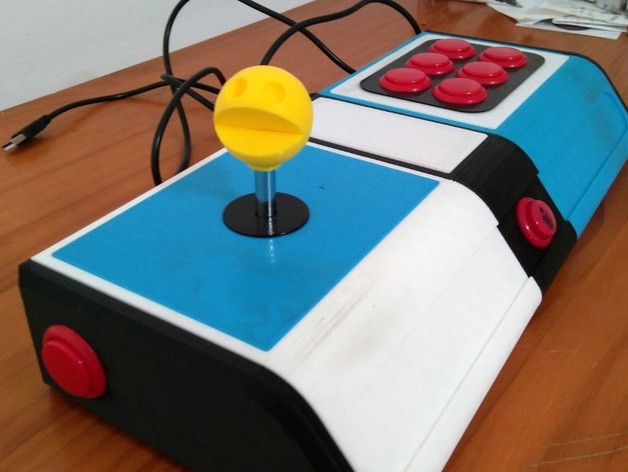

Also has customized joystick!! I've included 2 customized joysticks for replacing the red ball: The european stick and a pac-man. Just screw on the metal bar.

Hope you enjoy it.
Have Fun!!

3D printing settings

Printer:

BQ Prusa i3 Hephestos

Rafts:

No

Supports:

No

Resolution:

0.3

Infill:

15%

Notes:
Tested with PLA and NO supoprts. A bit of overhanging on inner parts but the exterior it's OK

Use a 0.3 resolution for a fast printing and 15 or 20% infill in order to have a strong structure.

  • 3D model format: STL
