Anycubic Photon - Non invasive fume extraction system

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

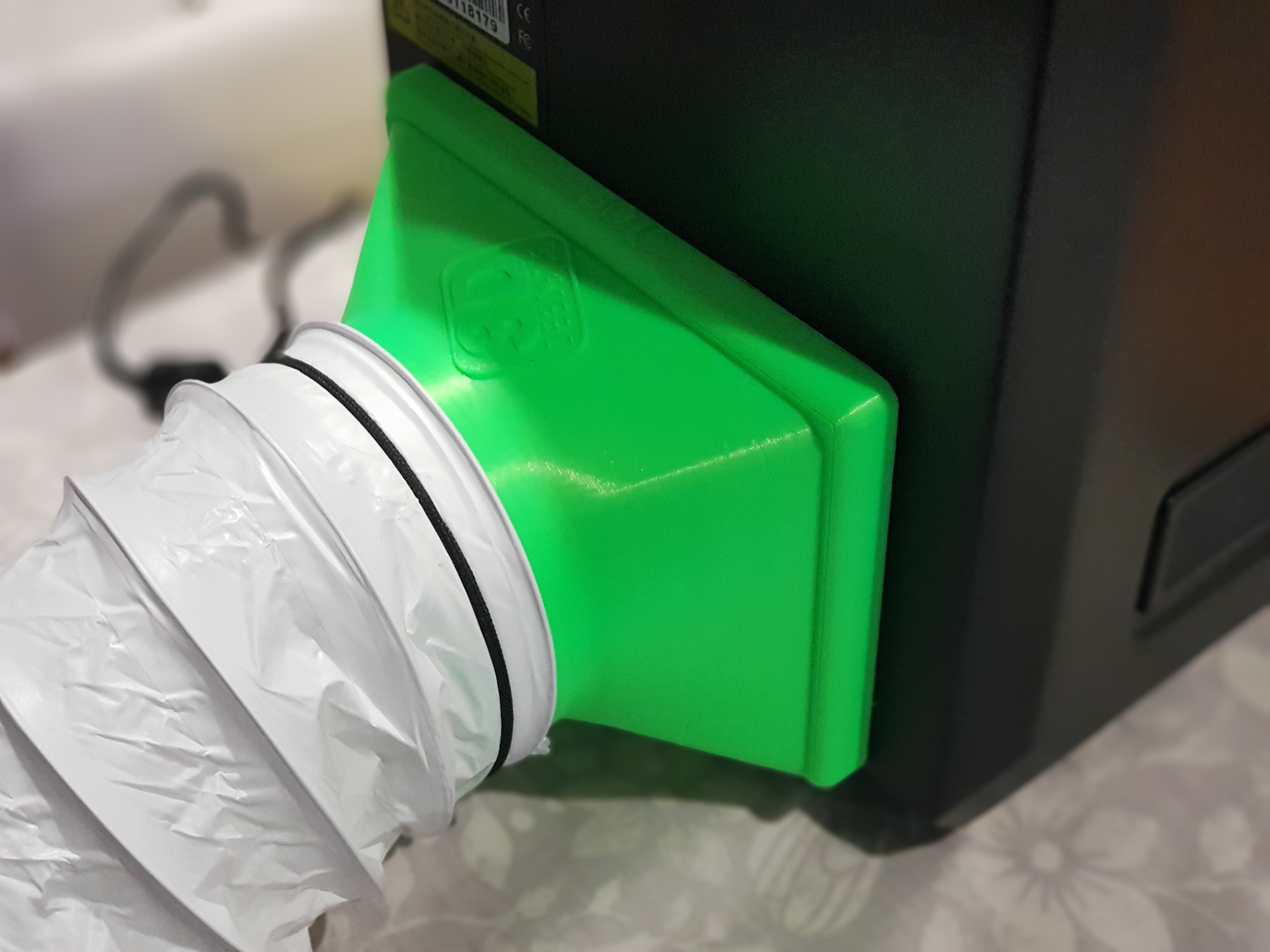

This is a system to extract fumes from an Anycubic Photon printer. Whereas other devices replace existing panels to fit, this design uses magnets to attach to the rear of the printer over the top of the rear vents, obviating the need to remove any printer parts which may affect warranties. It also makes the system very easy to attach and remove. It simply clips on and pulls off.

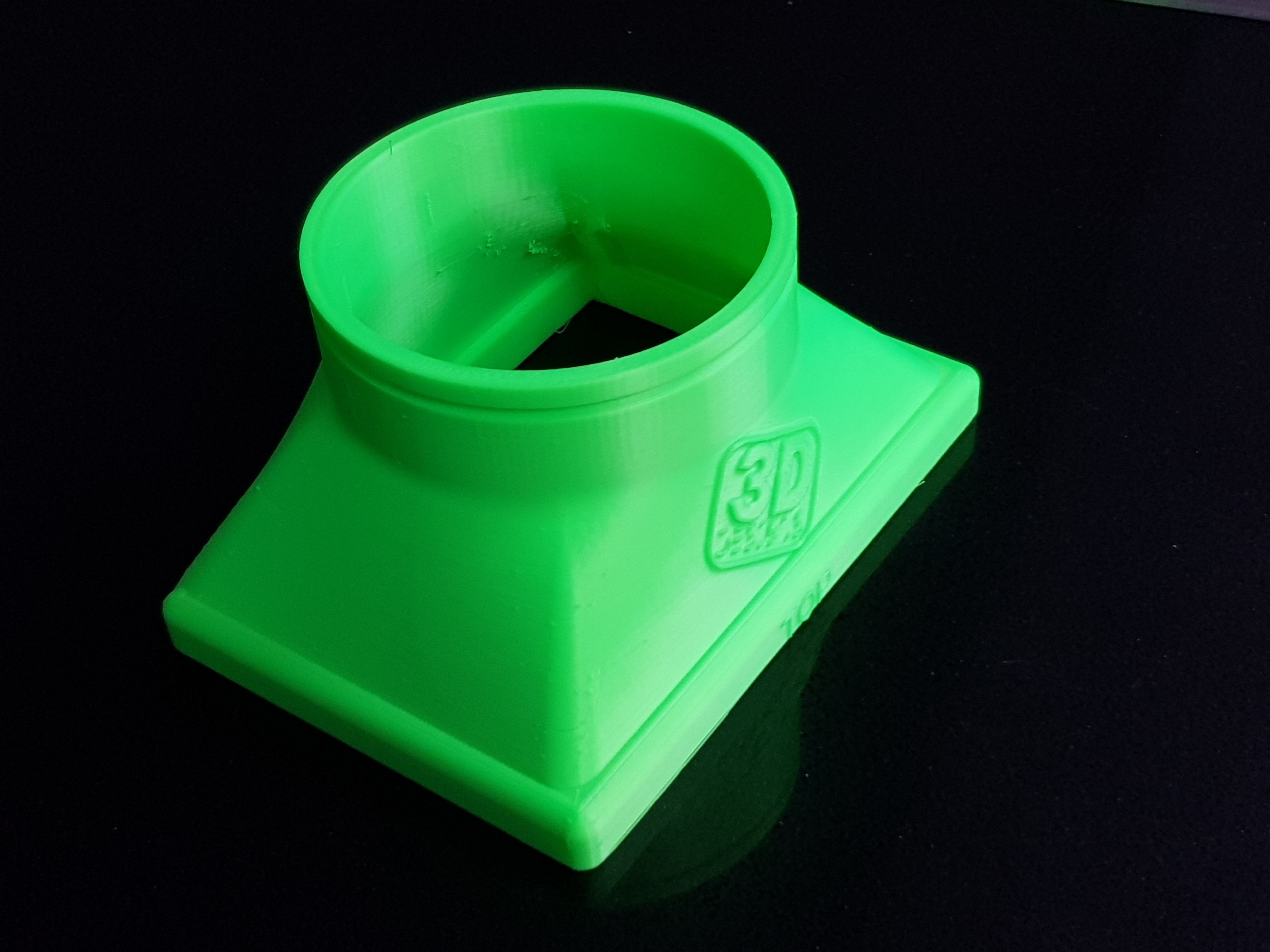

The adapter uses 5mm cube neodymium magnets. It also incorporates flexible magnet mounts to allow for different magnet strengths and weights of adapter and pipes.

The system connects to a standard 100mm pipe and any bathroom extractor system with an in-line fan can be used.

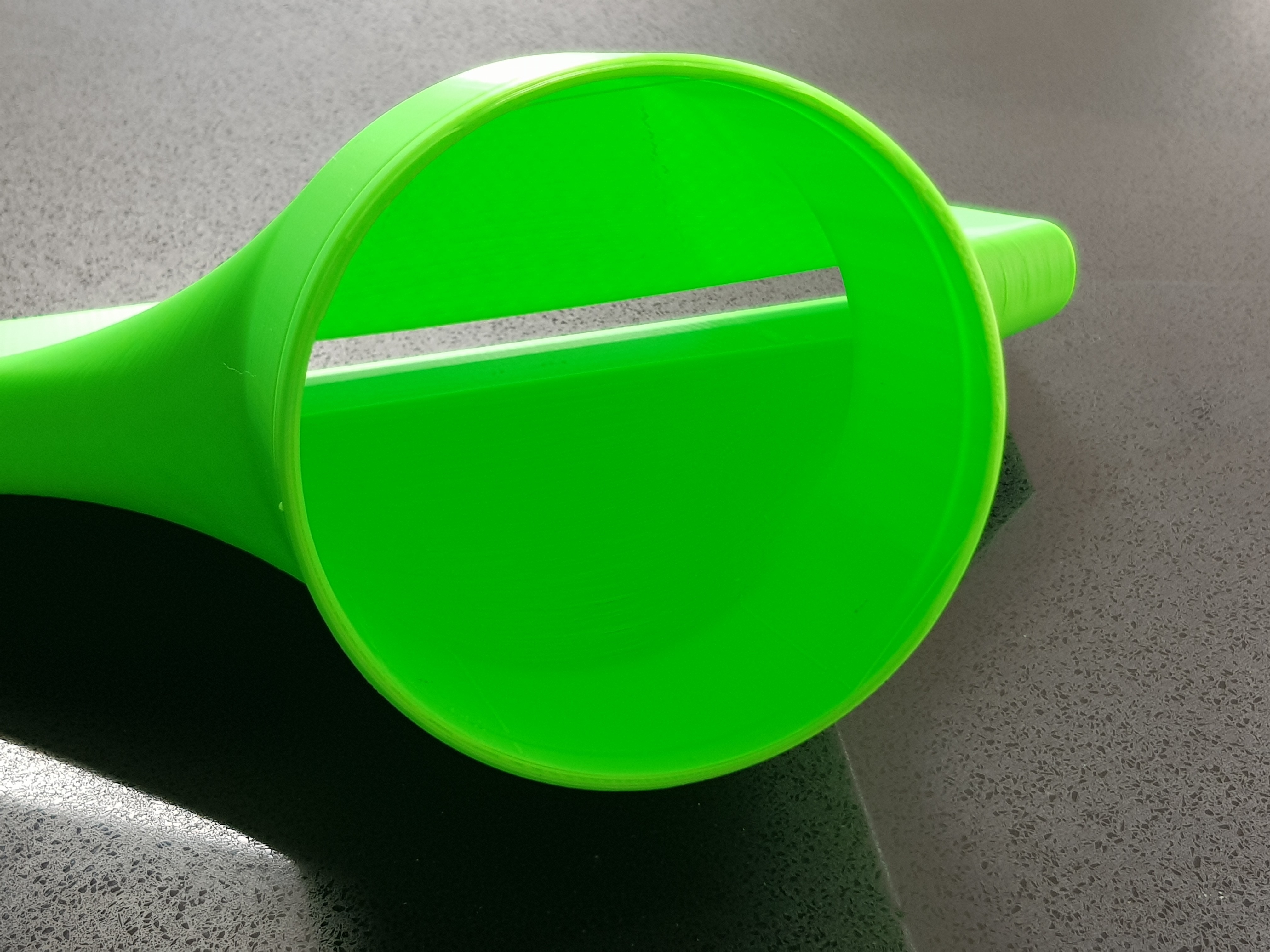

I have also included models for a system to pass through a narrow door or window in case that is helpful. It's what I'm using here, so have included it for you to use too.

The magnets are simply glued in with epoxy. Start with a few and add more if the adapter seems loose. As you can see, I'm using 10 without any problem, but you can go to as high as 22. Don't use too many, or you won't get it off the printer!

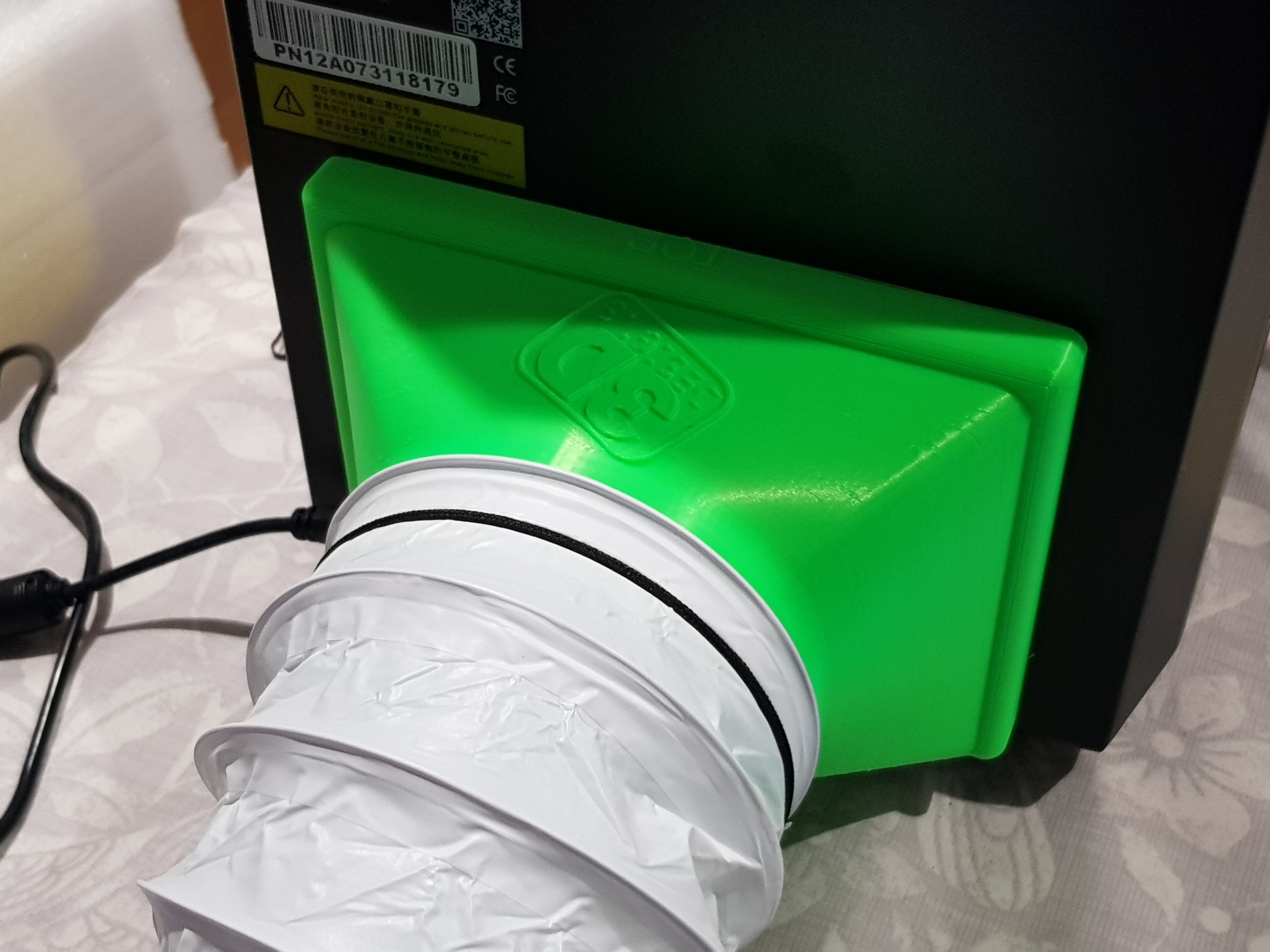

The adapter locates over the two screws above the vent and around the power socket.

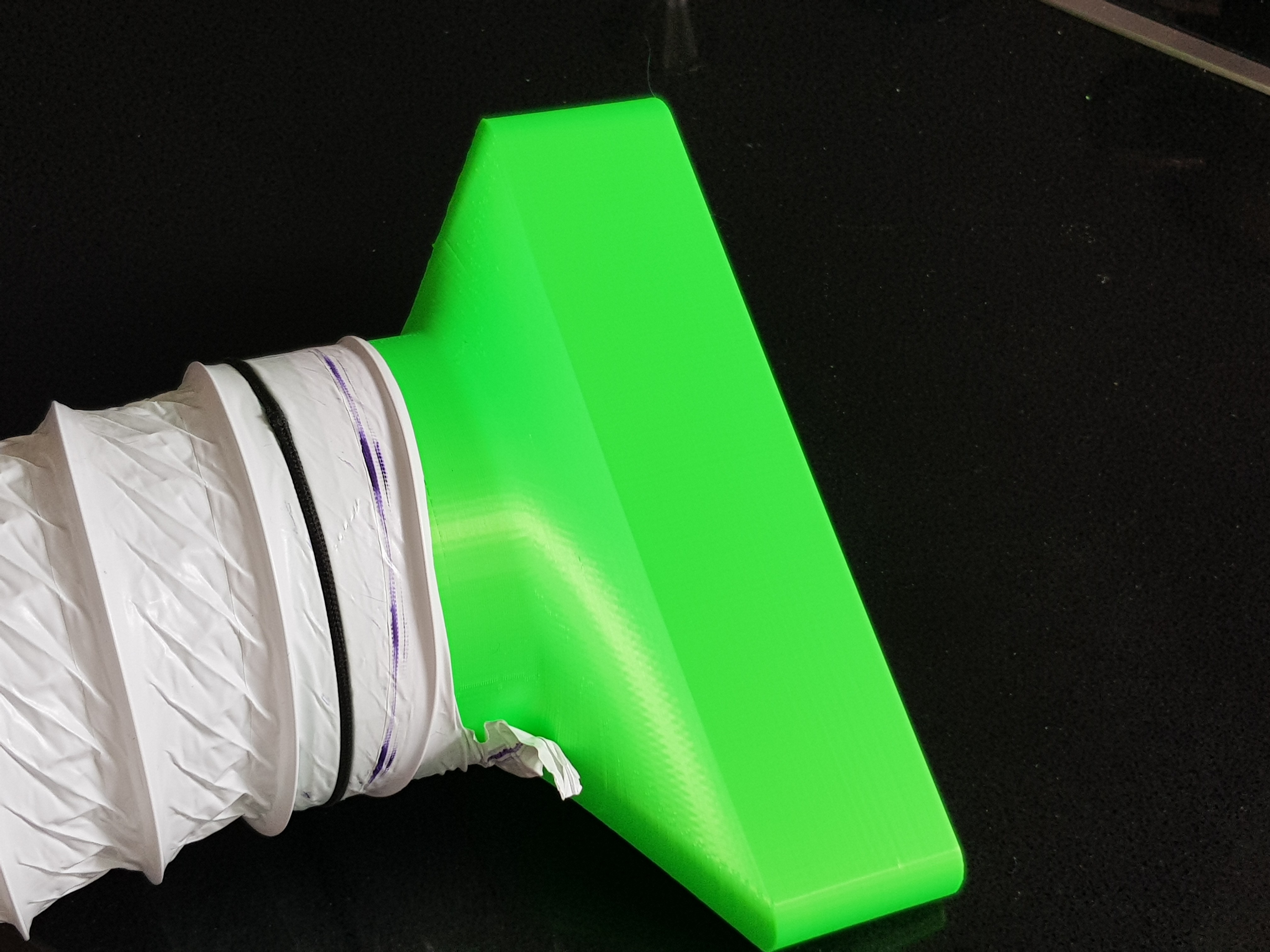

I'm using elastic (hair) bands to hold the pipes to the adapter and there is a groove to accommodate this. You could use normal cable ties instead, if you'd prefer.

NB - The dimensions of the main extraction cover for the Photon are approx 162 x 122 x 84 mm

3D printing settings

Print at 0.25 layer height
4 bottom and top layers and at least three perimeters

Print the parts in the following orientations

Main adapter (magnet face down - needs bridging over holes)
Circular window adapter - Round face down
Louvred external adapter - Louvred face down

3D printer file information

  • 3D design format: STL Folder details Close

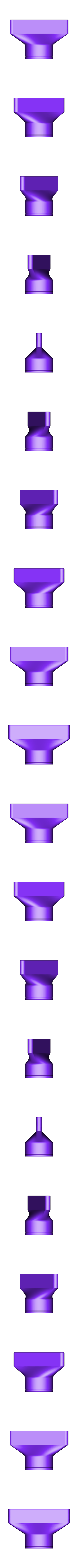

    • Door Vent.stl
    • Louvred Door Vent - Resized.stl

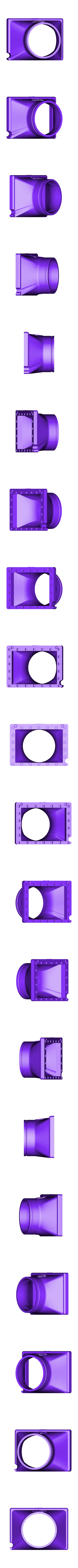

    • Magnetic Vent Adapter.stl

    Learn more about the formats

  • Last update: 2019/03/03 at 15:57
  • Publication date: 2018/10/25 at 17:45





Designs 130
Downloads 7.2k
Sales US$187
Followers 70

I am very much an enthusiastic amateur when it comes to designing. My designs tend to have two things in common

1) They serve a purpose. I like to design functional objects which have a real-world use. 3D printing for art is fine, but it's its real-world application which will take the technology forward
2) Wherever possible I design to be easy to print and try to eschew supports or complex printing; modifying the design where necessary and possible to achieve this.

Issue with this design? Report a problem

Best sellers of the category Gadget

Add a comment


Love the idea...Does this work for the "Photon S" ? and also would love if you provide a link for the duct hose you are using.

I'm sorry that you're disappointed. I had really rather assumed that anyone who needed this would have a Photon and would therefore be able to see how large the device needs to be.

I will look at changing the description to include the dimensions to clarify things for the future. For obvious reasons, the dimensions are as they need to be; which is a completely separate limitation from what one might be able to print, of course.

Mighty unimpressed that you failed to mention the print dimensions of these pieces. Not only can't I print it as is from the Anycubic Photon itself, but I can't from the Tevo Michelangelo either. Wouldn't have bought it had I have known. Now I need to figure out a way to modify it so it will actually work.
