ALLIGATOR 2 AR15 stock

🔫 3D models of guns or weapons are dummy objects or prop toys and have no real functionality as weapons. They are intended for entertainment or decorative purposes only. For any design violating our T&Cs, please report them.

Advertising
?
Creation quality: 4.7/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.

  • 8.9k views
  • 36 likes
  • 109 downloads
  • 1 collection
  • 5 comments

Licence CULTS - Private Use
Last update 2023-03-25 at 13:22
Publication date 2022-12-10 at 11:52
Design number 956275
3D design format
STL Folder details Close
  • AR15_Stock.stl
  • AR15_Stock_+6cm.stl
  • Back_Lever.stl
  • Lock.stl
  • Screw_cover.stl
  • Spring_Backholder.stl

Learn more about the formats

3D printer file info

3D model description

Here you can print a rear stock in AR15 style for your Alligator 2 crossbow. When unfolded, this can be clamped under the Axel. This can then be reloaded directly when shooting with a magazine without having to set down the crossbow.

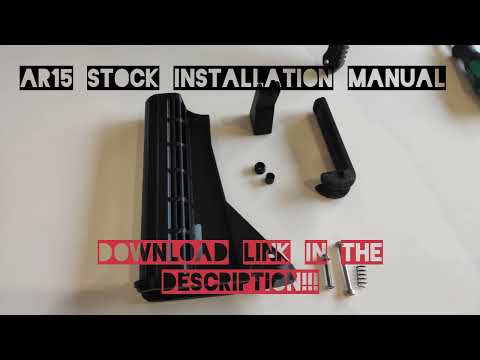

The best way to do this is to watch the video.

https://youtu.be/VFN0f2VnELA

Link to the magazine:

https://cults3d.com/en/3d-model/tool/version-2-alligator-2-repeating-crossbow-3d-printed-magazine-inspired-by-joerg-sprave

Material needed:

Approx. 200g filament

1x 8mm*0.8mm spring 20mm long

1x M4*40mm screw

1 x M4*25mm screw

2x M4 hex nut

FAQ's:

Question: can the stock also be printed in PLA.

Answer: No, it should be printed in PLA+at least, otherwise the lever may break.

Versions:

v1.2 Extra long version of the stem added (+57mm length)

3D printing settings

PLA+ or PETG

230°C Nozzle

60°C Bed

4Walls

infill 30%

Nozzle Diameter 0.6mm

Support=Yes
