Adjustable iPad/Tablet Mount

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 311 views
  • 2 likes

3D model description

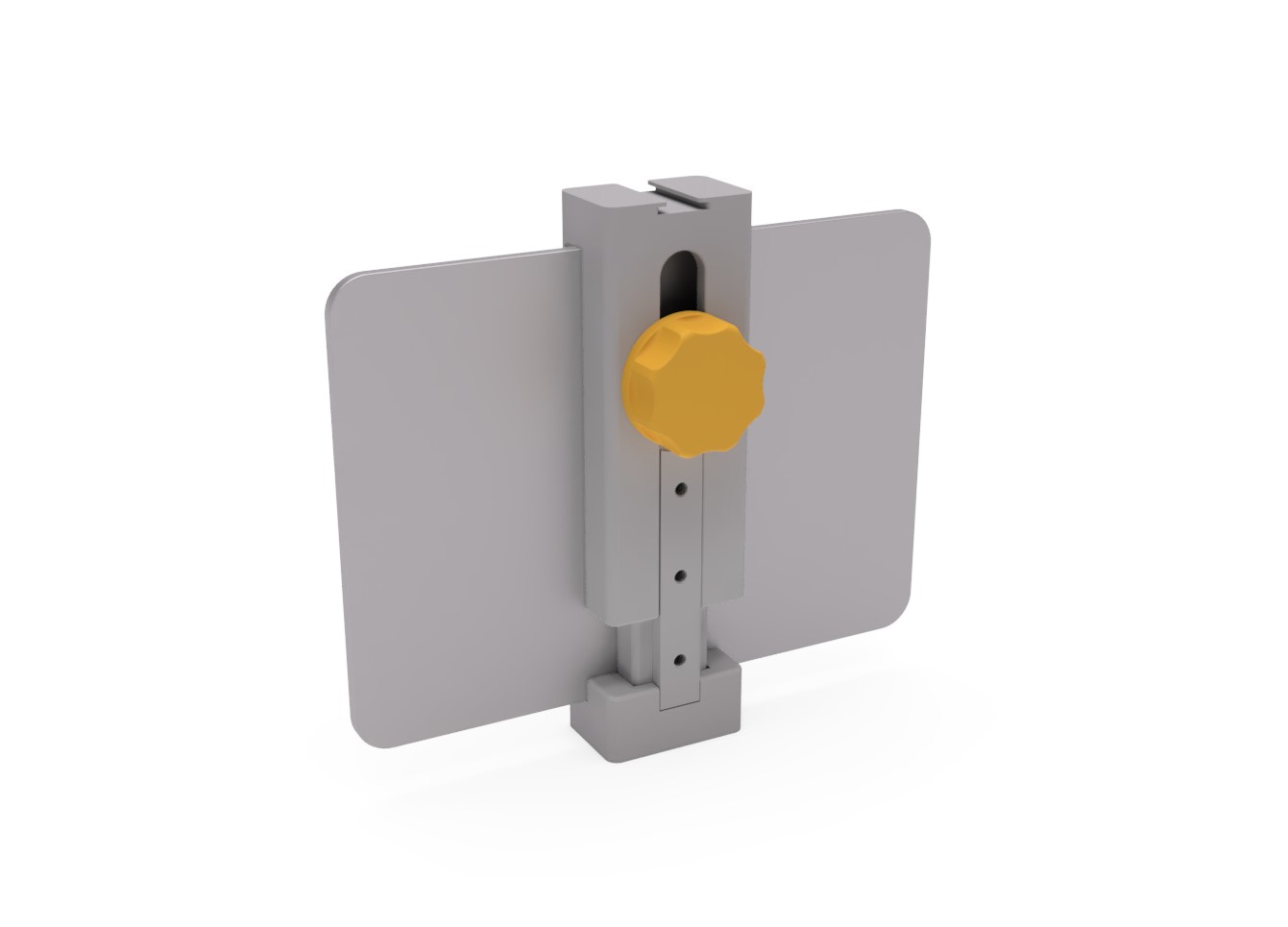

This is a tripod compatible mount I designed for my iPad to use it for video streams. It has a hot shoe mount on top for accessories like microphones or video lights.

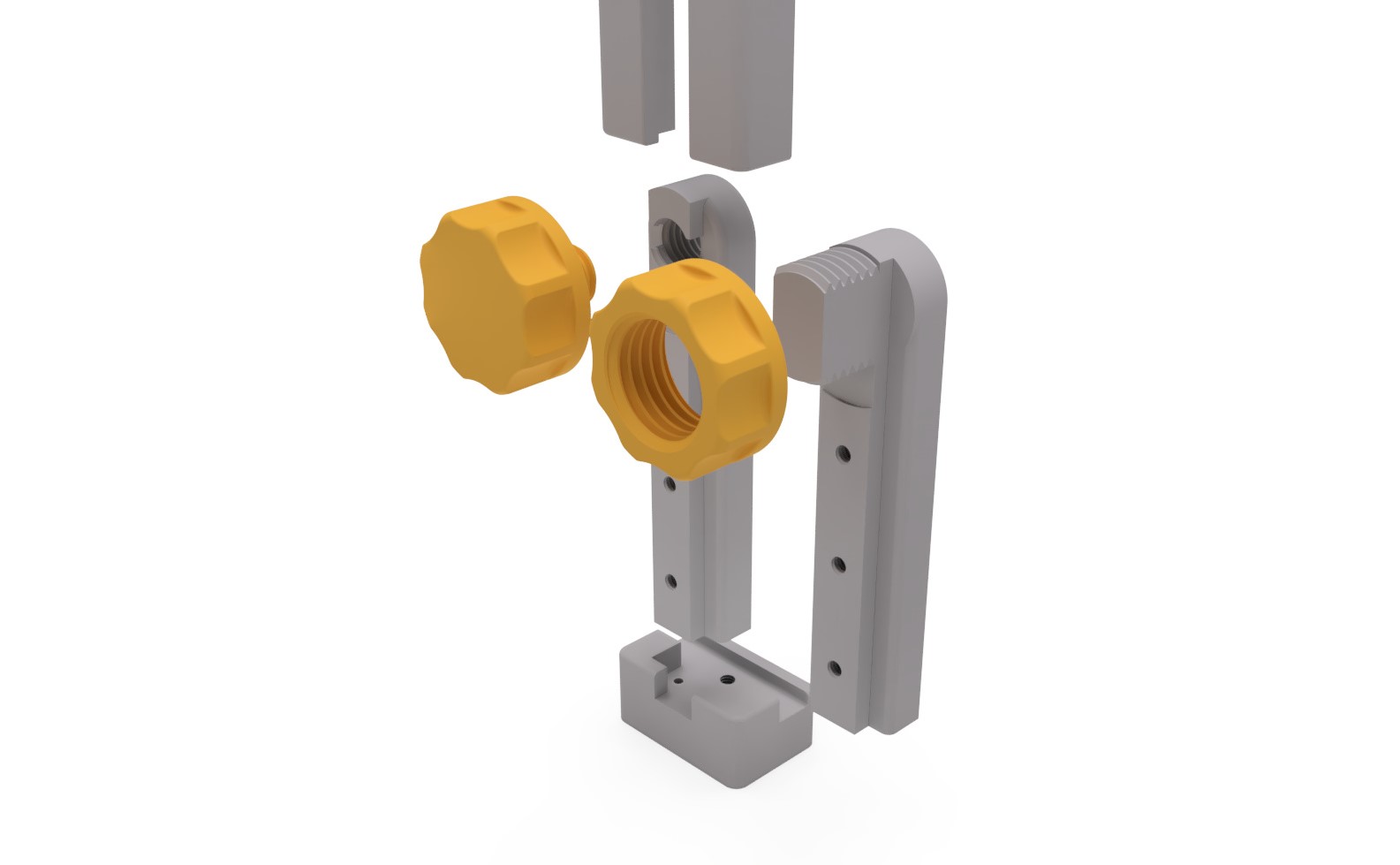

There are two different rail and knob options.

The base is screwed to the rails using two M3 threaded inserts an 8mm M3 screws.

I recommend to glue small strips of foam to the mount where the tablet is grabbed to ensure a tighter fit.

Video of the mount in use:

https://youtu.be/yph1gAy9p9w


3D printing settings

  • no supports needed

  • 0.3mm or 0.2mm layer height

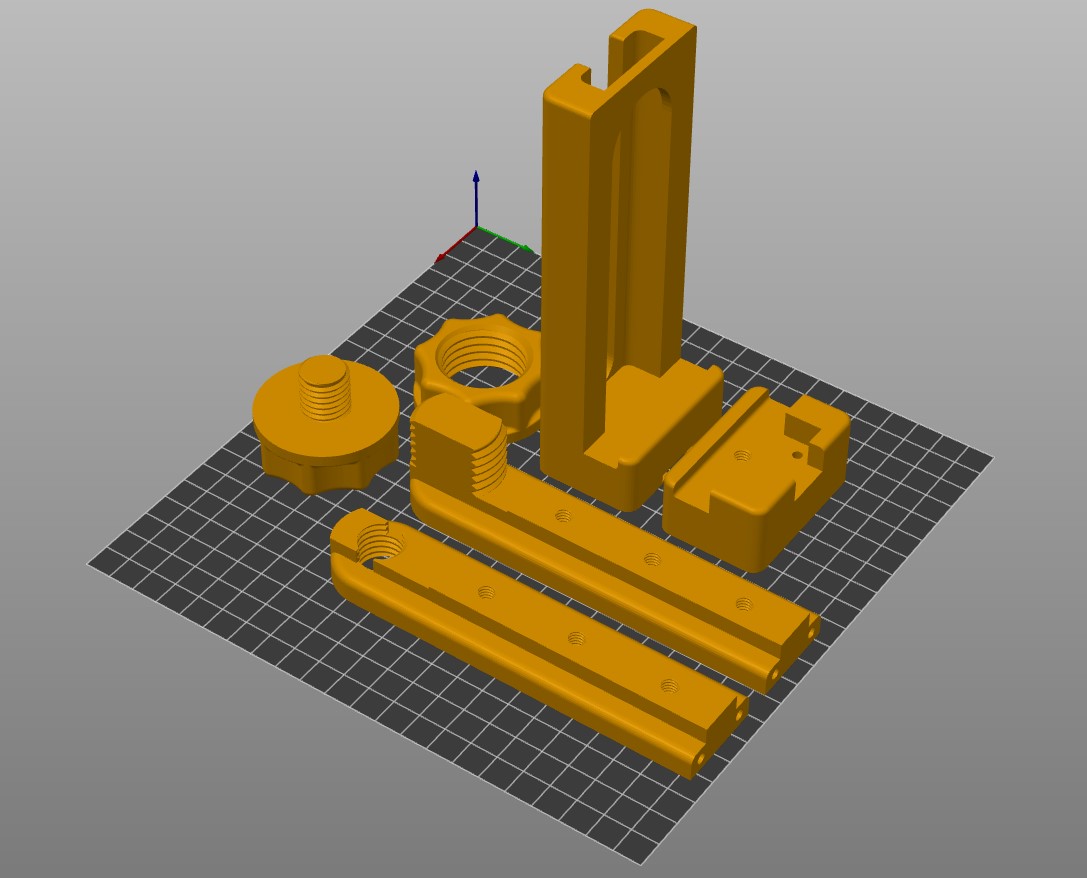

  • print orientation is shown in one of the images

3D printer file information

  • 3D design format: STL Folder details Close
    • Base.stl
    • Knauf.stl
    • Knob2.stl
    • Rail1.stl
    • Rail2.stl
    • Top.stl
  • Publication date: 2021/09/13 at 11:35
