Adjustable butt hook

?
Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

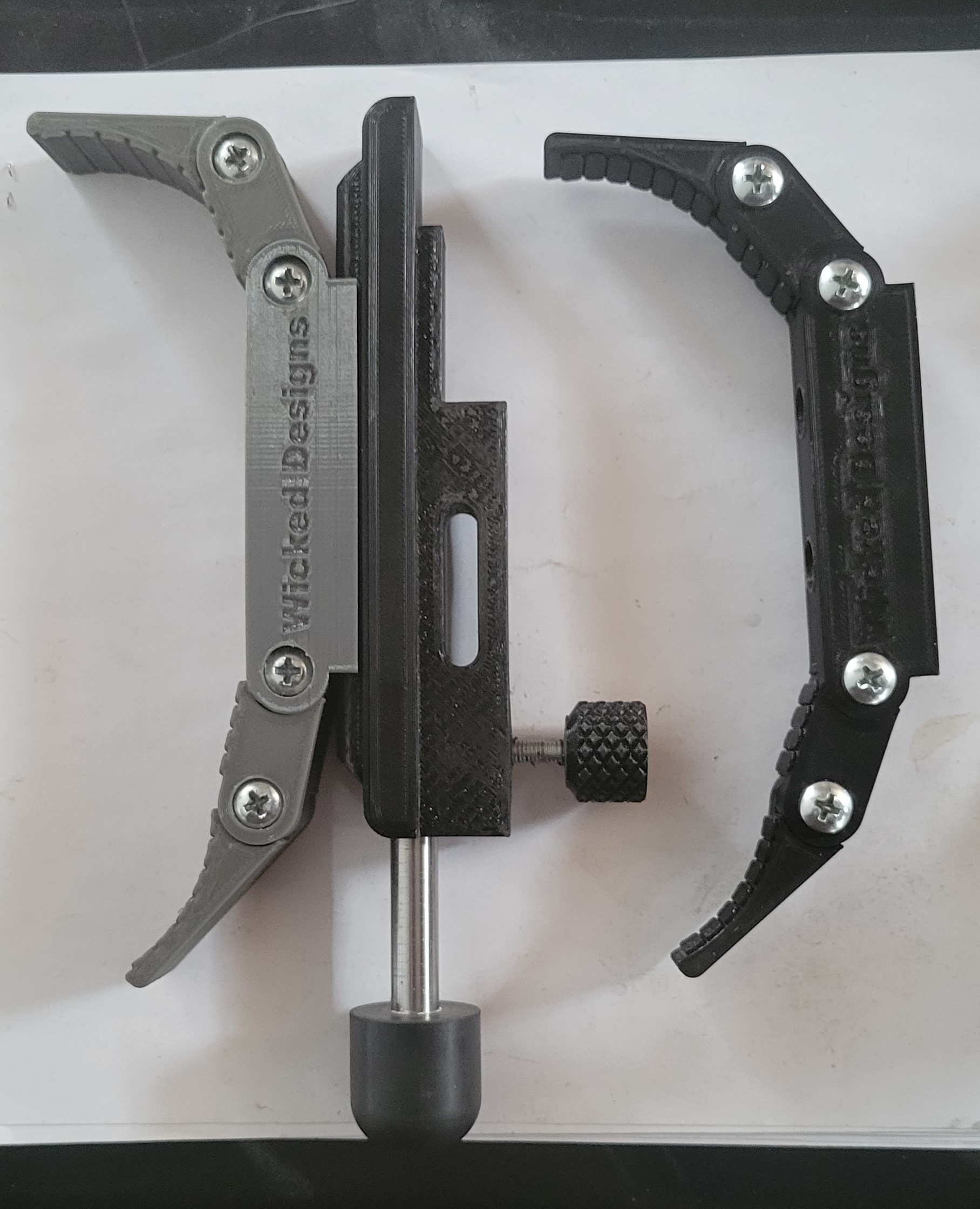

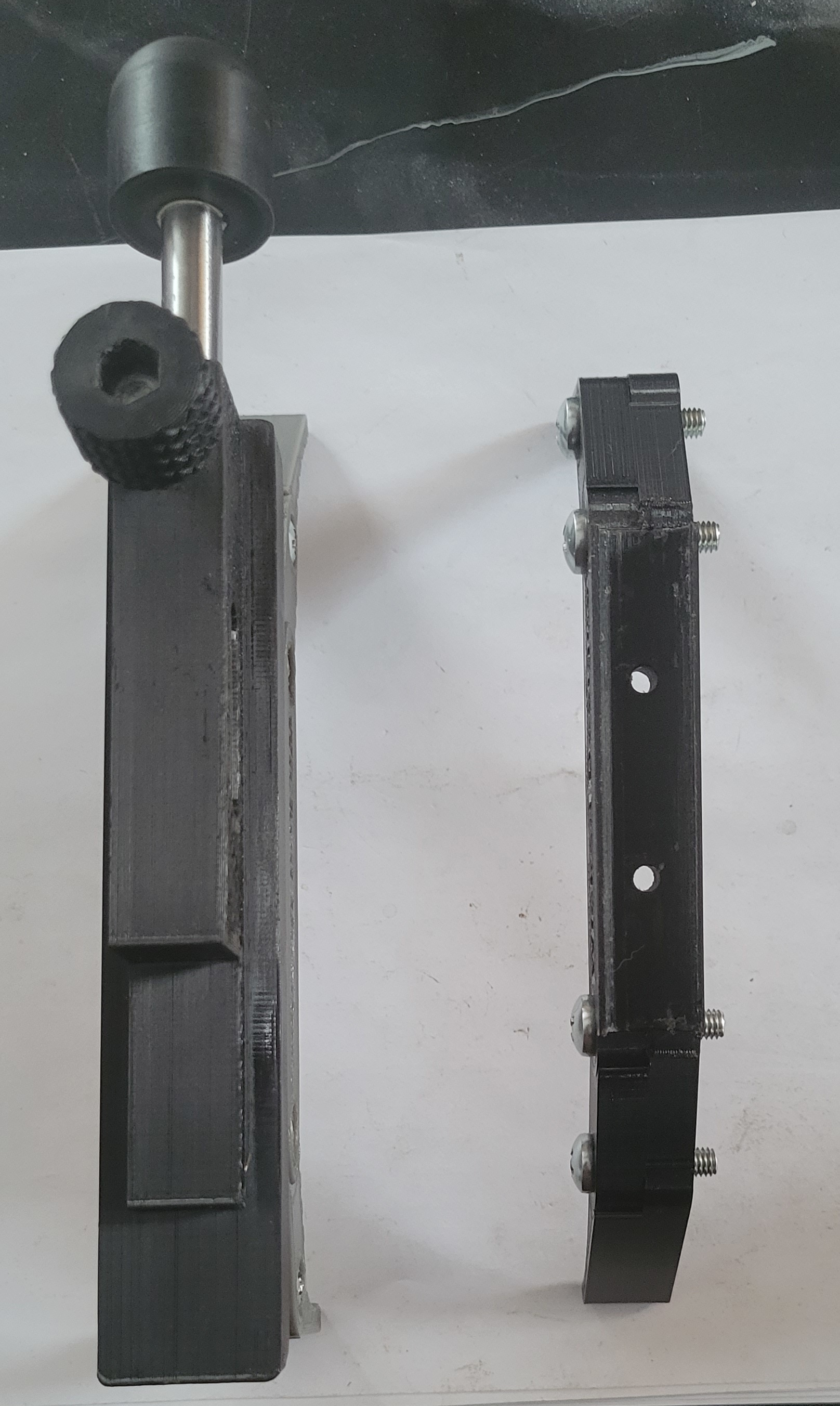

This is an adjustable shoulder hook for FX Impact MK2 but should fit other models as well. It has an integrated Monopod in the base as well. Designed for 3/8" rod and an end cap of your liking.
The hardware used was m5 nuts and m5 20mm long pan Phillips's machine screws from Lowes. Two 6-32 1" long machine screws for attaching two parts together as well as two 6-32 nuts.

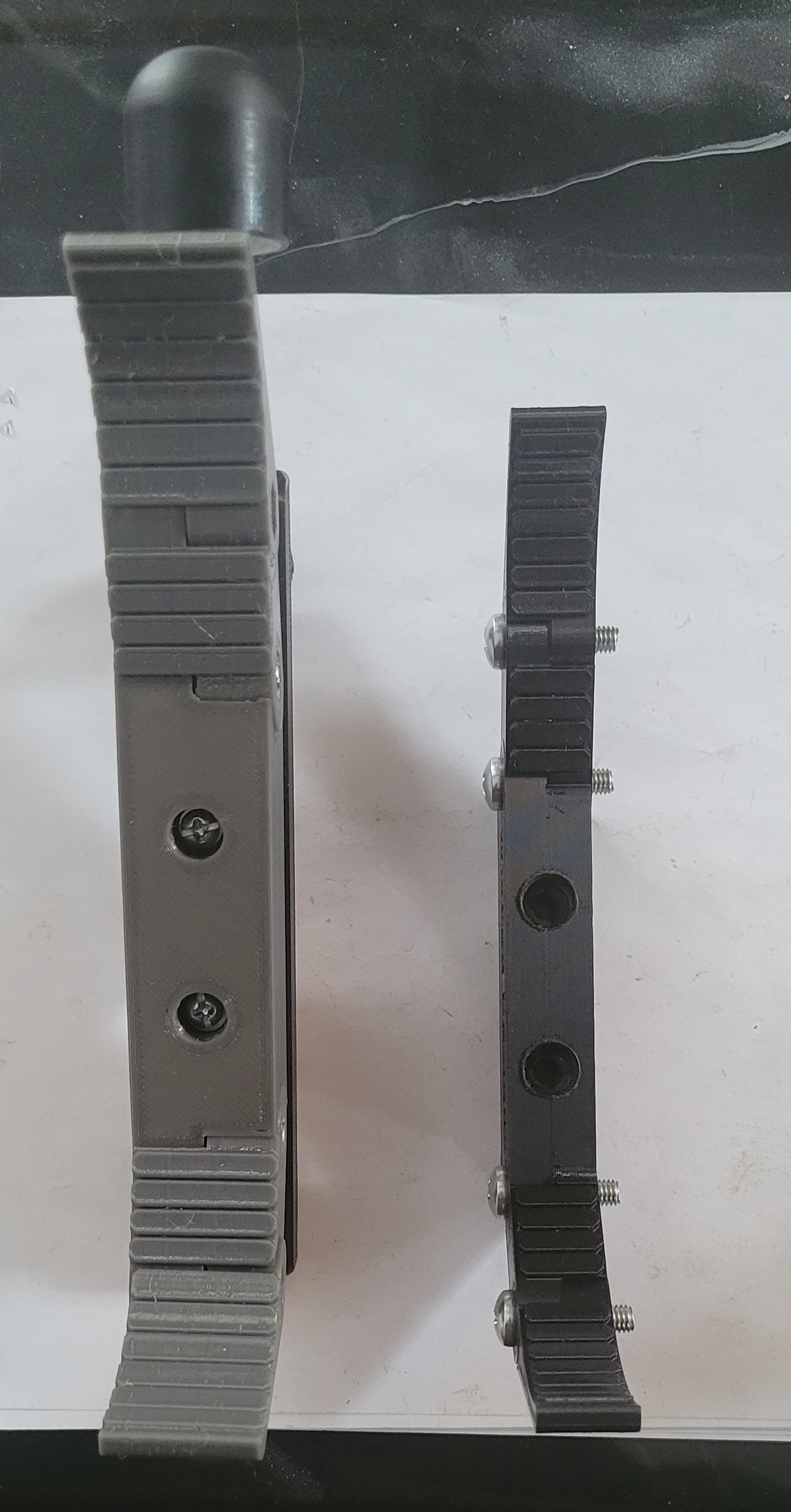

I have both a wide and narrow set of hooks made up. the narrow set would require 15mm long versus the 20mm in the wide set.


3D printing settings

cura slicer PETG filament
.2-layer height
4 walls
60% infill on hooks
40% infill on main body

3D printer file information

  • 3D design format: 3MF and STL Folder details Close
    • Main Body v2.stl
    • Thin Shoulder Hook v1.3mf
    • Wide Shoulder Hook v4.stl

    Learn more about the formats

  • Publication date: 2022-01-16 at 21:25
