Action Cam bottle cap with tripod mount

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.


Licence CC BY-NC-ND
Publication date 2021-11-05 at 07:45
Design number 558195
3D design format
STL Folder details Close
  • Tride.Design FLOATY BIG.stl
  • Tride.Design Floaty small.stl

Learn more about the formats

3D printer file info

3D model description

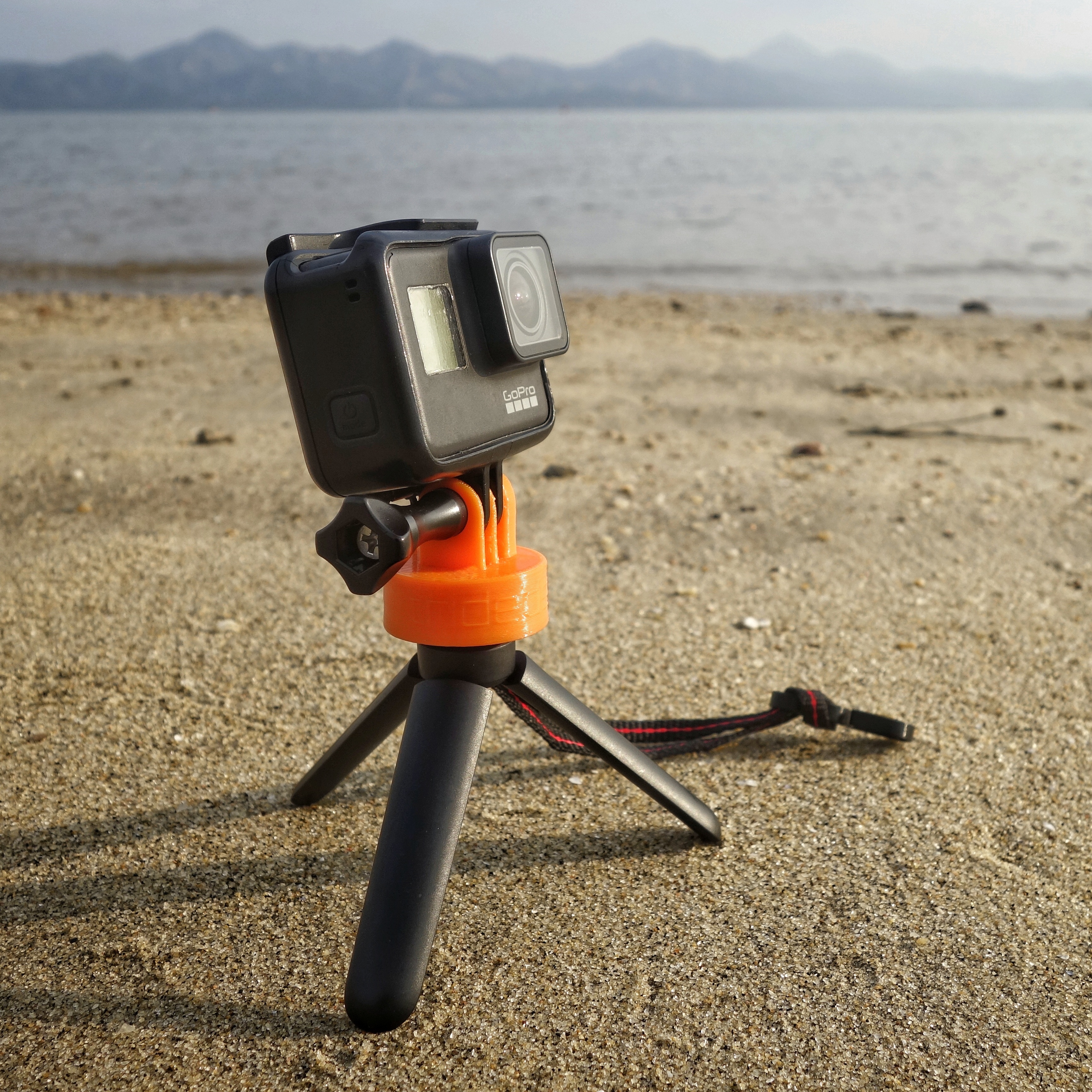

This product enables action cameras to be screwed to plastic bottles and float on the surface of the water or used as a handle when needed. It also has a tripod mount on the bottom that allows it to be conveniently used with any tripod.

Please note that the model doesn't come with a screw that holds the camera so you can use some from your other mount or find the proper one at the nearby hardware store. If the printed model is not watertight please consider inserting some rubber band to make a proper seal.

There are 2 models available to download:

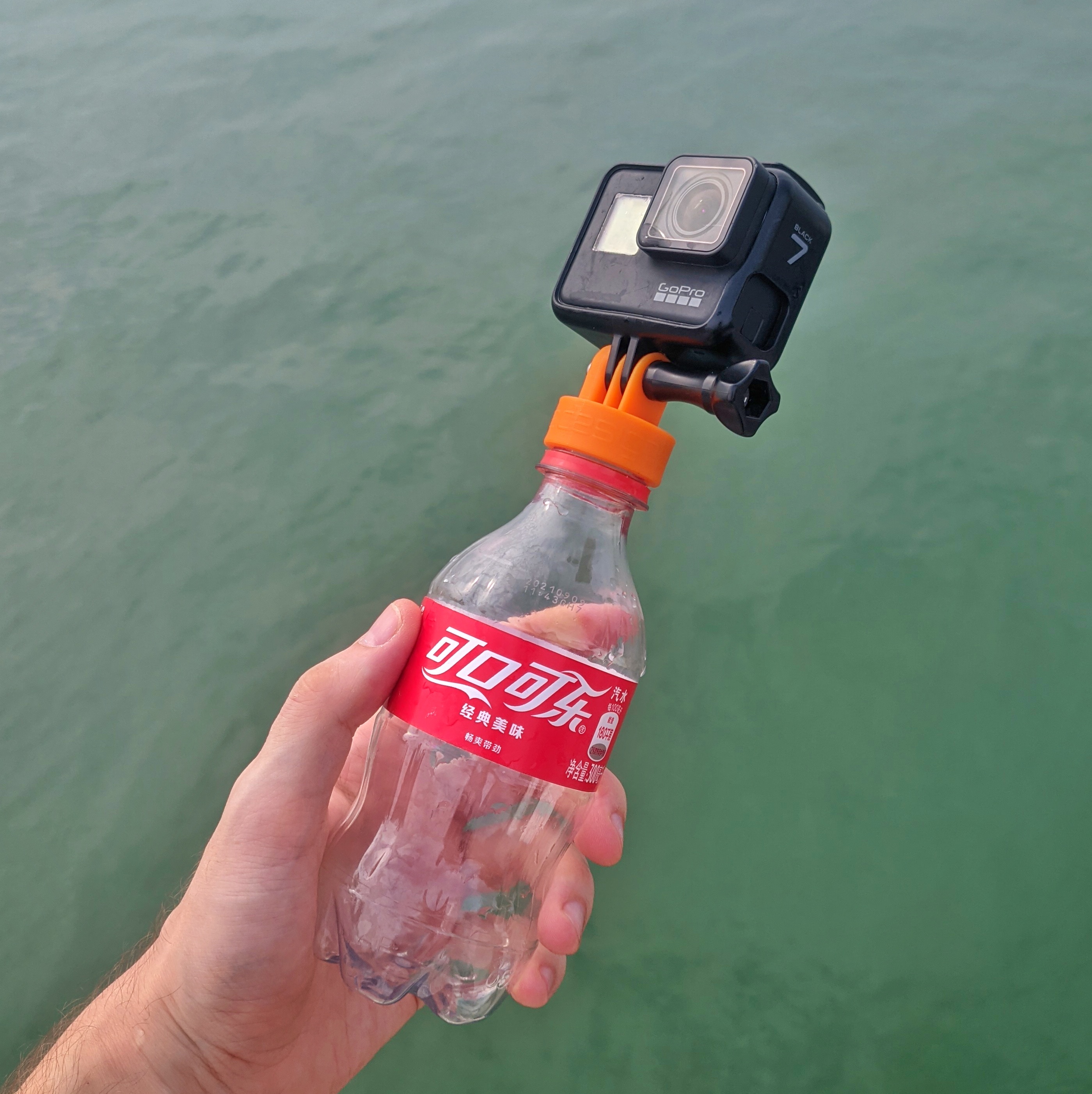

Floaty small works on most common bottles like coke, Pepsi and other popular beverage drinks.

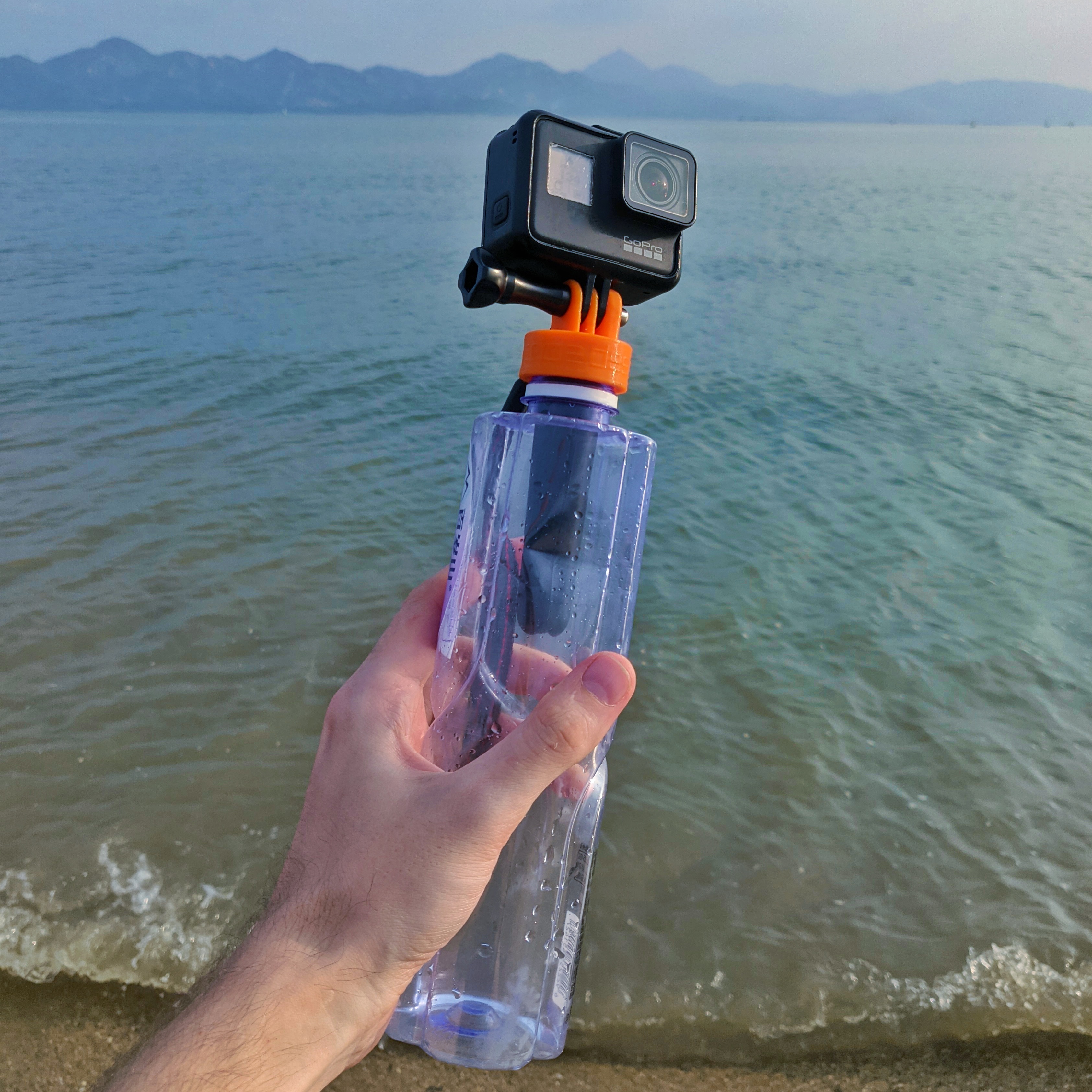

FLOATY BIG works is a bit bigger and work on standard water bottles in other markets.

Please carefully check if it's properly sealed before you use it in the water, you can fill the bottle with water and squeeze it to check if it's properly sealed. Additionally, you can try to apply some head while it's screwed on the bottle to make it shrink a little bit.

3D printing settings

The models are designed and printed with 0.4 and 0.6mm nozzles.

Nozzle temperature: around 215 for PLA
Heated bed temperature: non or up to 60
Wall thickness: 3 or more
Top and bottom layers: 10 or more
Infill: 20% or more
