8020 Rig Adapter for Sequential Shifter

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 147 views
  • 2 downloads

3D model description

Not actually a remix, this is my design for a mount for the sequential shifter by LocalwarCorp and Remixed by AndyD1982 (the latter being the design I used/have installed on my rig).

As I have a handbrake already attached to my 8020/Aluminium extrusion based rig, I needed an adapter so I could run the sequential shifter alongside it to get it into a comfortable position.

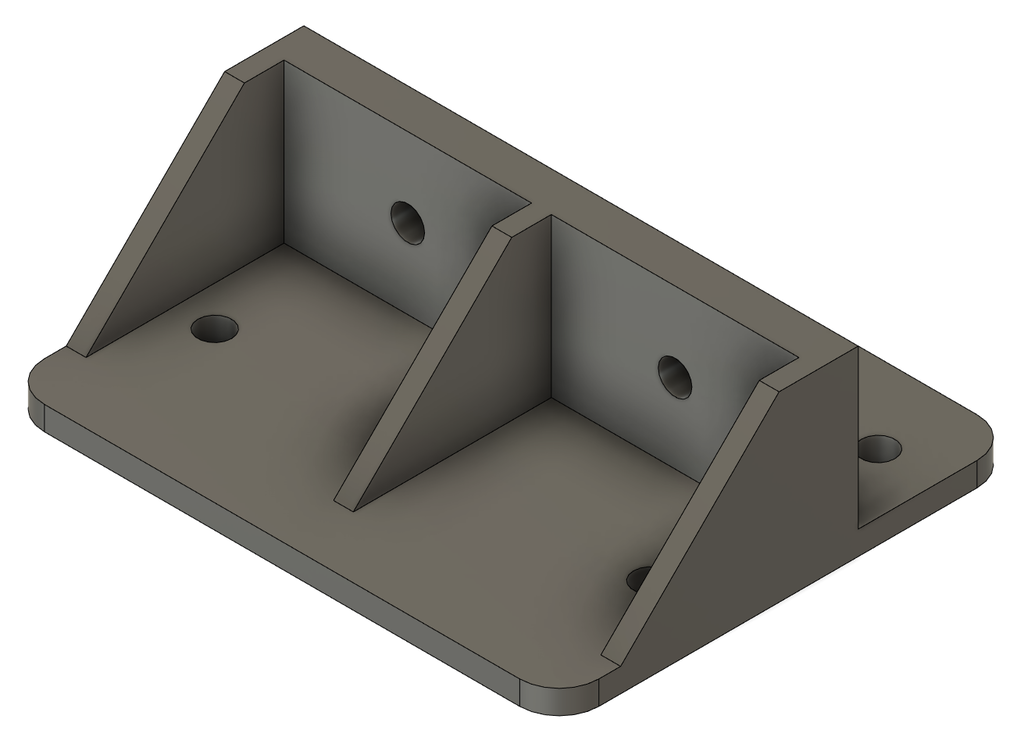

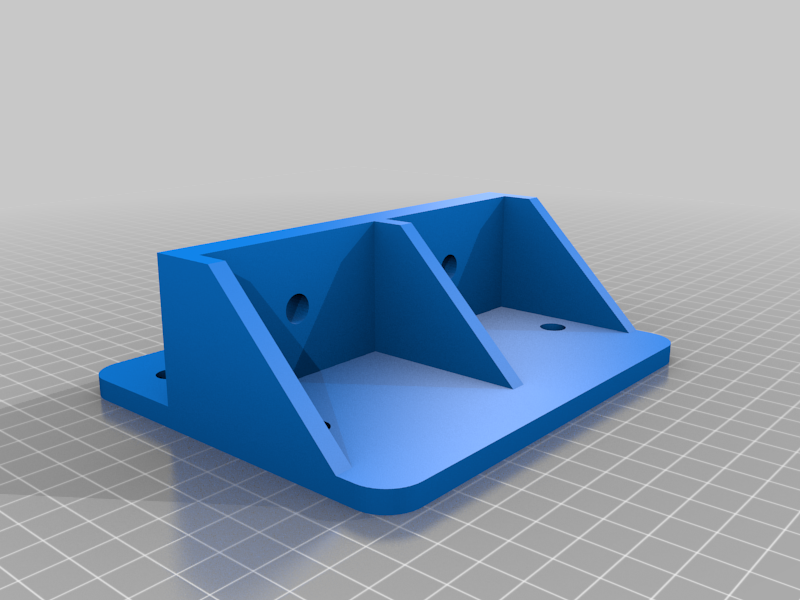

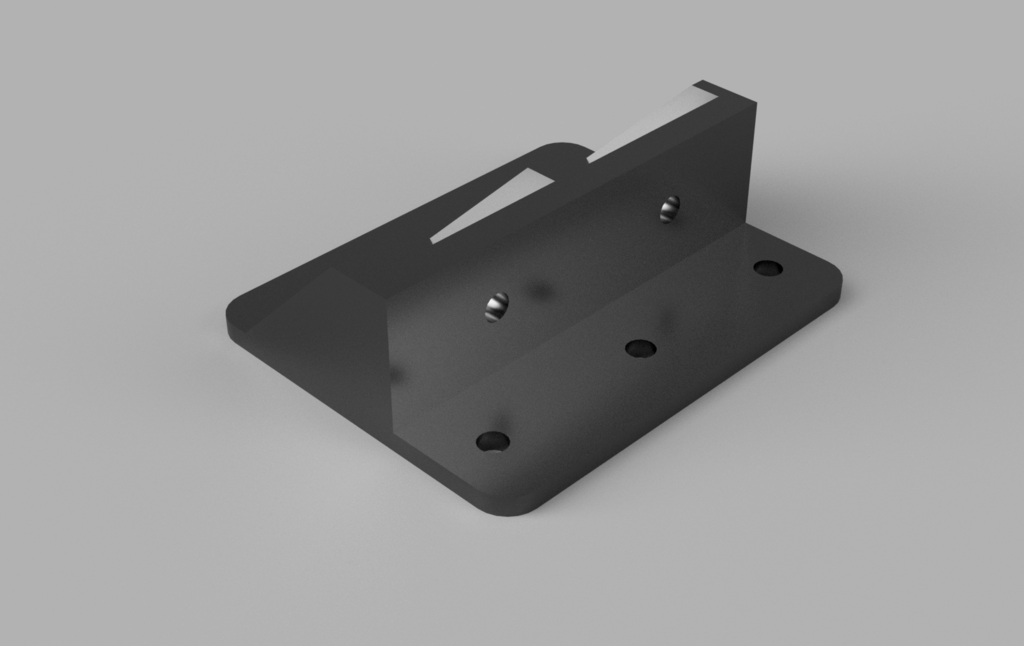

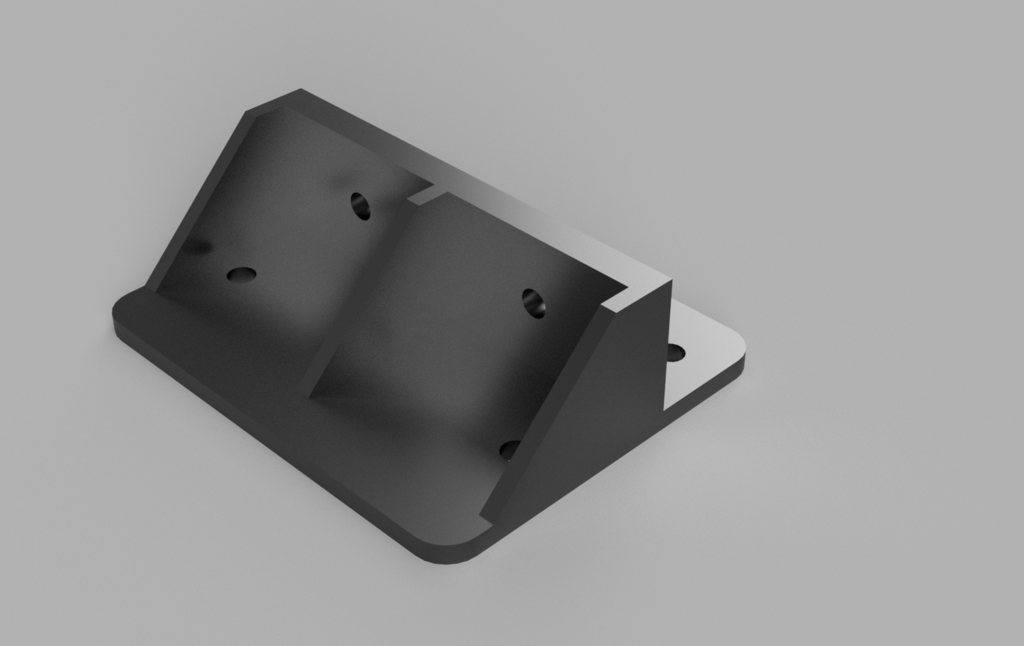

Therefore I designed this strong adapter which has 5 bolt down points (utilising M8 bolts in my design) along with the associated T nuts, with 3 fixing points on the top and 2 on the bottom/side. The Sequential shifter is then bolted down to the rig adapter using the holes already provided, with nuts on the underside.

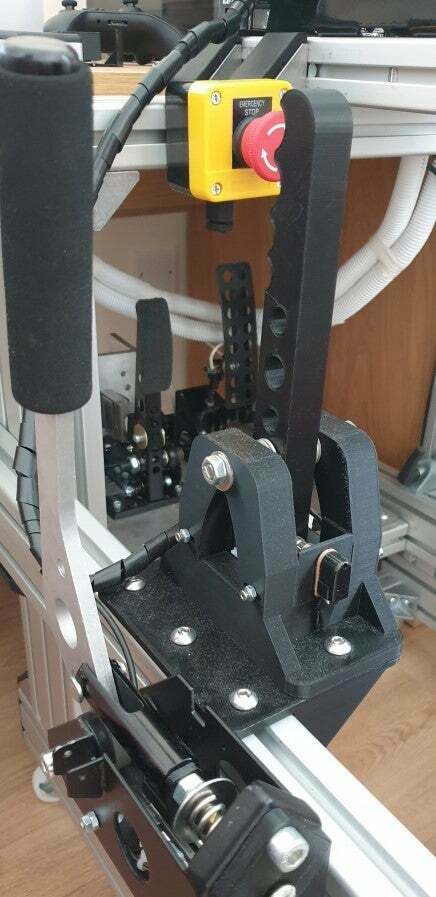

The adapter is sized for fitting to 40 x 40mm extrusion but will fit larger (mine is fitted to 40 x 80mm, as pictured).

  • 3D file format: STL
  • 3D model size: X 140 × Y 116 × Z 46 mm
  • Publication date: 2021/01/01 at 07:03

Tags

Creator

License

CC BY NC
