3D model description

  • inspired by the great marble machine from tulio
  • I wanted to create my own marble machine using a pack of 6mm diameter steels balls (airsoft ammunition with the same diameter should work too)

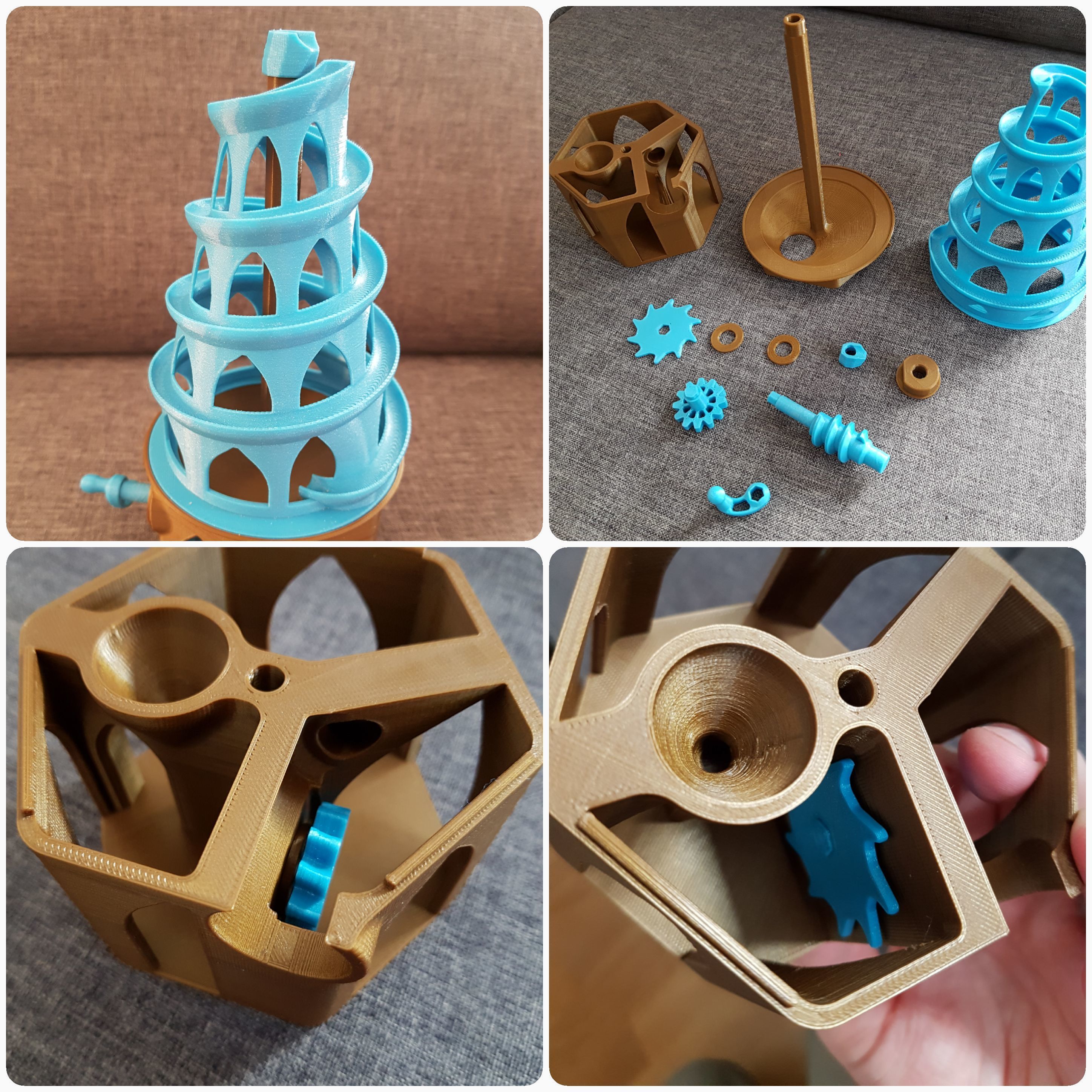

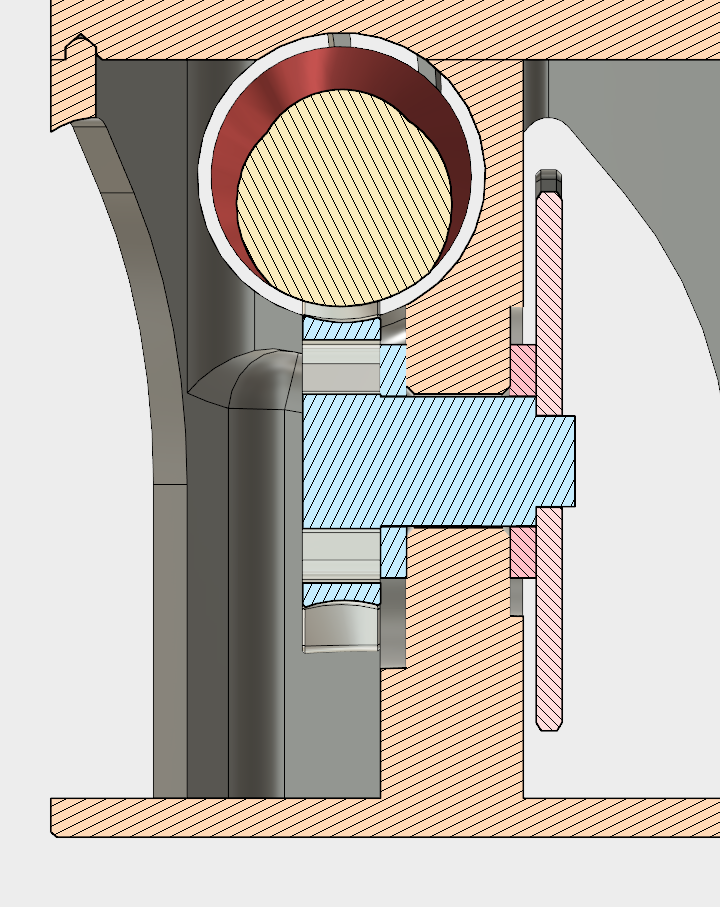

  • I wanted to try a different method of elevating the balls/marbles. I created a system where they are pushed into the vertical shaft one by one using a kind of geared wheel
  • this pushwheel is connected to a wormgear to have it self-locked and with a high torque to push the tower of balls inside the elevating shaft

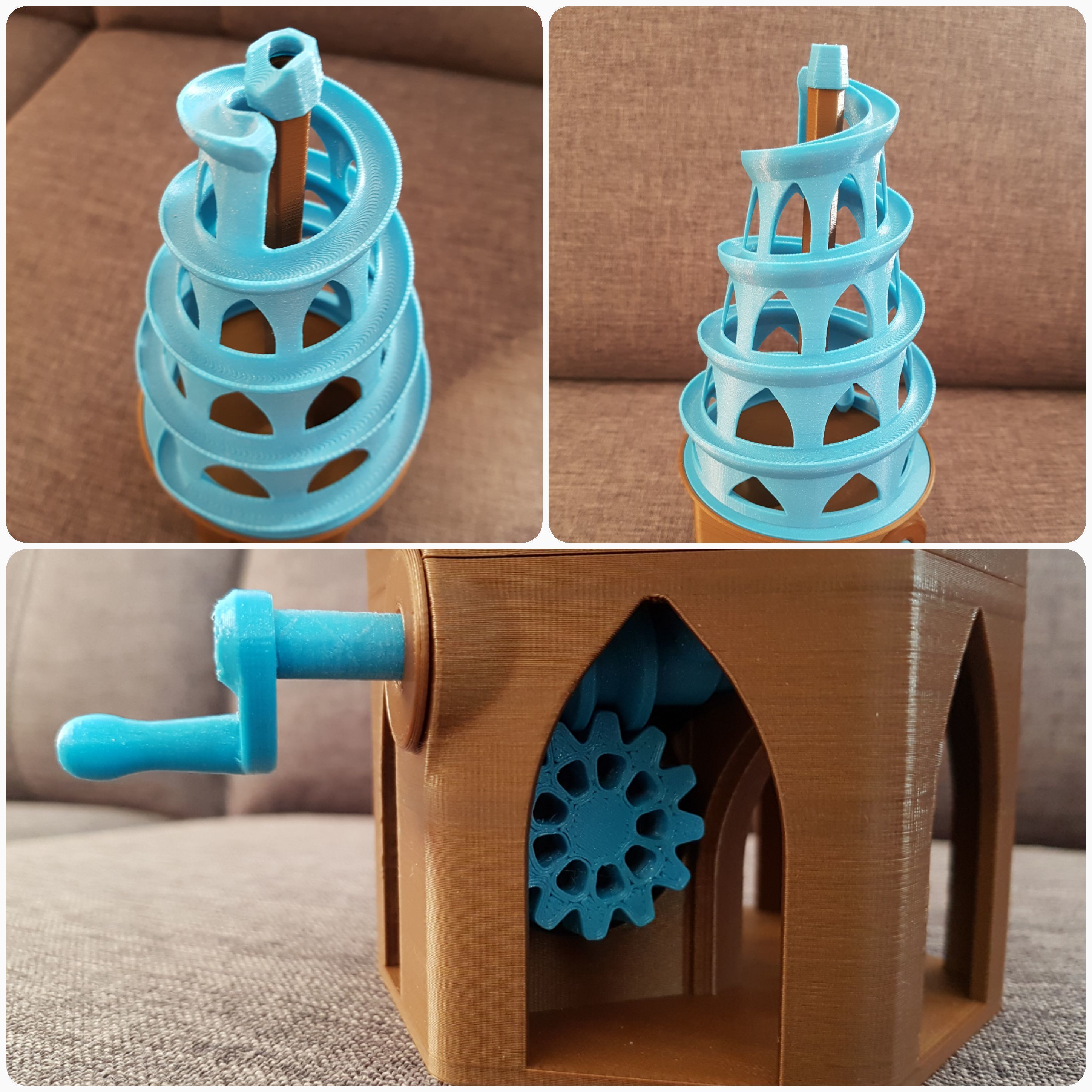

  • the marble machine is seprated into the base, with the elevating mechanism and the elevating shaft and the marble track itself with the nozzle on top
  • It is a modular concept, to be able to have different track options with only one base
  • the parts will need a little bit of glue during assembly, but don´t glue track and nozzle if you plan to keep it modular
  • I plan to release more track designs in the future

  • all parts are designed to print without any support

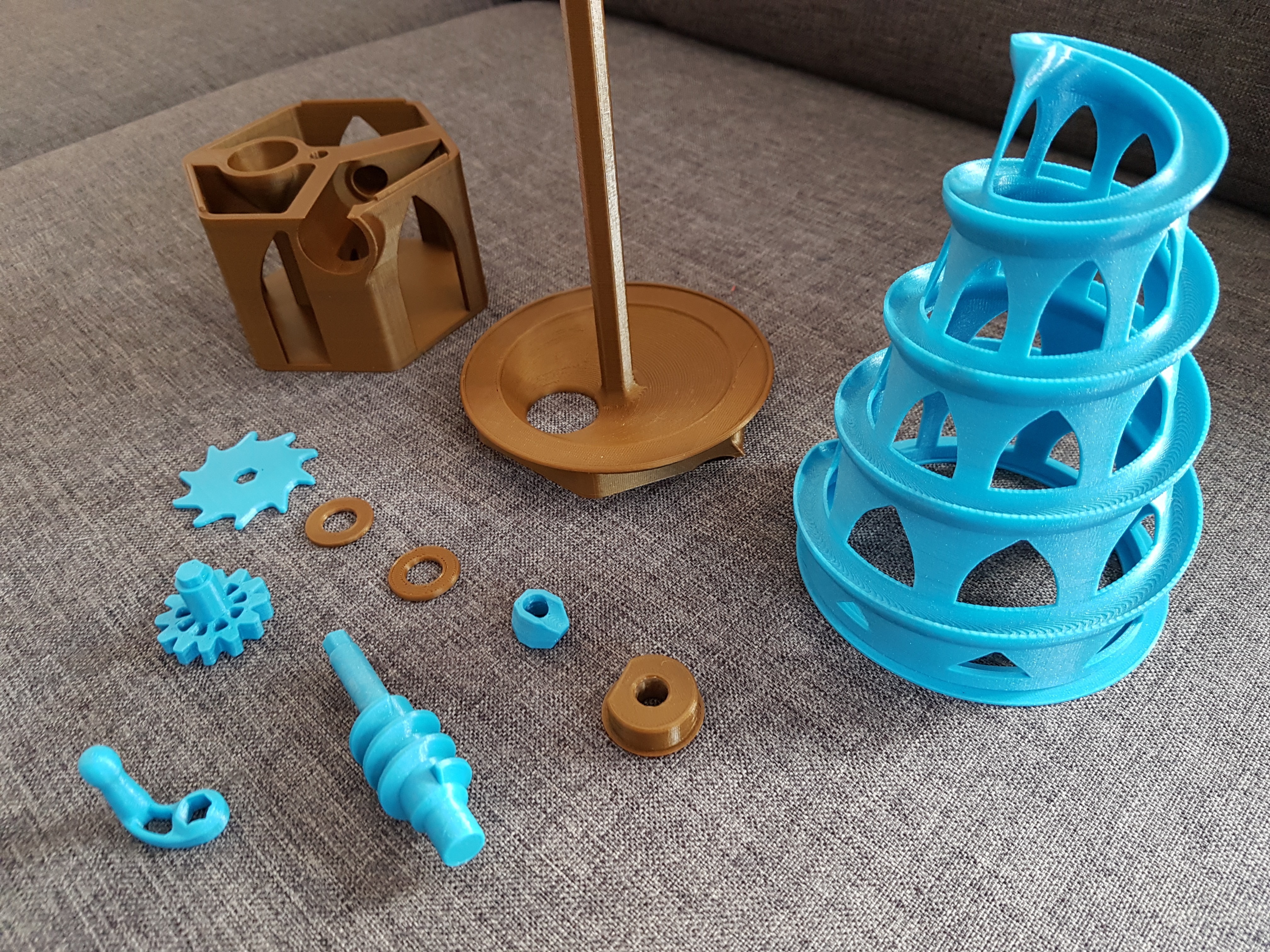

  • parts you need to print:
    1x base_bottom
    1x base_top
    1x pushwheel
    1x drivegear
    1x wormgear
    1x handle
    2x washer
    1x bushing
    1x nozzle
    1x track(4 revolutions) or track_slower (5 revolutions)

  • model untis are [mm]

  • https://youtu.be/cC-1rk9BMTk
