3DTAC / AK Complete Modular Package (Airsoft only)

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 19.1k views
  • 36 likes
  • 29 downloads

3D model description

🤟🏻 3DTAC is an online airsoft 3D printing brand. Our files work because they are super optimized for FDM printing by profesional designers and engineers 🤓

Small modifications to the printed parts may be needed to fit your brand of AK (this was designed over a CYMA AK105). You can cut, sand and file the parts once printed.

Hi, thanks for stopping by!
Included in this download you will find:

  • Modular design lets you add only the parts you need.
  • Super lightweight and strong design.

The package consists of:

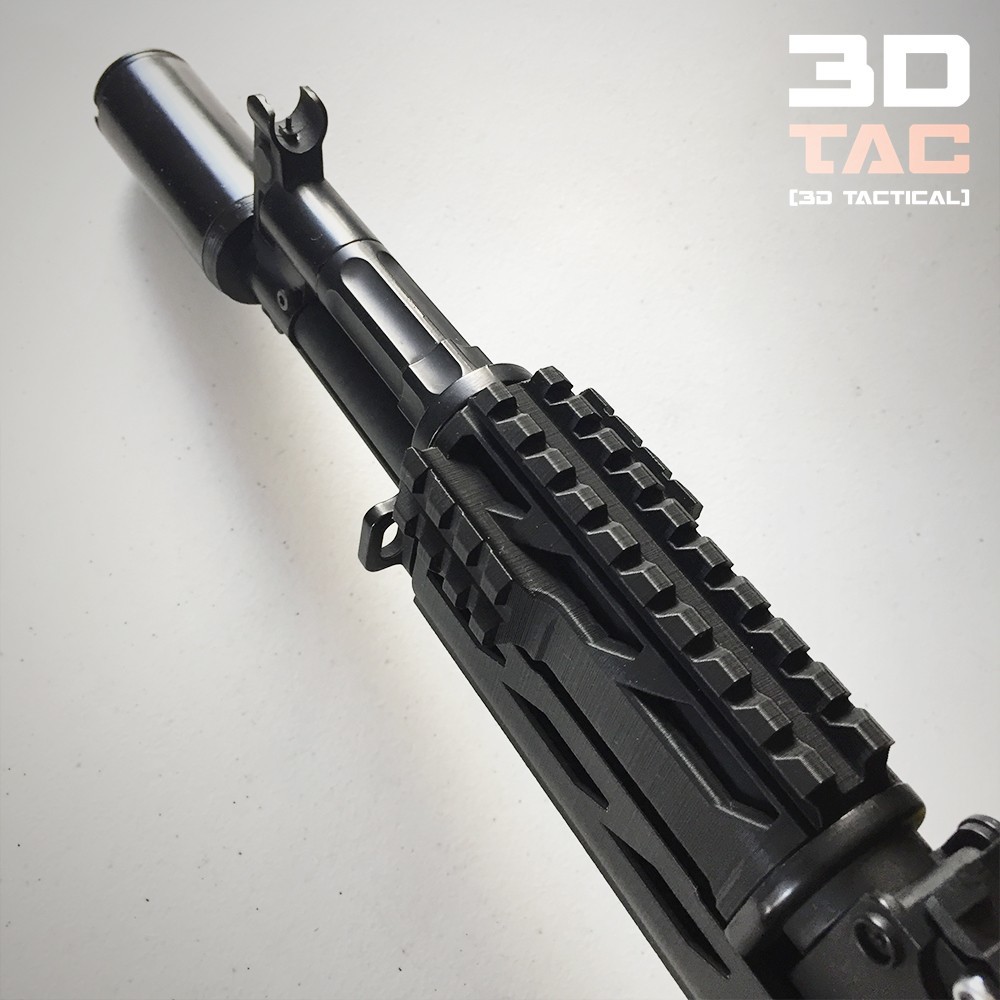

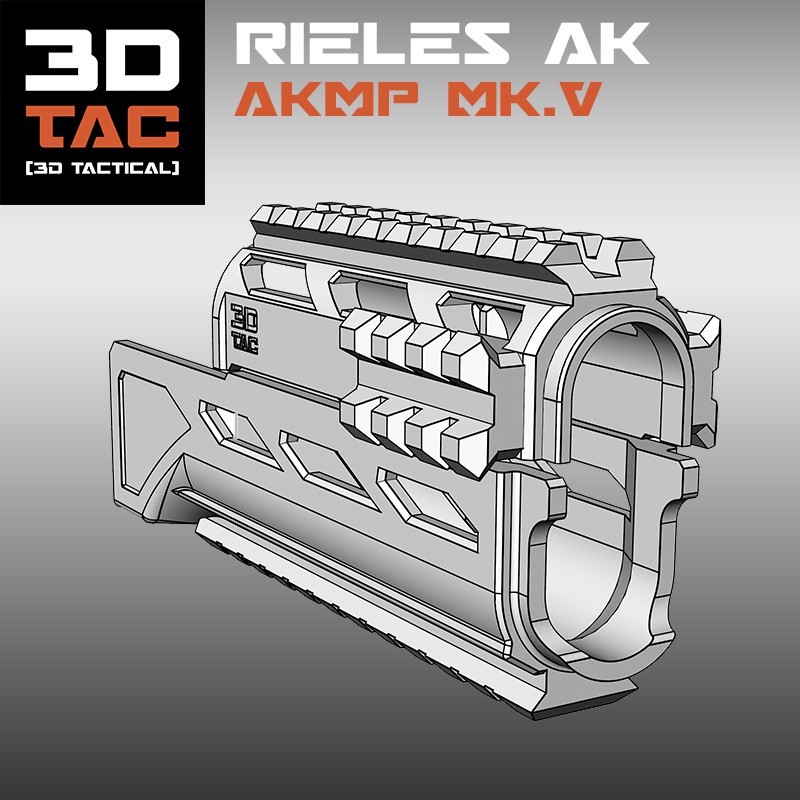

  • Lower Railed Handguard.
  • Upper Railed Handguard.

Tools & Hardware Needed
- M3 or 3/16 Thread cutters (3mm, 4.7mm)

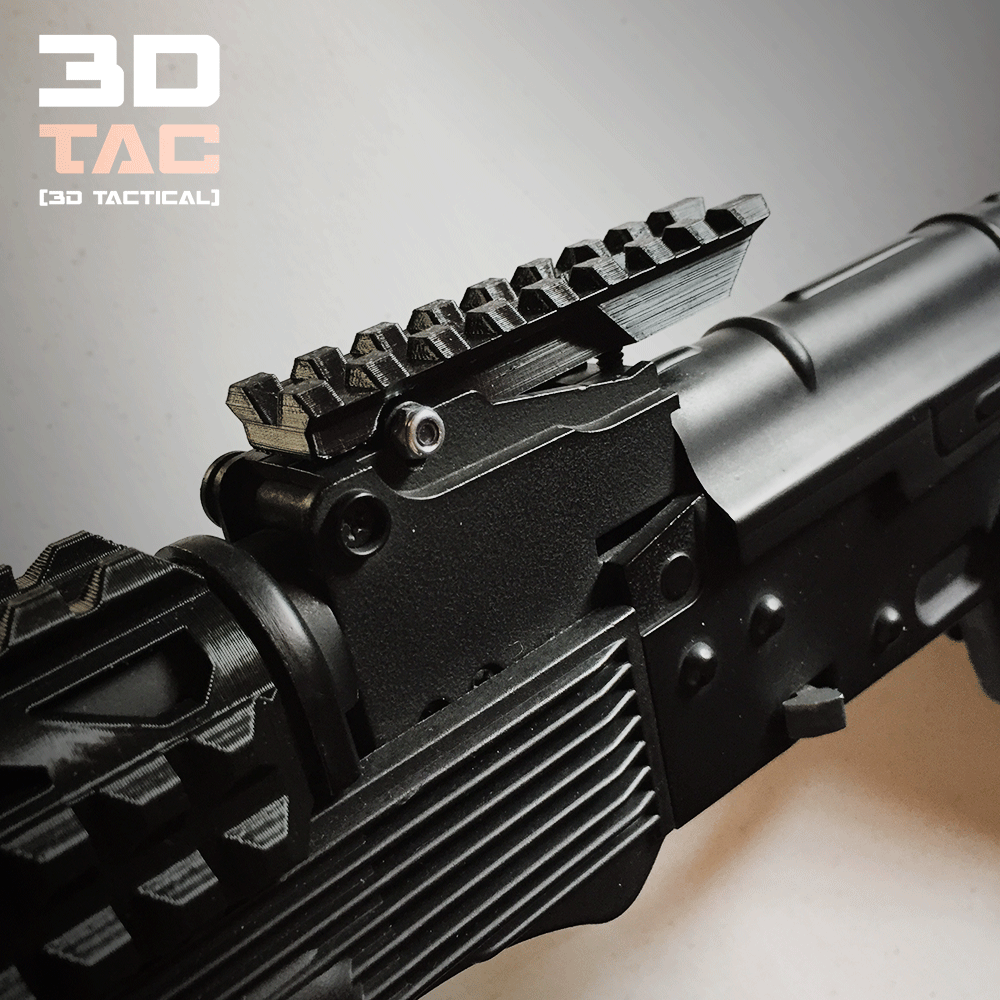

- Three 3/16 x 3/8" (M5x10mm) button head hex screws (one for the sight rail, two for the lower rail tab that inserts into the body).
- Two 3/16 x 1" (M5x25) socket head screws (Secure top handguard to lower handguard).
- One 1/8 x 1/2 (M3x12.5) socket head screw (attach sight rail to iron sight trunnion)

Happy Printing!

Disclaimer:
3DTAC models are provided "AS IS" with no optional files or means to convert or use the designs with FIREARMS.
3DNG-MX takes no responsibility for any harm received or inflicted or any property damage or destruction. This is an accessory designed for AIRSOFT ONLY.


3D printing settings

ABS: May need to account for plastic shrinkage 100.3% scale +,-.1
Supports: Yes
Infill: 20 (at least)
Layer height: .25
Contours: 3
Amount of plastic: 100 grs (aprox.)

3D printer file information

  • 3D design format: STL Folder details Close
    • 3dtac_akcmp_latch.stl
    • 3dtac_akcmp_ris_lower_V4.stl
    • 3dtac_akcmp_ris_upper_2_Ver4.stl
    • ak_sight_rail_mkii.stl
    • lower_ris_lock_2.stl

    Learn more about the formats

  • Last update: 2021-03-09 at 06:10
  • Publication date: 2017-05-04 at 20:55
