Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.7k views
  • 24 likes
  • 554 downloads

3D model description

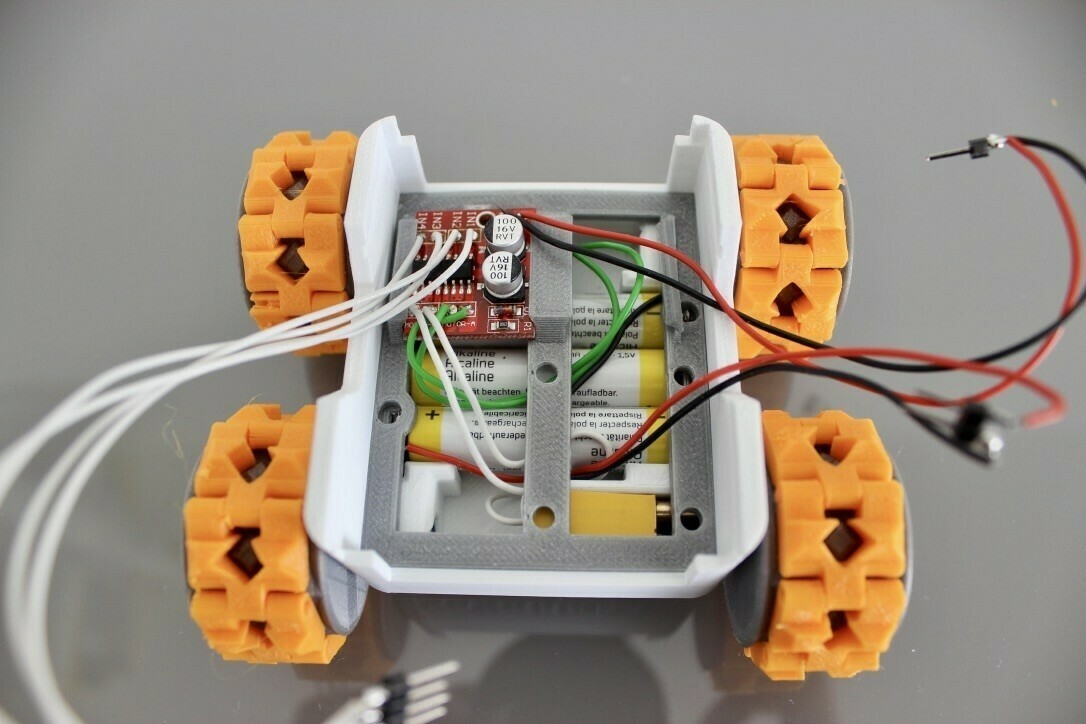

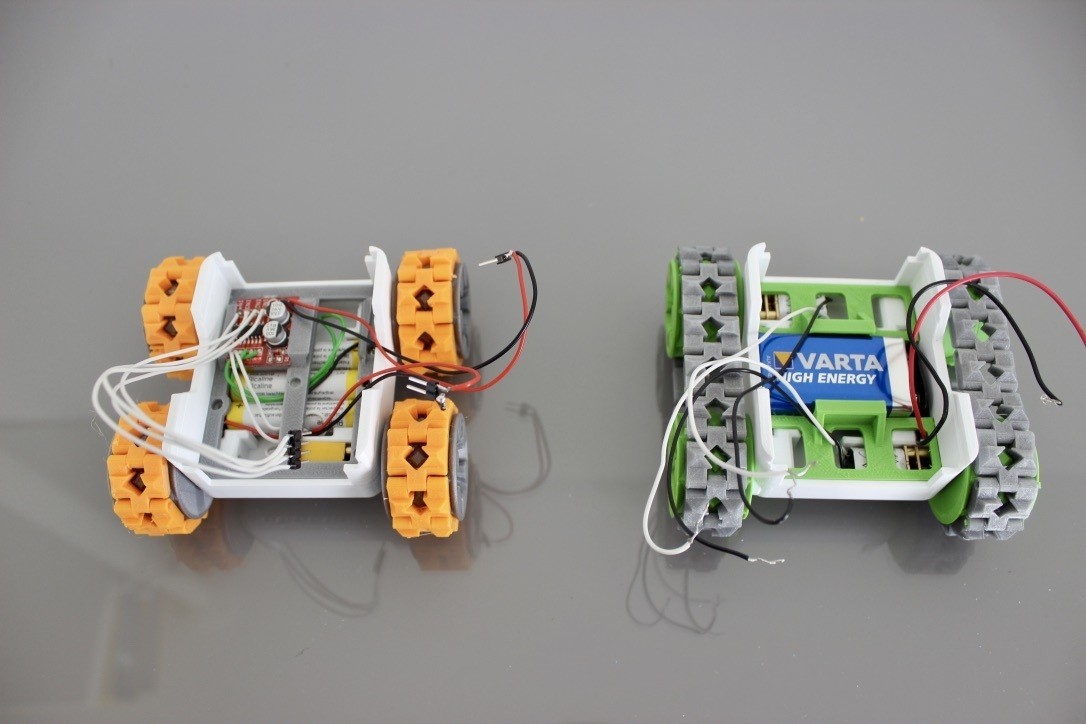

This mod allows you to mount 3x 3A batteries instead of the regular 9V battery. there is also enough place to mount a small motor driver and reduce the amount of shields on the Arduino.

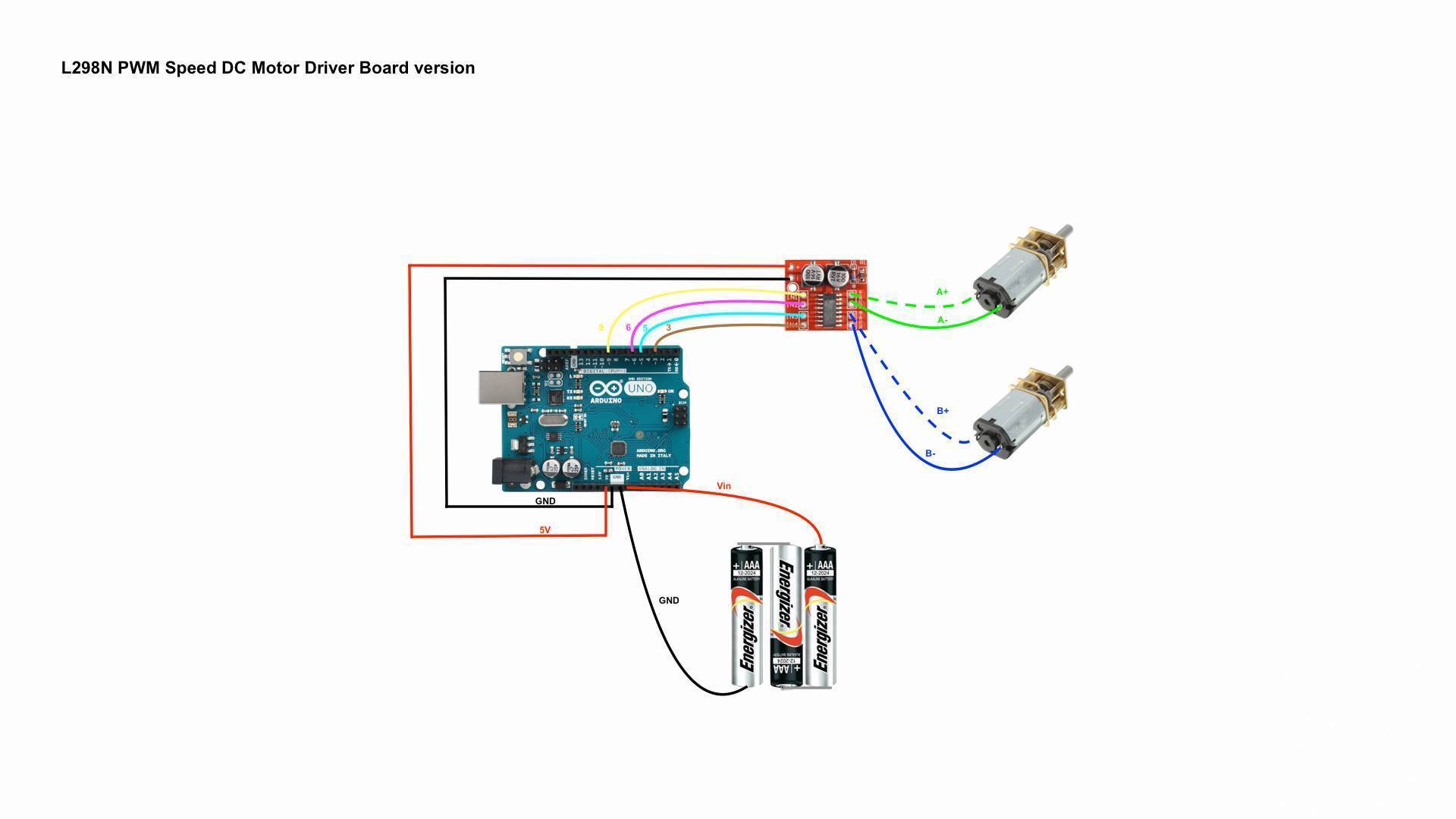

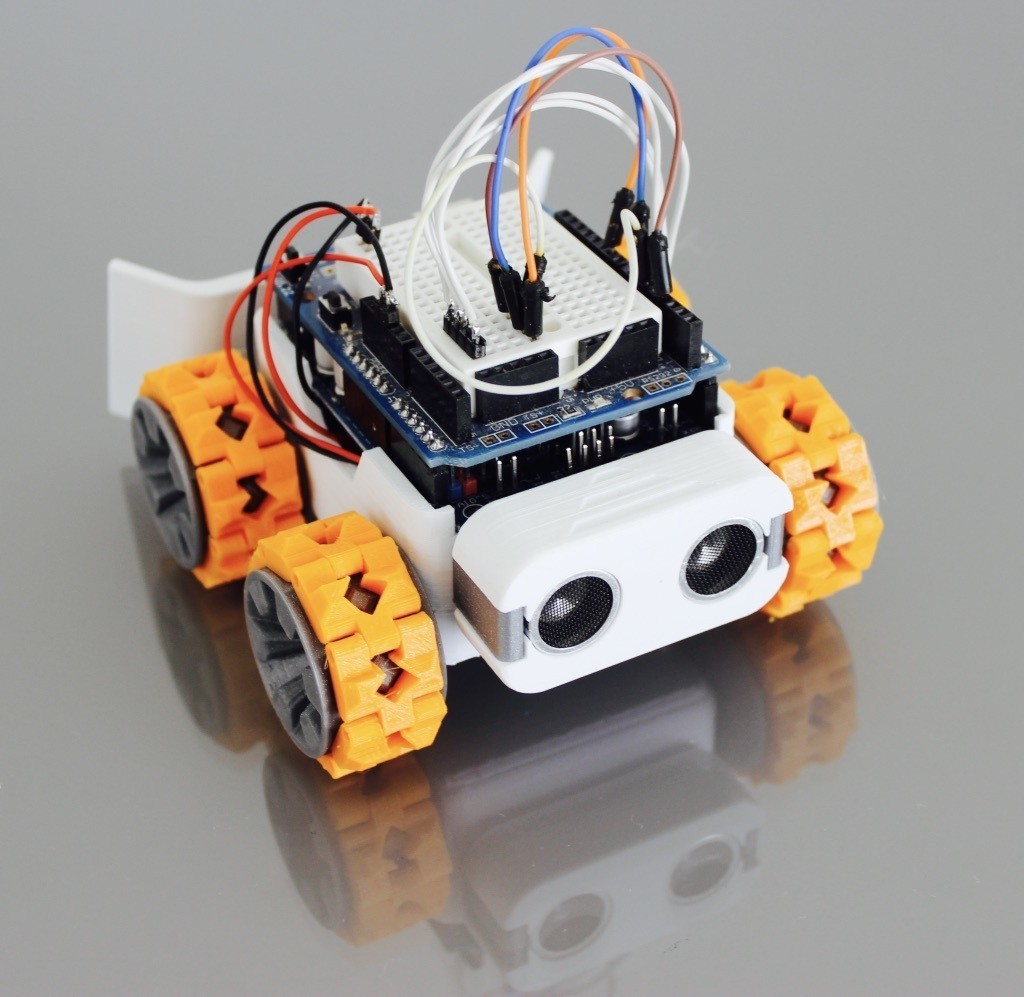

The model is designed to fit this motor driver: https://goo.gl/v8ADzU

you will need some Prong Fastener (like these ones https://goo.gl/KCKwi9)

3D printing settings

0.2mm
20% infill
no supports

  • 3D file format: STL
  • Last update: 2018/01/19 at 18:42
  • Publication date: 2017/11/22 at 18:24

Tags

Creator

Designs 62
Downloads 9.9k
Sales US$1,533
Followers 318

Just a dude who loves CAD & 3D printing.
If you like my projects, support me buying the material from my links, it will not cost you extra money and you will allow me to finance new projects! I would really appreciate it!
Amazon fr https://amzn.to/2A5jITV
amazon US https://amzn.to/2rFmmv5
amazon UK https://amzn.to/2A09jbV
amazon IT https://amzn.to/2QXEoH8
Aliexpress http://s.click.aliexpress.com/e/RnNUBUk

License

CC BY NC SA

Collection associated with this 3D model


Best sellers of the category Gadget


Add a comment

3 comments

Hallo and thanks,
I see the pics now.

Hello and thanks!

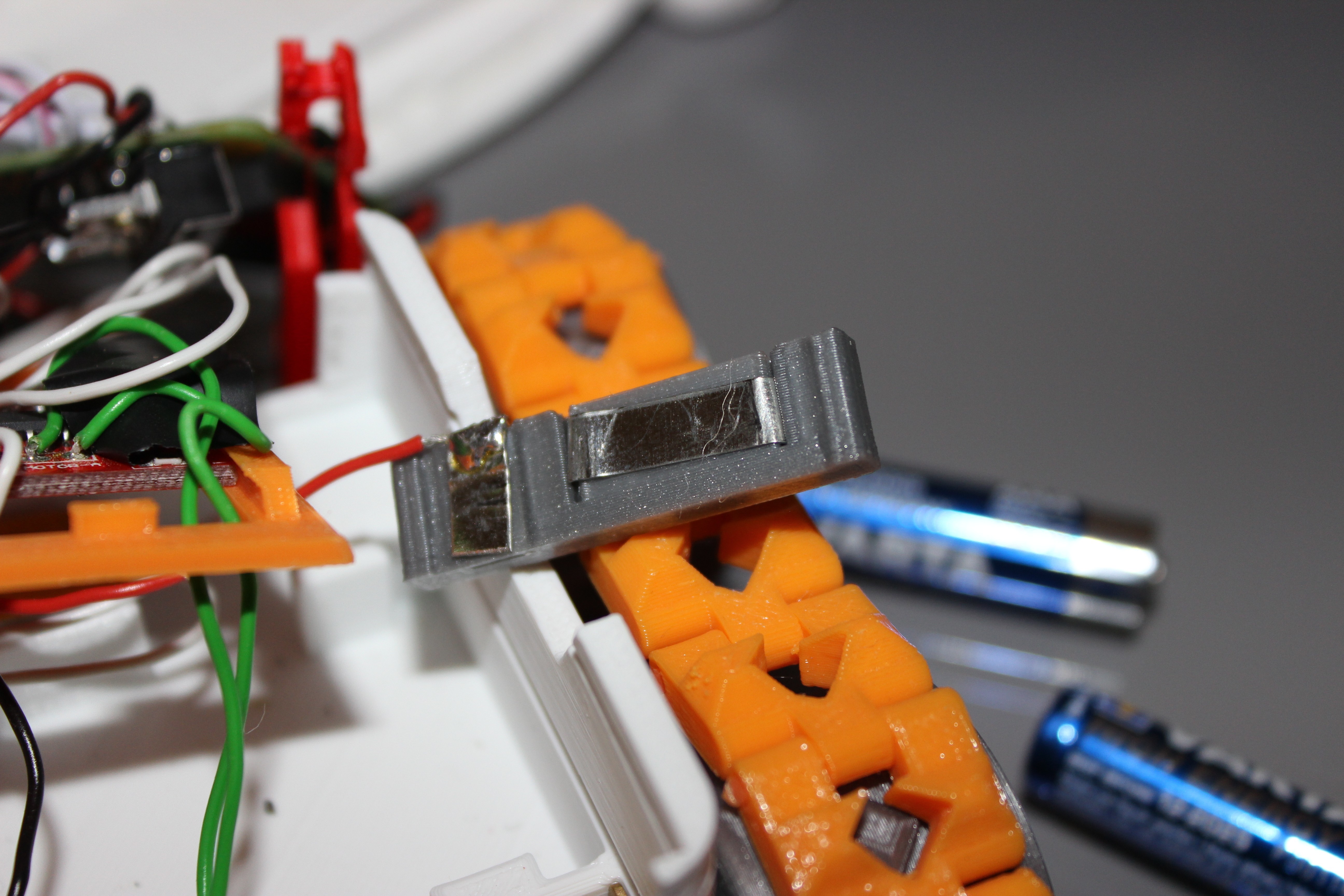

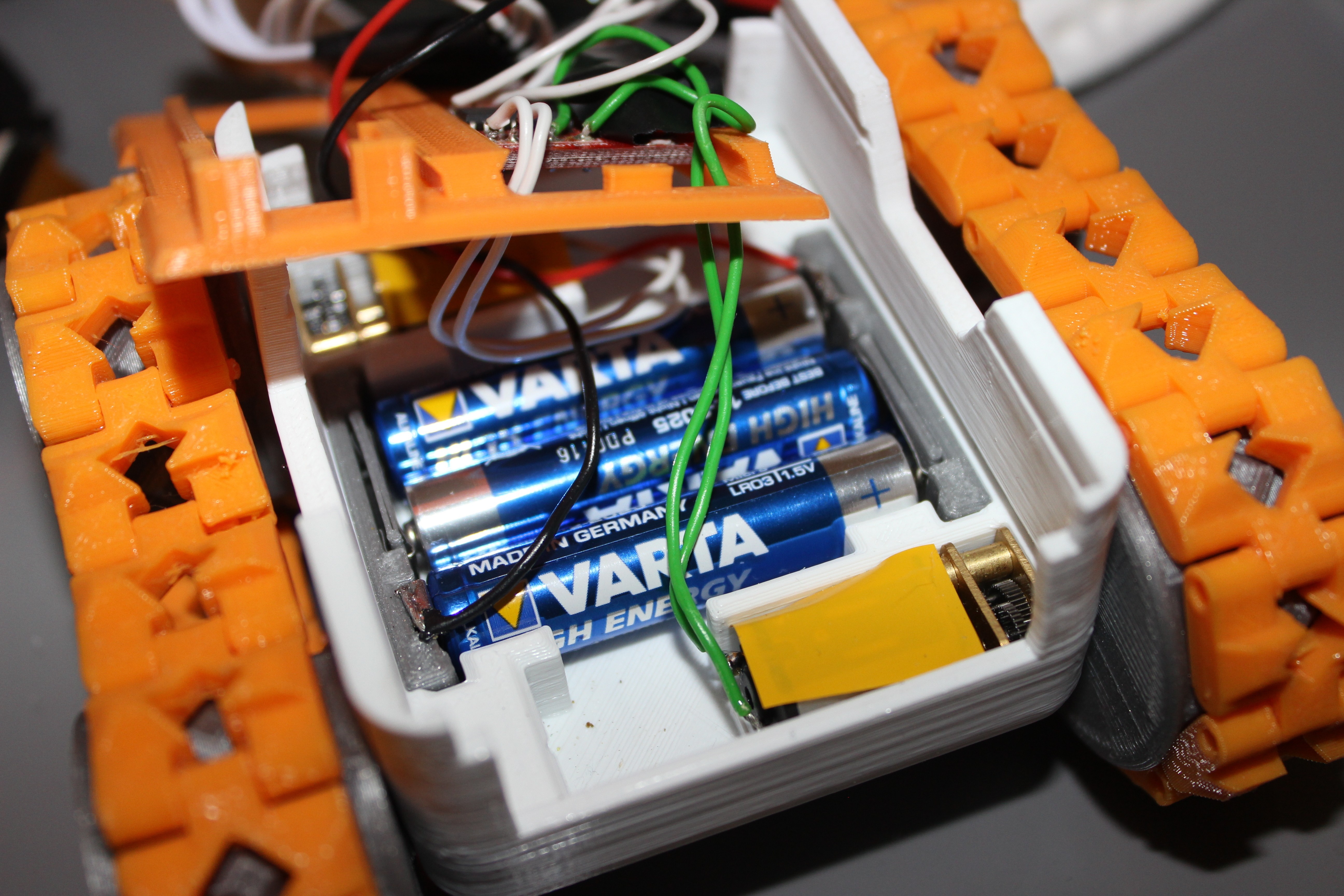

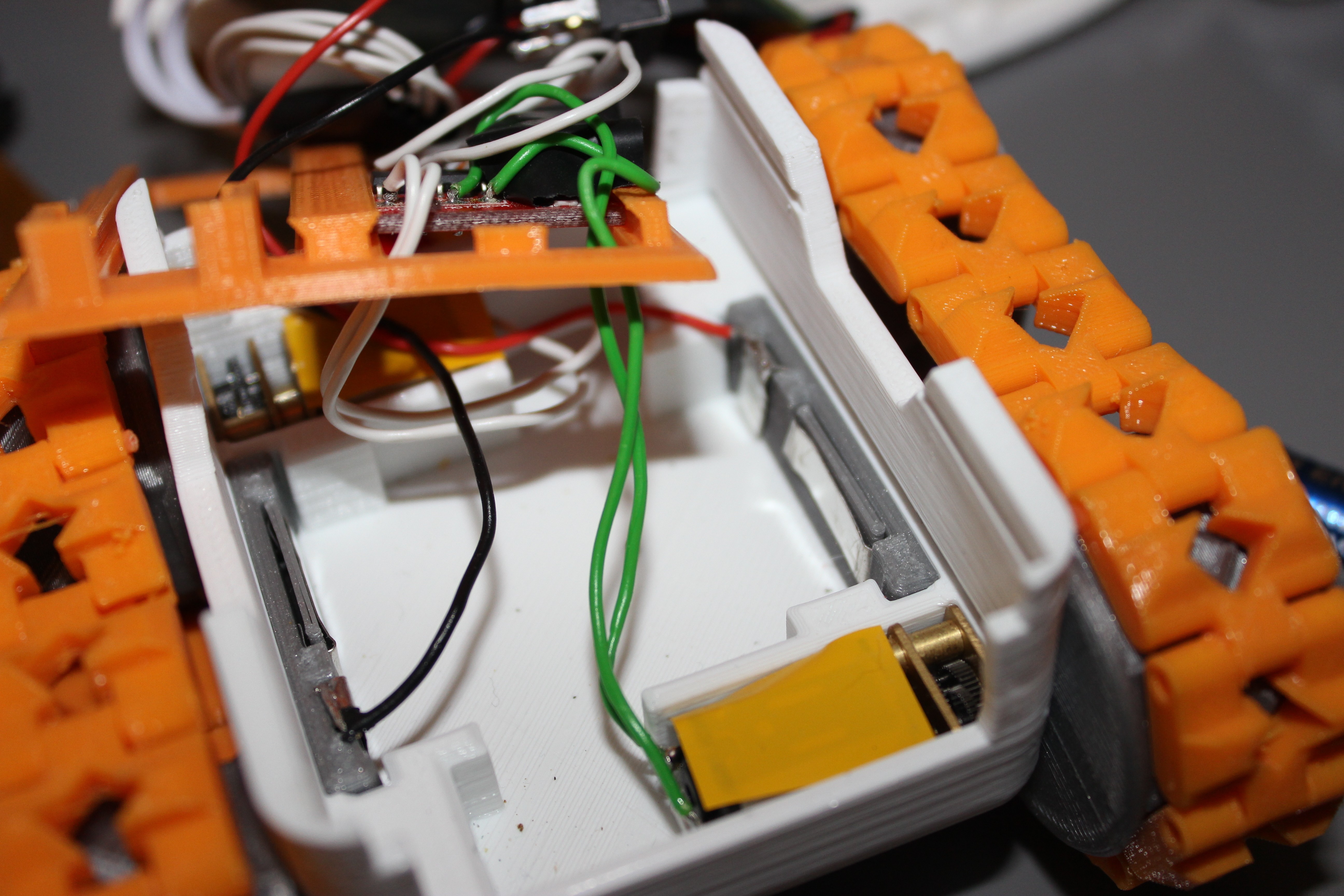

The holding board is a new version, I had a switch mount (if you want to use it, you have to mount the back cover of the SMARS Zero on one of the slots) and a bigger sled, so you can mount the lipo charger and a booster (so you have 5V on the board instead of 3.7V). Yes, you have to print two of the "battery adapter.stl" and you have to cut some pieces of the Prong Fasteners and make a jump between the 2 vertical lines and insert one piece in the horizontal one. In this way you connect the 3 batteries in series. This weekend I'll upload a detail picture of it.
