2020 Extrusion Corner Camera Mount
:still():format(webp)/https://files.cults3d.com/uploaders/15628596/illustration-file/282df73a-09a9-470f-bcd7-4333c6f4ab22/IMG_20200815_102157.jpg)
/https://preview3d-images.cults3d.com/variants/huk298umklebxhvswoqrfkjpu0uj/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
/https://preview3d-images.cults3d.com/variants/jdech0hr05o0m4u64mk9qtew8ewh/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
/https://preview3d-images.cults3d.com/variants/b0gzub8lk4mw65yijhbu0c805fob/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
/https://preview3d-images.cults3d.com/variants/s02qz1xe6hwmghb7sbvqz9563xjw/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
/https://preview3d-images.cults3d.com/variants/bcgrq7aijdk5g9si0imjlp8fe9d1/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
/https://preview3d-images.cults3d.com/variants/x3k3bge801wm4pv2u91tlvk8xyzs/848ec152657411c3fb217bef17c5a518f412feacc875ce6f22e14239149a46cd)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 1.5k views
- 2 likes
- 11 downloads
- 0 comments
- 0 makes
Designer
3D model description

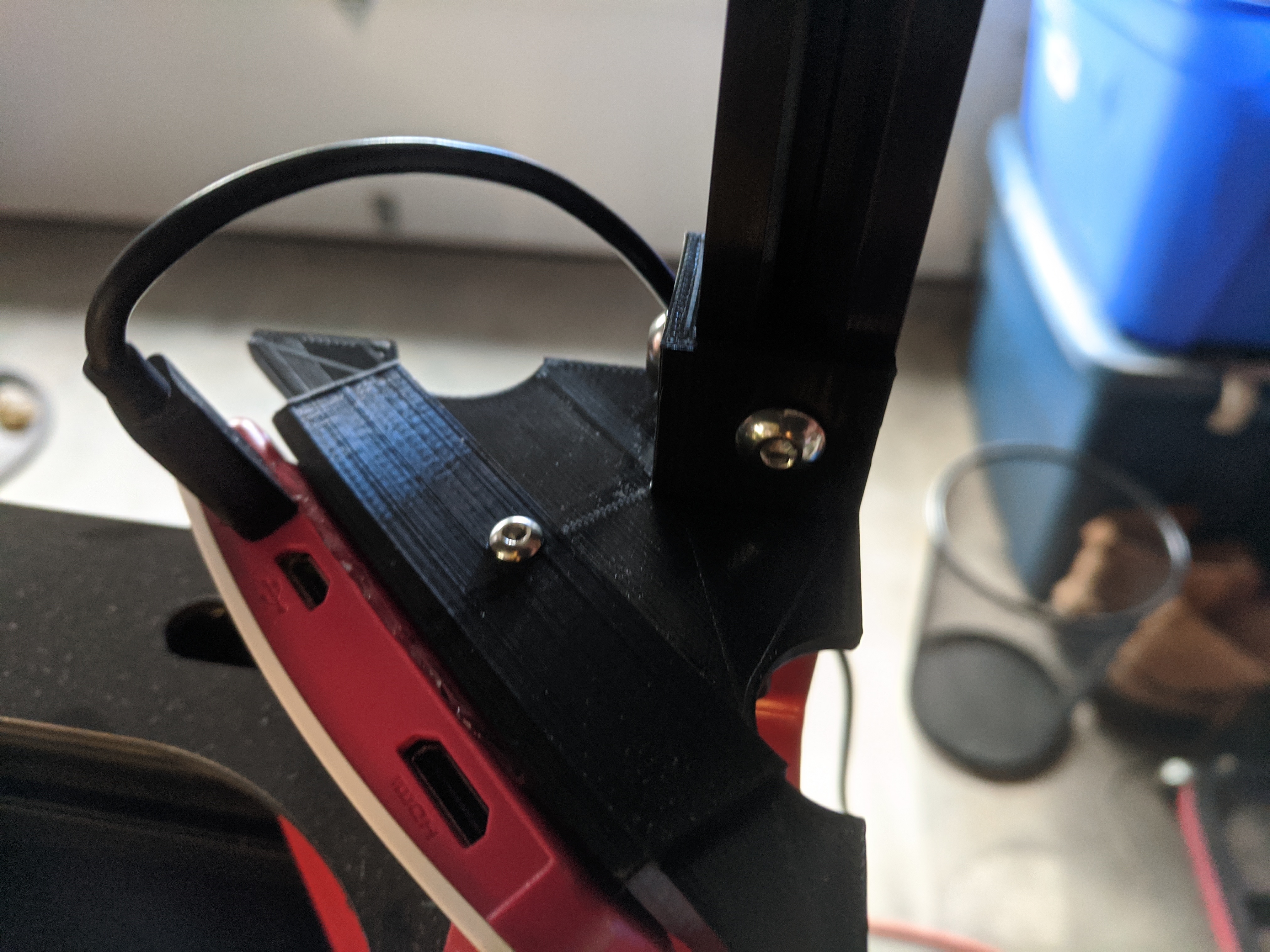

A 2020 aluminum extrusion corner mounting bracket for a camera, light or other instrument. The mount attaches with 2 2020 T-nuts and 5m x 8mm bolts. The angled instrument mounts onto the corner bracket with an m3 or m4 bolt and nut. Has holes for cable management. A raspberry pi or other instrument can then be mounted via double sided tape. I used 15lb 3M double-sided tape.
3D printing settings
20%+ infill for strength, any material
3D printer file information
- Design number: 185635
-
3D design format: SCAD and STL Folder details Close
- cam_mount_2020.scad
- cam_mount_2020_10deg.stl
- cam_mount_2020_15deg.stl
- cam_mount_2020_20deg.stl
- cam_mount_2020_25deg.stl
- cam_mount_2020_30deg.stl
- raspi_corner_2020_mount.scad
- raspi_corner_2020_mount.stl
- Publication date: 2020-08-15 at 23:41
