Watch Winder / Remontoir Montre

?
Creation's quality: 4.9/5 (6 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 33.2k views
  • 91 likes
  • 114 downloads

3D model description

https://www.youtube.com/watch?v=PRbsBJhiDHY

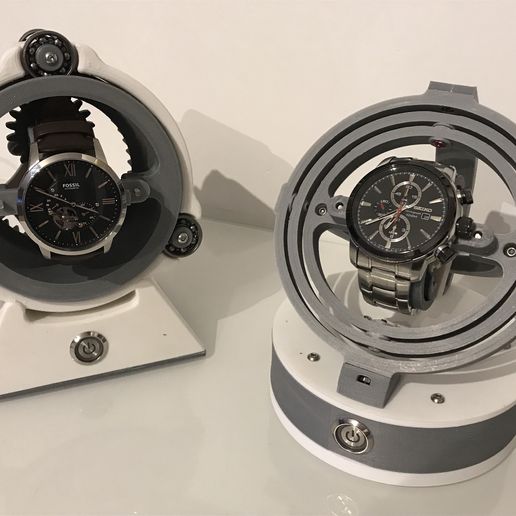

Other Model:

https://cults3d.com/en/3d-model/fashion/gyro-winder-watch-winder-remontoir-montre

Attention this model does not work for all types of mechanisms the most greedy mechanisms will not recharge.

FR:

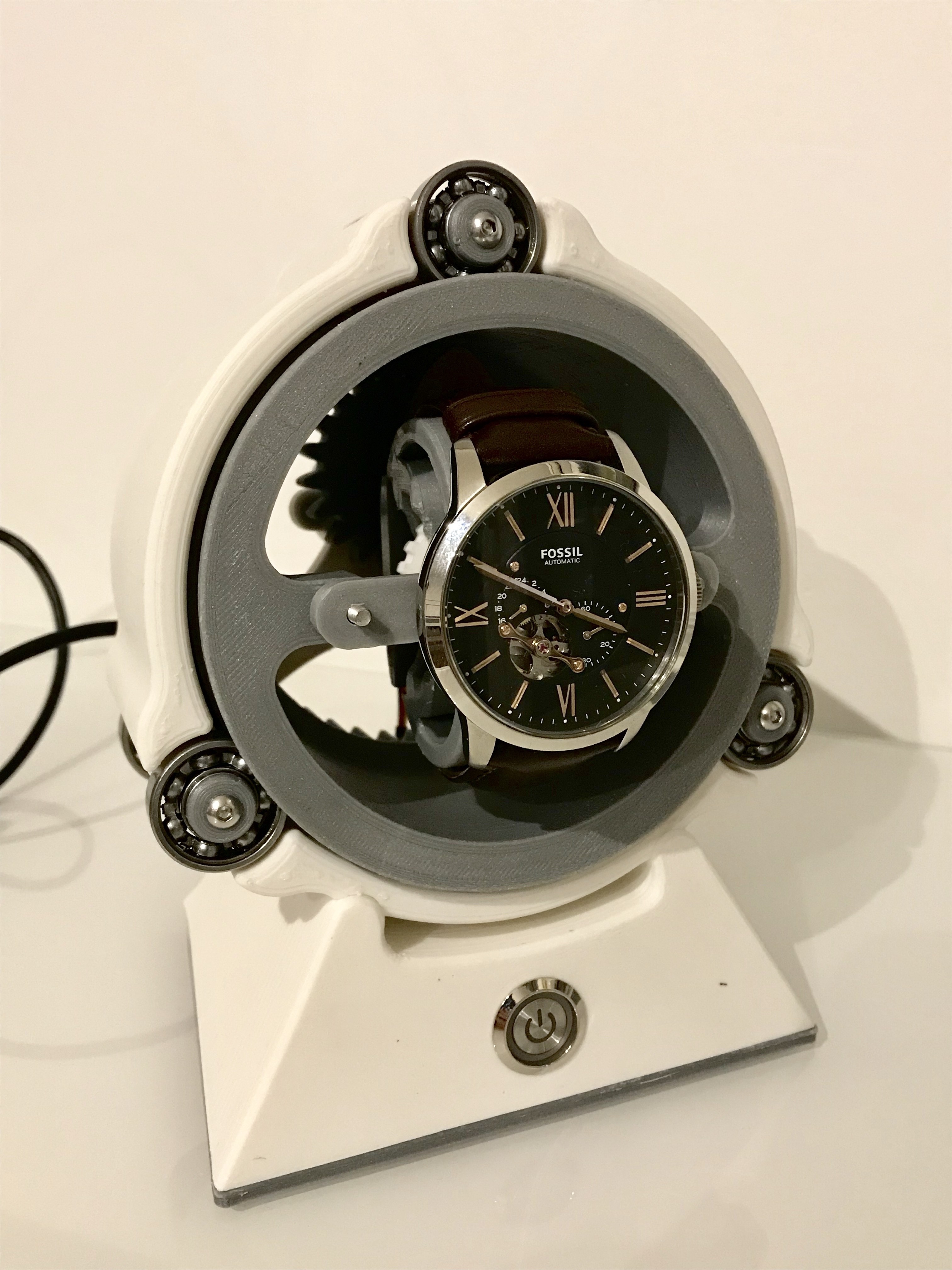

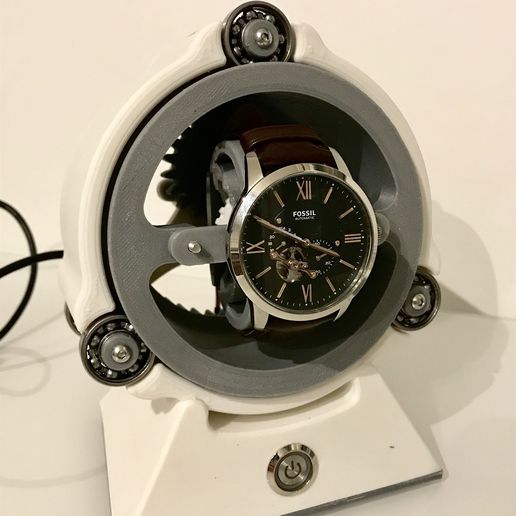

Winder for Automatic Watch (Mechanical)

-Compose 3D printed part

-The program of the arduino is provided

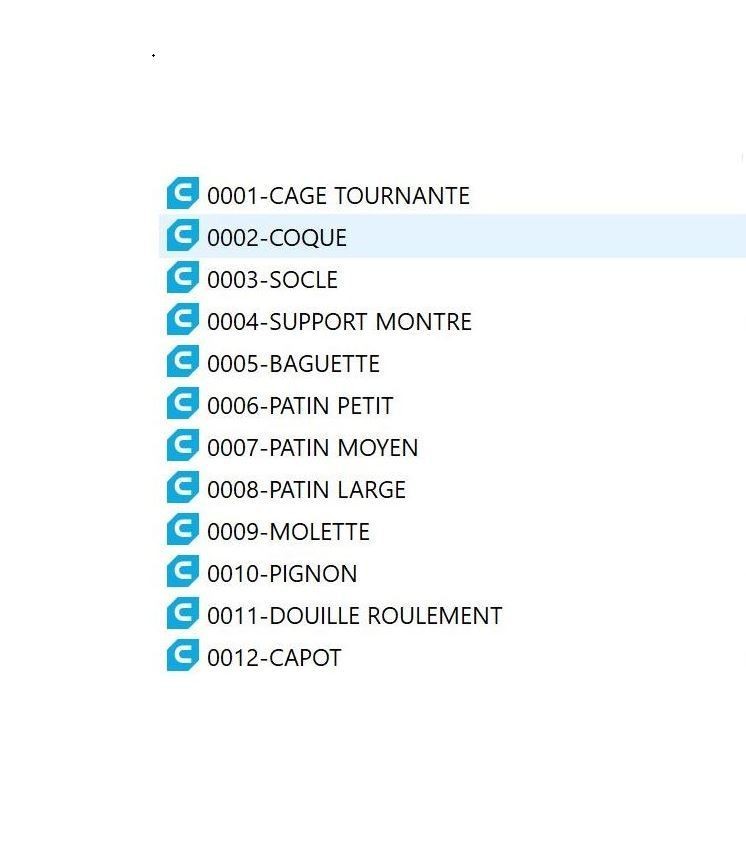

-Assembly drawing and parts list

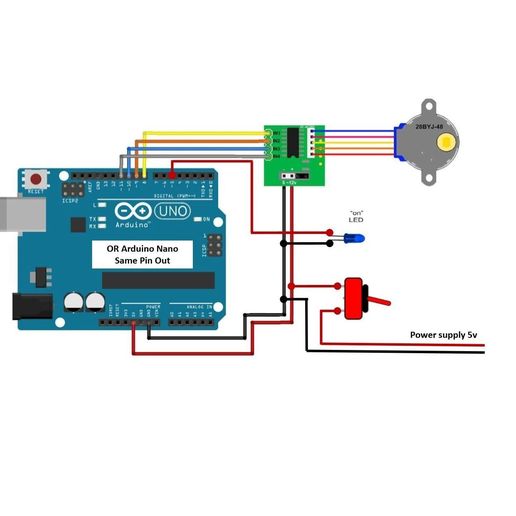

-Wiring shema.

-Bearing 608


5V power supply (USB or other phone charger on a transformer of at least 1A preferably)

Please note that this model requires a well-tuned machine that makes well rounded rounds, otherwise the system may have problems turning correctly.

Tested model made in ABS, possibility to make it in PETG or PLA

please note that the nuts are to be inserted the dimensions of the holes are deliberately enlarged from 5,5 to 5,7mm to facilitate the assembly even on machines with small defaults.


EN:



5V power supply (USB or other smartphone charger of at least 1A preferably)

Please note that this model requires a well-tuned machine that achieves a round well round otherwise the system may have problems to run properly.

Model tested realized in ABS, possibility to realize it in PETG or PLA

please note that the nuts are to insert the dimensions of the holes are voluntarily enlarged from 5.5 to 5.7mm to facilitate mounting even on machines with small default

3D printing settings

ABS, PETG or PLA 4 contour 5 top 25% filling

ABS, PETG or PLA 4 perimeter 5 top Filling 25%.

  • 3D file format: ZIP
  • Last update: 2021/01/24 at 10:19
  • Publication date: 2018/12/08 at 22:28

Copyright

©

Tags

Creator

Designs 55
Downloads 1.8k
Sales US$4,864
Followers 161

Bruno ESGULIAN from Marseille.

Printers: Hypercube Ngen
Design Programs: CATIA

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Fashion


Add a comment

9 comments

Hi,

which switch was used?
Because then I would also install it.

Thank you.

greeting

Chris

Hello Product item. did you selling the item and if you do how much? and I am from USA and I am new and do not have the 3D printer yet just want to buy the finish item. please let me know. thank you

I send you o privet message on FB

Hi @ BLS ! indeed we have noticed the problem. I corrected the archive, contact me on facebook bruno esgulian or mail Bruno.esgulian@me.com I do not like the file stl defectueux

Hi, im in progress but file 0006-PATIN PETIT doesnt work. I cant open it and print it. What is it and how can I get a new file ?

Bonjour, c'est un Diam 16mm

Bonjour, quel est le diamètre de l'interrupteur à prévoir stp?

It looks amazing. I'm going to print it soon :)
